| Manufacturer | FPT |
|---|---|
| Model | AREA EV |
| Year | 2005 |
| Location | Netherlands
|
This listing features a large FPT AREA EV CNC bed type milling machine, manufactured in 2005. The machine measures 24,000 mm in length, 6,500 mm in width, and 6,500 mm in height, providing a substantial working envelope. It is equipped with a worktable measuring 4,000 mm by 1,875 mm, suitable for handling large and heavy workpieces. The machine's X, Y, and Z axes travel distances are 16,000 mm, 3,500 mm, and 1,500 mm respectively, allowing for extensive machining capabilities.
The milling machine is powered by an 80 kW spindle motor capable of reaching speeds up to 4,000 rpm. The spindle taper is SK59 ISO/Bt/Mk, supporting a variety of tooling options. Feed rates for the X, Y, and Z axes are all rated at 25,000 mm/min, enabling efficient material removal. The milling head features auto-indexing with 2.5° increments on two axes (A and C), providing precise angular positioning.
Additional features include a TUPC CNC Indexing Micro Head, an internal coolant system (CTS), and a chain tool changer (ATC) with 60 positions for automated tool handling. The machine utilizes hydrostatic guideways for smooth and accurate motion. Optional T-slotted floorplates are available in sizes 5,600 x 1,875 mm (two units) and 4,000 x 1,875 mm.

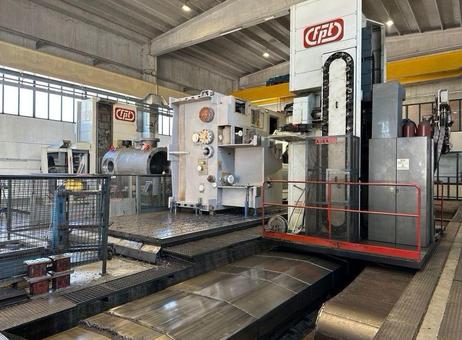

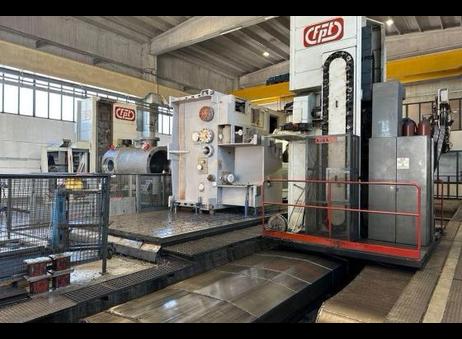

The machine is housed in an industrial workshop environment and appears clean and well-maintained with no visible rust or damage. It has a metal worktable and a vertical milling head surrounded by a red safety railing. A control panel is mounted on the side, and warning labels and safety signs are visible on the machine structure. Large metal workpieces or fixtures are currently mounted on the machine bed, indicating readiness for heavy-duty machining tasks.
This FPT AREA EV CNC milling machine is suitable for demanding industrial applications requiring high precision and large machining capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Head Pick up Station
TUPC CNC Indexing Micro Head
A-Axis 360.000 x 0,001 Gr
C-Axis 360.000 x 0,001 Gr
SELS Spindle extionsion L=500 mm
CTS Internal coolant system
ATC Chain Tool changer 60 Positions
Hydrostatic guideways
Optional T Slotted floorplates 5600 x 1875 (2x) + 4000 x 1875 mm
X-Axis
16.000 mm
Y-Axis
3.500 mm
Z-Axis
1.500 mm
Power on spindle
80 kW
Spindle speeds
4000 Rpm
Spindle Taper
Sk59 ISO/Bt/Mk
Feed rate X-Axis
25000 mm/min.
Feed rate Y-Axis
25000 mm/min.
Feed rate Z-Axis
25000 mm/min.
Millinghead auto-index
2.5 x 2.5 °
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 300 |
| Last activity | Oct. 29, 2026 |
Head Pick up Station
TUPC CNC Indexing Micro Head
A-Axis 360.000 x 0,001 Gr
C-Axis 360.000 x 0,001 Gr
SELS Spindle extionsion L=500 mm
CTS Internal coolant system
ATC Chain Tool changer 60 Positions
Hydrostatic guideways
Optional T Slotted floorplates 5600 x 1875 (2x) + 4000 x 1875 mm
X-Axis
16.000 mm
Y-Axis
3.500 mm
Z-Axis
1.500 mm
Power on spindle
80 kW
Spindle speeds
4000 Rpm
Spindle Taper
Sk59 ISO/Bt/Mk
Feed rate X-Axis
25000 mm/min.
Feed rate Y-Axis
25000 mm/min.
Feed rate Z-Axis
25000 mm/min.
Millinghead auto-index
2.5 x 2.5 °
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a large FPT AREA EV CNC bed type milling machine, manufactured in 2005. The machine measures 24,000 mm in length, 6,500 mm in width, and 6,500 mm in height, providing a substantial working envelope. It is equipped with a worktable measuring 4,000 mm by 1,875 mm, suitable for handling large and heavy workpieces. The machine's X, Y, and Z axes travel distances are 16,000 mm, 3,500 mm, and 1,500 mm respectively, allowing for extensive machining capabilities.
The milling machine is powered by an 80 kW spindle motor capable of reaching speeds up to 4,000 rpm. The spindle taper is SK59 ISO/Bt/Mk, supporting a variety of tooling options. Feed rates for the X, Y, and Z axes are all rated at 25,000 mm/min, enabling efficient material removal. The milling head features auto-indexing with 2.5° increments on two axes (A and C), providing precise angular positioning.
Additional features include a TUPC CNC Indexing Micro Head, an internal coolant system (CTS), and a chain tool changer (ATC) with 60 positions for automated tool handling. The machine utilizes hydrostatic guideways for smooth and accurate motion. Optional T-slotted floorplates are available in sizes 5,600 x 1,875 mm (two units) and 4,000 x 1,875 mm.
The machine is housed in an industrial workshop environment and appears clean and well-maintained with no visible rust or damage. It has a metal worktable and a vertical milling head surrounded by a red safety railing. A control panel is mounted on the side, and warning labels and safety signs are visible on the machine structure. Large metal workpieces or fixtures are currently mounted on the machine bed, indicating readiness for heavy-duty machining tasks.
This FPT AREA EV CNC milling machine is suitable for demanding industrial applications requiring high precision and large machining capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
