| Manufacturer | FORADIA |
|---|---|
| Model | GK-50/1500 |
| Year | |
| Location | Spain
|
| Category | Drilling - radial drilling machines |
| Drilling Ø | 50 mm |
| Spindle speed | 1460 rpm |
| Spindle taper | |
| Engine Power | 2.60999 kW |
| Weight | 3000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 27/04/2026 |
| Product id | P230921155 |
| Language |
FORADIA GK-50/1500
Radiální vrtačka FORADIA GK-50/1500
FORADIA GK-50/1500
FORADIA GK-50/1500 Radialbohrmaschine
FORADIA GK-50/1500
FORADIA GK-50/1500 Radial drilling machine
Taladro radial FORADIA GK-50/1500
Perceuse radiale FORADIA GK-50/1500
FORADIA GK-50/1500
FORADIA GK-50/1500
Trapano radiale FORADIA GK-50/1500
FORADIA GK-50/1500
FORADIA GK-50/1500
Wiertarka promieniowa FORADIA GK-50/1500
Furadeira radial FORADIA GK-50/1500
FORADIA GK-50/1500
FORADIA GK-50/1500 Радиально-сверлильный станок
FORADIA GK-50/1500
FORADIA GK-50/1500
Radyal matkap makinesi FORADIA GK-50/1500
|

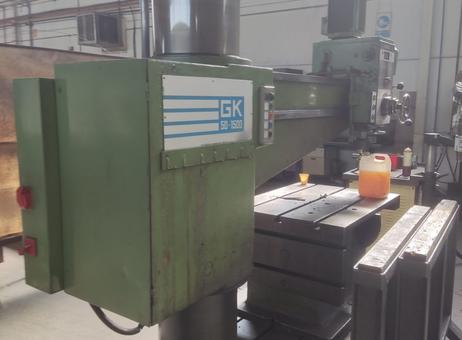

This FORADIA GK-50/1500 radial drilling machine is designed for versatility and precision in drilling operations. It features a robust vertical column with a diameter of 350 mm, supporting a horizontal arm that extends a useful length of 1500 mm from the column edge, allowing for a maximum spindle-base distance of 1300 mm. The machine is capable of drilling holes up to 50 mm in diameter, making it suitable for a range of medium-sized drilling tasks.
The spindle is equipped with a motor delivering approximately 2.61 kW (3.5 HP) of power, driving the spindle at speeds ranging from 35 to 1460 rpm across 12 selectable speed settings. This range allows for adaptability to different materials and drilling requirements. The spindle utilizes a Morse taper No. 4 for tool holding.
The machine offers six different feed advances, with feed rates adjustable between 0.05 and 0.35 mm per revolution, enabling precise control over the drilling process. Included with the machine is a cubic table featuring T-slots, which facilitates secure mounting of workpieces and fixtures.
Additional features include an automatic column lock mechanism and a cart, enhancing operational convenience and safety. The total weight of the machine is approximately 3000 kg, reflecting its sturdy construction.
The machine shows signs of use, with some stains and wear marks visible on the column and base, indicating it has been previously operated but does not provide information on its current working condition. On the worktable, there is a plastic container and a small cup, which are not part of the machine but were present during inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Ø Maximum Drilling 50mm
Column Diameter 350mm
Useful arm from column edge 1500mm
Maximum spindle-base distance 1300mm
Morse taper No. 4
Spindle Motor 3.5 HP
No. of Speeds 12 Speeds
rpm range 35-1460rpm
Number of Advances 6 Advances
Range of Advances 0.05 – 0.35mm/rpm
Cubic Table INCLUDED
Automatic Colunma Lock + Cart INCLUDING
Machine Weight 3000 Kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 104 |
| Last activity | Oct. 29, 2026 |
Ø Maximum Drilling 50mm
Column Diameter 350mm
Useful arm from column edge 1500mm
Maximum spindle-base distance 1300mm
Morse taper No. 4
Spindle Motor 3.5 HP
No. of Speeds 12 Speeds
rpm range 35-1460rpm
Number of Advances 6 Advances
Range of Advances 0.05 – 0.35mm/rpm
Cubic Table INCLUDED
Automatic Colunma Lock + Cart INCLUDING
Machine Weight 3000 Kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
