| Manufacturer | Filterine |
|---|---|
| Model | PB-750A |
| Year | |
| Location | USA
|
Filterine PB-750A batch draw chiller with an IL30-SF UV water sanitizer. The unit is described as designed for batch cooling during batch mixing and has a welded stainless-steel cooling tank with a stated capacity of 160 gallons. The listed capacity per hour, based on 80°F make-up water and 34°F ingredient water, is 108 gallons for one batch, 54 gallons for two, 36 gallons for three, 27 gallons for four, 22 gallons for five, 18 gallons for six, and 15 gallons for seven. The stated water discharge temperature is 34°F, with an ambient temperature of 90°F. The thermostat range is adjustable from 34°F to 90°F, and stated temperature stability is +/- 1.5°F.

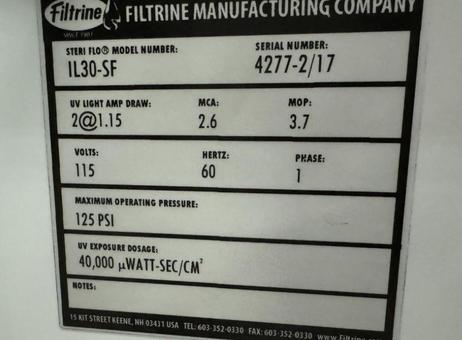

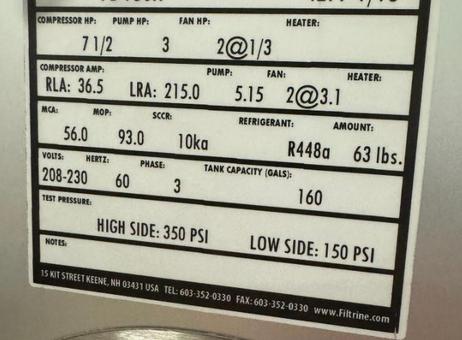

The description lists a 7.5 HP compressor, a 3 HP pump, and a pump capacity of 25 GPM at 35 PSI. The chiller is specified for 208/230 V, 60 Hz, three-phase power. The included IL30-SF water sanitizer is listed with a UV exposure dosage of 40,000 Watt-SEC/CM² and 115 V, 60 Hz, single-phase power. Listed working pressure: 35.0 bar.

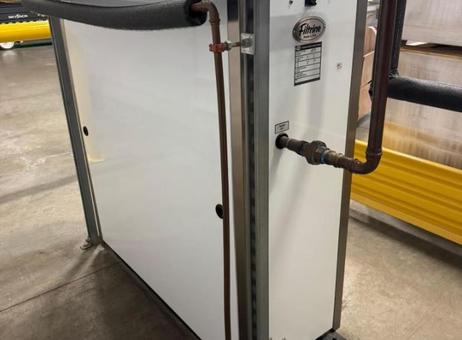

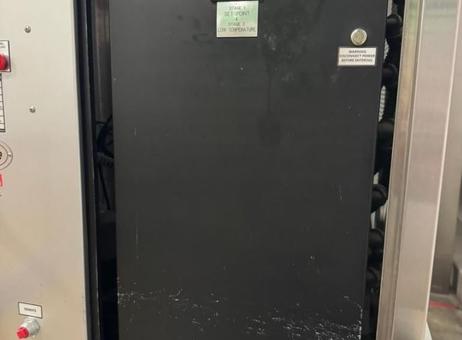

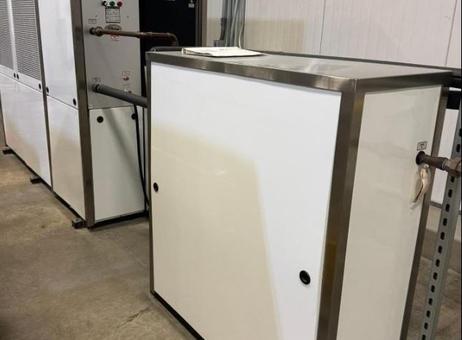

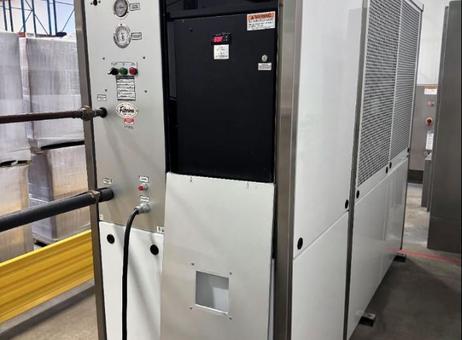

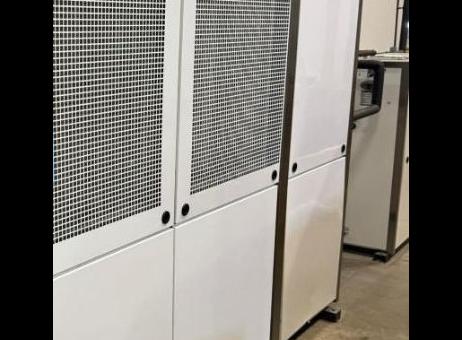

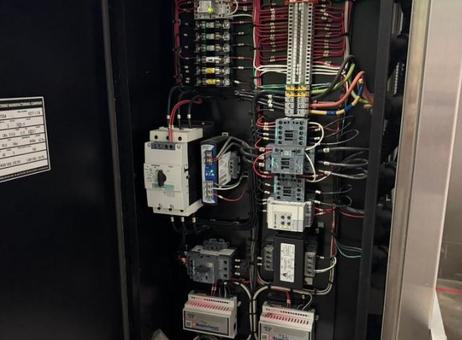

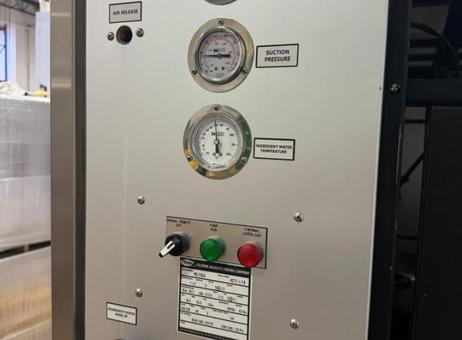

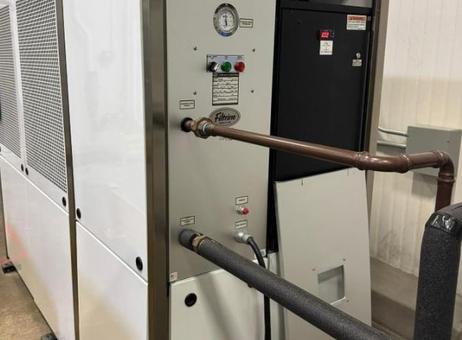

The white cabinet has side ventilation grilles, front-mounted pressure and temperature gauges, control buttons, and pipe connections; external hoses and piping are also present. A front access panel is detached and leaning against the unit. The open electrical cabinet exposes wiring and electrical components, and the control panel has visible scuffs, scratches, and a crack-like mark. Electrical components are exposed when the cabinet is open. No operating condition is stated.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Filtrine Batch Draw Chiller With UV Water Steralizer, Model: PB-750 A. Batch Cooling For Batch Mixing. Welded Stainless Stainless Steel Cooling Tank. Cooling Tank Capacity: 160 Gallons. Capacity Per Hour Based On 80°F Make Up Water And 34°F Ingredient Water: 1) 108 Gallons, 2) 54 Gallons, 3) 36 Gallons, 4) 27 Gallons, 5) 22 Gallons, 6) 18 Gallons, 7) 15 Gallons. Water Discharge Temp: 34°F. Ambient Temp: 90°F. Compressor HP: 7.5. Pump HP: 3. Pump Capacity: 25 GPM @ 35 PSI. Thermostat Range Adjustable From: 34°F – 90°F. Temp Stability: +/- 1.5°F. O.A. Dims: 102″W x 39″D x 80″H. 208/230V 60Hz 3Ph. With IL30-SF Water Sanitizer: Model: IL30-SF, , UV Exposure Dosage: 40,000 Watt-SEC/CM², 115V 60Hz 1Ph.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 93 |
| Last activity | Oct. 29, 2026 |
Filtrine Batch Draw Chiller With UV Water Steralizer, Model: PB-750 A. Batch Cooling For Batch Mixing. Welded Stainless Stainless Steel Cooling Tank. Cooling Tank Capacity: 160 Gallons. Capacity Per Hour Based On 80°F Make Up Water And 34°F Ingredient Water: 1) 108 Gallons, 2) 54 Gallons, 3) 36 Gallons, 4) 27 Gallons, 5) 22 Gallons, 6) 18 Gallons, 7) 15 Gallons. Water Discharge Temp: 34°F. Ambient Temp: 90°F. Compressor HP: 7.5. Pump HP: 3. Pump Capacity: 25 GPM @ 35 PSI. Thermostat Range Adjustable From: 34°F – 90°F. Temp Stability: +/- 1.5°F. O.A. Dims: 102″W x 39″D x 80″H. 208/230V 60Hz 3Ph. With IL30-SF Water Sanitizer: Model: IL30-SF, , UV Exposure Dosage: 40,000 Watt-SEC/CM², 115V 60Hz 1Ph.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Filterine PB-750A batch draw chiller with an IL30-SF UV water sanitizer. The unit is described as designed for batch cooling during batch mixing and has a welded stainless-steel cooling tank with a stated capacity of 160 gallons. The listed capacity per hour, based on 80°F make-up water and 34°F ingredient water, is 108 gallons for one batch, 54 gallons for two, 36 gallons for three, 27 gallons for four, 22 gallons for five, 18 gallons for six, and 15 gallons for seven. The stated water discharge temperature is 34°F, with an ambient temperature of 90°F. The thermostat range is adjustable from 34°F to 90°F, and stated temperature stability is +/- 1.5°F.
The description lists a 7.5 HP compressor, a 3 HP pump, and a pump capacity of 25 GPM at 35 PSI. The chiller is specified for 208/230 V, 60 Hz, three-phase power. The included IL30-SF water sanitizer is listed with a UV exposure dosage of 40,000 Watt-SEC/CM² and 115 V, 60 Hz, single-phase power. Listed working pressure: 35.0 bar.
The white cabinet has side ventilation grilles, front-mounted pressure and temperature gauges, control buttons, and pipe connections; external hoses and piping are also present. A front access panel is detached and leaning against the unit. The open electrical cabinet exposes wiring and electrical components, and the control panel has visible scuffs, scratches, and a crack-like mark. Electrical components are exposed when the cabinet is open. No operating condition is stated.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 93 |
| Last activity | Oct. 29, 2026 |
