Contact us to receive an offer.
| Manufacturer | Minimax |
|---|---|
| Model | t45c LL |
| Year | 2022 |
| Location | Germany
|
| Category | Moulders - Spindle moulding machines |
| Spindle Ø | 30 mm |
| Max. spindle speed | 10000 rpm |
| Engine power | 5 kW |
| Length x width x height | 2000.0 × 800.0 × 1800.0 |
| Weight | 328 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 28/10/2026 |
| Product id | P261028019 |
| Language |
Фреза с долен шпиндел Minimax t45c LL
Spodní frézka Minimax t45c LL
Minimax t45c LL Spindelfræser
Minimax t45c LL Tischfräse
Φρέζα με κάθετο άξονα Minimax t45c LL
Minimax t45c LL Spindle moulder
Tupí Minimax t45c LL
Toupie Minimax t45c LL
Donjovretena glodalica Minimax t45c LL
Minimax t45c LL Alsómaró
Toupie Minimax t45c LL
Minimax t45c LL Apatinio veleno frezavimo staklės
Minimax t45c LL Tafelfrees
Frezarka dolnowrzecionowa Minimax t45c LL
Tupia Minimax t45c LL
Mașină de frezat cu ax vertical Minimax t45c LL
Minimax t45c LL Фрезерный станок с нижним шпинделем
Donjovretena glodalica Minimax t45c LL
Minimax t45c LL Spindelfräs
Alt milli freze makinesi Minimax t45c LL
|

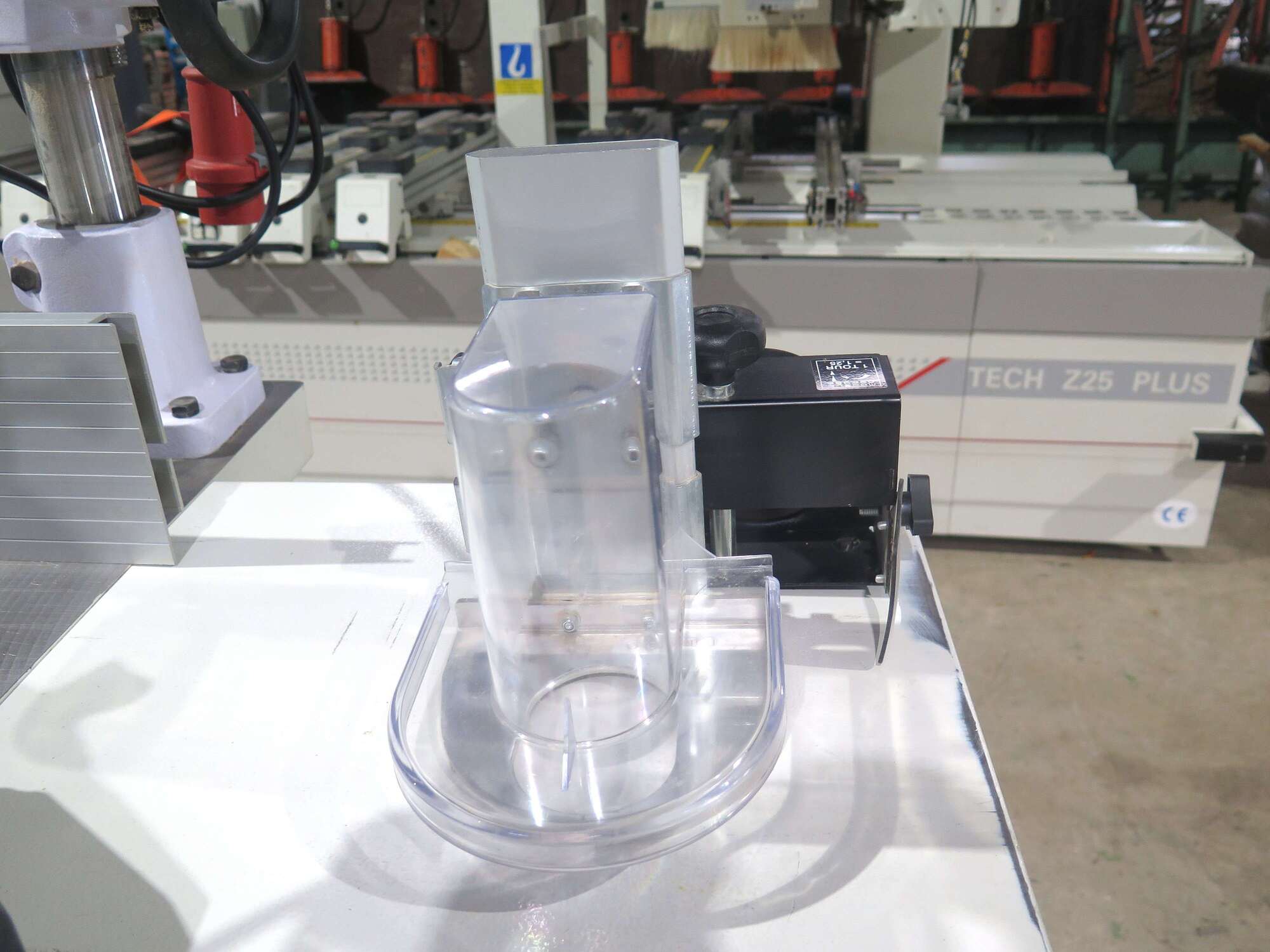

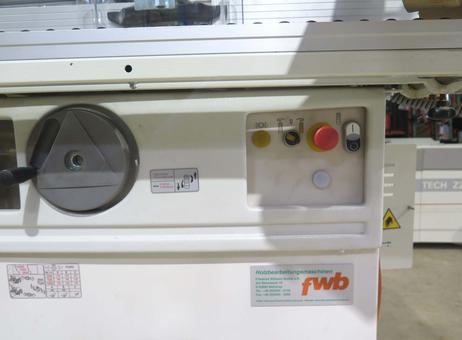

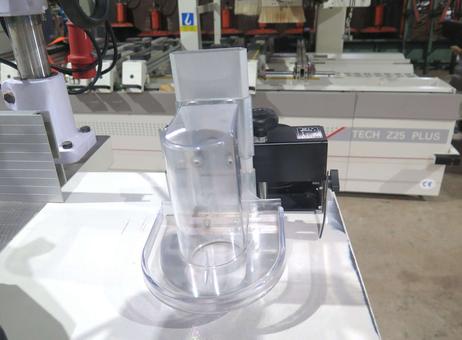

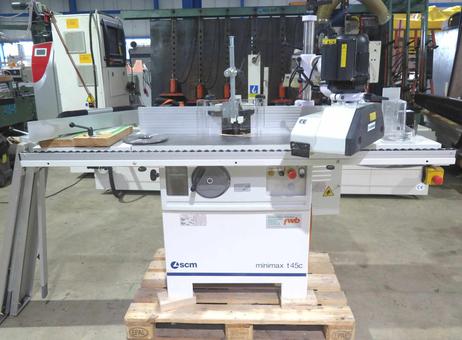

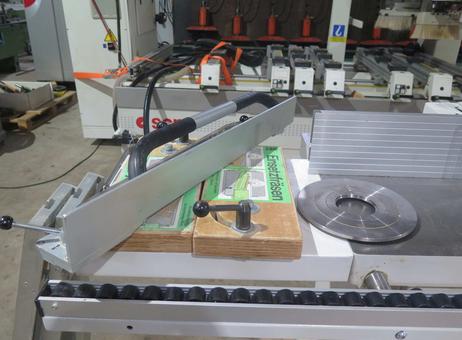

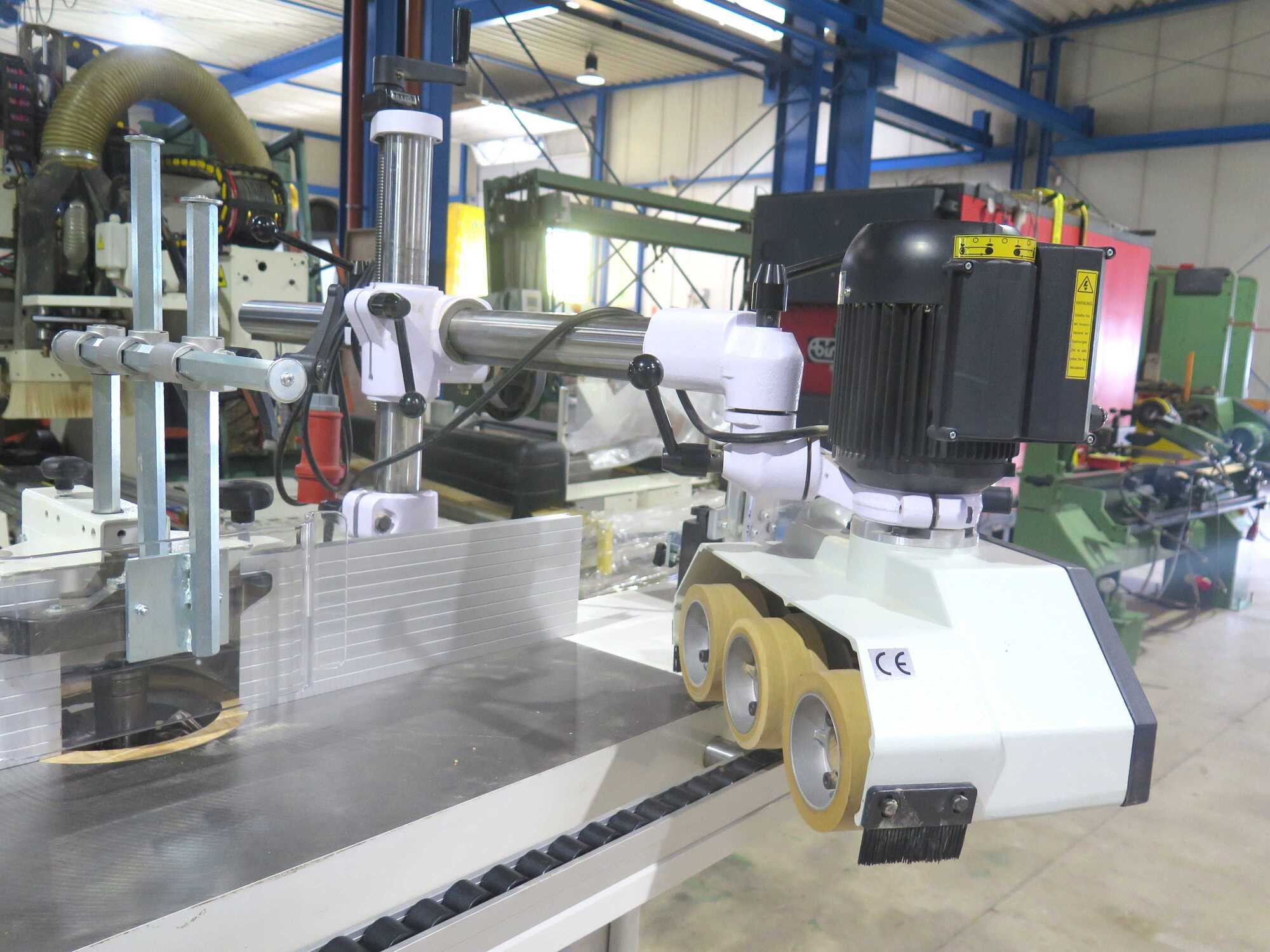

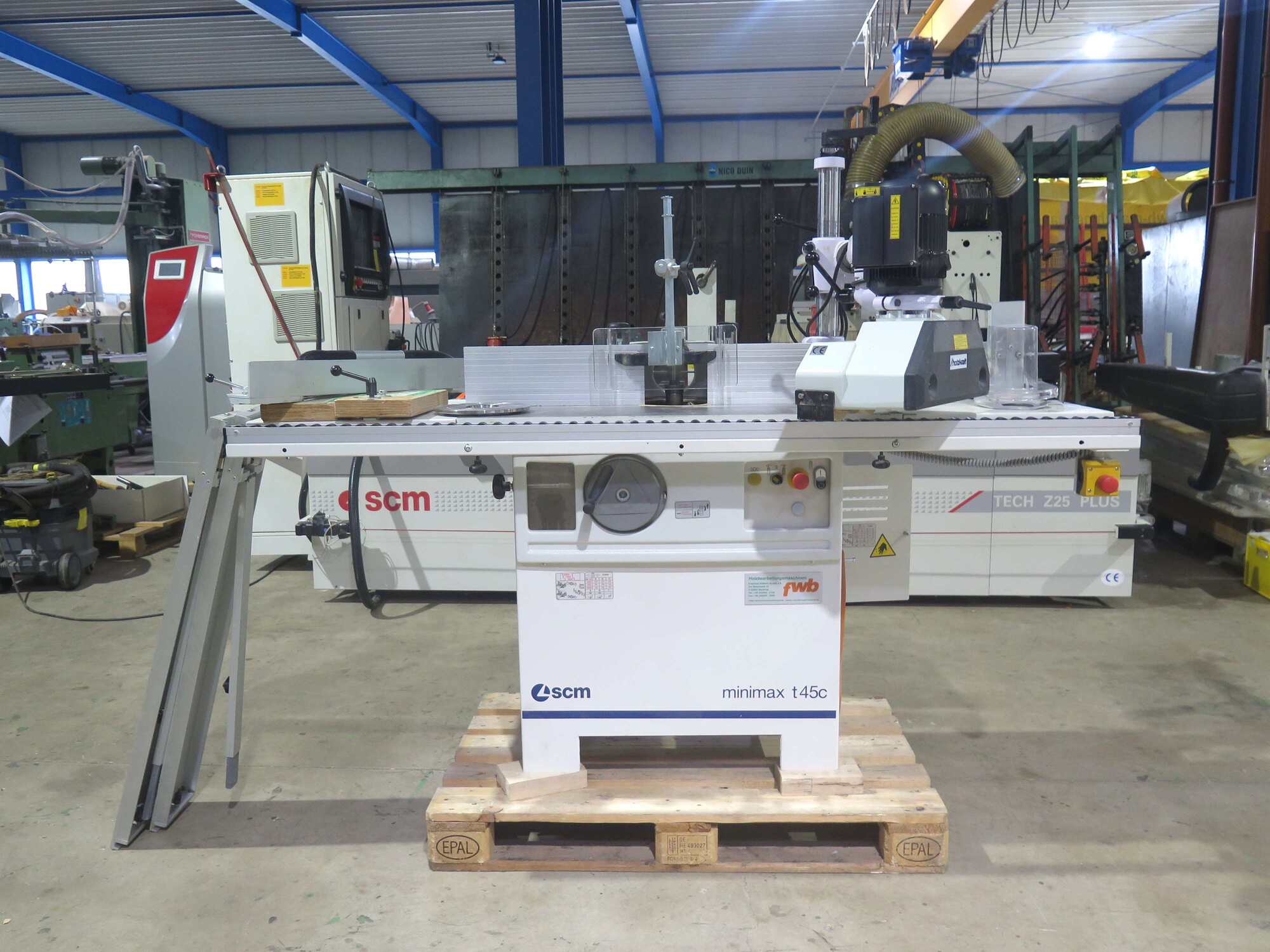

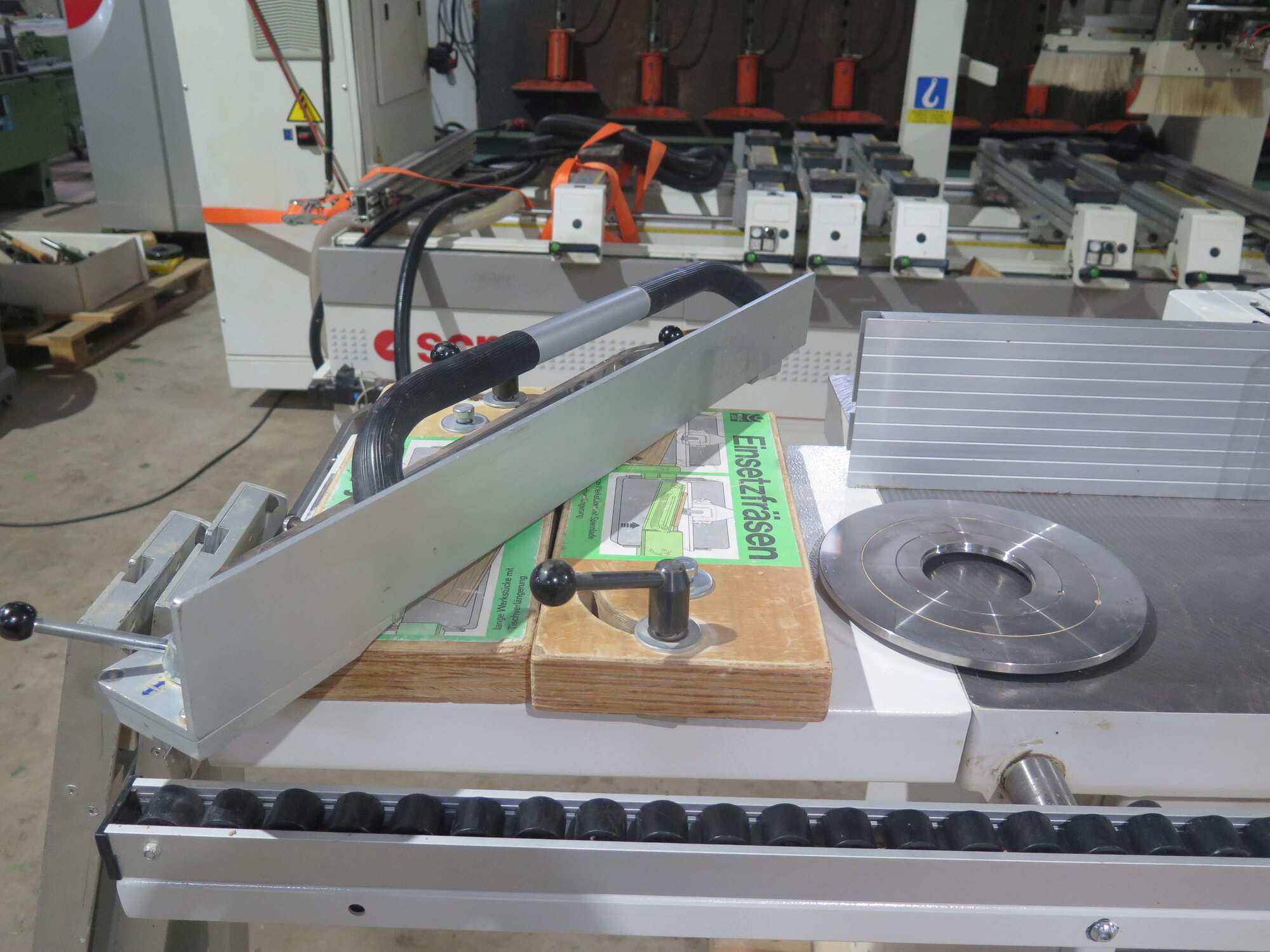

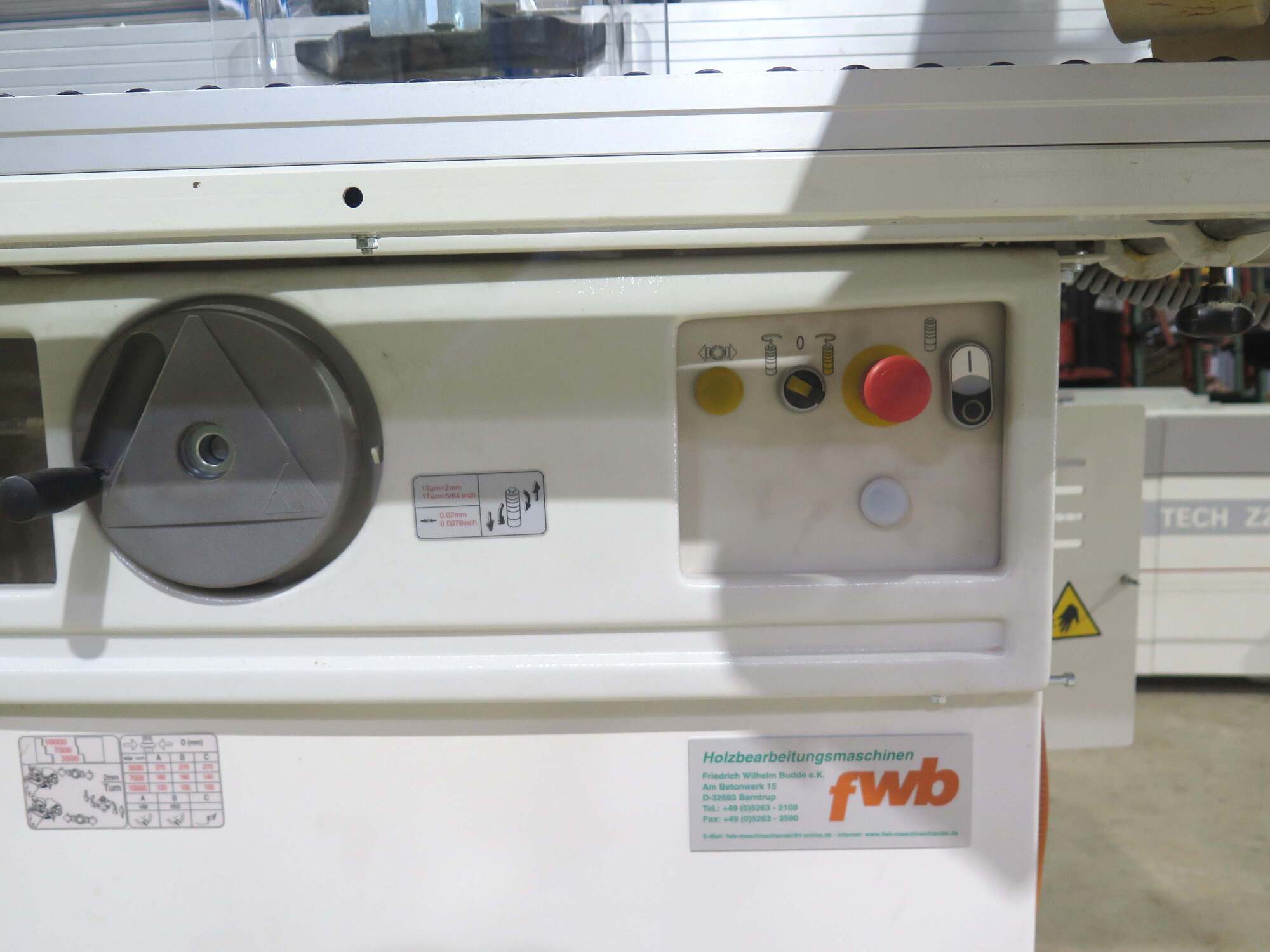

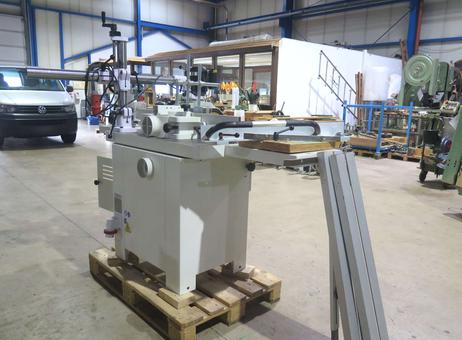

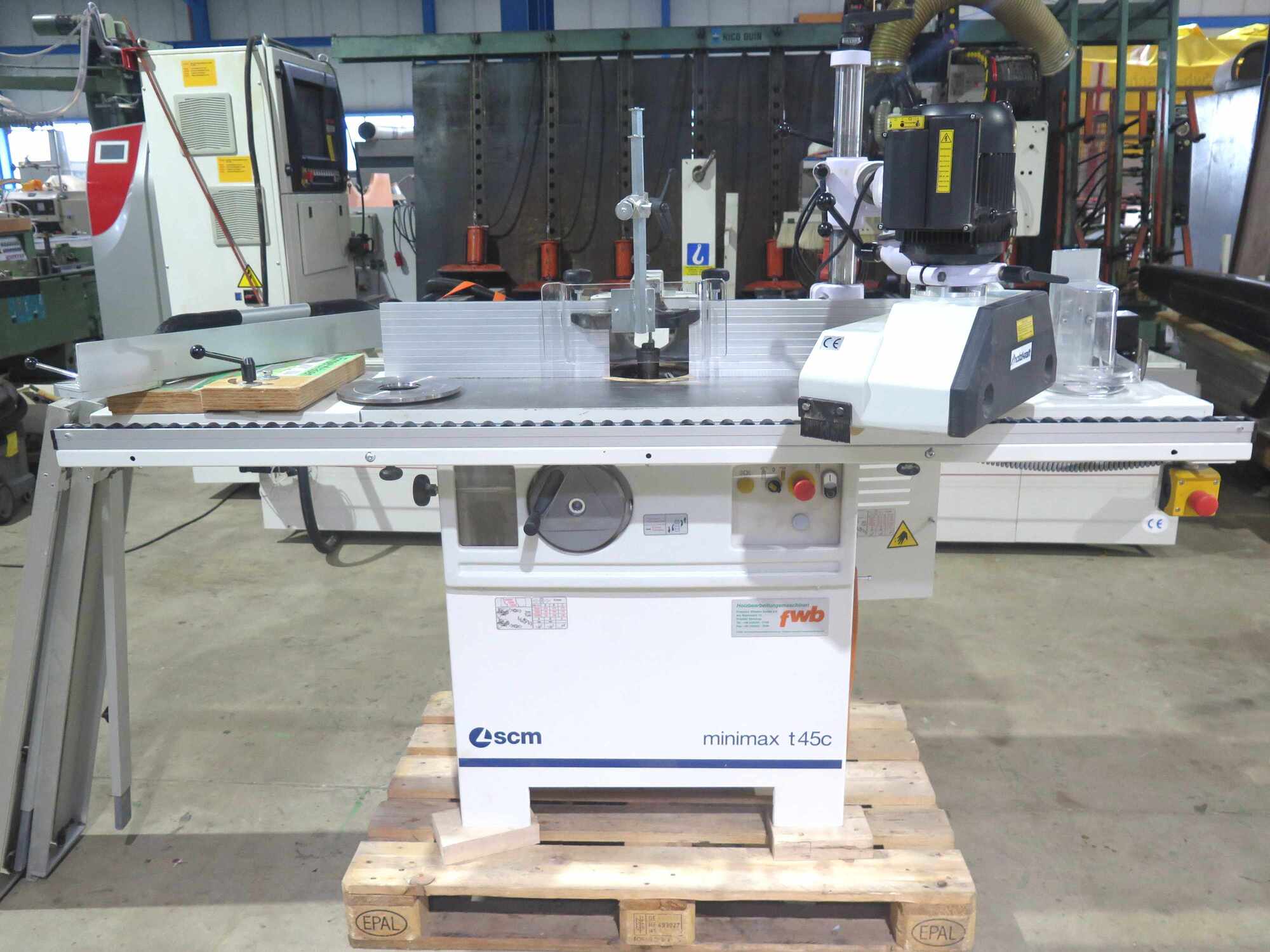

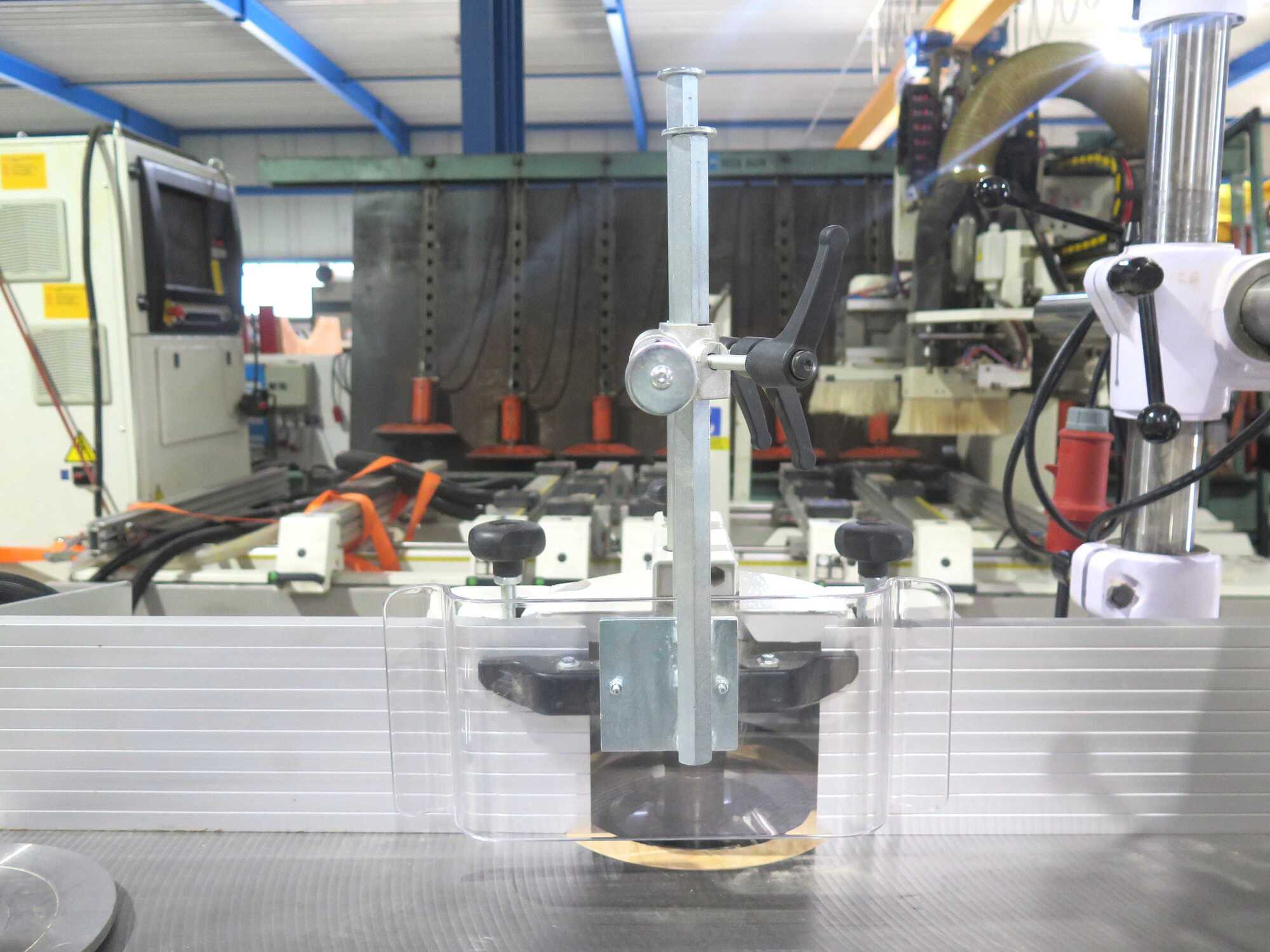

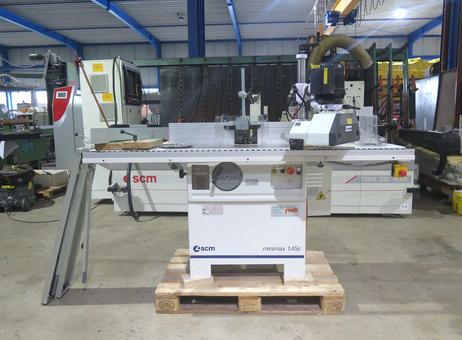

SCM Minimax t45c LL table milling machine, manufactured in 2022. It has a fixed milling spindle, cast-iron worktable, table extensions and a pull-out workpiece support. A VSA 38 B1 three-roll feed is included. The machine is equipped with a broad worktable, adjustable fence assembly with clamping handles, clear plastic cutter guards, front handwheel and push-button controls. A separate metal fence/guide assembly and round table insert are also shown. The listed accessories include aluminum stop jaws, left and right table extensions, an arc milling guard and an extendable front workpiece support.
Specifications: spindle diameter 30 mm; maximum spindle speed 10,000 rpm, with listed speeds of 3,500, 7,000 and 10,000 rpm; motor power 5 kW. The spindle can rotate clockwise or counterclockwise. Listed maximum spindle projection above the table is 130 mm, spindle working length is 100 mm, maximum retractable tool diameter is 180 mm and maximum profile-milling tool diameter is 210 mm. The machine has two 120 mm extraction ports. Listed worktable dimensions are 1,945 x 695 mm, with a table height of 900 mm. The extendable workpiece support is listed as up to 1,950 x 550 mm.

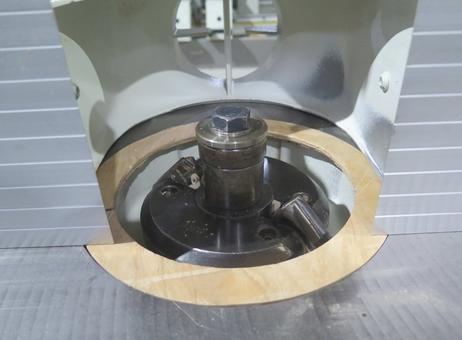

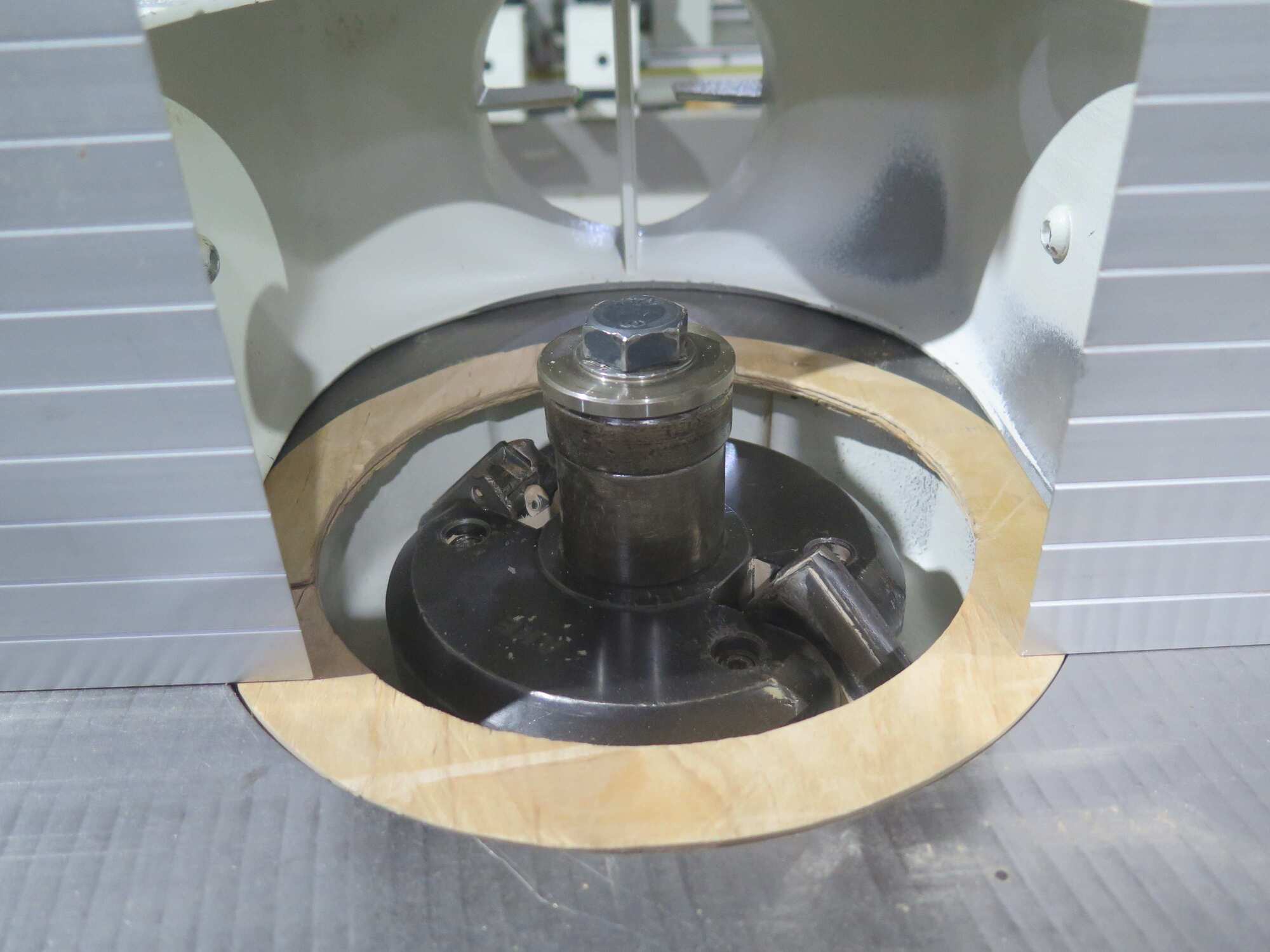

Overall dimensions: 2,000 x 800 x 1,800 mm. Weight: 328 kg. The machine and visible fence and guard surfaces appear generally intact, with no obvious major damage; dust and residue are visible around the spindle and controls. The spindle and cutter assembly are shown uncovered in a close-up. Operating condition is not specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Table Milling Machine SCM Holzkraft with 3-Roll Feed Minimax t45c LL
SCM Holzkraft Table Milling Machine with 3-Roll Feed
Type: Minimax t45c LL
Year of Manufacture: 2022 CE
Table milling machine with fixed milling spindle, cast iron worktable,
table extension and pull-out workpiece support
and 3-roll feed VSA 38 B1
- Worktable dimensions: L 1945 mm x W 695 mm, table height 900 mm
- Spindle speeds: 3500/7000/10000 rpm
- Spindle projection above table max. 130 mm
- Milling spindle clockwise/counterclockwise
- Spindle working length 100 mm
- Spindle diameter 30 mm
- Tool diameter (retractable) max. 180 mm
- Tool profile milling diameter max. 210 mm
- Motor 5 kW 400 V 50 Hz
- Extraction ports: 2 x 120 mm diameter
- Includes aluminum stop jaws, left and right table extensions, arc milling guard, and extendable workpiece support (up to 1950 x 550 mm) at the front of the machine
Dimensions: 2000 mm x 800 mm x H 1800 mm
Weight with pallet: 328 kg
Categories: Table milling
Tags: spindlerouter, router, usedwoodworkingmachinery, woodwork, joinery, carpentry
Print datasheet
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 30 |
| Last activity | Oct. 28, 2026 |
Table Milling Machine SCM Holzkraft with 3-Roll Feed Minimax t45c LL
SCM Holzkraft Table Milling Machine with 3-Roll Feed
Type: Minimax t45c LL
Year of Manufacture: 2022 CE
Table milling machine with fixed milling spindle, cast iron worktable,
table extension and pull-out workpiece support
and 3-roll feed VSA 38 B1
- Worktable dimensions: L 1945 mm x W 695 mm, table height 900 mm
- Spindle speeds: 3500/7000/10000 rpm
- Spindle projection above table max. 130 mm
- Milling spindle clockwise/counterclockwise
- Spindle working length 100 mm
- Spindle diameter 30 mm
- Tool diameter (retractable) max. 180 mm
- Tool profile milling diameter max. 210 mm
- Motor 5 kW 400 V 50 Hz
- Extraction ports: 2 x 120 mm diameter
- Includes aluminum stop jaws, left and right table extensions, arc milling guard, and extendable workpiece support (up to 1950 x 550 mm) at the front of the machine
Dimensions: 2000 mm x 800 mm x H 1800 mm
Weight with pallet: 328 kg
Categories: Table milling
Tags: spindlerouter, router, usedwoodworkingmachinery, woodwork, joinery, carpentry
Print datasheet
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
