Seller's description

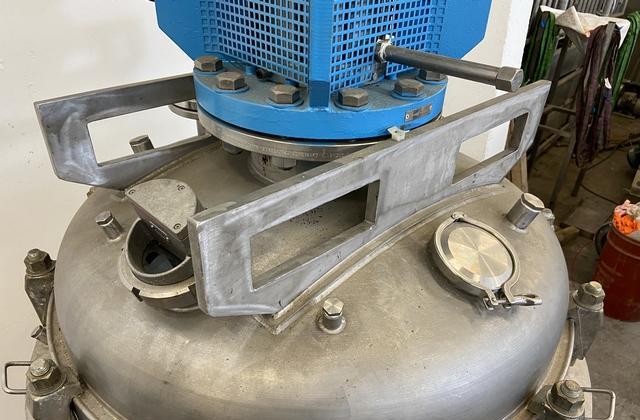

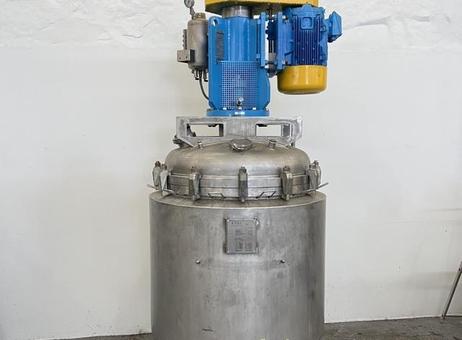

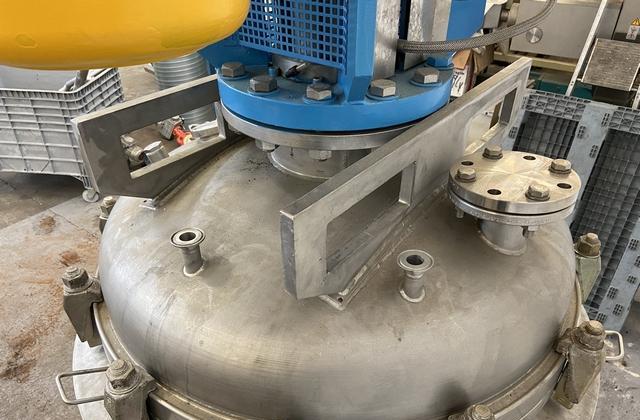

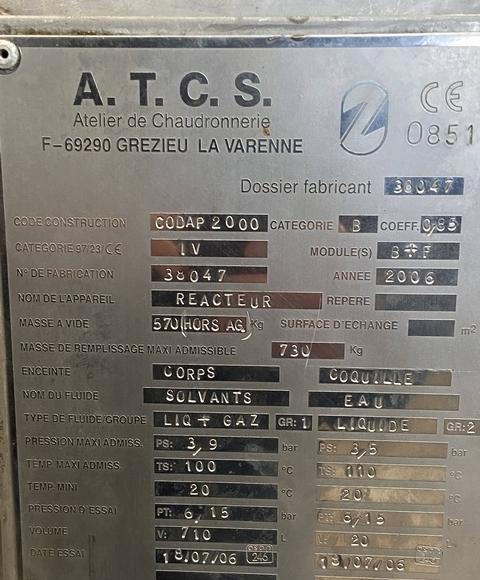

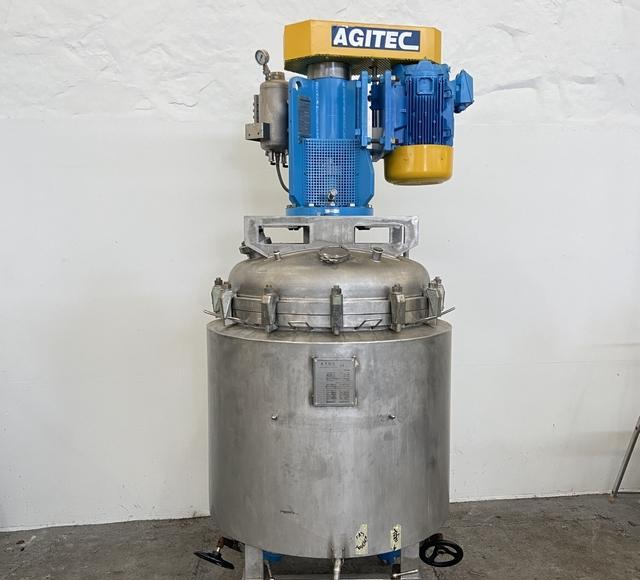

Stainless steel reactor 710 liters ATCS - AGITEC agitation 15 kW

Stainless steel tank Ø int. 940 mm - PS: 3.5 bars
Hemispherical bottoms
1/2 shell jackets PS 3.5 bars and stainless steel insulation

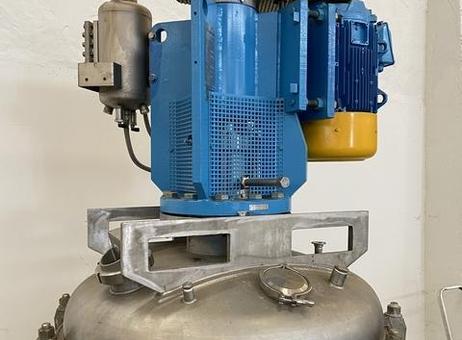

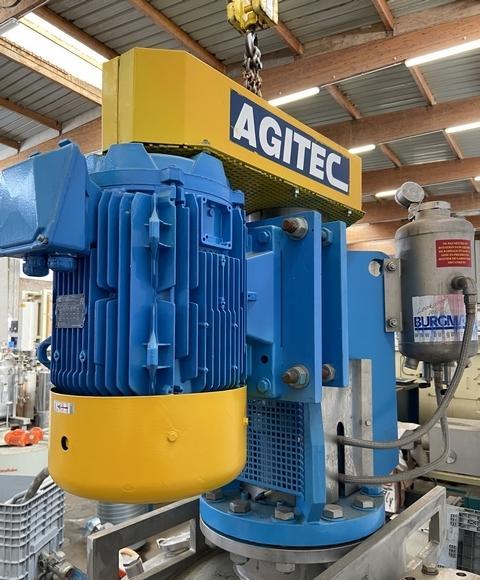

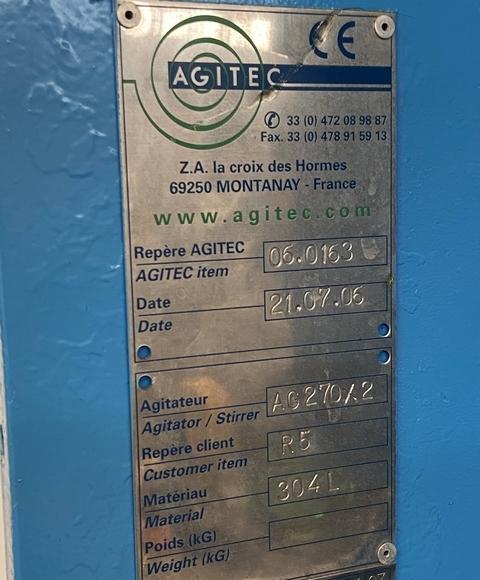

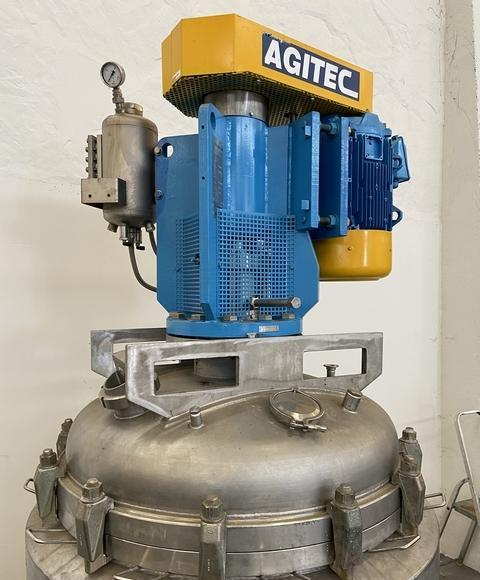

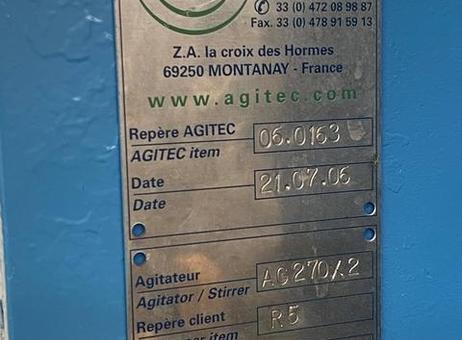

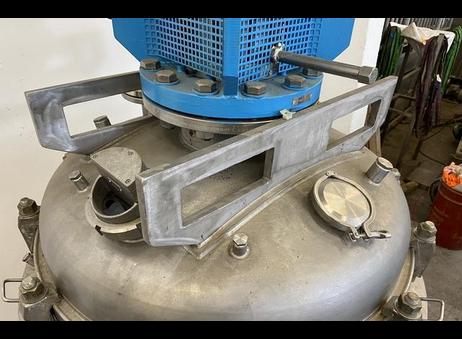

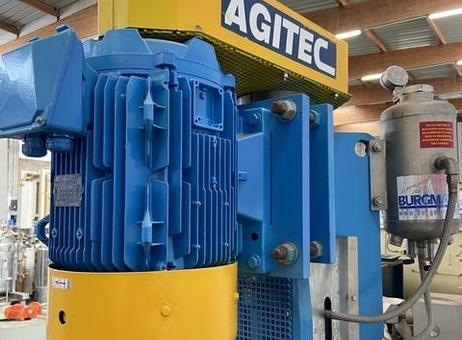

AGITEC agitation type AG 270/2

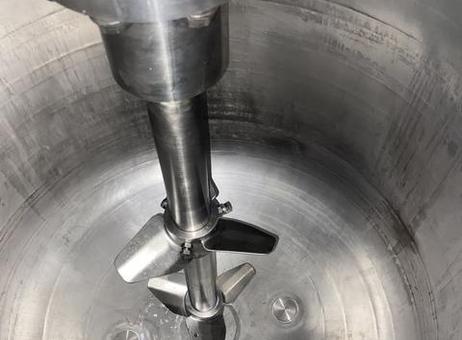

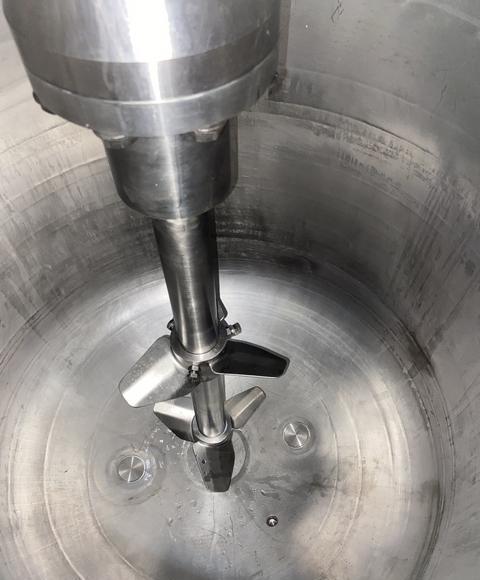

2 three-blade propellers Ø 270 mm

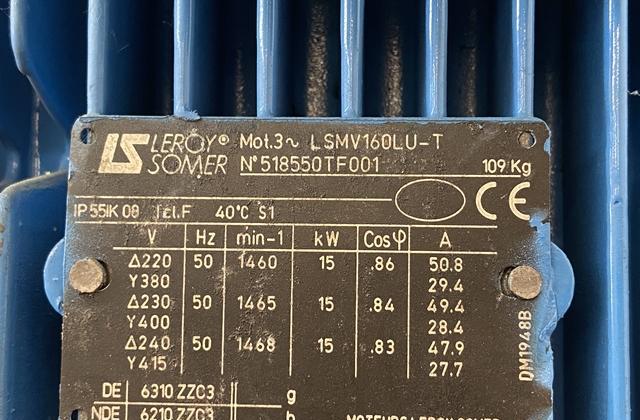

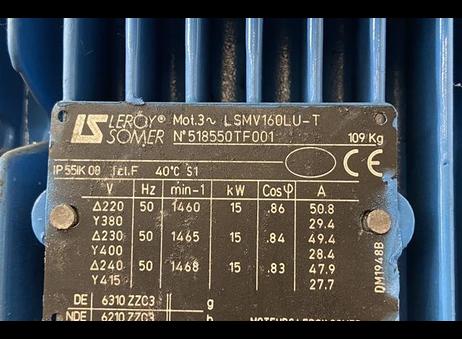

Motor 15 kW 1500 rpm
Pulley/belt transmissions

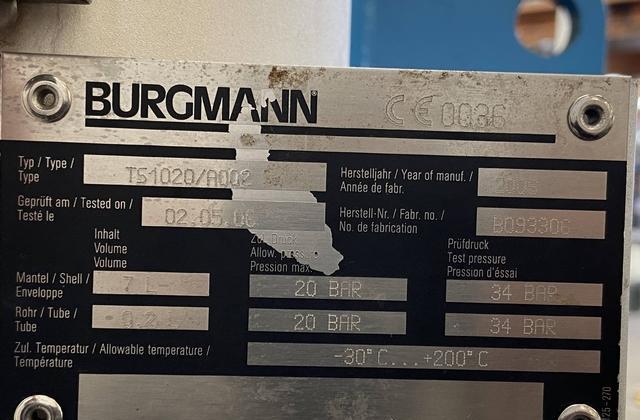

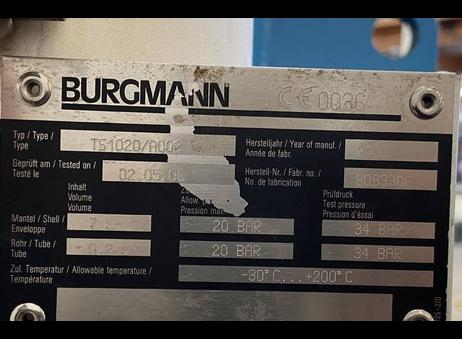

BURGMANN mechanical seal

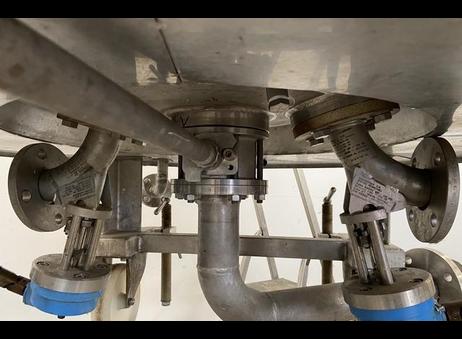

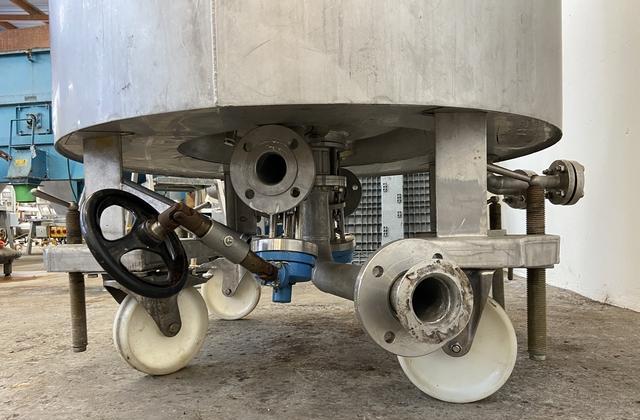

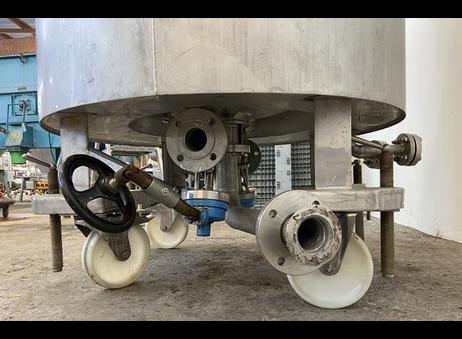

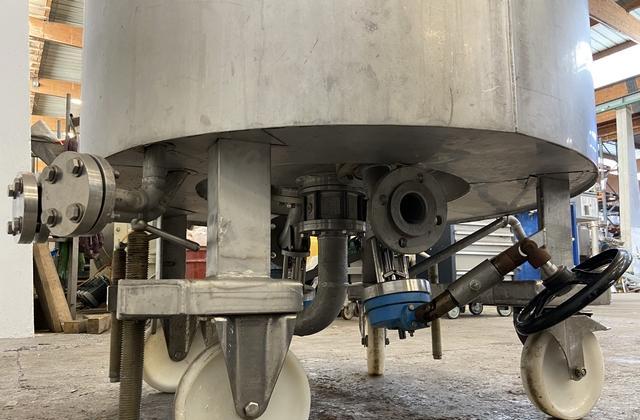

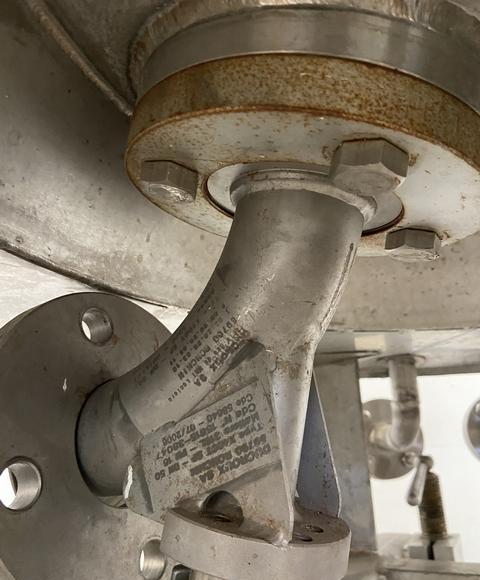

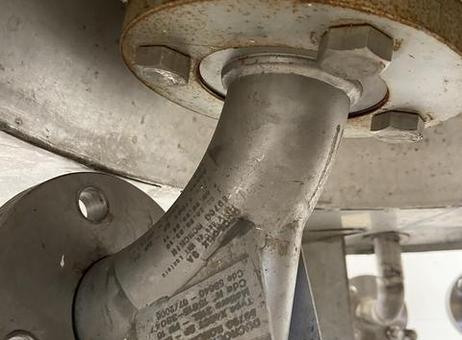

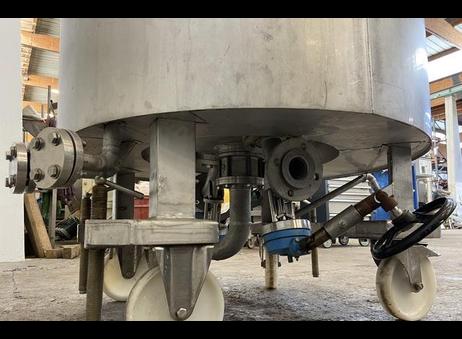

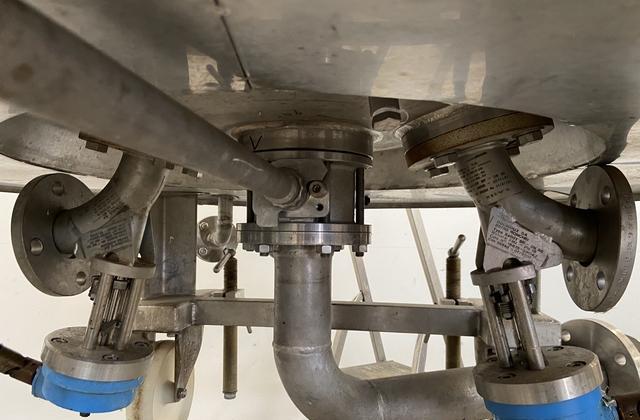

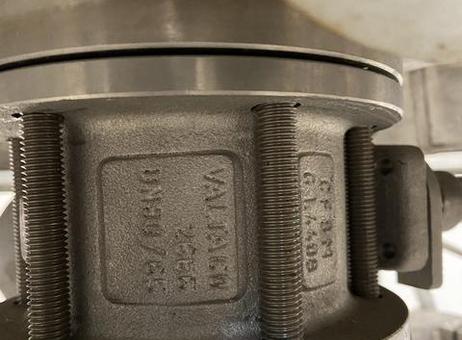

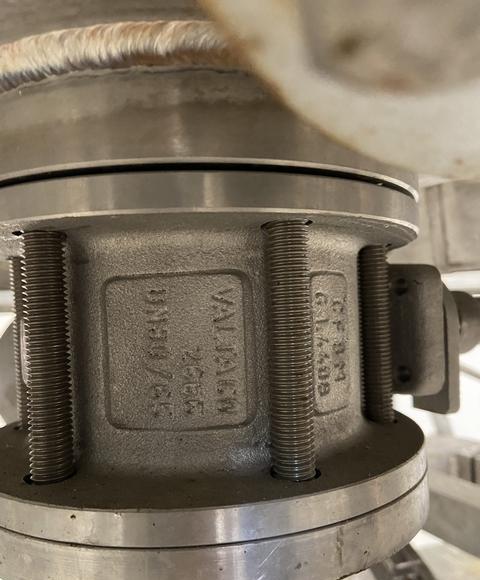

At the bottom: 2 openings with DN50 valves and 1 central opening with DN80/65 valve
Overall dimensions: 1200 x 1200 x Ht 2640 mm

Specifications

Category	Tanks - boilers - melting tanks
Usage
Capacity	L
Max t°	°C
Pressure	bar
Double jacketed	no
With agitator	no
Melting tank
S/s type
Length x width x height	1200.0 × 1200.0 × 2640.0
Weight	kg
worked hours
hours under power
state	as-is, where-is
At local norms	---------
status
Last availability date	19/10/2026
Product id	P261014079
Language	Language Réacteur inox 710 litres ATCS - Agitation AGITEC 15 kw

Automatic description (AI-Generated)

AGITEC ATCS stainless steel reactor, capacity 710 L. Compact vertical tank with an internal diameter of 940 mm and overall footprint 1200 x 1200 mm (height 2640 mm). Design pressure (PS) for the vessel and half-shell jacket is 3.5 bar.

Construction and vessel details:
- Material: stainless steel (tank and insulation cladding described as stainless steel).
- Shape: vertical tank with hemispherical bottoms.
- Internal diameter: 940 mm.
- Capacity: 710 liters.
- Overall dimensions: 1200 mm (L) x 1200 mm (W) x 2640 mm (H).
- Jacket: 1/2 shell heating/cooling jacket rated PS 3.5 bar, with stainless steel insulation.

Agitation and drive:
- Agitator: AGITEC agitation model AG 270/2.
- Impellers: two three-blade propellers, each Ø 270 mm.
- Drive: 15 kW motor, 1500 rpm, with pulley/belt transmission.
- Seal: BURGMANN mechanical seal specified for the shaft.

No operational status, run hours, manufacturing year, weight, or additional process connections are specified in the provided data. Discharge and process connections at the tank bottom are listed as two outlets with DN50 valves and one central outlet with a DN80/65 valve. Manufacturer and model: AGITEC ATCS.

Notes: The description lists the principal mechanical and pressure-retaining features, agitator configuration, drive and seal type, jacket rating and basic vessel geometry. Condition, testing, certification, or performance testing information is not provided.
