| Manufacturer | FIAS BERICO |
|---|---|
| Model | VRP3 |
| Year | 1980 |
| Location | Italy
|
Overview:

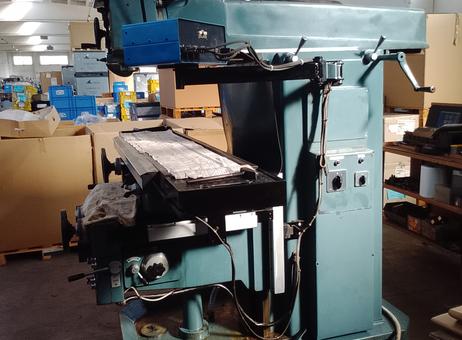

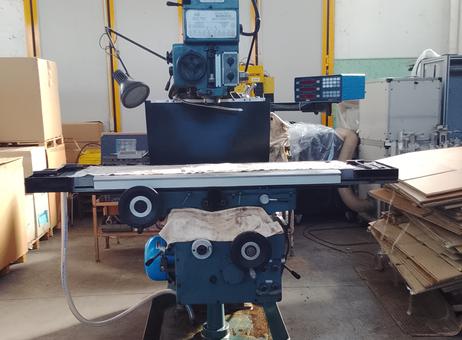

FIAS BERICO VRP3 high-speed universal milling head with 20 spindle speeds (10 high-speed + 10 slow-speed). Designed as a universal milling head with a tilting head and ram for a wide range of machining orientations.
Table and workholding:

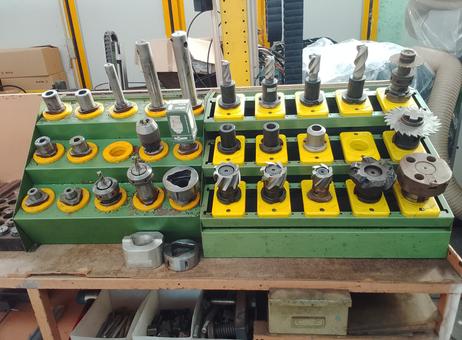

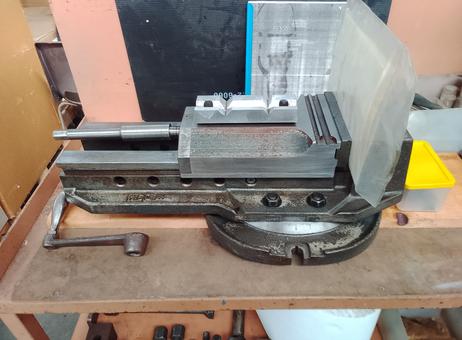

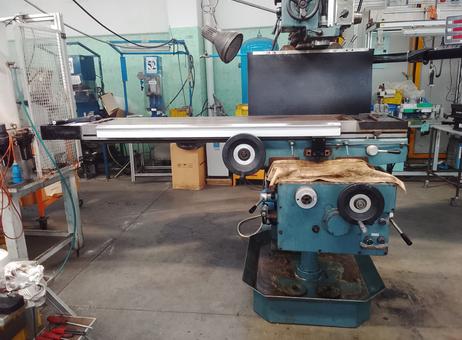

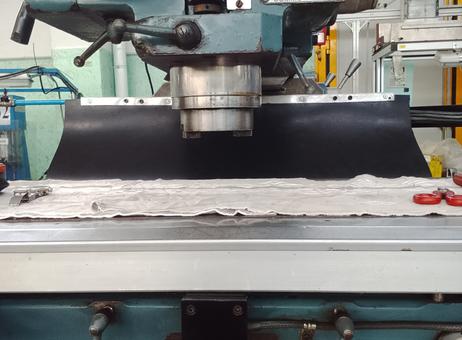

1500x350 table equipped with 4 grooves, 18 m/m. Groove center distance is 72 m/m. The machine is supplied with a CUTER hydraulic vice (160 m/m jaw opening; 270 m/m jaw travel) rated with a clamping force of 4600 kg. Miscellaneous equipment is supplied (as shown in the photo).
Axes, feeds and travel:
The unit provides 12 axes feed in 3 directions. Working feed ranges are specified as Long-Traverse 13/580 m/m and Vertical 5/240 m/m. Rapid feed rates are listed as Long-Traverse 2100 m/m and Vertical 875 m/m. Ram stroke is 450 m/m.
Spindle and motors:

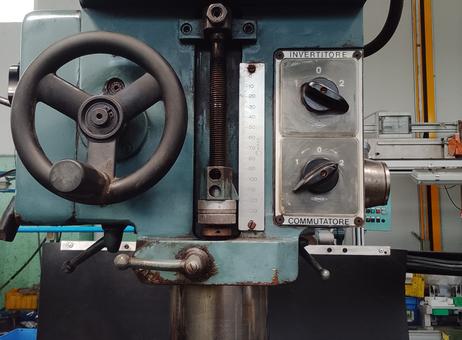

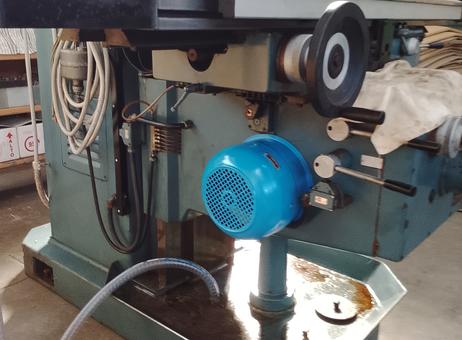

Spindle is ISO 40 with travel 130 m/m and a spindle sleeve diameter of 110 m/m. Automatic spindle feeds are provided Forward/Return 4+4, with an automatic feed range of 0.045/0.199 m/m. Spindle motor power is specified as 4.2 kW. Feed motor is 2.0 kW and coolant motor is 0.18 kW.
Head and orientation:
Head tilt capability is 90° right and left, allowing varied angular machining positions.
Metrology / documentation:

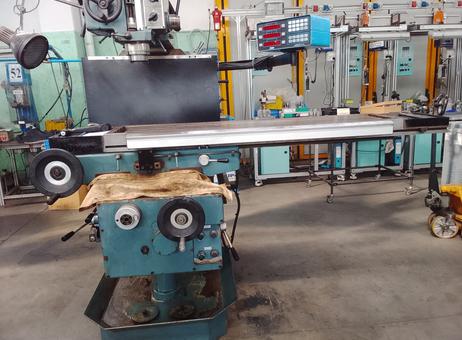

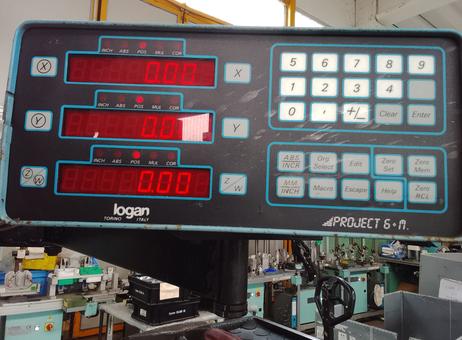

The listing notes the machine was viewed on 3 axes with LOGAN PROJET-6.
Notes for buyers:
All specifications above are taken from the provided listing information. No additional mechanical condition, test status, or operational guarantees are stated in the listing; prospective buyers should request further information, documentation, or an inspection to confirm current condition and capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
FIAS BERICO VRP3 high-speed universal milling head - 20 spindle speeds (10 high-speed + 10 slow-speed)
1500x350 table with 4 18 mm/m grooves with 72 mm/m center distance
12 axes feed in 3 directions
Working feed range Long-Traverse - 13/580 m/m Vert 5/240 m/m
Rapid feed Long-Traverse 2100 m/m
Rapid feed Vert 875 m/m
Spindle motor 4.2 kW
Feed motor 2.0 kW
Coolant motor 0.18 kW
Head tilt 90° right-left
Ram stroke 450 m/m
ISO 40 spindle - Travel 130 m/m - Spindle sleeve diameter 110 m/m
Automatic spindle feeds: Forward/Return 4+4
Automatic feed range: 0.045/0.199 m/m
With CUTER hydraulic vice: 160 m/m jaw opening: 270 m/m - Clamping force: 4600 kg
Miscellaneous equipment supplied (as shown in the photo)
Viewed on 3 axes with LOGAN PROJET-6
