| Manufacturer | Ferrari |
|---|---|
| Model | A 16 |
| Year | 1993 |
| Location | Germany
|
Offer Title: Ferrari A 16 5-Axis Machining Center
Manufacturer: Ferrari
Model: A 16
Year of Manufacture: 1993
This Ferrari A 16 machining center is a versatile 5-axis machine designed for complex milling operations. It features a vertical milling head with an ISO 40 tool taper and a spindle motor rated at 9 kW, capable of speeds up to 4000 rpm. The machine's travels include 1050 mm along the X-axis, 420 mm along the Y-axis, and 420 mm along the Z-axis, allowing for a substantial working envelope.

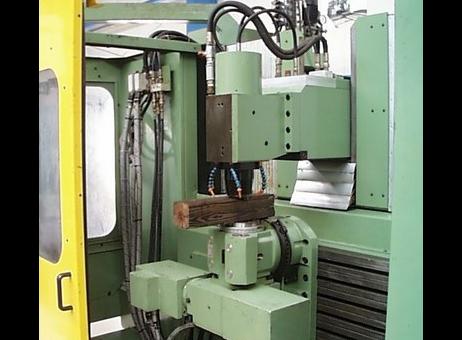

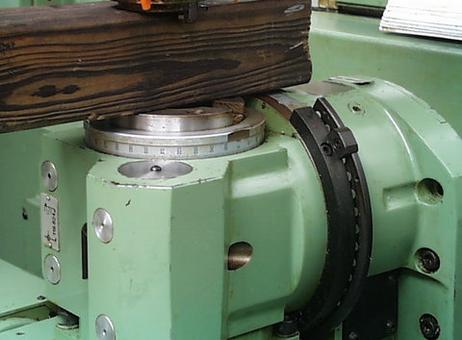

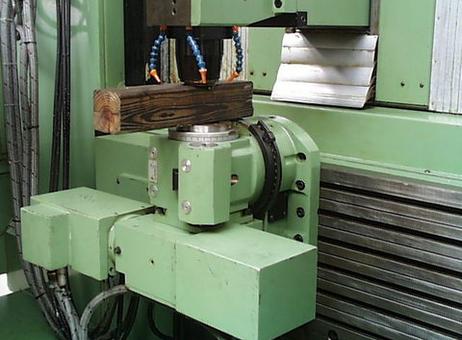

The machine is equipped with a 2-axis rotary tilting clamping attachment on the table, which uses an ISO 50 taper for part clamping. The rotary axis (C) offers 360-degree rotation with 0.001-degree precision, while the swivel axis (B) provides ±25 degrees of tilt, also with 0.001-degree resolution. These features enable precise multi-axis machining capabilities.
Tool management is facilitated by a pick-up magazine that holds 15 tool pockets, supporting efficient tool changes during operation. The machine's feed rates reach up to 15,000 mm/min on the X, Y, and Z axes, with rapid traverse speeds matching this rate.

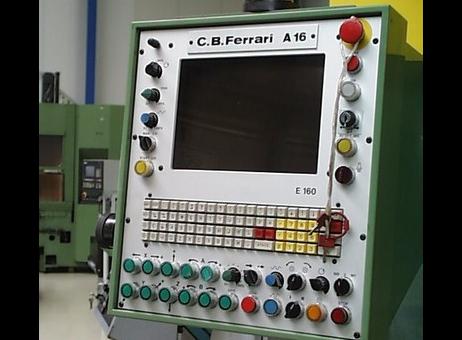

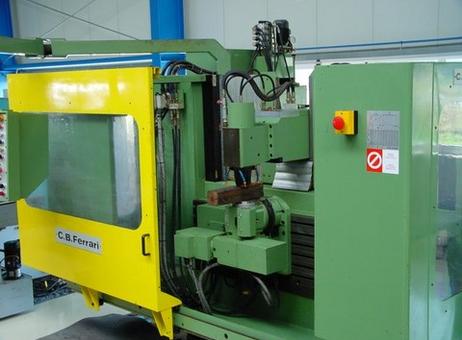

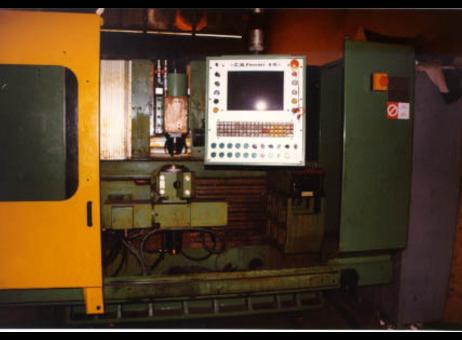

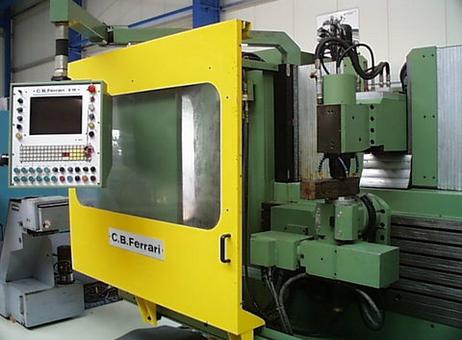

Physically, the machine measures 2500 mm by 2500 mm and weighs approximately 5400 kg. It features full guarding with a yellow protective door that includes a transparent window, enhancing operator safety while allowing visibility into the machining area. The control panel is mounted on the left side and includes a screen with multiple buttons for operational control.
Visual inspection shows the machine is clean and in good physical condition with no visible damage or rust. Hydraulic or pneumatic hoses and cables are visible on various components, indicating the machine's readiness for integration with supporting systems. The rotary axis component shows minor paint wear but no significant damage, and the machine parts appear intact and properly mounted.
This Ferrari A 16 machining center is suitable for users requiring a robust and precise 5-axis milling solution with comprehensive tool handling and multi-axis positioning capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: 5-axis Machining Center
Manufacturer: Ferrari
Model: A 16
Year of Manufacture: 1993
Technical Condition: As-is, where-is
Table Type: 2 Axis rotary tilting clamping attachment
Part Clamping Taper: ISO 50 mm
Rotary Axis: C 360/0.001 degrees
Swivel Axis: B +/-25/0.001 degrees
Travels:
X: 1050 mm
Y: 420 mm
Z: 420 mm
Feeds:
X/Y/Z: 0 - 15000 mm/min
Rapids: X/Y/Z: 15000 mm/min
Spindle Motor Rating: 9 kW
Spindle Speed Range: 0 - 4000 rpm
Milling Head: Vertical
Tool Taper: ISO 40
Tool Magazine Positions: 15
Machine Weight: 5400 kg
Machine Dimensions: 2500 mm x 2500 mm
Equipped With:
- 2 Axis clamping system for parts, taper ISO 50
- Vertical milling head ISO 40
- Full guarding
- Pick up magazine for 15 tools
Condition: Excellent, used for only a few hours and only cut in oil.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2004 |
| Offers online | 41 |
| Last activity | Oct. 27, 2026 |
Offer Title: 5-axis Machining Center
Manufacturer: Ferrari
Model: A 16
Year of Manufacture: 1993
Technical Condition: As-is, where-is
Table Type: 2 Axis rotary tilting clamping attachment
Part Clamping Taper: ISO 50 mm
Rotary Axis: C 360/0.001 degrees
Swivel Axis: B +/-25/0.001 degrees
Travels:
X: 1050 mm
Y: 420 mm
Z: 420 mm
Feeds:
X/Y/Z: 0 - 15000 mm/min
Rapids: X/Y/Z: 15000 mm/min
Spindle Motor Rating: 9 kW
Spindle Speed Range: 0 - 4000 rpm
Milling Head: Vertical
Tool Taper: ISO 40
Tool Magazine Positions: 15
Machine Weight: 5400 kg
Machine Dimensions: 2500 mm x 2500 mm
Equipped With:
- 2 Axis clamping system for parts, taper ISO 50
- Vertical milling head ISO 40
- Full guarding
- Pick up magazine for 15 tools
Condition: Excellent, used for only a few hours and only cut in oil.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Offer Title: Ferrari A 16 5-Axis Machining Center
Manufacturer: Ferrari
Model: A 16
Year of Manufacture: 1993
This Ferrari A 16 machining center is a versatile 5-axis machine designed for complex milling operations. It features a vertical milling head with an ISO 40 tool taper and a spindle motor rated at 9 kW, capable of speeds up to 4000 rpm. The machine's travels include 1050 mm along the X-axis, 420 mm along the Y-axis, and 420 mm along the Z-axis, allowing for a substantial working envelope.
The machine is equipped with a 2-axis rotary tilting clamping attachment on the table, which uses an ISO 50 taper for part clamping. The rotary axis (C) offers 360-degree rotation with 0.001-degree precision, while the swivel axis (B) provides ±25 degrees of tilt, also with 0.001-degree resolution. These features enable precise multi-axis machining capabilities.
Tool management is facilitated by a pick-up magazine that holds 15 tool pockets, supporting efficient tool changes during operation. The machine's feed rates reach up to 15,000 mm/min on the X, Y, and Z axes, with rapid traverse speeds matching this rate.
Physically, the machine measures 2500 mm by 2500 mm and weighs approximately 5400 kg. It features full guarding with a yellow protective door that includes a transparent window, enhancing operator safety while allowing visibility into the machining area. The control panel is mounted on the left side and includes a screen with multiple buttons for operational control.
Visual inspection shows the machine is clean and in good physical condition with no visible damage or rust. Hydraulic or pneumatic hoses and cables are visible on various components, indicating the machine's readiness for integration with supporting systems. The rotary axis component shows minor paint wear but no significant damage, and the machine parts appear intact and properly mounted.
This Ferrari A 16 machining center is suitable for users requiring a robust and precise 5-axis milling solution with comprehensive tool handling and multi-axis positioning capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
