Contact us to receive an offer.
| Manufacturer | FEHLMANN |
|---|---|
| Model | PICOMAX 100-CNC 2 |
| Year | 1985 |
| Location | Germany
|

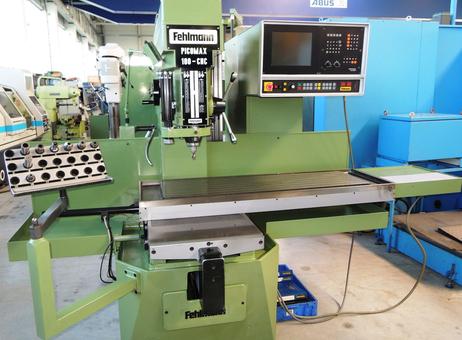

The Fehlmann PICOMAX 100-CNC 2 is a CNC-controlled coordinate boring machine manufactured in 1985, weighing approximately 3500 kg. It features a robust green body with a large worktable measuring 1570 mm in length and 500 mm in width, equipped with T-slots for secure mounting of workpieces or fixtures. The machine offers precise travel distances of 850 mm along the X-axis, 435 mm along the Y-axis, and 210 mm along the Z-axis, enabling versatile machining capabilities.

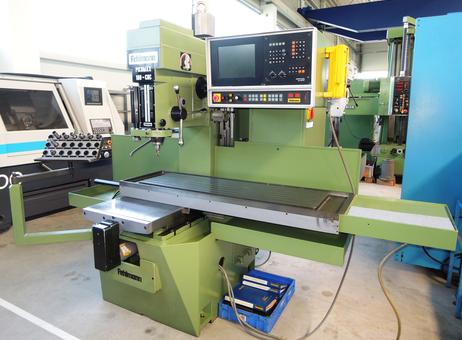

This model is equipped with a HEIDENHAIN CNC Path Control System Model TNC 150, which includes a color screen and supports graphical programming, subroutines, cycles, threading, and milling cycles. The control panel, mounted on the right side, features a screen and keypad for efficient operation. A mobile control unit with an electronic handwheel facilitates quick setup and precise approach to the workpiece.
The quill movement can be operated manually or via CNC control, with drilling depth presettable through a 12-fold turret drum and digitally displayed on the monitor. The milling/drilling head is adjustable to three different heights with automatic clamping, enhancing operational flexibility.
The machine's high-precision coordinate table is controlled by the XY CNC axes using hardened ball screw spindles, ensuring accurate positioning. It also includes quick-change tool holders, chucks, and millers, along with a coolant device to support various machining tasks.

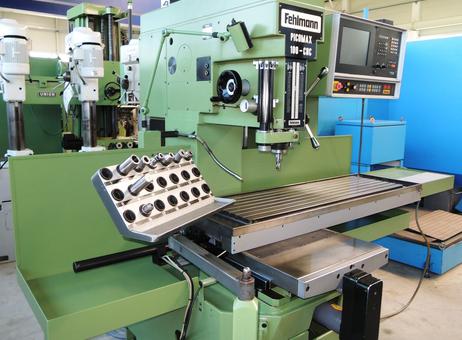

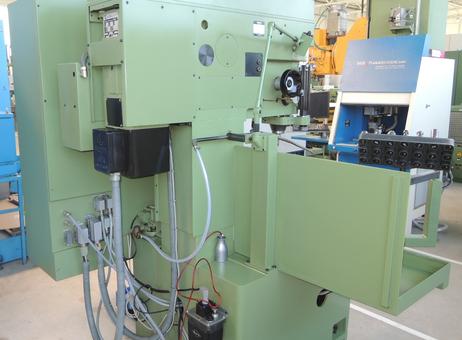

Additional visible features include a tool holder rack mounted on the left side, holding multiple organized and numbered tool holders, manual adjustment levers, and a handwheel on the front for manual control. The rear of the machine shows hydraulic and electrical connections, multiple hoses and cables, and a black reservoir or tank. The machine appears clean and well-maintained, with intact paintwork and no visible signs of rust or damage. The surrounding area is also clean and organized, reflecting good overall condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC-Controlled Coordinate Boring Machine with HDH Control 150
Accessories / Special Features:
* HEIDENHAIN CNC Path Control System Model TNC 150 with colour Screen
Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc.
Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach
to the workpiece.
* The quill movement can be actuated manually or also by the CNC-Control,
* The Drilling depth can be presetted by a 12 fold turret drum for different quillstops
and with a digital display of the values on monitor.
* The complete Milling/Drilling head can be positioned in 3 different heights and with
automatic clamping.
* High Precision Coordinate table controlled by the XY CNC axis with hardened ball screw
spindles.
* With quick change tool holders, chucks, millers, etc. and with coolant device.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 165 |
| Last activity | Oct. 26, 2026 |
CNC-Controlled Coordinate Boring Machine with HDH Control 150
Accessories / Special Features:
* HEIDENHAIN CNC Path Control System Model TNC 150 with colour Screen
Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc.
Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach
to the workpiece.
* The quill movement can be actuated manually or also by the CNC-Control,
* The Drilling depth can be presetted by a 12 fold turret drum for different quillstops
and with a digital display of the values on monitor.
* The complete Milling/Drilling head can be positioned in 3 different heights and with
automatic clamping.
* High Precision Coordinate table controlled by the XY CNC axis with hardened ball screw
spindles.
* With quick change tool holders, chucks, millers, etc. and with coolant device.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Fehlmann PICOMAX 100-CNC 2 is a CNC-controlled coordinate boring machine manufactured in 1985, weighing approximately 3500 kg. It features a robust green body with a large worktable measuring 1570 mm in length and 500 mm in width, equipped with T-slots for secure mounting of workpieces or fixtures. The machine offers precise travel distances of 850 mm along the X-axis, 435 mm along the Y-axis, and 210 mm along the Z-axis, enabling versatile machining capabilities.
This model is equipped with a HEIDENHAIN CNC Path Control System Model TNC 150, which includes a color screen and supports graphical programming, subroutines, cycles, threading, and milling cycles. The control panel, mounted on the right side, features a screen and keypad for efficient operation. A mobile control unit with an electronic handwheel facilitates quick setup and precise approach to the workpiece.
The quill movement can be operated manually or via CNC control, with drilling depth presettable through a 12-fold turret drum and digitally displayed on the monitor. The milling/drilling head is adjustable to three different heights with automatic clamping, enhancing operational flexibility.
The machine's high-precision coordinate table is controlled by the XY CNC axes using hardened ball screw spindles, ensuring accurate positioning. It also includes quick-change tool holders, chucks, and millers, along with a coolant device to support various machining tasks.
Additional visible features include a tool holder rack mounted on the left side, holding multiple organized and numbered tool holders, manual adjustment levers, and a handwheel on the front for manual control. The rear of the machine shows hydraulic and electrical connections, multiple hoses and cables, and a black reservoir or tank. The machine appears clean and well-maintained, with intact paintwork and no visible signs of rust or damage. The surrounding area is also clean and organized, reflecting good overall condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 165 |
| Last activity | Oct. 26, 2026 |
