| Manufacturer | Feeler |
|---|---|
| Model | FV-800A |
| Year | 1995 |
| Location | Germany
|

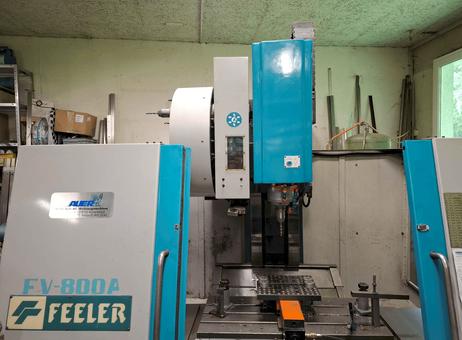

This Feeler FV-800A vertical machining center, manufactured in 1995, is equipped with a Mitsubishi Meldas 520AMR CNC control system. The machine offers a working table area of 950 mm by 505 mm, suitable for a variety of machining tasks. It features a 20-position tool magazine, allowing for efficient tool changes during operation. The spindle is mounted with a BT40 interface and has a maximum speed of 6000 rpm, providing versatility for different machining applications.
The machine's axis travels are 800 mm along the X-axis, 450 mm along the Y-axis, and 505 mm along the Z-axis, enabling precise three-dimensional machining. The maximum feed rates are 18 m/min for the X and Y axes and 15 m/min for the Z axis. The machine's overall dimensions are approximately 2300 mm in length, 3960 mm in width (including the open control cabinet and control panel), and 2525 mm in height. It weighs about 5000 kg.

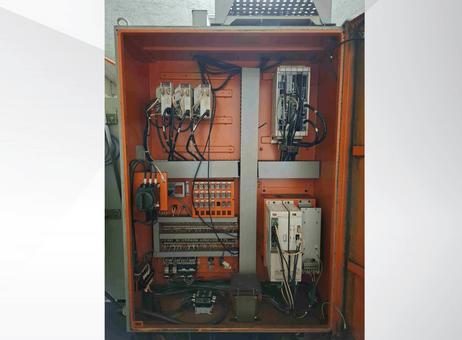

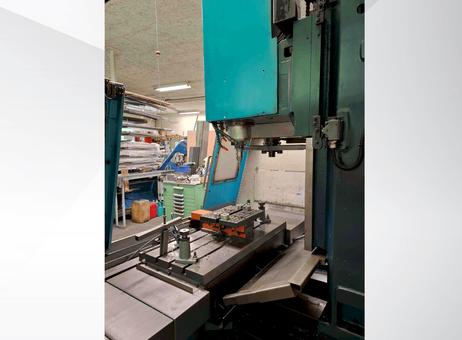

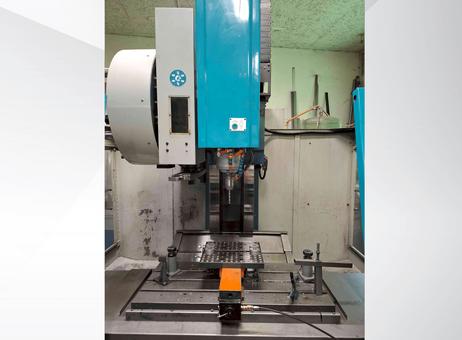

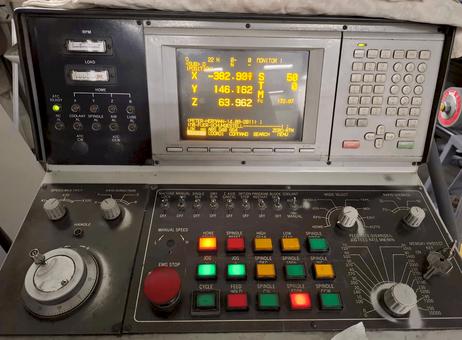

The spindle and worktable are visible with clamping fixtures and an orange vise installed, which appears to be holding a workpiece. The control panel includes buttons and knobs with an operational digital display showing position coordinates and machine statuses. The electrical cabinet is open in the images, revealing organized wiring, relays, and circuit boards.
The machine has accumulated approximately 6805 hours of operation as indicated by the control system display. The surface of the machine shows some signs of wear and dirt marks consistent with industrial use. A set of operating manuals and parts lists for Feeler and related machines is included, with the manuals in used but good condition.
Please note that the scope of delivery includes only the machine itself; no additional tools (BT40) or clamping devices are provided beyond what is currently installed. This vertical machining center is suitable for operations requiring precise milling and drilling with a reliable CNC control system. Contact us for further details and inquiries regarding this machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This vertical machining centre FEELER FV-800A was manufactured in 1995 and is equipped with a Mitsubishi Meldas 520AMR control system. The machine features a 20-position tool magazine. Consider the opportunity to buy this machine. Contact us for further details.
Brand: MITSUBISHI
Model: Meldas 520AMR
X-Axis Movement: 800 mm
Y-Axis Movement: 450 mm
Z-Axis Movement: 505 mm

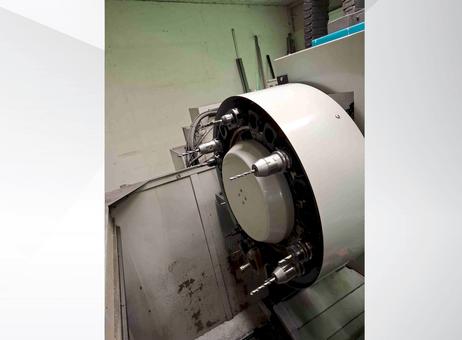

Tool magazine with 20 positions.
The machine includes no tools (BT40) or clamping devices./
Table working area: 950 × 505 mm/
Space requirements: L 2300 × W 3960 (open control cabinet and control panel) × H 2525 mm/
Max. feed: X-18 m/min / Y-18 m/min / Z-15 m/min/
Spindle mount: BT 40/
Max. speed: 6000 rpm/
Tool magazine: 20 positions/
Max. tool diameter: 80 mm/
Max. tool length: 250 mm/
Weight: approx. 5,000 kg/
Control system: Mitsubishi Meldas 520AMR/
Scope of delivery includes only the machine, without tools (BT40) or clamping devices./
machine hours 6,805 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
