| Manufacturer | FAVRETTO |
|---|---|
| Model | MB 75 |
| Year | 2003 |
| Location | Italy
|
This FAVRETTO MB 75 surface grinding machine, manufactured in 2003, is designed for precise and efficient grinding applications. It features a working table measuring 750 mm in length and 400 mm in width, providing a robust surface for various grinding tasks. The machine offers a longitudinal working range (X-axis) of 750 mm, a vertical range (Z-axis) of 550 mm, and a transverse slide (Y-axis) of 485 mm, allowing versatile movement to accommodate different workpiece sizes.
The grinding spindle is powered by a 12.5 kW motor with a maximum rotation speed of 1400 rpm, suitable for handling grinding wheels up to 400 mm in diameter and 100 mm in thickness. The spindle bore diameter is 127 mm. The machine's total weight is approximately 5900 kg, with overall dimensions of 3950 mm in length, 2935 mm in width, and 2540 mm in height.
Equipped with a CNC measurement system (ROSA SYSTEM 10 control unit N), the machine allows automatic vertical and transversal increments as fine as 0.001 mm per minute, ensuring high precision in grinding operations. The translation speed ranges from 1 to 40 units (units not specified).
Additional features include a filtering system to maintain operational cleanliness and safety certifications compliant with CE standards. The machine comes with use and maintenance manuals as well as wiring diagrams for ease of operation and servicing.

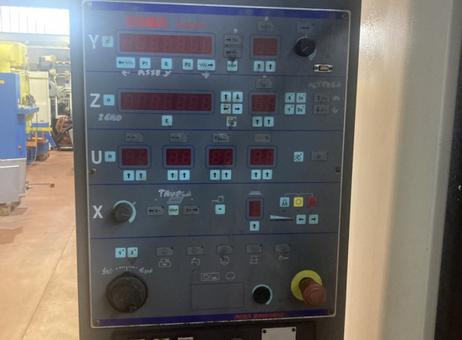

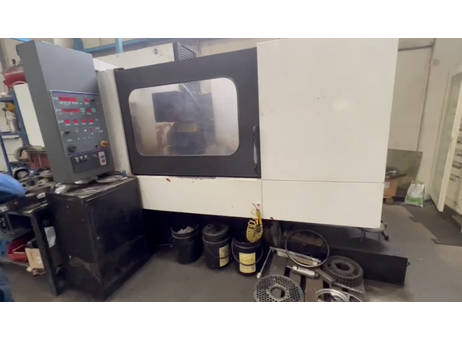

Visually, the machine is enclosed with a viewing window for safe operation and monitoring. It includes a control panel on the left side with multiple buttons and digital displays, including labeled axis controls for X, Y, Z, and U axes. The exterior shows minor signs of wear and usage, consistent with typical industrial use. The rear side reveals hydraulic or coolant system components, multiple electrical cables, and hoses connected to the machine. High voltage warning signs are present on electrical boxes for safety awareness. The internal electrical control cabinet houses organized relays, circuit breakers, and wiring, indicating a well-maintained electrical system.
Magnetic chucks are available upon request, enhancing the machine's versatility for various grinding tasks. Overall, this FAVRETTO MB 75 surface grinder offers a comprehensive set of features suitable for demanding industrial grinding applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity: 750 x 550 mm
Year of construction: 2003
Longitudinal working range (x): 750 mm
Vertical (z): 550 mm
Slide transverse (y): 485 mm
Table Surface: 750 x 400 mm
Translation speed: 1-40
Magnetic chuck Available on request: Yes
Automatic Vertical Increments: 0.001 mm/min
Transversal: 0.001 mm/min
Cnc Measurement system: ROSA SYSTEM 10 control unit N
Grinding wheel spindle Spindle power: 12.5 Kw
Rotation speed: 1400 Rpm
Grinding wheel Grinding wheel thickness: 100 mm
Max grinding wheel diameter: 400 mm
Hole diameter: 127 mm
Total machine weight: 5900 Kg
Machine dimensions: 3950x2935x2540 mm
Filtering system: yes
Use and maintenance books: Yes
Wiring diagrams: Yes
CE certification: Yes
Fairing: complete
Availability: ready
Visible in stock: yes
