Contact us to receive an offer.
| Manufacturer | FAT |
|---|---|
| Model | 350 AF |
| Year | |
| Location | Spain
|
| Category | Saws for metal - band saws |
| Max. cutting capacity 90° | 280 mm |
| Max. cutting capacity 45° | 225 mm |
| Blade length | 3010 mm |
| Blade width | 27 mm |
| Cutting speed | 86 m/min |
| Engine power | kW |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Datasheet | FAT 350 A |
| Last availability date | 20/10/2026 |
| Product id | P2210071741 |
| Language |
FAT 350 AF
Použitá pásová pila na kov FAT 350 AF
FAT 350 AF
FAT 350 AF Metallsäge - Bandsäge
FAT 350 AF
FAT 350 AF band saw for metal
Sierra de cinta para metal FAT 350 AF
Scie à ruban pour métal FAT 350 AF
FAT 350 AF
FAT 350 AF
Sega a nastro per metallo usata FAT 350 AF
FAT 350 AF
FAT 350 AF
Używana piła taśmowa FAT 350 AF
FAT 350 AF
FAT 350 AF
FAT 350 AF Пила по металлу - ленточная пила
FAT 350 AF
FAT 350 AF
İkinci el metal testere FAT 350 AF
|

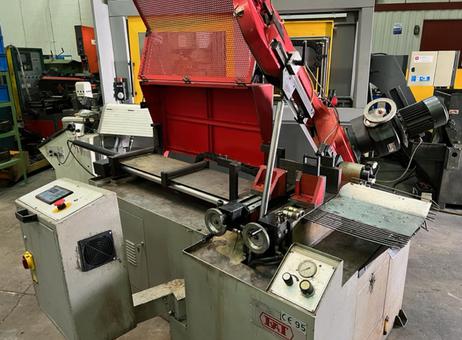

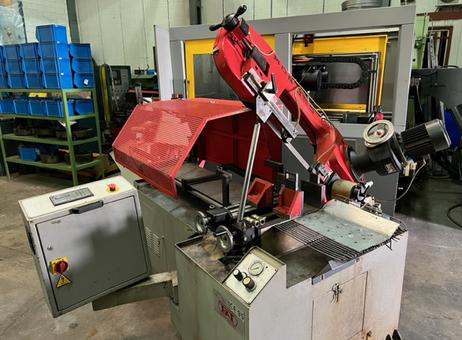

The FAT 350 AF is a metal band saw designed for precision cutting with a maximum cutting capacity of 280 mm at 90° and 225 mm at 45°. It features a blade measuring 3010 mm in length and 27 mm in width, capable of cutting at speeds up to 86 meters per minute. The machine supports various cutting angles, including 90°, 45° right, and 60° right, accommodating different material shapes such as round, square, and rectangular profiles.

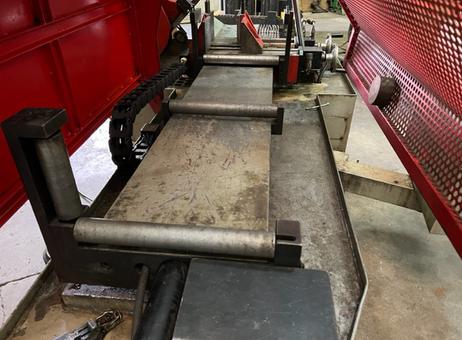

This band saw includes a double clamp system to securely hold workpieces during cutting, enhancing accuracy and safety. The worktable is equipped with metal rollers and clamping fixtures to facilitate smooth material feeding and stable positioning. The machine also comes with a roller conveyor to assist in handling longer materials.

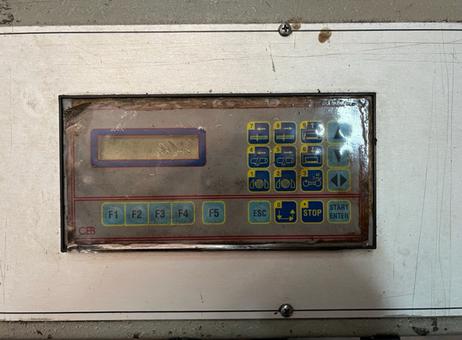

The control panel is mounted on the side of the machine and features multiple buttons including F1-F5, ESC, STOP, and START/ENTER keys, along with a digital display and an emergency stop button for operational safety. The control panel screen shows signs of wear and some scratches, indicating previous use. Additional components include a pressure gauge and adjustment knobs located on the front panel to fine-tune the cutting process.

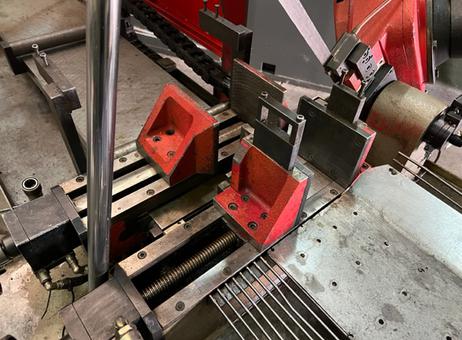

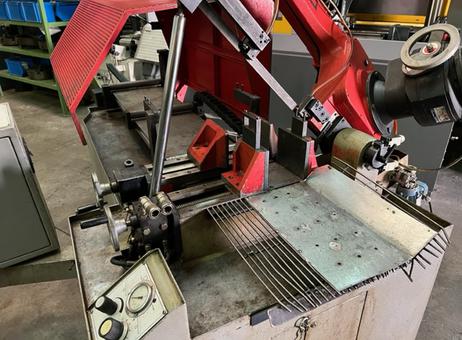

The saw arm is painted red and houses the blade and motor. The machine body and worktable surfaces display some dirt, scratches, and signs of wear but no visible damage or rust. The clamping mechanism includes red-painted metal clamps and a rail system, operated by a hydraulic or pneumatic cylinder rod, which appears functional despite some wear.
Overall, this FAT 350 AF band saw is a robust machine suitable for metal cutting applications, with comprehensive features for material securing and operational control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cutting capacity 90º (round/square/rectangular): 280 / 240 / 330×2400 mm
Cutting capacity 45º right (round/square/rectangular): 225 / 215 / 230×140 mm
Cutting capacity 60º right (round/square/rectangular): 140 / 140 / 140×130 mm
Tape dimensions: 3010 x 27 x 0.9 mm
Speeds: 2
Speed range: 20-100 mm
Cutting speeds: 26/86 mt/min
Double clamp for better part clamping
Includes roller conveyor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 55 |
| Last activity | Oct. 28, 2026 |
Cutting capacity 90º (round/square/rectangular): 280 / 240 / 330×2400 mm
Cutting capacity 45º right (round/square/rectangular): 225 / 215 / 230×140 mm
Cutting capacity 60º right (round/square/rectangular): 140 / 140 / 140×130 mm
Tape dimensions: 3010 x 27 x 0.9 mm
Speeds: 2
Speed range: 20-100 mm
Cutting speeds: 26/86 mt/min
Double clamp for better part clamping
Includes roller conveyor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
