| Manufacturer | Fanuc |
|---|---|
| Model | ROBODRILL D21MIB5 |
| Year | 2018 |
| Location | USA
|
This listing is for a Fanuc ROBODRILL D21MIB5 5-axis machining center, manufactured in 2018. It features a maximum part weight capacity of approximately 399.7 kg. The machine is equipped with a Fanuc Series 31i-model B5 CNC control system, which supports advanced functions including rigid tapping, high-speed processing, and 3D cutter compensation. The tool changer has 21 pockets with a rapid tool-to-tool change time of 0.9 seconds. The spindle has a maximum speed of 10,000 RPM and uses a BT30 taper.
The machine offers travel ranges of 19.6 inches on the X-axis and 15.74 inches on both the Y- and Z-axes. The table size measures 25.6 by 15.74 inches and can support a maximum load of 881 lbs. It provides rapid traverse rates of 2125 inches per minute and feed rates up to 1181 inches per minute on all axes. The machine weighs approximately 5,500 lbs.
Additional features include a coolant filtration system with a 200-liter coolant tank, a 110 mm column riser with roof insert, and a Haeberle 5-axis Direct Torque Table (DTT). It also includes a Lang fixture plate (Quick-point 96) with clamping edge measuring 192 x 156 x 27 mm. The control system supports multiple advanced programming functions such as rotary table dynamic fixture offset, high-speed tool center point control for 5-axis machining, tilted work plane commands, and workpiece setting error compensation.

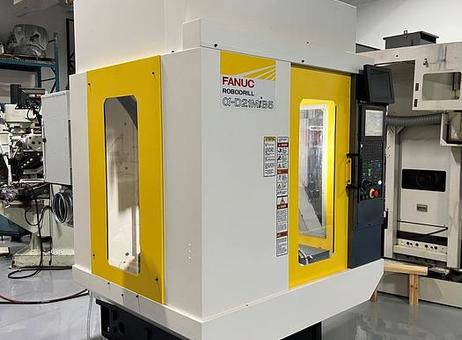

The machine is housed in a yellow and white enclosure with transparent windows on the front and side, allowing clear visibility of the machining area. The control panel with screen and buttons is located on the right side of the machine. It appears clean and well-maintained, installed indoors on a smooth, reflective floor surface.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Travels, X-axis 19.6″
Travels, Y-axis 15.74″
Travels, Z-axis 15.74″
Table Size 25.6″ X 15.74″
Max. Table Load 881 Lbs.
Rapid Traverse Rate ( X, Y, Z ) 2125 Ipm
Feed Rate ( X, Y, Z ) 1181 Ipm
Atc 21
Tool Change Time 0.9 Sec. Tool To Tool
Spindle Speed Max. 10,000 Rpm
Spindle Taper Bt30
Approx. Weight Of Machine 5,500 Lbs.
Description
** Spindle Cutting Time: 10 Hours
Fanuc Series 31i-model B5 Cnc Control
Coolant Filtration System
Complete Manuals
Rigid Tapping
200l Coolant Tank
110mm Column Riser Includes Roof Insert
Haeberle 5-axis Dtt Direct Torque Table
Lang Fixture Plate: Quick-point 96 Plate W/clamping Edge, 192 X 156 X 27 Mm
Mmt “package B” – 5-axis High Speed & High Precision, Including:
Jer Control
High Speed Processing, Aiccii / 200 Block Look Ahead
1000 Block Look Ahead Expansion
Fanuc Fast Data Server Ata Card 4 Gb ( Flash Memory )
Rotary Table Dynamic Fixture Offset ( G54.2)
High Speed Tool Center Point Control For 5-axis G43.4 / G43.5 / G49
Titled Work Plane Command G53.1 / G68.2 / G69
3d Cutter Compensation G41.2 / G41.5 / G41.6
Workpiece Setting Error Compensation ( G54.4 Wsec )
Hardware For 8 M Functions, For External Applications
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
