Contact us to receive an offer.
| Manufacturer | FANUC |
|---|---|
| Model | Arc Mate 120iC/12L |
| Year | |
| Location | Poland
|
The FANUC Arc Mate 120iC/12L is an industrial robotic arm designed for welding applications. This six-axis robot features a maximum payload capacity of 12 kg and an arm reach of 2009 mm, making it suitable for handling a variety of welding tasks. The robot arm weighs approximately 250 kg and is equipped with advanced movement capabilities, including a wide range of axis motion and high-speed axis movements, ensuring precise and efficient operation. Movement repeatability accuracy is ±0.008 mm, supporting high-quality welding results.
This robotic welding station includes several components that support automated welding processes, such as a FANUC R-30iB controller, two PEH 1-250 welding positioners, and a LINCOLN POWER WAVE S500 welding machine. The setup also contains a liquid-cooled ABICOR BINZEL ABIROB W500/45 welding torch, a LINCOLN COOLARC 50 cooler, and a welding torch cleaning station (ABICOR BINZEL BRS-CC). Additional equipment includes a LINCOLN 4R100 AUTODRIVE wire feeder, welding wire spool cassette, SICK light curtains for safety, two operator panels, a control cabinet, covers with service doors and safety locks, and a platform for stable installation.

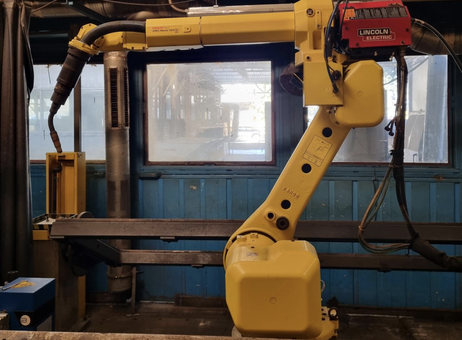

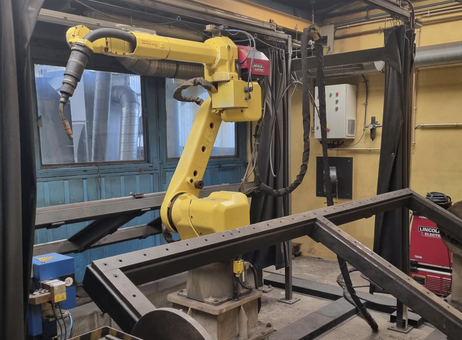

The robot arm is mounted on a fixed base and displays a yellow industrial design with multiple joints and attached cables. A red LINCOLN ELECTRIC welding power supply is part of the equipment. The robot and its accessories show signs of use consistent with an operational workshop environment but appear intact. A flexible black hose is attached to the robot's end effector, likely for welding or cooling purposes. A metal framework structure is present near the robot, possibly serving as a workpiece or jig for welding tasks.
This FANUC Arc Mate 120iC/12L system is well-suited for automated welding processes requiring precision and flexibility in handling complex geometries.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The FANUC Arc Mate 120iC/12L robotic welding station was manufactured in 2016. This system was specifically designed for fully automated welding of workpieces using MIG/MAG and TIG methods. The machining process is performed by a reliable industrial robot, which, in conjunction with two positioners, enables the machining of components with even the most complex geometries.
The offered robotic welding station is complete and consists of the following parts:
- robot arm: FANUC Arc Mate 120iC/12L
- controller: FANUC R-30iB
- welding positioner: PEH 1-250 (2 pcs.)
- welding machine: LINCOLN POWER WAVE S500
- liquid-cooled welding torch: ABICOR BINZEL ABIROB W500/45
- cooler: LINCOLN COOLARC 50
- welding torch cleaning station: ABICOR BINZEL BRS-CC
- wire feeder: LINCOLN 4R100 AUTODRIVE
- welding wire spool cassette
- SICK light curtains
- operator panel (2 pcs.)
- control cabinet
- covers with service doors and a lock with a safety switch
- platform
Welding robot
- number of axes: 6
- maximum payload: 12 kg
- maximum arm reach: 2009 mm
- axis movement range
J1 axis: ± 370°
J2 axis: ± 260°
J3 axis: ± 461°
J4 axis: ± 400°
J5 axis: ± 360°
J6 axis: ± 900°
- axis movement speed
J1 axis: ± 200°/s
J2 axis: ± 175°/s
J3 axis: ± 190°/s
J4 axis: ± 430°/s
J5 axis: ± 430°/s
J6 axis: ± 630°/s
- movement repeatability accuracy: ± 0.008 mm
- anti-collision system
- Collision Guard Package
- High Sensitive Package Collision Detection Package
- weight: 250 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 31, 2026 |
The FANUC Arc Mate 120iC/12L robotic welding station was manufactured in 2016. This system was specifically designed for fully automated welding of workpieces using MIG/MAG and TIG methods. The machining process is performed by a reliable industrial robot, which, in conjunction with two positioners, enables the machining of components with even the most complex geometries.
The offered robotic welding station is complete and consists of the following parts:
- robot arm: FANUC Arc Mate 120iC/12L
- controller: FANUC R-30iB
- welding positioner: PEH 1-250 (2 pcs.)
- welding machine: LINCOLN POWER WAVE S500
- liquid-cooled welding torch: ABICOR BINZEL ABIROB W500/45
- cooler: LINCOLN COOLARC 50
- welding torch cleaning station: ABICOR BINZEL BRS-CC
- wire feeder: LINCOLN 4R100 AUTODRIVE
- welding wire spool cassette
- SICK light curtains
- operator panel (2 pcs.)
- control cabinet
- covers with service doors and a lock with a safety switch
- platform
Welding robot
- number of axes: 6
- maximum payload: 12 kg
- maximum arm reach: 2009 mm
- axis movement range
J1 axis: ± 370°
J2 axis: ± 260°
J3 axis: ± 461°
J4 axis: ± 400°
J5 axis: ± 360°
J6 axis: ± 900°
- axis movement speed
J1 axis: ± 200°/s
J2 axis: ± 175°/s
J3 axis: ± 190°/s
J4 axis: ± 430°/s
J5 axis: ± 430°/s
J6 axis: ± 630°/s
- movement repeatability accuracy: ± 0.008 mm
- anti-collision system
- Collision Guard Package
- High Sensitive Package Collision Detection Package
- weight: 250 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The FANUC Arc Mate 120iC/12L is an industrial robotic arm designed for welding applications. This six-axis robot features a maximum payload capacity of 12 kg and an arm reach of 2009 mm, making it suitable for handling a variety of welding tasks. The robot arm weighs approximately 250 kg and is equipped with advanced movement capabilities, including a wide range of axis motion and high-speed axis movements, ensuring precise and efficient operation. Movement repeatability accuracy is ±0.008 mm, supporting high-quality welding results.
This robotic welding station includes several components that support automated welding processes, such as a FANUC R-30iB controller, two PEH 1-250 welding positioners, and a LINCOLN POWER WAVE S500 welding machine. The setup also contains a liquid-cooled ABICOR BINZEL ABIROB W500/45 welding torch, a LINCOLN COOLARC 50 cooler, and a welding torch cleaning station (ABICOR BINZEL BRS-CC). Additional equipment includes a LINCOLN 4R100 AUTODRIVE wire feeder, welding wire spool cassette, SICK light curtains for safety, two operator panels, a control cabinet, covers with service doors and safety locks, and a platform for stable installation.
The robot arm is mounted on a fixed base and displays a yellow industrial design with multiple joints and attached cables. A red LINCOLN ELECTRIC welding power supply is part of the equipment. The robot and its accessories show signs of use consistent with an operational workshop environment but appear intact. A flexible black hose is attached to the robot's end effector, likely for welding or cooling purposes. A metal framework structure is present near the robot, possibly serving as a workpiece or jig for welding tasks.
This FANUC Arc Mate 120iC/12L system is well-suited for automated welding processes requiring precision and flexibility in handling complex geometries.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
