Contact us to receive an offer.
| Manufacturer | FANUC |
|---|---|
| Model | 30HV |
| Year | |
| Location | Spain
|
This listing features a FANUC AC Spindle Motor, model 30HV, type A06B-1130-B100, manufactured by FANUC Ltd in Japan. The spindle motor carries the serial number C-970363 and was produced in February 1989. It is designed as a high voltage motor suitable for industrial applications, particularly in CNC machines and machining centers.
The motor has a nominal continuous power rating of 30 kW, with a peak power of 37 kW for 30 minutes of operation. It operates at voltages of 380V AC or 415V AC, with a continuous current of 70 A and a peak current of 78 A for 30 minutes. The spindle speed ranges from 1,150 to 4,500 rpm, supported by a 4-pole, 3-phase configuration. The motor insulation is rated Class F, and it is designed for a maximum ambient temperature of 40°C. It complies with regulation JEC-37.

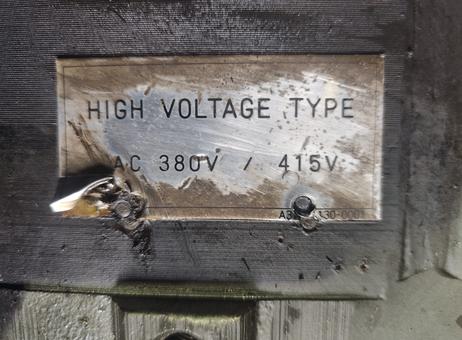

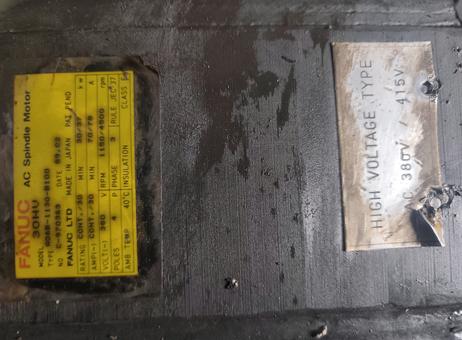

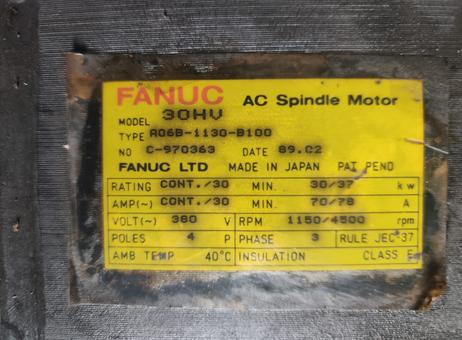

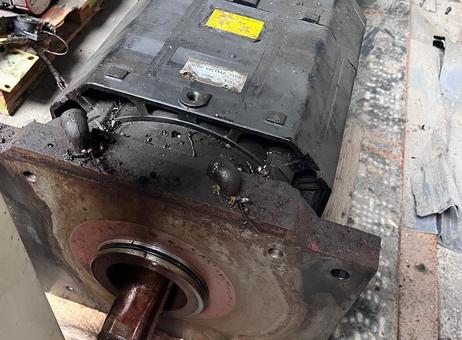

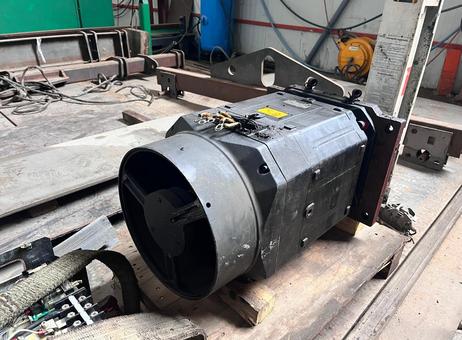

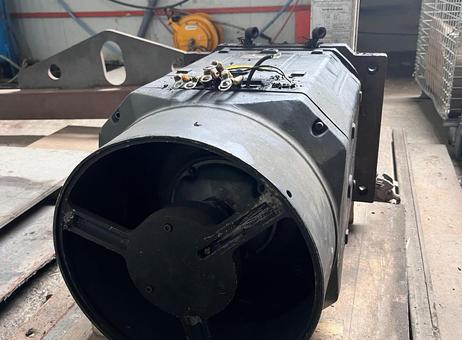

Physically, the motor is black and industrial-grade, mounted on wooden pallets in a workshop environment. It shows signs of wear and dirt accumulation on its surface, including some rust on the flange area, indicating prior use. The motor features wiring terminals on top and multiple cables connected, as well as a yellow label with technical specifications. One end of the motor includes a large shaft with a flange, while the opposite end has a cooling fan or ventilation opening.
This FANUC 30HV spindle motor is a robust and powerful unit suitable for replacement or integration into compatible machinery. The visible condition suggests it has been used and stored in an industrial setting, with no explicit information provided regarding its operational status or testing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
FANUC AC Spindle 30HV spindle motor, sourced from industrial dismantling. Robust, high-power motor, ideal for CNC machines, machining centers, or as a replacement part.
TECHNICAL DATA
Brand: FANUC
Model: 30HV
Type: A06B-1130-B100
Serial number: C-970363
Date of manufacture: 02/1989
Manufactured in: Japan
Nominal power:
30 kW (continuous service)
37 kW (30 min)
Intensity:
70 A (continuous)
78 A (30 min)
Voltage: 380V AC / 415V
Frequency: —
Speed: 1,150 – 4,500 rpm
Poles: 4
Phases: 3
Insulation class: Class F
Max. ambient temperature: 40°C
Regulation: JEC-37
Type: High Voltage Type
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2026 |
| Offers online | 1 |
| Last activity | Feb. 18, 2026 |
FANUC AC Spindle 30HV spindle motor, sourced from industrial dismantling. Robust, high-power motor, ideal for CNC machines, machining centers, or as a replacement part.
TECHNICAL DATA
Brand: FANUC
Model: 30HV
Type: A06B-1130-B100
Serial number: C-970363
Date of manufacture: 02/1989
Manufactured in: Japan
Nominal power:
30 kW (continuous service)
37 kW (30 min)
Intensity:
70 A (continuous)
78 A (30 min)
Voltage: 380V AC / 415V
Frequency: —
Speed: 1,150 – 4,500 rpm
Poles: 4
Phases: 3
Insulation class: Class F
Max. ambient temperature: 40°C
Regulation: JEC-37
Type: High Voltage Type
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a FANUC AC Spindle Motor, model 30HV, type A06B-1130-B100, manufactured by FANUC Ltd in Japan. The spindle motor carries the serial number C-970363 and was produced in February 1989. It is designed as a high voltage motor suitable for industrial applications, particularly in CNC machines and machining centers.
The motor has a nominal continuous power rating of 30 kW, with a peak power of 37 kW for 30 minutes of operation. It operates at voltages of 380V AC or 415V AC, with a continuous current of 70 A and a peak current of 78 A for 30 minutes. The spindle speed ranges from 1,150 to 4,500 rpm, supported by a 4-pole, 3-phase configuration. The motor insulation is rated Class F, and it is designed for a maximum ambient temperature of 40°C. It complies with regulation JEC-37.
Physically, the motor is black and industrial-grade, mounted on wooden pallets in a workshop environment. It shows signs of wear and dirt accumulation on its surface, including some rust on the flange area, indicating prior use. The motor features wiring terminals on top and multiple cables connected, as well as a yellow label with technical specifications. One end of the motor includes a large shaft with a flange, while the opposite end has a cooling fan or ventilation opening.
This FANUC 30HV spindle motor is a robust and powerful unit suitable for replacement or integration into compatible machinery. The visible condition suggests it has been used and stored in an industrial setting, with no explicit information provided regarding its operational status or testing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
