| Manufacturer | FADAL |
|---|---|
| Model | VMC 4020A HT |
| Year | 2004 |
| Location | Spain
|

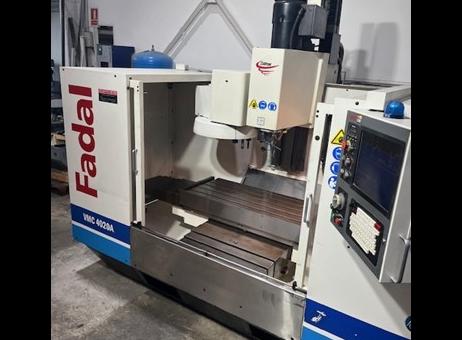

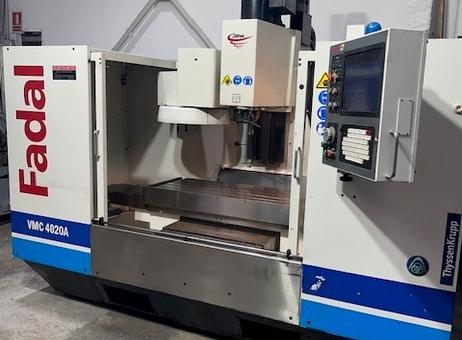

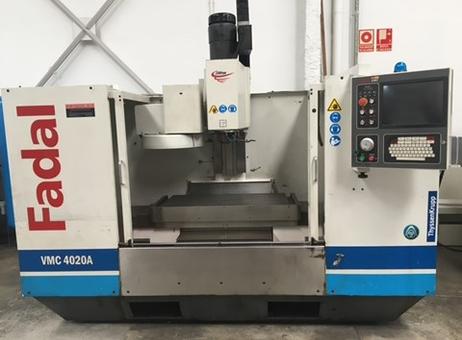

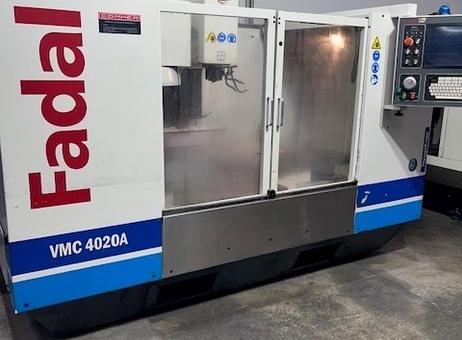

This listing features a FADAL VMC 4020A HT vertical machining center, manufactured in 2004 in the USA. It is a robust CNC machine designed for precision vertical milling tasks. The machine measures 2946 mm in length, 2210 mm in width, and 2900 mm in height, with a total weight of 4989 kg. The worktable size is 1220 mm by 508 mm, capable of supporting parts weighing up to 1360 kg. The machine offers useful travel strokes of 1016 mm on the X-axis, and 508 mm on both the Y and Z axes. It is equipped with linear ball bearing guides on the X and Y axes and a robust square guide on the Z-axis, ensuring smooth and precise movements.
Powered by a 16.5 kW spindle motor, the machine spindle reaches a maximum speed of 7500 rpm. The spindle uses a BT40 cone and features a high-torque FADAL motor with electronic range change via star/triangle wiring and toothed belt transmission. The machine includes a 30-tool automatic tool changer, allowing for efficient machining operations with a tool change time of approximately 2.5 seconds. Cooling is provided for the electrical cabinet via a heat exchanger, though the spindle itself is not oil cooled.

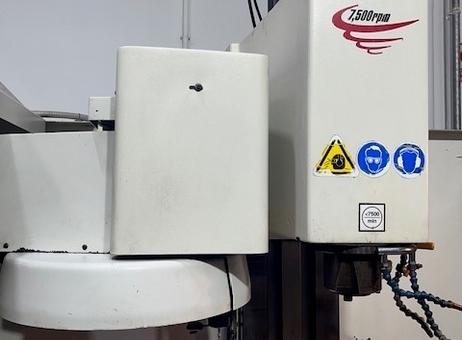

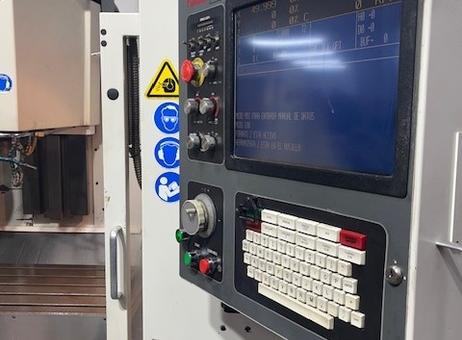

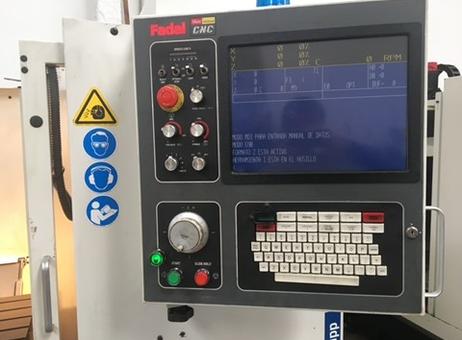

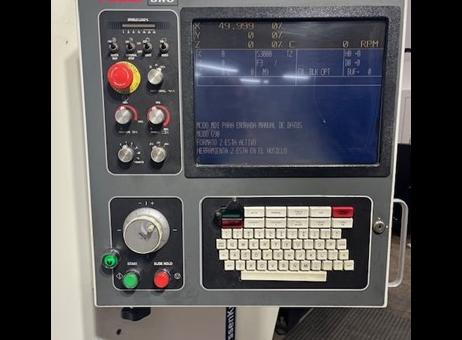

The machining center includes a 12-inch display with a conversational CNC66 numerical control system, supporting user-friendly operation. An electronic handwheel is also provided. The machine is CE certified to meet European safety standards and features complete fairing for operational safety. Interior illumination is included to enhance visibility during machining. Safety warning stickers are present on the spindle head and control panel.

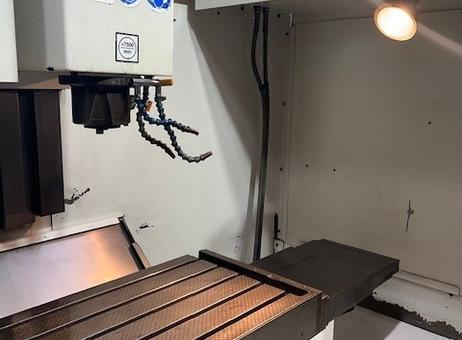

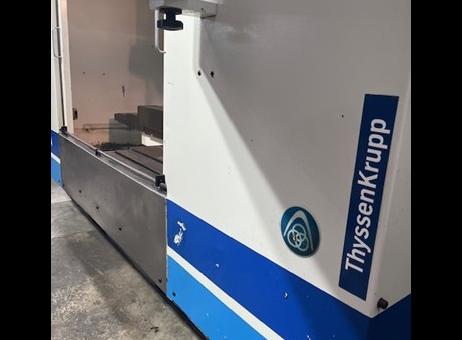

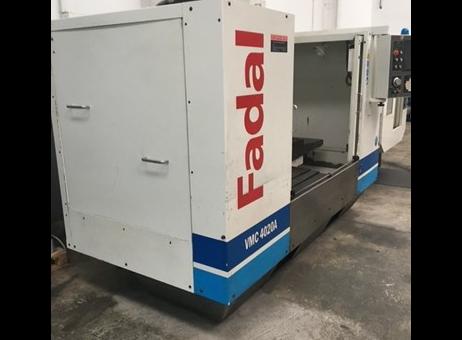

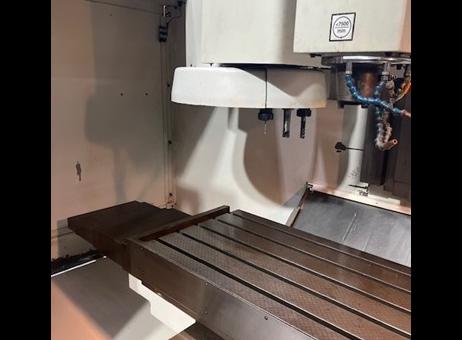

The machine enclosure shows some signs of use, with minor paint chipping on the lower blue panel and light wear on the worktable surface and machining area, but no major damage is evident. The control panel is functional with a readable display. The machine is currently in stock in Barcelona, at the Santa Perpetua de la Mogoda warehouse, and can be viewed in operation upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer FADAL Ld. Made in USA
Vertical Machining Center USED
Model VMC4020A HT
Fadal CNC66 Numerical Control
Conversational System YES
Display YES 12" normal screen
Communication data server NO 1GB
Table size 1.220 x 508mm
Maximum admissible weight on the table 1.360Kg
Useful strokes X 1.016mm
Y 508mm
Z 508mm
Type of guides Linear ball bearings on X, Y axes
Robust square guide on Z-axis
Rapid feeds X 22,8m/min
Y 22,8m/min
Z 17,7m/min
High torque FADAL motor spindle, star/triangle, electronic range change. Transmission by toothed belt
Revolutions 7.500rpm
Spindle power 16,8KW
Spindle cone BT40
Oil cooled spindle NO
Automatic tool change YES ATC 30 tools
Tool change time 2.5 sec
Cooling through tool NO
End of cycle lamp YES 1 color
Water gun NO
Interior work lamp YES
Water gun for table cleaning NO

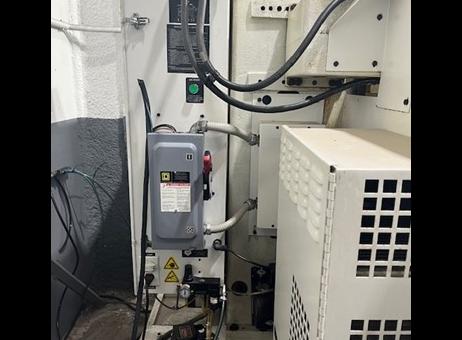

Cooling system electrical cabinet YES Heat exchanger
Electronic handwheel YES
Chips extractor NO
Complete fairing YES
Weight of the machine 4.989Kg
European safety standards CE certified
Factory warranty NO
Year of manufacture 2004
Delivery: Machine in stock in Barcelona, in the warehouse of Santa Perpetua de la Mogoda, Calle obradors, Nº 6, Nave 6.
It can be seen working, in DEMO.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
