Contact us to receive an offer.
| Manufacturer | Extron |
|---|---|
| Model | L610 |
| Year | 2008 |
| Location | Poland
|

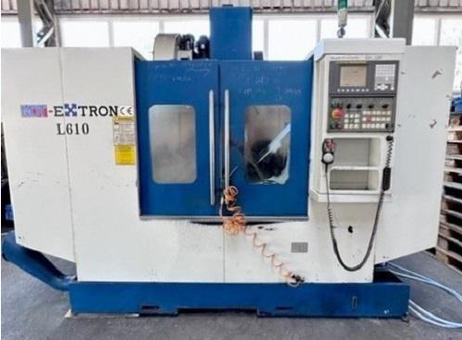

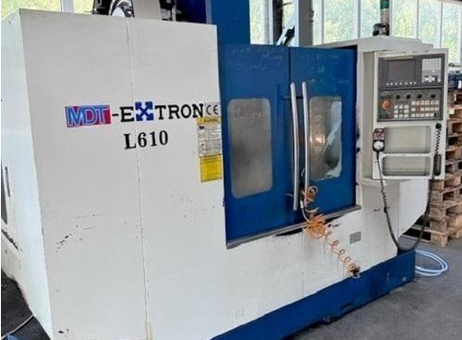

The EXTRON L610 is a vertical CNC machining center designed for precise milling operations. Manufactured in 2008, this machine features a robust structure with dual blue sliding doors equipped with windows, allowing operator visibility into the machining area while maintaining stability during processing. The enclosure has some surface wear and minor scratches on its white and blue painted surfaces, along with dirt marks, which are typical for used industrial equipment.

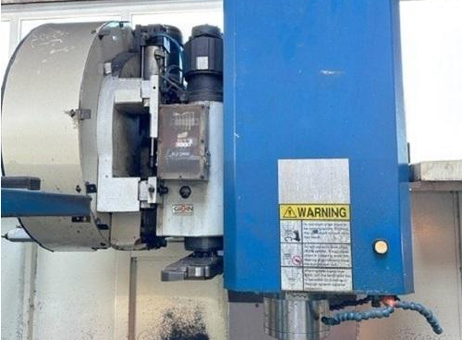

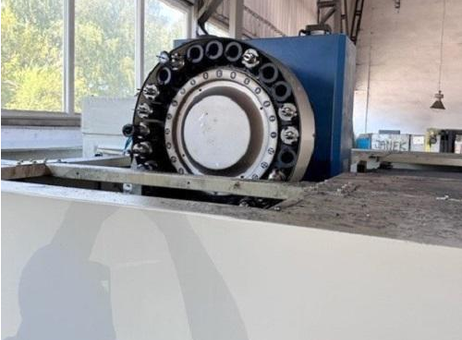

The machining center has a spacious working area with a T-slot table measuring 1260 mm in length and 510 mm in width, supported by five T-slots each 18 mm wide. The machine offers travel distances of 1060 mm (X-axis), 560 mm (Y-axis), and 700 mm (Z-axis), enabling versatile machining capabilities. The spindle, powered by an 11.19 kW motor, can reach speeds up to 8000 rpm and accommodates BT40 or SK40 spindle cones. It is equipped with a 20-position tool magazine that allows for efficient tool changes, with a maximum tool weight of 7 kg.

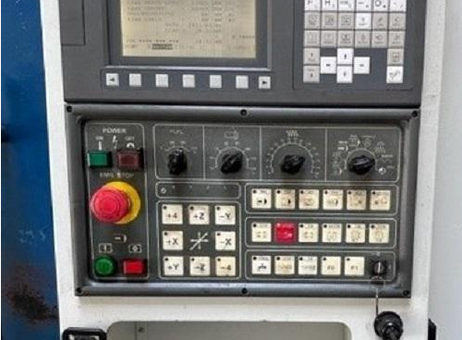

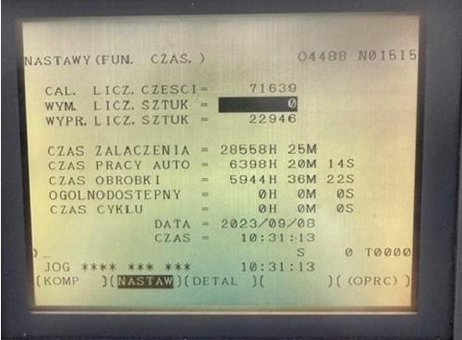

The control panel, mounted on the right side of the machine, includes multiple buttons, knobs, a display screen, an emergency stop button, and indicator lights. The CNC controller is a FANUC Series 0i-MC, known for its user-friendly interface and reliable performance. The screen displays operational data such as total working hours and machining time.

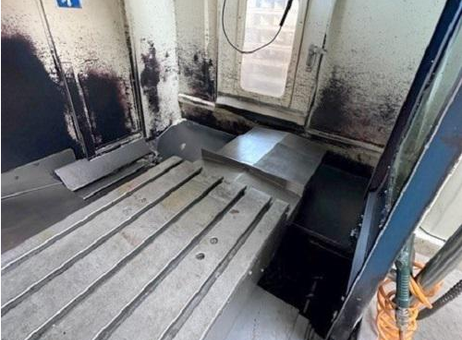

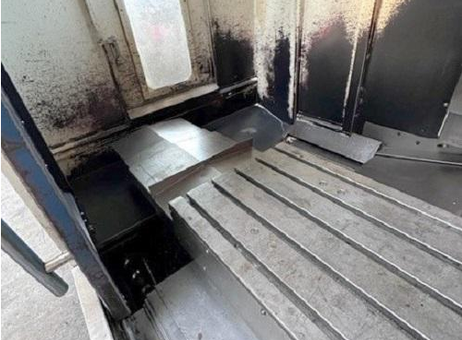

Inside the enclosure, some black staining or residue is visible on the walls and around the viewing windows, likely from coolant or machining processes. An orange coiled air hose is present both inside the enclosure and hanging on the front of the machine, providing convenient access for cleaning or other pneumatic needs. The machine weighs approximately 5750 kg and measures 3200 mm in length, 2400 mm in width, and 2590 mm in height.

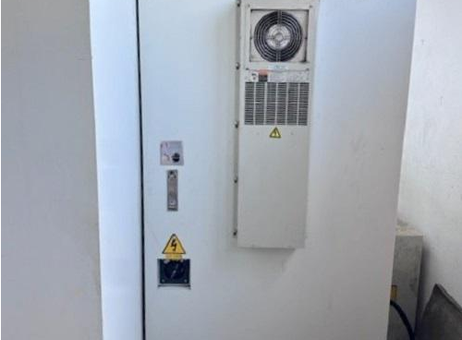

Warning labels for electrical hazards are affixed to the side panel, which also features a ventilation fan. Overall, the EXTRON L610 vertical machining center offers substantial machining capacity with a well-equipped control system and practical operator features suitable for a variety of production environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The EXTRON L610 CNC machining center, manufactured in 2008 in Taiwan, is ideal for precise milling of details in any production plant. The machine with wide processing capabilities has a structure made of high-quality raw materials with a sliding door, which maintains excellent stability during the milling process and provides easy access to the working area.
Machining of details takes place inside a large working space equipped with a T-slot table and a reliable spindle rotating at a maximum speed of 8,000 rpm. The EXTRON L 610 milling center is also equipped with an intuitive FANUC Series 0i-MC CNC control with many useful functions and a 20-position tool magazine, ensuring the selection of the shortest possible access path to a given tool. The EXTRON vertical CNC machining center weighs 5,750 kg.
Technical parameters of the EXTRON L610 CNC milling machine
- CNC controller: FANUC Series 0i-MC
- worktable surface (length x width): 1260 x 510 mm
- feeds in the X/Y/Z axes: 1060/560/700 mm
- accelerated feeds in the X/Y/Z axes: 24/24/12 m/min
- maximum working feed speed: 10 m/min
- maximum spindle speed: 8000 rpm
- spindle cone: BT40 or SK40
- spindle motor power: 15 HP
- spindle belt: 8YU
- 20-position tool magazine
- maximum tool weight: 7 kg
- number of T-slots: 5
- width of T-slots: 18 mm
- maximum distance between the spindle tip and the table surface: 822 mm
- minimum distance between the spindle tip and the table surface: 122 mm
- distance between the spindle axis and the column: 600 mm
- distance between the table and the base: 860 mm
- positioning accuracy: ± 0.01 mm
- positioning repeatability: ± 0.005 mm
- ball gear diameter: ø 25/25/32 mm
- pitch of the ball screw gear: 8 mm
- man hours: 6398 h
- CE certificate
- power supply: 3x 220 V; 50 Hz
- dimensions (length x width x height): 3200 x 2400 x 2590 mm
- machine weight: 5750 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
