Contact us to receive an offer.
| Manufacturer | EUROMAC |
|---|---|
| Model | Multi 220/6R |
| Year | 1998 |
| Location | Germany
|
This listing features a EUROMAC Multi 220/6R, a 2-station notching and bending machine manufactured in 1998. The machine is designed for precise metalworking tasks including notching and die bending. It has a compact footprint with overall dimensions of 1150 mm in length, 1050 mm in width, and 1460 mm in height, and weighs approximately 1000 kg.

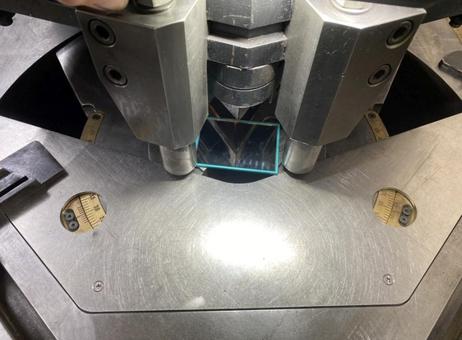

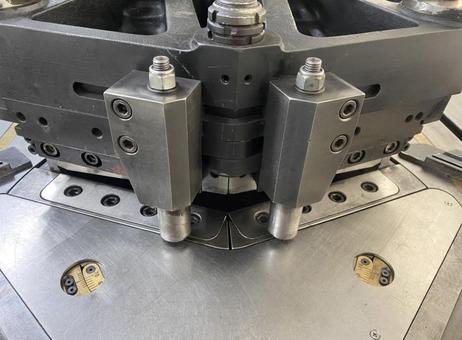

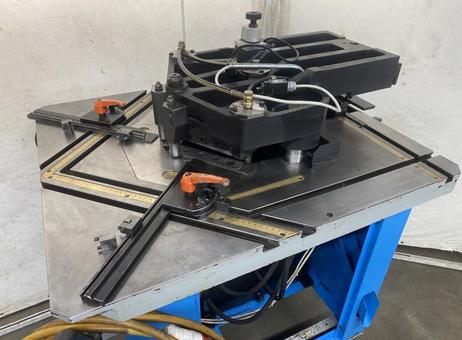

Station I is dedicated to notching operations. It supports a notching angle adjustable from 60° to 140°, with an optional special blade extending the range down to 30°. The blade length is 220 mm, and the worktable measures 950 x 640 mm. Angle adjustments are performed manually via hand wheels. The station includes hydraulic clamping for both upper and lower blades, automatic cutting gap adjustment, and a sheet metal hold-down device to secure materials during processing. Scaled measuring tapes are embedded in the table to assist with precise positioning, and stop rails with angle adjustment are included. Operation is controlled via a foot switch.

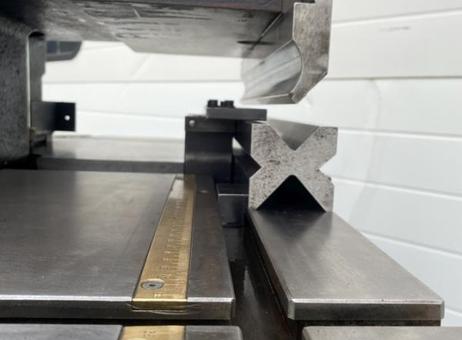

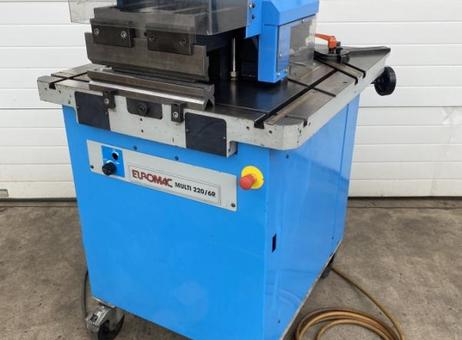

Station II functions as a die bending device, providing a pressure force of 18 tons. It features a smaller table size of 950 x 340 mm and a working height of 1100 mm. The stroke speed is continuous and includes a continuously adjustable stroke limiter with a maximum stroke adjustment of 30 mm. The reversible prism system includes four 90° prisms, each 415 mm in length, and the upper tool also measures 415 mm at 90°.

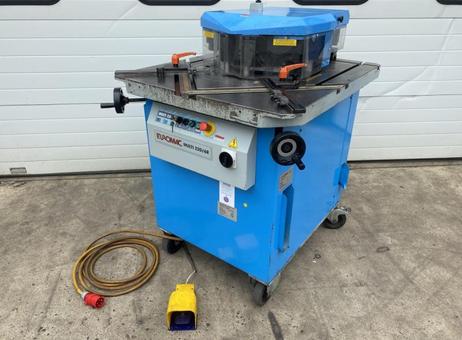

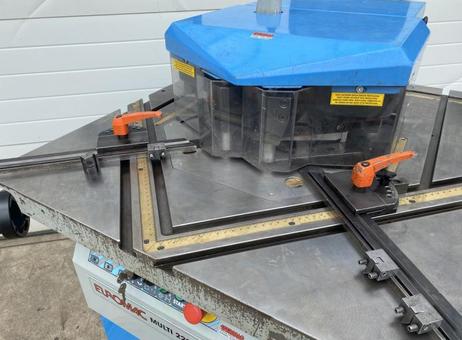

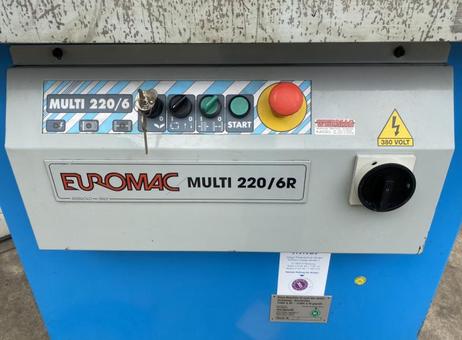

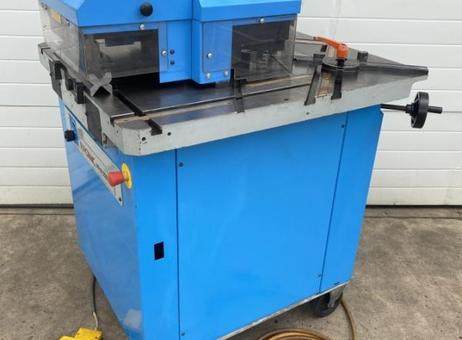

The machine is powered by a 4 kW motor and requires a 400 Volt, 50 Hz mains connection. The unit is painted blue and comes equipped with a metal worktable and transparent safety guards for operator protection. Control is facilitated by a foot pedal with a yellow cover and a red industrial plug for power connection. Adjustment handles are located on the sides for positioning or clamping purposes.
The machine surface shows signs of use, including some wear and minor rust on the metal edges of the table, which is typical for equipment of this age and type. This machine is offered as-is and is suitable for users seeking a robust notching and bending solution with comprehensive adjustment features and safety components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine Type: 2-station Notching and Bending Machine
Manufacturer: EUROMAC
Model: Multi 220/6R
Year of Manufacture: 1998
Technical Condition: As-is, where-is
Cutting Capacity:
- 6 mm steel at 45 kg/mm²
- 4 mm for stainless steel
Station I (Notching):
- Notching Angle: 60° to 140° (with special blade from 30° to 140°)
- Blade Length: 220 mm
- Table Size: 950 x 640 mm
- Manual Angle Adjustment: Via hand wheels
- Hydraulic Clamping: Upper and lower blades
- Automatic Cutting Gap Adjustment
- Sheet Metal Hold-down Device
- Scaled Measuring Tapes: Embedded in the table
- Stop Rails: With angle adjustment
- Operation: Via foot switch
Station II (Die Bending Device):
- Pressure Force: 18 ton
- Table Size: 950 x 340 mm
- Working Height: 1100 mm
- Continuous Stroke Speed
- Continuously Adjustable Stroke Limiter
- Stroke Adjustment: Up to 30 mm working stroke
- Reversible Prism: 4x 90° prisms, length = 415 mm
- Upper Tool: 90°, length = 415 mm
Motor Power: 4 kW
Mains Connection: 400 Volt, 50 Hz
Space Required: L x W x H: 1150 x 1050 x 1460 mm
Weight: Approx. 1000 kg
Condition: Good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 84 |
| Last activity | Oct. 27, 2026 |
