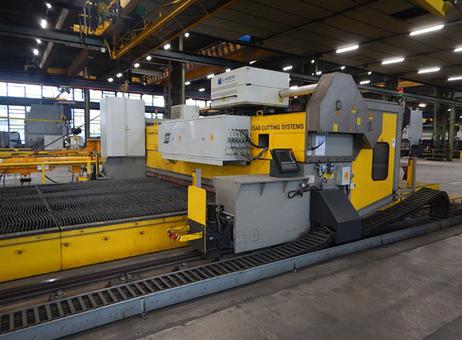

Esab Alpharex AXC 7000 laser cutting machine Top seller

You have the same machine to sell?

Add it to our catalogue for FREE

Start selling

About this seller Top seller

Client type Reseller
Active since 2015
Offers online 287
Last activity April 9, 2021

Specifications

Power 4000 W
Option to cut tubes no
Max thickness 20 mm
CNC yes
CNC type Esab NCE 620 + Trumpf Tasc
Travel X 24000 mm
Travel Y 7000 mm
Travel Z 260 mm
-------------------
Worked hours
Hours under power
State good
At local norms ---------
Status dismantled

Description

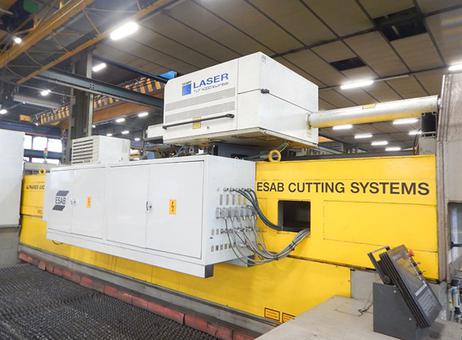

Type of Laser TLF 4000 Turbo
Power 4000 Watt

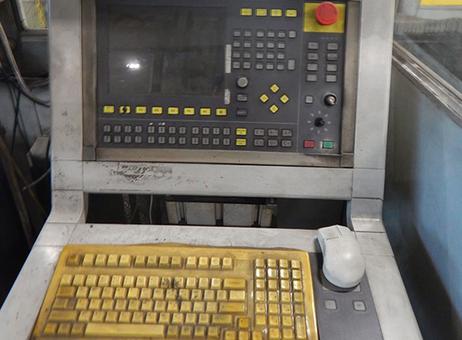

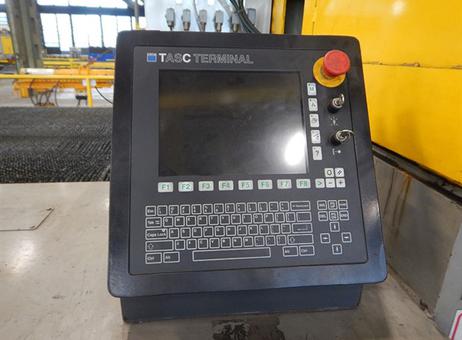

Control Esab NCE 620 + Trumpf Tasc
Longitudinal travel X-axis 24 000 mm
Cross travel Y-axis 7000 mm
Hight travel Z-axis 260 mm
Max cutting thickness in steel 20 mm
Max cutting thickness in Inox 15 mm
Courant needed 3x 400V
Type: Alpharex AXC 7000
Trumpf TLF 4000 Turbo

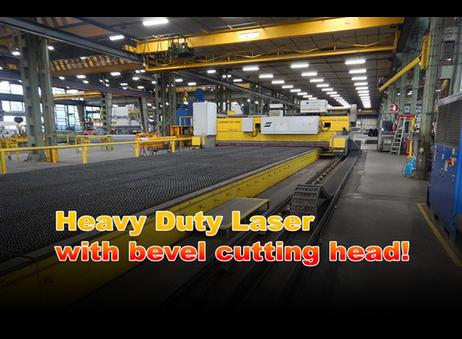

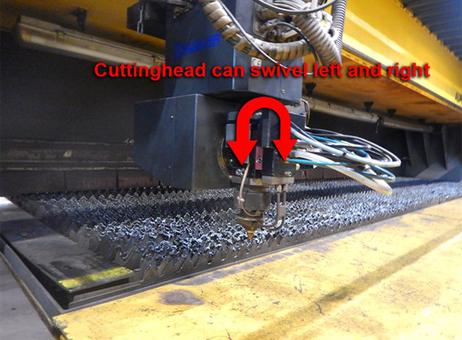

Cutting head can swivel and can make bevel cuts
including Columbus software with all options

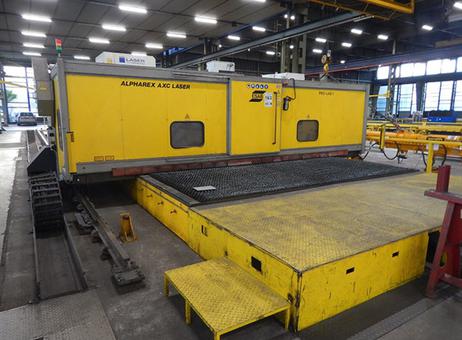

Ezeclean cuttin tables with integrated dustextraction
- Track width: 7000 mm
- Cutting width: 6300 mm
- Height travel of cutting head: max 260 mm

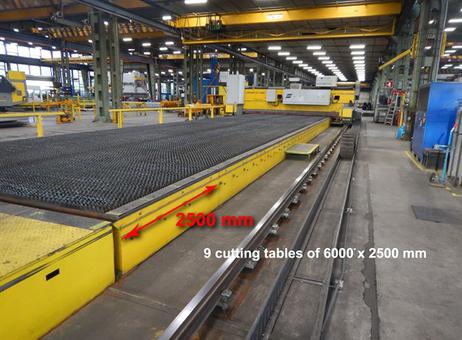

- 9 cutting tables of 6300 x 2500 mm
- Video camera for monitoring cuttinghead
Laser cutting head for vertical and bevel cutting on flat plates in horizontal position

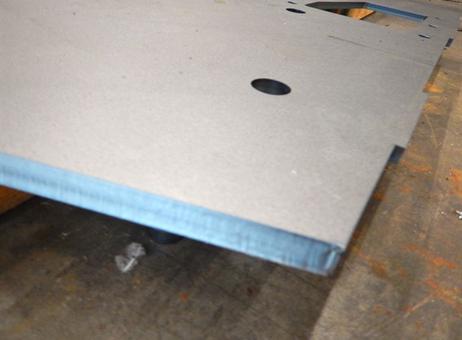

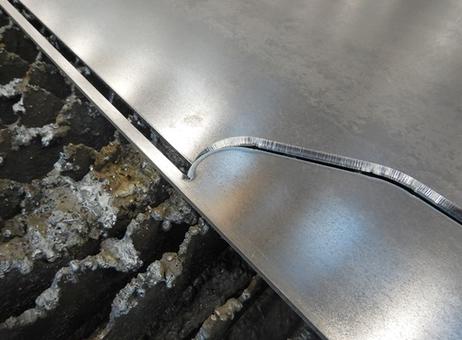

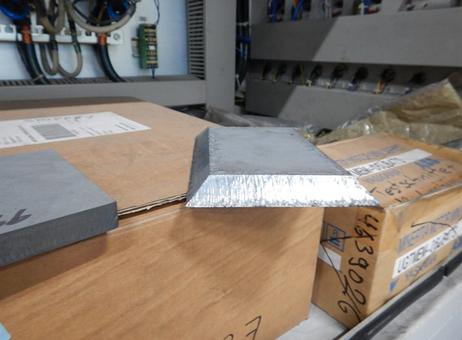

Up to 20° bevel angle laser quality cuts are possible, with larger bevel angles serrations and burrs must be expected
Max vertical cutting steel: 20 mm
Max vertical cutting stainless steel: 12 mm
Max vertical cutting alu: 8 mm
Max bevel cutting steel: 15 mm
Max bevel cutting stainless steel: 10 mm
Max bevel cutting alu: 6 mm
Columbus software:
> Basic module comprises various functions which enable the convenient generation of machine programs from part information.
> Including the modules integrated Cad-system, 65 standard shapes and DXF-convertor
> Marking tool module
> Bevel unit module
> Data management module, for the organization and administration of the parts to be processed
> Date information module, calculation of layouts
> Plate management module
> Automatic nesting module, fully auto nesting of any kind of contour

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. Exapro recommends to check the details with the seller before a purchase
