| Manufacturer | Ersa |
|---|---|
| Model | Hotflow 2 |
| Year | 2008 |
| Location | Austria
|
The Ersa Hotflow 2/14 is a PCB reflow oven designed for precise soldering processes using convection heating technology. Manufactured in 2008, this machine features a comprehensive heating system with five preheating zones both on the top and bottom, followed by two soldering zones on each side, ensuring uniform temperature distribution across the circuit boards during the reflow process.
This model accommodates board clearances ranging from +35 mm to -20 mm and supports working widths between 50 mm and 500 mm (2 to 20 inches), making it suitable for a variety of PCB sizes. The conveyor speed is adjustable from 20 to 200 cm per minute (8 to 79 inches per minute), allowing for precise control over the thermal profile.
The total process zone length measures 3,440 mm (135 inches), which is divided into a heating zone of 2,570 mm (101 inches) and a cooling zone of 870 mm (34 inches). Additionally, the infeed and outfeed zones each extend 700 mm (28 inches), facilitating smooth board handling.
The conveyor system employs both pin and chain mechanisms, complemented by a PSB center support to ensure stable transport of PCBs throughout the oven. The machine is designed to operate effectively within ambient temperatures ranging from 10°C to 35°C.
Equipped with the Ersa Soft 3.010.001 software version, the Hotflow 2/14 offers reliable process control.

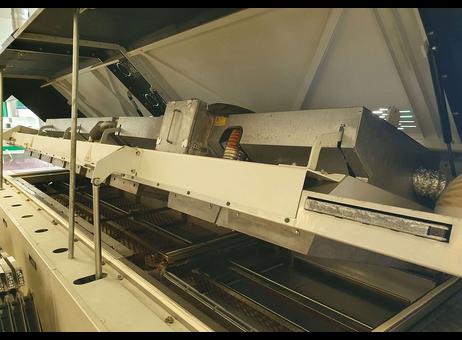

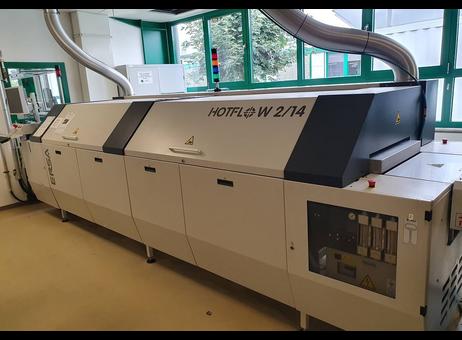

Physically, the machine is in good condition, presenting a clean exterior with multiple access panels for maintenance and service. Exhaust or ventilation pipes are connected on the top of the unit, supporting proper airflow management. The interior chamber, visible with the top cover open, reveals a well-maintained conveyor belt and heating elements, with no signs of rust or damage. The metallic structure includes ventilation ducts and wiring that appear intact and properly organized, ensuring operational safety and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Reflow oven Hotflow 2/14
Heating system convection
Preheating 5 top / 5 bottom
Soldering zone 2 top / 2 bottom
Board clearance +35 / -20mm
Working width 50 - 500mm (2 - 20")
Conveyor speed 20 - 200 cm/min (8 - 79")
Prozess zone lenght 3.440mm (135")
Heating zone 2.570mm (101")
Cooling zone 870mm (34")
Infeed / Outfeed zone 700mm (28")
Pin- and cain conveyor
PSB center support
Ambient temperature 10 -35°C
SW Version: Ersa Soft 3.010.001
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 46 |
| Last activity | Oct. 20, 2026 |
Reflow oven Hotflow 2/14
Heating system convection
Preheating 5 top / 5 bottom
Soldering zone 2 top / 2 bottom
Board clearance +35 / -20mm
Working width 50 - 500mm (2 - 20")
Conveyor speed 20 - 200 cm/min (8 - 79")
Prozess zone lenght 3.440mm (135")
Heating zone 2.570mm (101")
Cooling zone 870mm (34")
Infeed / Outfeed zone 700mm (28")
Pin- and cain conveyor
PSB center support
Ambient temperature 10 -35°C
SW Version: Ersa Soft 3.010.001
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Ersa Hotflow 2/14 is a PCB reflow oven designed for precise soldering processes using convection heating technology. Manufactured in 2008, this machine features a comprehensive heating system with five preheating zones both on the top and bottom, followed by two soldering zones on each side, ensuring uniform temperature distribution across the circuit boards during the reflow process.
This model accommodates board clearances ranging from +35 mm to -20 mm and supports working widths between 50 mm and 500 mm (2 to 20 inches), making it suitable for a variety of PCB sizes. The conveyor speed is adjustable from 20 to 200 cm per minute (8 to 79 inches per minute), allowing for precise control over the thermal profile.
The total process zone length measures 3,440 mm (135 inches), which is divided into a heating zone of 2,570 mm (101 inches) and a cooling zone of 870 mm (34 inches). Additionally, the infeed and outfeed zones each extend 700 mm (28 inches), facilitating smooth board handling.
The conveyor system employs both pin and chain mechanisms, complemented by a PSB center support to ensure stable transport of PCBs throughout the oven. The machine is designed to operate effectively within ambient temperatures ranging from 10°C to 35°C.
Equipped with the Ersa Soft 3.010.001 software version, the Hotflow 2/14 offers reliable process control.
Physically, the machine is in good condition, presenting a clean exterior with multiple access panels for maintenance and service. Exhaust or ventilation pipes are connected on the top of the unit, supporting proper airflow management. The interior chamber, visible with the top cover open, reveals a well-maintained conveyor belt and heating elements, with no signs of rust or damage. The metallic structure includes ventilation ducts and wiring that appear intact and properly organized, ensuring operational safety and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 46 |
| Last activity | Oct. 20, 2026 |
