View price| Strength | 160 T |
| Folding length | 3100 mm |
| CNC | ESA Graphic |
| Axis number | 4 |
| ------------------- | |
| Length x width x height | 4250.0 × 2150.0 × 2800.0 |
| Weight | 9000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | yes |
| status | visible |
| Last availability date | 31/05/2026 |
This listing is for an ERMAKSAN CNC press brake model CNCAP 3100X160, a robust hydraulic bending machine designed for precise metal forming tasks. The press brake offers a bending length of 3100 mm and a maximum bending force of 160 tons, suitable for handling a wide range of sheet metal thicknesses and sizes. Manufactured in 2010, this machine features four axes, enabling complex bending operations with enhanced control and versatility.

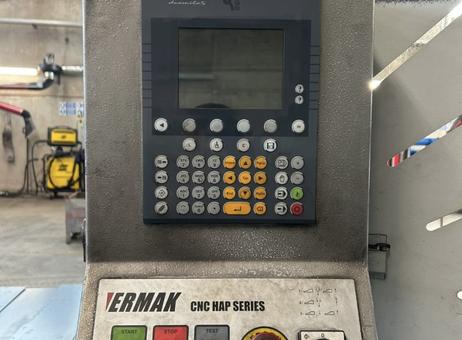

The machine's overall dimensions are 4250 mm in length, 2150 mm in width, and 2800 mm in height, with a total weight of approximately 9000 kg. It includes a folding length of 3100 mm, which corresponds to the working length of the bending beam. The press brake is equipped with a WILA centering system and linkage type SCHIAVI, contributing to accurate and synchronized bending movements. The control system is a CNC ESA Graphic unit, providing programmable and repeatable bending processes.

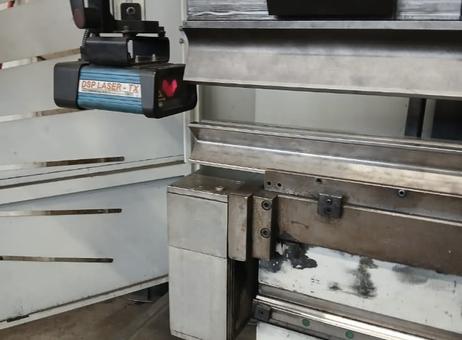

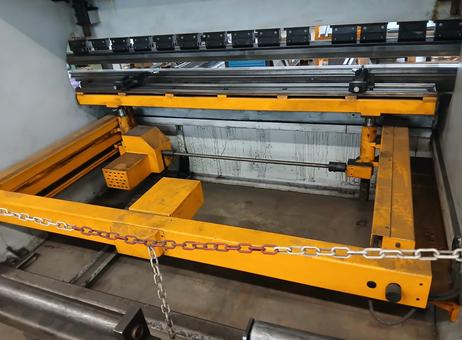

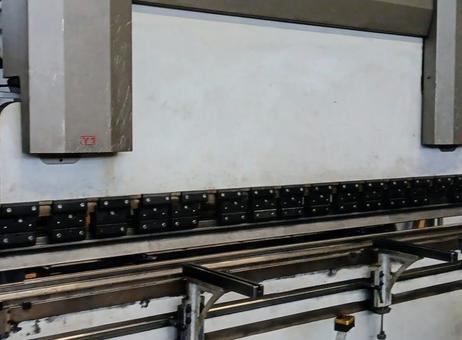

Visible components include a long metal bending beam with multiple clamps or holders for securing tooling, as well as two adjustable metal support arms at the front to assist in supporting workpieces during operation. The machine shows signs of use, including some surface dirt and wear marks on the lower metal parts, which is typical for used industrial equipment.

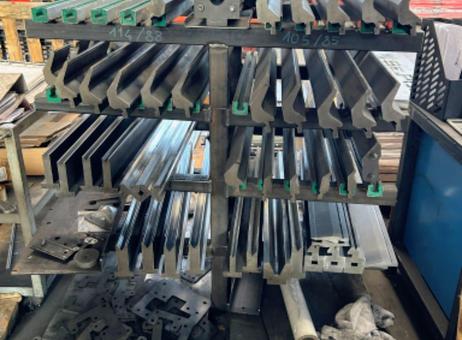

This ERMAKSAN press brake is CE certified and comes complete with blades and dies as shown in the images. It is situated indoors on a concrete floor, indicating proper storage conditions. This machine is suitable for manufacturers requiring precise bending capabilities and reliable performance in metal fabrication.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Synchronized Hydraulic Bending Press ERMAKSAN AP 3100X160, mm.3100 x 160 Ton, 4 Axes + 1, Y1, Y2, X, R + WILA centering Tav Inf, Sup Linkage type SCHIAVI, CNC ESA Graphic, CE, complete with blades and dies as pictured, very nice used machine, available December 2025
Length Of Bending Mm: 3100
Power Tonn: 160
Recess Mm: 400
Machine Weight Kg: 9000
Overall Dimensions Mm: 4250 x 2150 x Height 2800
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What is the working length of this ERMAKSAN CNCAP 3100X160?
This ERMAKSAN CNCAP 3100X160 press brake has a working length of 3100 mm.
What is the bending capacity of the machine?
This equipment has a bending capacity of 160 tons.
When was this ERMAKSAN CNCAP 3100X160 manufactured?
This ERMAKSAN CNCAP 3100X160 press brake was manufactured in 2010.
Does this equipment have CNC controls for bending?
The machine is equipped with CNC controls for synchronized bending.
What types of materials can this machine process?
This equipment is suitable for processing various sheet metal materials.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
