| Manufacturer | Engel |
|---|---|
| Model | Victory 500/120 Tech |
| Year | 2004 |
| Location | Poland
|
This listing features an Engel Victory 500/120 Tech injection moulding machine, manufactured in 2004. It offers a clamping force of 120 tons (1,200 kN) and a screw diameter of 40 mm, suitable for various injection moulding applications. The machine has a shot weight capacity of 231 grams and can apply an injection pressure of up to 1,300 bar. The platen dimensions are 740 mm in length and 680 mm in width, providing a solid surface area for mould installation.
The machine measures 5,000 mm in length and 1,700 mm in width, with a total weight of 7,400 kg. It is equipped with a robot, enhancing automation capabilities for improved production efficiency. The control system used is the CC200, and the installed power is rated at 41 kW.

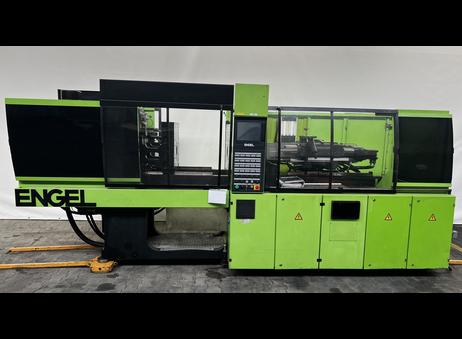

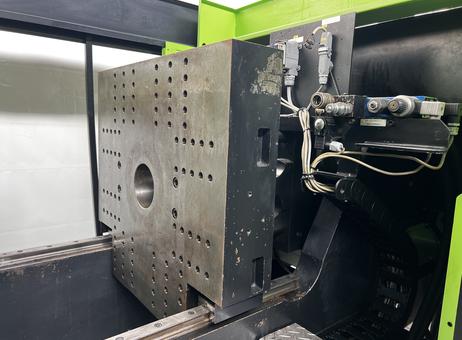

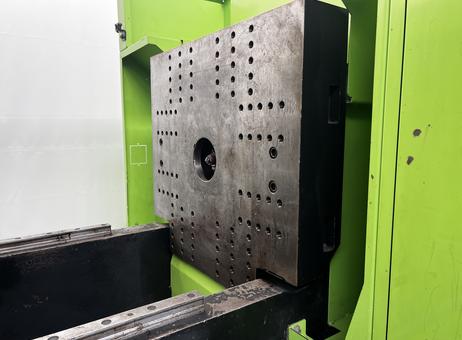

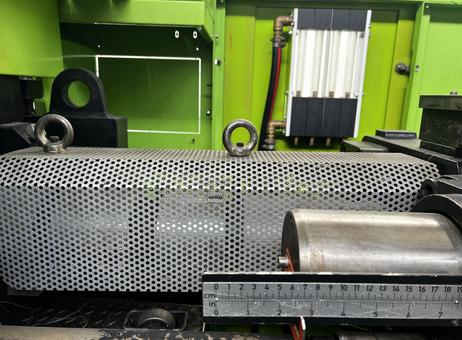

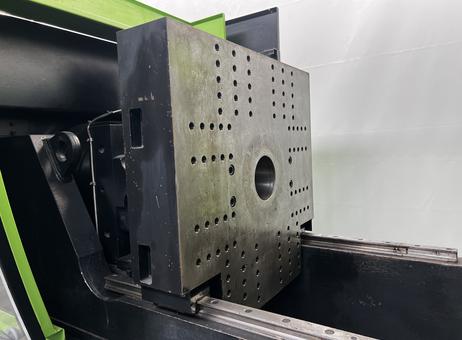

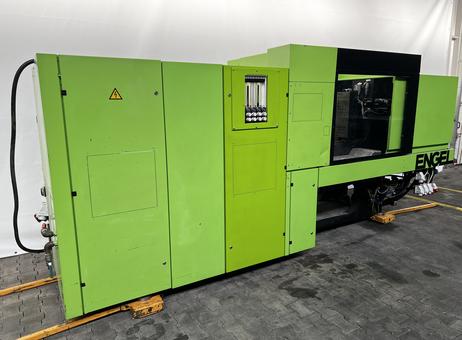

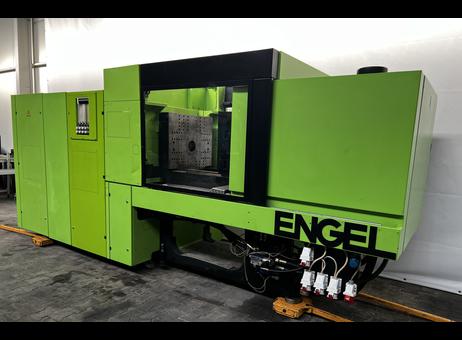

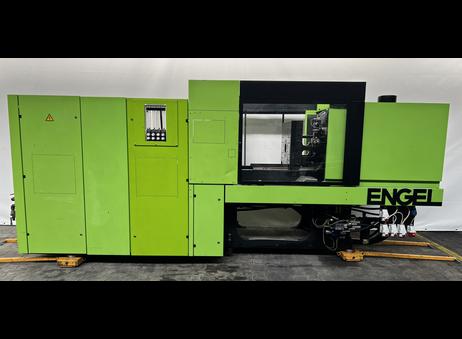

Visually, the machine is painted green with black protective doors and transparent panels, which include safety interlocks for operator protection. The exterior shows minor scratches and signs of use, indicating normal wear. The platen surface displays wear marks and some dirt accumulation but remains intact and functional. Hydraulic hoses and parts of the machine frame are visible, painted in green and bearing the Engel logo. A perforated metal panel labeled 'co40' is also present and appears undamaged.
This Engel Victory 500/120 Tech is a robust injection moulding machine suitable for various manufacturing needs, combining reliable specifications with automation readiness.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Engel Victory 500/120 Tech
Shot weight: 231 g
Closing force: 1,200 kN
Screw diameter: 40 mm
Injection pressure: 1300 (2020) bar
Column spacing: No columns
Plate size: 740 x 680 mm
Type of control: CC200
German
Installed power: 41 kW
Working hours: 96,830 h
Weight: 7400 kg
Dimensions: 5 x 1.7 m
A string of cores
Robot nest
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 10 |
| Last activity | Oct. 17, 2026 |
Engel Victory 500/120 Tech
Shot weight: 231 g
Closing force: 1,200 kN
Screw diameter: 40 mm
Injection pressure: 1300 (2020) bar
Column spacing: No columns
Plate size: 740 x 680 mm
Type of control: CC200
German
Installed power: 41 kW
Working hours: 96,830 h
Weight: 7400 kg
Dimensions: 5 x 1.7 m
A string of cores
Robot nest
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features an Engel Victory 500/120 Tech injection moulding machine, manufactured in 2004. It offers a clamping force of 120 tons (1,200 kN) and a screw diameter of 40 mm, suitable for various injection moulding applications. The machine has a shot weight capacity of 231 grams and can apply an injection pressure of up to 1,300 bar. The platen dimensions are 740 mm in length and 680 mm in width, providing a solid surface area for mould installation.
The machine measures 5,000 mm in length and 1,700 mm in width, with a total weight of 7,400 kg. It is equipped with a robot, enhancing automation capabilities for improved production efficiency. The control system used is the CC200, and the installed power is rated at 41 kW.
Visually, the machine is painted green with black protective doors and transparent panels, which include safety interlocks for operator protection. The exterior shows minor scratches and signs of use, indicating normal wear. The platen surface displays wear marks and some dirt accumulation but remains intact and functional. Hydraulic hoses and parts of the machine frame are visible, painted in green and bearing the Engel logo. A perforated metal panel labeled 'co40' is also present and appears undamaged.
This Engel Victory 500/120 Tech is a robust injection moulding machine suitable for various manufacturing needs, combining reliable specifications with automation readiness.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 10 |
| Last activity | Oct. 17, 2026 |
