Contact us to receive an offer.
| Manufacturer | Engel |
|---|---|
| Model | ES 330 80 HL |
| Year | 1996 |
| Location | Portugal
|
This listing is for an Engel ES 330/80 HL injection moulding machine, manufactured in 1996. It features a clamping force of 80 tons (800 kN) and a screw diameter of 35 mm. The machine offers a shot volume of 154 cm³ and a shot weight of 140 grams, suitable for various injection moulding applications. The injection pressure is rated at 1600 bar, and the injection unit has a screw stroke of 160 mm. The platen dimensions measure 660 mm in length and 360 mm in width, with an opening stroke of 450 mm. The machine is equipped with a robot, enhancing automation capabilities. The control system is the EC 88 version, with an English language display. The machine weighs approximately 5300 kg and has overall dimensions of 6000 mm in length, 1850 mm in width, and 2000 mm in height.

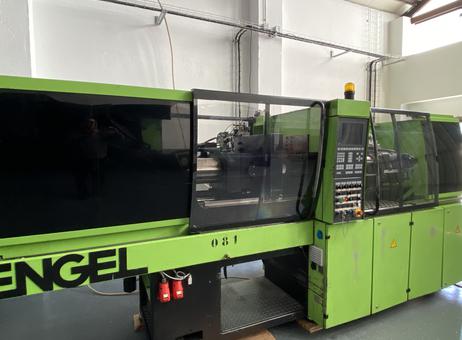

The machine is painted in a green and black color scheme and includes a control panel featuring a display screen along with multiple buttons and knobs for operation. Safety cover panels made of dark transparent material are installed, providing protection during operation. The machine is currently mounted on wooden blocks for stability. There are visible signs of wear and some paint scratches on the machine body, which is typical for equipment of this age and usage.
Located in Portugal, the machine is available for immediate delivery. Pricing is available upon request. This Engel ES 330/80 HL is suitable for users seeking a robust injection moulding machine with integrated robotic capabilities and a reliable control system.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Engel ES 330/80HL
Details:
Manufacturer: Engel
Type of machine: ES 330/ 80 HL
Year: 1996
Delivery Time: immediately
Location: Portugal
Controlversion: EC 88
Screen text: English
Price: on request
Technical details
Clamping unit
Clamping force: 800 KN
Size of mould platens (h x v ): 660 mm x 560 mm
Distance between tie bars ( h x v): HL
Mould opening stroke: 450 mm
Mould height min: 250 mm
Max daylight: 700 mm
Hydraulic ejector- stroke: 100 mm
Ejector Force forward/backward: 25.4 kN
Injection unit
Screw diameter: 35 mm
Injection Pressure: 1600bar
Sroke volume: 154 cm
Shot Weight PS : 140g
Screw Sroke 160 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 4 |
| Last activity | Oct. 29, 2026 |
Engel ES 330/80HL
Details:
Manufacturer: Engel
Type of machine: ES 330/ 80 HL
Year: 1996
Delivery Time: immediately
Location: Portugal
Controlversion: EC 88
Screen text: English
Price: on request
Technical details
Clamping unit
Clamping force: 800 KN
Size of mould platens (h x v ): 660 mm x 560 mm
Distance between tie bars ( h x v): HL
Mould opening stroke: 450 mm
Mould height min: 250 mm
Max daylight: 700 mm
Hydraulic ejector- stroke: 100 mm
Ejector Force forward/backward: 25.4 kN
Injection unit
Screw diameter: 35 mm
Injection Pressure: 1600bar
Sroke volume: 154 cm
Shot Weight PS : 140g
Screw Sroke 160 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for an Engel ES 330/80 HL injection moulding machine, manufactured in 1996. It features a clamping force of 80 tons (800 kN) and a screw diameter of 35 mm. The machine offers a shot volume of 154 cm³ and a shot weight of 140 grams, suitable for various injection moulding applications. The injection pressure is rated at 1600 bar, and the injection unit has a screw stroke of 160 mm. The platen dimensions measure 660 mm in length and 360 mm in width, with an opening stroke of 450 mm. The machine is equipped with a robot, enhancing automation capabilities. The control system is the EC 88 version, with an English language display. The machine weighs approximately 5300 kg and has overall dimensions of 6000 mm in length, 1850 mm in width, and 2000 mm in height.
The machine is painted in a green and black color scheme and includes a control panel featuring a display screen along with multiple buttons and knobs for operation. Safety cover panels made of dark transparent material are installed, providing protection during operation. The machine is currently mounted on wooden blocks for stability. There are visible signs of wear and some paint scratches on the machine body, which is typical for equipment of this age and usage.
Located in Portugal, the machine is available for immediate delivery. Pricing is available upon request. This Engel ES 330/80 HL is suitable for users seeking a robust injection moulding machine with integrated robotic capabilities and a reliable control system.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
