Contact us to receive an offer.
| Manufacturer | Engel |
|---|---|
| Model | ES 1800-350 HL CC100 |
| Year | 2004 |
| Location | Germany
|
This listing features an Engel ES 1800-350 HL CC100 injection molding machine, manufactured in 2004. The machine offers a clamping force of 350 tons (3500 kN) and is designed for high-performance molding applications. It has platen dimensions of 1050 mm in length and 980 mm in width, with a maximum platen opening of 950 mm, suitable for accommodating various mold sizes. The machine's overall dimensions are approximately 7.98 meters in length, 2.22 meters in width, and 2.57 meters in height, with a total weight of 30,750 kg.
The injection unit features a screw diameter of 70 mm and a shot volume of 1039 cm³, capable of delivering a material pressure of up to 1441 bar. It includes five heating zones to ensure precise temperature control during the molding process. The screw stroke measures 270 mm, with a screw speed of 226 rpm. The machine's ejector system has a stroke of 250 mm and an ejector force of 83 kN, supporting efficient part ejection.
This Engel machine is equipped with an integrated robot for handling, controlled via the ER-HLI 81 system, enhancing automation capabilities. Additional equipment includes a conveyor belt and a protective enclosure for safety. The machine is supplied without a material hopper but includes leveling elements for stable installation.

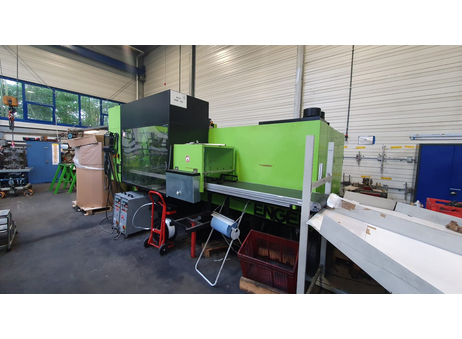

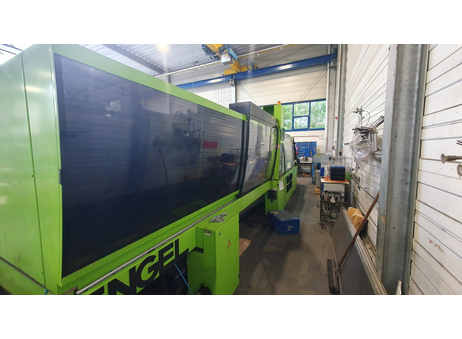

The machine is housed in a well-lit industrial workshop environment and features a green body with black protective panels. A control panel is located near the front for operator interface. Nearby accessories visible include a blue toolbox and various tools, indicating readiness for maintenance and operation support. The brand name 'ENGEL' is clearly marked on the machine's side, confirming its manufacturer. Overall, this injection molding machine provides robust technical specifications suitable for diverse molding needs in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Injection molding machine ENGEL ES 1800-350 HL CC100
Technical data on the closing page
Closing force: 3500 kN
Plate size h: 1050 mm
Plate size v: 980 mm
Minimum installation height: 350 mm
Plate distance max.: 1300 mm
Opening distance: 950 mm
Ejector stroke: 250 mm
Ejector force: 83 kN
Tool weight: 2500 kg
Technical data spray side
Screw diameter: 70 mm
Displacement volume: 1039 cc
Spray pressure: 1441 bar
Auger length: 20 l/d
Screw stroke: 270 mm
Screw speed: 226 min
Injection flow to the outside: 386 g/s HP
Number of heating zones: 5
Nozzle travel: 500 mm
Dimensions & Weight
Machine dimensions LxWxH: 7.98m x 2.22m x 2.57m
Total weight: 30750KG
equipment
Screen text in German
Machine including conveyor belt
Machine including handling
Machine including protective enclosure
Machine without material hopper
Leveling elements
Technical data handling
Machine type: handling
Make: ENGEL
Control: ER-HLI 81
Year of construction: 2004
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What year was this Engel ES 1800-350 HL CC100 manufactured?
This Engel ES 1800-350 HL CC100 injection moulding machine was manufactured in 2004.
Is this injection moulding machine currently operational?
This injection moulding machine is in running condition but not cleaned.
Is this Engel ES 1800-350 HL CC100 currently dismantled?
This Engel ES 1800-350 HL CC100 injection moulding machine is currently dismantled.
Does this equipment come with a linear robot?
This equipment includes a linear robot as part of the offer.
Does this Engel ES 1800-350 HL CC100 have a back-unloading robot?
This Engel ES 1800-350 HL CC100 Injection moulding machine has a back-unloading robot.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
