| Manufacturer | ENGEL |
|---|---|
| Model | DUO 5550/800 |
| Year | |
| Location | France
|

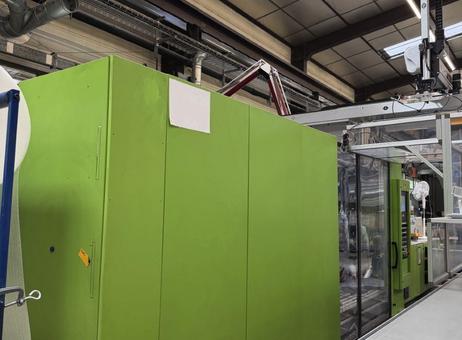

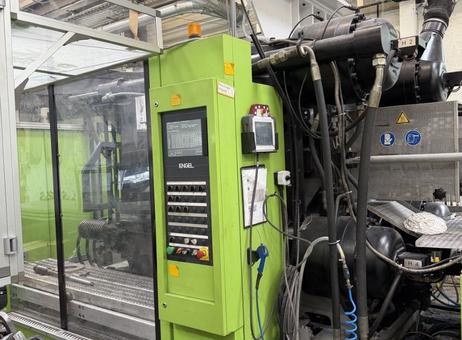

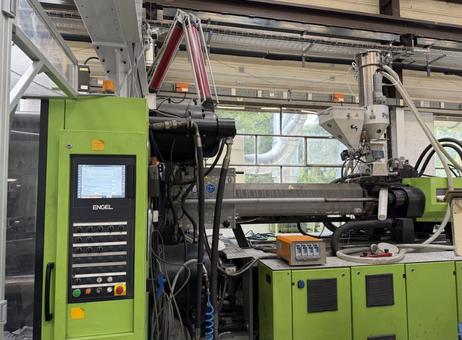

ENGEL 800 T injection molding machine, DUO 5550/800 type. The specifications provided for this machine are summarized below to make the main injection, clamping, and overall dimensions easy to review.
Specifications:
- Indicated operating hours: 21 000 h
- Clamping force: 800 T, equivalent to 8 000 kN
- Screw diameter: 90 mm
- Injection volume: 2 740 cm³
- Injection pressure: 1 920 bar
- L/D ratio: 20
- Tie-bar spacing: 1 025 × 935 mm
- Platen dimensions: 1 570 × 1 480 mm
- Minimum mold thickness: 650 mm
- Machine dimensions: 10 080 × 3 000 × 2 120 mm
- Indicated weight: 44 tonnes
The machine is identified as an ENGEL injection molding machine, type DUO 5550/800. The clamping force is stated in both tonnes and kilonewtons. The injection unit data includes the screw diameter, injection volume, injection pressure, and L/D ratio. The platen dimensions and tie-bar spacing are also provided to give the main reference points for clamping and mold installation. The minimum mold thickness is 650 mm. Finally, the overall dimensions and weight are listed as stated in the available specifications. No additional information is provided regarding the machine’s condition, accessories, or included equipment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
ENGEL 800 T injection molding machine, model DUO 5550/800
Hours of operation: 21,000 h
Clamping force: 800 T - 8,000 kN
Screw diameter: 90 mm
Injection volume: 2,740 cm³
Injection pressure: 1,920 bar
L/D ratio: 20
Distance between columns: 1,025 x 935 mm
Platen dimensions: 1,570 x 1,480 mm
Minimum mold thickness: 650 mm
Dimensions: 10,080 x 3,000 x 2,120 mm
Weight: 44 tons
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 117 |
| Last activity | Oct. 26, 2026 |
ENGEL 800 T injection molding machine, model DUO 5550/800
Hours of operation: 21,000 h
Clamping force: 800 T - 8,000 kN
Screw diameter: 90 mm
Injection volume: 2,740 cm³
Injection pressure: 1,920 bar
L/D ratio: 20
Distance between columns: 1,025 x 935 mm
Platen dimensions: 1,570 x 1,480 mm
Minimum mold thickness: 650 mm
Dimensions: 10,080 x 3,000 x 2,120 mm
Weight: 44 tons
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
ENGEL 800 T injection molding machine, DUO 5550/800 type. The specifications provided for this machine are summarized below to make the main injection, clamping, and overall dimensions easy to review.
Specifications:
- Indicated operating hours: 21 000 h
- Clamping force: 800 T, equivalent to 8 000 kN
- Screw diameter: 90 mm
- Injection volume: 2 740 cm³
- Injection pressure: 1 920 bar
- L/D ratio: 20
- Tie-bar spacing: 1 025 × 935 mm
- Platen dimensions: 1 570 × 1 480 mm
- Minimum mold thickness: 650 mm
- Machine dimensions: 10 080 × 3 000 × 2 120 mm
- Indicated weight: 44 tonnes
The machine is identified as an ENGEL injection molding machine, type DUO 5550/800. The clamping force is stated in both tonnes and kilonewtons. The injection unit data includes the screw diameter, injection volume, injection pressure, and L/D ratio. The platen dimensions and tie-bar spacing are also provided to give the main reference points for clamping and mold installation. The minimum mold thickness is 650 mm. Finally, the overall dimensions and weight are listed as stated in the available specifications. No additional information is provided regarding the machine’s condition, accessories, or included equipment.
