| Manufacturer | ELUMATEC |
|---|---|
| Model | SLK 118 |
| Year | 2010 |
| Location | Bahrain
|

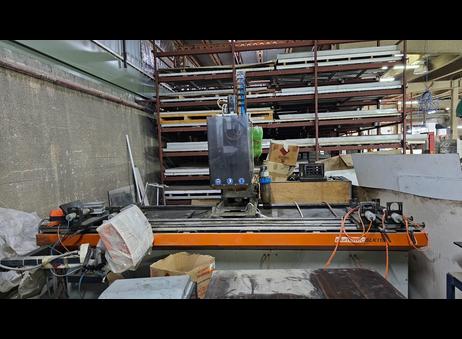

This listing features an ELUMATEC SLK 118 Template Free Copy Router, a CNC machining center designed primarily for wood processing, especially suited for efficient door production. Manufactured in 2010, this machine is presented in its current as-is, where-is condition.
The SLK 118 operates with three axes, providing substantial travel distances of 2,450 mm along the X-axis, 350 mm along the Y-axis, and 280 mm along the Z-axis. These generously dimensioned strokes allow for machining of large profiles with precision. The spindle unit, centrally located and vertically oriented, is equipped with a protective cover and operates at speeds up to 18,000 rpm, powered by a 3 kW motor.
Material is secured during machining by pneumatic clamps; at least two clamps are visible on the right side of the machine, contributing to stable and accurate processing. The machine features linear guide rails facilitating smooth X-axis movement.
Operation is managed via a control panel, which is currently wrapped in protective plastic on the left side of the machine, indicating careful handling or storage. The ELUMATEC SLK 118 allows for manual tool changes with four available tool holder positions, enabling versatility in profile processing. Processing is primarily performed from above, with manual rotation of the profile permitting machining on other sides.
Additional features include a safety light barrier to protect the operator, four horizontal pneumatic clamps for material fixing, central chip extraction, and a spray lubrication unit, enhancing operational safety and maintenance.
The machine's dimensions are 3,100 mm in length, 1,650 mm in width, and 2,250 mm in height, with a total weight of 1,227 kg. It operates on a 400 V, 3-phase, 50 Hz power supply and requires a compressed air connection at 7 bar.
This ELUMATEC SLK 118 is an established solution for wood profile machining, offering robust construction and precise control suitable for door manufacturing and similar applications. It is sold with accessories, details of which can be provided upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
ELUMATEC SLK118 Template Free Copy Router + Accessories
Manufacturer: ELUMATEC
Model: SLK118
Year of Manufacture: 2010
Technical Condition: As-is, where-is
Copy router with 3-axis control
The ideal machine for efficient door production
Profile processing is always done from above. Processing on other sides is possible by manually rotating the profile.
For manual tool changes, there are 4 tool holder positions available.
The generously dimensioned axis travel paths allow machining of large profiles.
Easy operation directly on the machine via a touch panel or optionally with the ESP 118 software.
Safety light barrier to protect the operator.
4 horizontal pneumatic clamps for material fixing.
Central chip extraction
Spray lubrication unit
Technical Data
X-axis travel: 2,450 mm – Max speed: 30 m/min
Y-axis travel: 350 mm – Max speed: 15 m/min
Z-axis travel: 280 mm – Max speed: 15 m/min
Spindle speed: 18,000 rpm
Spindle power: 3 kW
Max machining length: 2,400 mm
Voltage: 400 V, 3~, 50 Hz
Compressed air connection: 7 bar
Dimensions: Length 3,100 mm, Depth 1,650 mm, Height 2,250 mm
Weight: 1,227 kg
This ELUMATEC SLK118 Template Free Copy Router comes with accessories and is available for purchase. The machine is from the year 2010 and is being sold in its current condition.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.

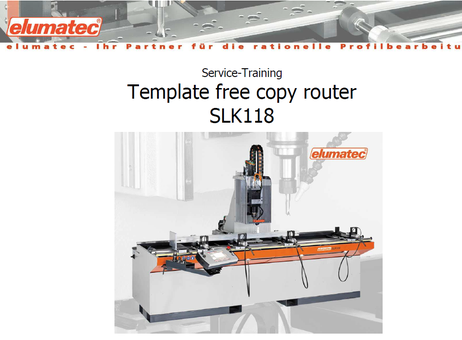

| elumatec-slk118-p250625107_5.pdf | Download |
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 2 |
| Last activity | Aug. 14, 2026 |
ELUMATEC SLK118 Template Free Copy Router + Accessories
Manufacturer: ELUMATEC
Model: SLK118
Year of Manufacture: 2010
Technical Condition: As-is, where-is
Copy router with 3-axis control
The ideal machine for efficient door production
Profile processing is always done from above. Processing on other sides is possible by manually rotating the profile.
For manual tool changes, there are 4 tool holder positions available.
The generously dimensioned axis travel paths allow machining of large profiles.
Easy operation directly on the machine via a touch panel or optionally with the ESP 118 software.
Safety light barrier to protect the operator.
4 horizontal pneumatic clamps for material fixing.
Central chip extraction
Spray lubrication unit
Technical Data
X-axis travel: 2,450 mm – Max speed: 30 m/min
Y-axis travel: 350 mm – Max speed: 15 m/min
Z-axis travel: 280 mm – Max speed: 15 m/min
Spindle speed: 18,000 rpm
Spindle power: 3 kW
Max machining length: 2,400 mm
Voltage: 400 V, 3~, 50 Hz
Compressed air connection: 7 bar
Dimensions: Length 3,100 mm, Depth 1,650 mm, Height 2,250 mm
Weight: 1,227 kg
This ELUMATEC SLK118 Template Free Copy Router comes with accessories and is available for purchase. The machine is from the year 2010 and is being sold in its current condition.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features an ELUMATEC SLK 118 Template Free Copy Router, a CNC machining center designed primarily for wood processing, especially suited for efficient door production. Manufactured in 2010, this machine is presented in its current as-is, where-is condition.
The SLK 118 operates with three axes, providing substantial travel distances of 2,450 mm along the X-axis, 350 mm along the Y-axis, and 280 mm along the Z-axis. These generously dimensioned strokes allow for machining of large profiles with precision. The spindle unit, centrally located and vertically oriented, is equipped with a protective cover and operates at speeds up to 18,000 rpm, powered by a 3 kW motor.
Material is secured during machining by pneumatic clamps; at least two clamps are visible on the right side of the machine, contributing to stable and accurate processing. The machine features linear guide rails facilitating smooth X-axis movement.
Operation is managed via a control panel, which is currently wrapped in protective plastic on the left side of the machine, indicating careful handling or storage. The ELUMATEC SLK 118 allows for manual tool changes with four available tool holder positions, enabling versatility in profile processing. Processing is primarily performed from above, with manual rotation of the profile permitting machining on other sides.
Additional features include a safety light barrier to protect the operator, four horizontal pneumatic clamps for material fixing, central chip extraction, and a spray lubrication unit, enhancing operational safety and maintenance.
The machine's dimensions are 3,100 mm in length, 1,650 mm in width, and 2,250 mm in height, with a total weight of 1,227 kg. It operates on a 400 V, 3-phase, 50 Hz power supply and requires a compressed air connection at 7 bar.
This ELUMATEC SLK 118 is an established solution for wood profile machining, offering robust construction and precise control suitable for door manufacturing and similar applications. It is sold with accessories, details of which can be provided upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
