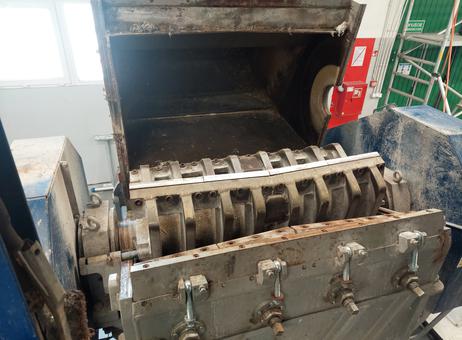

The Ekolinia MEV 120 is a robust plastic crusher/shredder designed for industrial applications, manufactured in 2021. It features a compact footprint with dimensions of 2105 mm in length, 2784 mm in width, and 4471 mm in height. This model is equipped with a V-5 scissor-type rotor, measuring 1200 mm in width and 720 mm in diameter, which is fitted with 20 rotary knives and 6 fixed knives to ensure efficient shredding performance. The machine is powered by a 110 kW ABB main drive motor and includes a 1.5 kW hydraulic pump as well as a 1.5 kW material collection screw.
The MEV 120 is designed with several practical features to enhance operation and maintenance. It is mounted on vibration-insulating feet to reduce operational vibrations. The cutting chamber is fully lined with replaceable Hardox wear-resistant plates, increasing durability. Hydraulic systems allow for the opening and closing of the upper body and the lowering of the sieve cradle, facilitating easier access for maintenance.
Material pickup is possible from either side of the machine, utilizing stainless steel components (material grade 1.4301). The machine includes a bolted access panel secured with clamps, providing convenient entry to internal components. When purchasing two mills, a reversible feeder and supporting structure are included, enabling alternating operation where one mill works while the other undergoes knife replacement. A mobile service platform is also available for quick and safe knife changes under this option.
Additional accessories include two sets of knives and one sieve installed within the mill. The control system consists of a soft starter and main motor protection but does not include a full control cabinet. The machine weighs approximately 8200 kg.

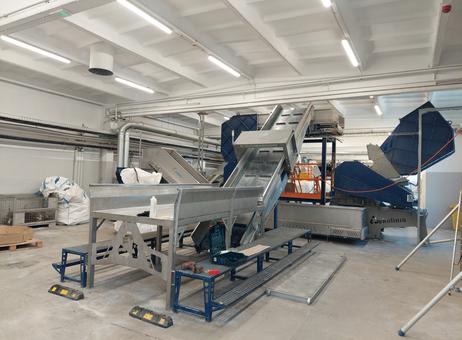

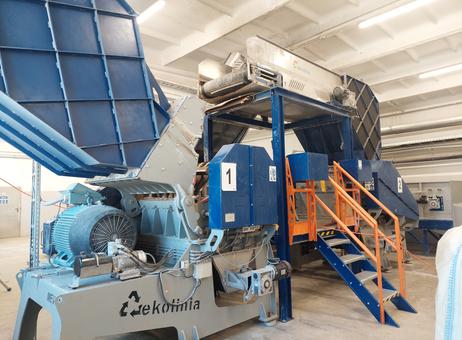

Condition-wise, the equipment shows signs of use such as dirt and dust but no visible damage. Some rust spots are present on metal surfaces, indicating wear consistent with industrial use. Safety features include orange-painted railings and access stairs for visibility. The unit is situated indoors in a well-lit industrial environment and is supported by a sturdy metal framework, including conveyor belts feeding into the machine.
This used Ekolinia MEV 120 mill is available for purchase either as a single unit or as a set of two with belt and feeder, offering flexibility depending on operational needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Operating hours: 3000
It is possible to purchase one mill or a set of two mills with a belt and a feeder.
Used mills with the possibility of obtaining a manufacturer's warranty due to the very low mileage (sale due to exchange for a larger device).
With the system of alternating work, one works and the other is subject to knife replacement - reversible feeder and supporting structure included.
Dimensions length/width/height (mm) 2105/2784/4471
Rotor:
Type: V-5 scissor type
Width: 1200mm
Diameter: 720mm
Knives:
Rotary: 20 pcs.
Fixed: 6 pcs.
Power: 110kW
Weight: 8200 kg
Hydraulic pump: 1.5 kW
Material collection screw: 1.5 kW
Additional parameters:
• the machine is placed on vibration-insulating feet
• ABB main drive motor
• additional flywheel - counterweight
• hydraulic opening and closing of the upper body
• hydraulic lowering of the sieve cradle
• pick-up of ground material on either side of the machine (stainless steel 1.4301)
• the entire cutting chamber lined with replaceable "hardox" wear-resistant plates
• mobile service platform for quick and safe knife replacement (only when buying two mills)
• 2 x sets knives
• 1 x sieve in the mill
• control (only softstarter and main motor protection without control cabinet)
