Contact us to receive an offer.
| Manufacturer | ECO-AIR |
|---|---|
| Model | Tunnel di Fosfosgrassaggio e Risciacquo integrato direttamente all'interno di un Forno di Asciugatura a GPL. |
| Year | 2020 |
| Location | Italy
|
For sale is an industrial surface treatment system designed for efficient phosphodegreasing, rinsing, and drying processes, suitable for use in painting lines or metalworking applications. Manufactured by ECO-AIR in 2020, this combined system integrates a phosphodegreasing and rinsing tunnel directly within an LPG-powered drying oven.
The machine features a closed-loop system with continuous recirculation and partial air exchange, enhancing energy efficiency during operation. It includes an electrical control panel for system management. The phosphodegreasing cycle requires a minimum of 3 minutes plus adjustable dripping time, utilizing a horizontal axis electric pump rated at approximately 9.2 kW. The spray system comprises 12 ramps with a 400 mm stroke and 400 mm pitch, totaling around 263 nozzles, operating at a maximum nozzle pressure of 1.1 kW. Heating is provided by an LPG burner equipped with all necessary valves.
Following phosphodegreasing, the rinsing cycle lasts a minimum of 1 minute plus adjustable dripping, performed at ambient bath temperature. The drying oven, powered by a single heat generator, achieves a maximum drying temperature of 120°C with a heating power of 230 kW. The oven includes four helical fans rated at 1.1 kW each for air recirculation, contributing to a drying time of approximately 12 minutes.

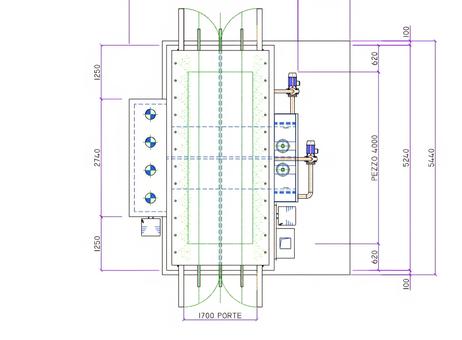

The system's dimensions are approximately 5240 mm in length, 4000 mm in width, and 4240 mm in height, with a chamber size of 4000 mm length, 1500 mm width, and 2300 mm height. The oven entrance and exit feature double doors measuring about 1700 mm in width and 2500 mm in height. The total weight of the equipment is around 1000 kg.
Note that the phosphating water is continuously recycled within the system and requires disposal by authorized companies. The equipment should be installed on a level floor to ensure proper operation. This robust industrial system offers a comprehensive solution for surface pretreatment and drying processes in industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
For sale: a combined industrial system for surface pretreatment and drying, ideal for painting lines or metalworking. The system consists of a Phosphodegreasing and Rinsing Tunnel integrated directly into an LPG Drying Oven.
The machine is designed with a closed-loop system with continuous recirculation and partial air exchange, ensuring excellent energy efficiency. Equipped with an electrical control panel.

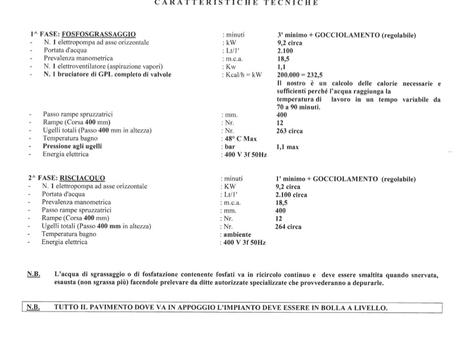

PHOSPHODEGREASING cycle time: 3 minutes minimum + adjustable dripping.
Electric pump: Horizontal axis, ~9.2 kW
Spray system: 12 ramps (400 mm stroke, 400 mm pitch) with approximately 263 total nozzles.
Maximum nozzle pressure: 1.1 kW
Heating: LPG burner complete with valves.
RINSING cycle time: 1 minute minimum + adjustable dripping.
DRYING OVEN (With 1 heat generator)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 1 |
| Last activity | May 28, 2026 |
For sale: a combined industrial system for surface pretreatment and drying, ideal for painting lines or metalworking. The system consists of a Phosphodegreasing and Rinsing Tunnel integrated directly into an LPG Drying Oven.
The machine is designed with a closed-loop system with continuous recirculation and partial air exchange, ensuring excellent energy efficiency. Equipped with an electrical control panel.
PHOSPHODEGREASING cycle time: 3 minutes minimum + adjustable dripping.
Electric pump: Horizontal axis, ~9.2 kW
Spray system: 12 ramps (400 mm stroke, 400 mm pitch) with approximately 263 total nozzles.
Maximum nozzle pressure: 1.1 kW
Heating: LPG burner complete with valves.
RINSING cycle time: 1 minute minimum + adjustable dripping.
DRYING OVEN (With 1 heat generator)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
For sale is an industrial surface treatment system designed for efficient phosphodegreasing, rinsing, and drying processes, suitable for use in painting lines or metalworking applications. Manufactured by ECO-AIR in 2020, this combined system integrates a phosphodegreasing and rinsing tunnel directly within an LPG-powered drying oven.
The machine features a closed-loop system with continuous recirculation and partial air exchange, enhancing energy efficiency during operation. It includes an electrical control panel for system management. The phosphodegreasing cycle requires a minimum of 3 minutes plus adjustable dripping time, utilizing a horizontal axis electric pump rated at approximately 9.2 kW. The spray system comprises 12 ramps with a 400 mm stroke and 400 mm pitch, totaling around 263 nozzles, operating at a maximum nozzle pressure of 1.1 kW. Heating is provided by an LPG burner equipped with all necessary valves.
Following phosphodegreasing, the rinsing cycle lasts a minimum of 1 minute plus adjustable dripping, performed at ambient bath temperature. The drying oven, powered by a single heat generator, achieves a maximum drying temperature of 120°C with a heating power of 230 kW. The oven includes four helical fans rated at 1.1 kW each for air recirculation, contributing to a drying time of approximately 12 minutes.
The system's dimensions are approximately 5240 mm in length, 4000 mm in width, and 4240 mm in height, with a chamber size of 4000 mm length, 1500 mm width, and 2300 mm height. The oven entrance and exit feature double doors measuring about 1700 mm in width and 2500 mm in height. The total weight of the equipment is around 1000 kg.
Note that the phosphating water is continuously recycled within the system and requires disposal by authorized companies. The equipment should be installed on a level floor to ensure proper operation. This robust industrial system offers a comprehensive solution for surface pretreatment and drying processes in industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 1 |
| Last activity | May 28, 2026 |
