| Manufacturer | Eaton Vickers Hydrokraft |
|---|---|
| Model | PVXS-180 |
| Year | |
| Location | Netherlands
|
Manufacturer: Eaton Vickers Hydrokraft
Model: PVXS-180
Overview:
Open-circuit variable-displacement axial piston pump with electric displacement control. Rotation is specified as clockwise. The unit is a pump/gearbox assembly driven by an electric motor and gear reducer.
Key technical specifications (as provided):
- Maximum displacement: 180 cm³/rev
- Maximum speed: 1,800 rpm
- Theoretical flow (maximum): approximately 324 l/min
- Rated pressure: 350 bar
- Maximum pressure: 420 bar
Control and drive components (as provided):
- Electric displacement control
- Control motor: Georgii Kobold KOD 346-1A MB/S64
- Power: 0.09 kW
- Voltage: 230/400 V
- Speed: 1,400 rpm
- Brake: MB3, 2 Nm, 230 V, 15 W
Included components and packaging (supported by observations):

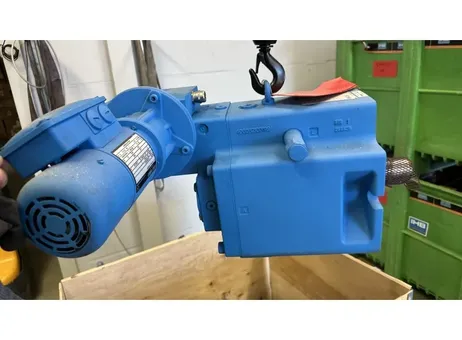

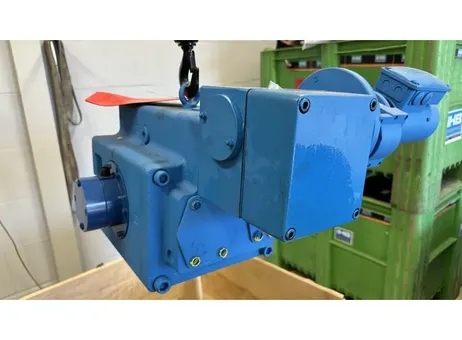

- Electric motor and gear reducer assembled with a bolted flange/coupling connection
- Shaft/drive coupling present at the gearbox interface
- Lifting eye and hoist chain attached above the unit for handling
- Base/mounting bolts on the housing
- Red identification tag attached to the unit and a white label plate affixed to the side

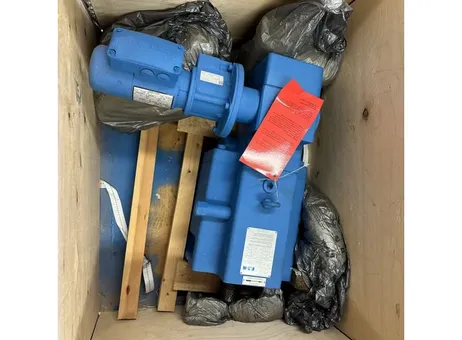

- Supplied packaged in a wooden shipping crate with foam padding and wooden supports
Condition notes:
The unit is shown assembled and packaged for shipment. No functional condition statements (tested, operational, refurbished, or warranty) are provided or implied in the available information.
If you need additional verification (e.g., operational testing, trim/option details, or mounting dimensions), request the seller to provide test reports, dimensional drawings, or additional specification sheets.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Design: open-circuit variable-displacement axial piston pump
Control: electric displacement control
Rotation: clockwise
Displacement: maximum 180 cm³/rev
Speed: maximum 1,800 rpm
Rated pressure: 350 bar
Maximum pressure: 420 bar
Theoretical flow: maximum approximately 324 l/min
Control motor: Georgii Kobold KOD 346-1A MB/S64
Control motor: 0.09 kW, 230/400 V, 1,400 rpm
Brake: MB3, 2 Nm, 230 V, 15 W
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
