Price on request
Make an offer| Manufacturer | Dunkes |
|---|---|
| Model | HZS 75 |
| Year | 1992 |
| Location | Germany
|
| Category | Forging - Hydraulic presses |
| Product id | P220310036 |
| Language |
Dunkes HZS 75
Lis na kov Dunkes HZS 75
Dunkes HZS 75
Dunkes HZS 75 Presse
Dunkes HZS 75
Dunkes HZS 75 Hydraulic press
Prensa Dunkes HZS 75
Presse Dunkes HZS 75
Dunkes HZS 75
Dunkes HZS 75
Pressa Dunkes HZS 75
Dunkes HZS 75
Dunkes HZS 75
Prasa Dunkes HZS 75
Dunkes HZS 75
Dunkes HZS 75
Dunkes HZS 75 Гидравлический пресс
Dunkes HZS 75
Dunkes HZS 75
Hidrolik Pres Dunkes HZS 75
|
| Power in tons | 75 T |
| Type | C-Frame |
| Table length | 750 mm |
| Table width | 515 mm |
| Ram stroke | 303 mm |
| Nbr of strokes/min | 50 |
| Engine Power | 15 kW |
| ------------------- | |
| Weight | 7000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 11/02/2026 |
This Dunkes HZS 75 hydraulic press, manufactured in 1992, is a robust C-Frame type machine designed for high-pressure applications with a pressing force of 75 tons. The machine features a worktable measuring 750 mm in length and 515 mm in width, positioned at a height of 820 mm above the floor. The table includes a passage gap of 300 x 200 mm, allowing for versatile mounting options up to a maximum height of 500 mm. The throat depth of the press is 280 mm.
The press ram offers a stroke of approximately 303 mm, with a ram area of 500 x 400 mm and a ram bore diameter of 50 mm. It operates at speeds of up to 50 strokes per minute, with quick feed speeds of 400 mm per second for both upward and downward movements. The pressing speed varies between 40 mm/sec under partial load and 14 mm/sec under full load. The machine is powered by a 15 kW engine operating at 380 V and 50 Hz.
Equipped with the Dunkes Program Control Model PC 10, the press allows for precise adjustment of pressure, timing, and stroke parameters. This control system includes a data input panel, digital display for pressure force, ram travel, pressing times, and program numbers, and supports memory storage for up to 30 working programs. It features a Siemens S5 PLC and a Teach-In key for ease of programming.
Additional features include a press ram with adjustable prism bars and hydraulic cutting force absorption mounted in the press cylinder with a 15 mm adjustment range. Motorized depth stop and cutting force adjustment enhance operational precision. The machine incorporates hydraulic tool clamping with four clamps on the table, hydraulic pin clamping in the ram, and a hydraulic ejector with a stroke range of 3 to 15 mm.
Safety and operational controls include a two-handed safety device, electronic and infinitely variable back stroke limitation, follow-up checking and monitoring devices (NKS), and ram switching for the upper piston. The press is housed with a mounted switching cabinet and is prepared for connection to an oil cooler.

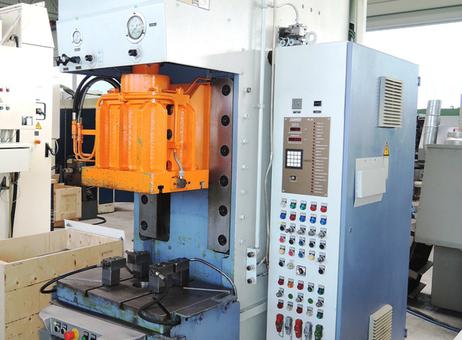

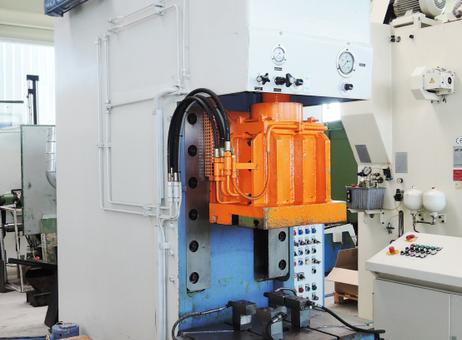

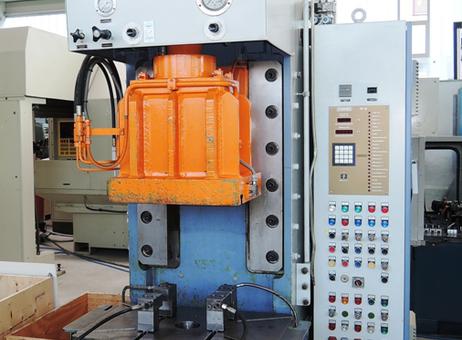

The machine weighs approximately 7,000 kg and stands 3,850 mm tall. Visual inspection confirms the presence of an orange hydraulic ram with connected hydraulic hoses, a blue worktable equipped with metal clamps and wiring, a control panel featuring multiple buttons and a digital keypad display, and a red foot pedal control for operational convenience. A wooden crate is also noted adjacent to the machine, potentially for accessory storage or shipping purposes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Pressure of upper piston 75 to
Table size 750 x 515 mm
Table height above floor 820 mm
Passage gap in table 300 x 200 mm
Mounting height max.. 500 mm
Throat 280 mm
Stroke of upper piston approx. 303 mm
Ram area 500 x 400 mm
Ram bore 50 mm
Ram working speeds; quickfeed up/downwards 400 mm/sec.
Pressingspeed partial load/full load 40/14 mm/sec
Total electrical load approx.. 15 kW - 380 V – 50 cycles
Weight approx. 7.000 kg
Total height of machine 3.850 mm
Accessories/Special Features:
· DUNKES Program Control Model PC 10 with data input panel for pressure adjustment, pressure/time-switching, stroke upwards/downwards, rapid gears and working speeds, also including display of Pressure force, ram travel, pressing times, program number. Memory of up to 30 working programs, SPS SIEMENS S 5, Teach-In key.
· Press ram with adjustable prism bars
· Hydraulic cutting force absorbtion mounted in the press cylinder, 15 mm,
· motoric depth stop and adjustment for cutting force absorbtion
· Double control of metal sheet = maximum pressing force is only reached after
· pre-selection of travel
· Hydraulic tool clamping (4) on the table, hydraulic Pin clamping in ram, hydraulic ejector in ram, 3 to/15 mm
· Two handed safety device, electr. and infinitely variable back stroke limitation, follow up checking and monitoring devices NKS, ram switching of upper piston
· Mounted switching cabinet, connection to oil cooler, etc.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
