| Manufacturer | Dorries-Scharmann |
|---|---|
| Model | VCE2000/180MC-FC Contumat |
| Year | |
| Location | United Kingdom
|

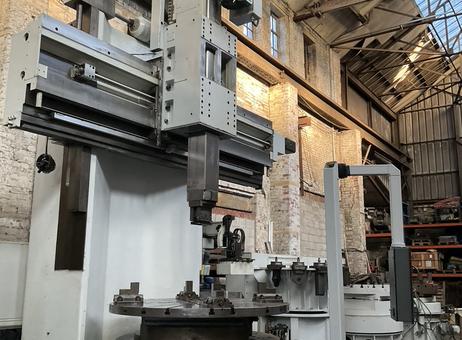

The Dorries-Scharmann VCE2000/180MC-FC Contumat is a high-production vertical turning lathe designed for live-spindle and C-axis operations. It features a large rotary table with a diameter of 1800 mm (70.86 inches) equipped with four independent 4-jaw pallet chucks, each 1250 mm in diameter, suitable for holding sizable workpieces. The machine includes a shuttle system intended for high-volume production environments, although this system may be separate from the lathe itself.

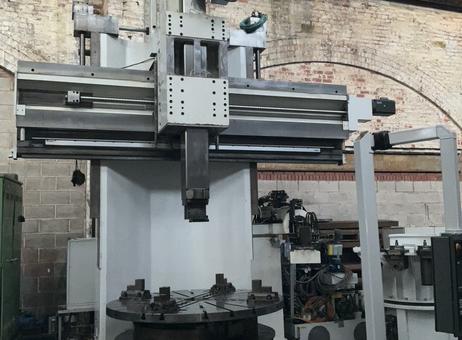

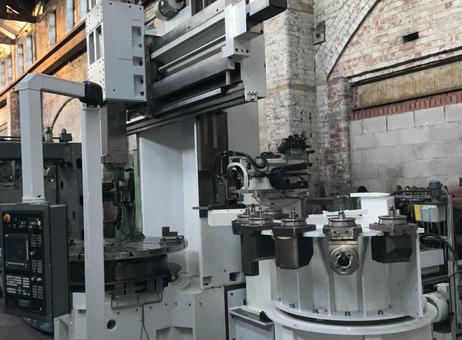

This vertical turret lathe is controlled by a Siemens 840D CNC control panel, mounted on the left side of the machine, facilitating precise machining operations. The machine's specifications include a swing of 2000 mm (78.74 inches) and a working height of 2451 mm (96.50 inches). The crossrail traverse is 900 mm (35.43 inches) with increments of 100 mm (3.94 inches), and the crossrail traverse speed is 425 mm/min. The crossrail saddle has a cross feed rate of 18 m/min.
The ram section measures 250 x 250 mm (9.84 x 9.84 inches) with a traverse of 1500 mm (59.06 inches), while the saddle traverse extends 1350 mm (53.15 inches) from center left and right. The maximum table load capacity is 12 tonnes. The main drive motor delivers 60 kW of power, supporting table speeds ranging from 1.7 to 315 rpm in two ranges. The milling drive motor is rated at 30 kW, with milling speeds between 8 and 3000 rpm, also in two ranges.
The machine is equipped with the Dorries-Scharmann Milling System 250-2, featuring a milling spindle holder SK50 and spindle cooling through the spindle. It offers a cutting force on the turning tool of 50 kN and a C-axis speed ranging from 0.003 to 4 rpm. Operating voltage is 380/415 V with a control voltage of 24 V DC and a frequency of 50 Hz. The total connected power load is approximately 173 kVA, and the machine weighs around 76 tonnes.
The tool change system includes a plate-type 9-station magazine capable of holding lathe and basic toolholders as well as machining heads. The tool change unit automatically swaps milling and lathe tools into the toolholders using a double gripping head that operates in both vertical and horizontal positions.

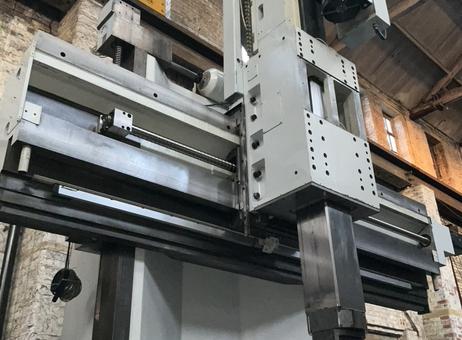

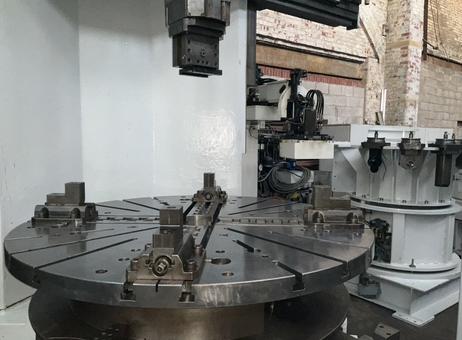

Visual inspection shows the machine is clean and well-maintained, with no visible rust or damage. The rotary table has multiple clamps and fixtures for securing workpieces, and the tool turret holds several tool holders near the rotary table. The vertical slide and spindle assembly include a ball screw and linear guide rails for precise horizontal movement, with an electric motor mounted on top of the vertical slide for spindle drive. Cables and hoses are coiled near the machine base, indicating organized setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DORRIES-SCHARMANN VCE2000/180MC-FC CONTUMAT
Description:
High-Production Live-Spindle/C-Axis Vertical Turning Lathe with full set of D-S milling heads, including angular head and probing device.
Also equipped with 3 x 1250mm diameter 4-jaw pallet chucks and shuttle system. The pallet change system is for ultra-high volume production and may or may not be involved with the machine.
Manufactured/Supply Date: 2002 ONLY 1.5 YEARS RUNNING TIME FROM NEW!
Condition: Excellent Control: Siemens 840D Full Documentation: Yes
Specification:
Table diameter 1800mm (70.86”) with 4 x independent jaws
Swing 2000mm (78.74”)
Working height 2451mm (96.50”)
Crossrail traverse 900mm (35.43”) in increments of 100mm (3.94”)
Crossrail traverse speed 425mm/min
Crossrail saddle cross feed rate 18m/min
Ram section 250x250mm (9.84x9.84”)
Ram traverse 1500mm (59.06”)
Saddle traverse 1350mm (53.15”) from centre left + right
Maximum table load 12 tonnes

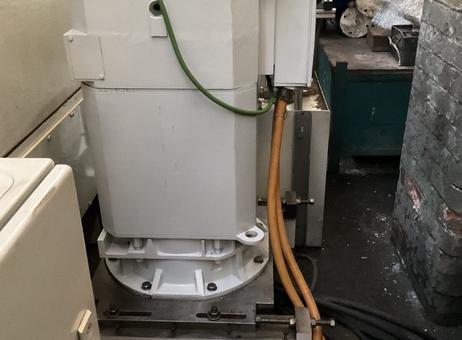

Main drive motor 60Kw
Table speeds 1.7-315Rpm (in 2 x ranges)
Milling drive motor 30Kw
Milling speeds 8-3000Rpm (in 2 x ranges)
Dorries-Scharmann Milling System: System 250-2
Milling spindle holder SK50
Milling spindle cooling thru spindle
Cutting force on turning tool 50Kn
C-axis speed 0.003-4Rpm
Operating voltage 380/415
Control voltage 24vDC
Frequency 50Hz
Total connected power load approximately 173Kva
Total machine weight approximately 76 tonnes
Tool Change System

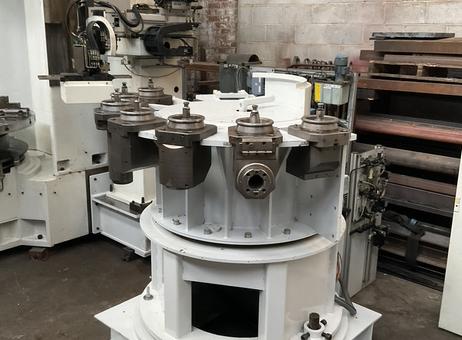

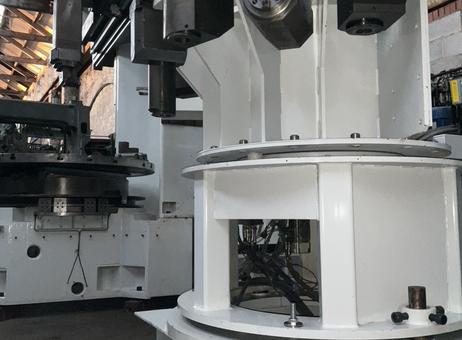

PLATE-TYPE 9-STATION MAGAZINE for taking up lathe/basic toolholders & machining heads.
TOOL CHANGE UNIT guarantees the automatic change of milling & lathe tools into the toolholders. The gripping head is constructed as a double gripping unit and can change the tools in both vertical and horizontal working positions.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
