| Manufacturer | DORRIES- Germany |
|---|---|
| Model | VCE 180 with C axis |
| Year | 2005 |
| Location | Poland
|

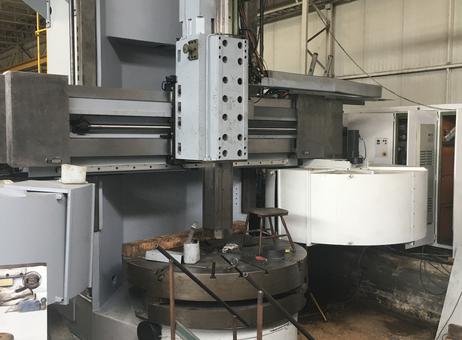

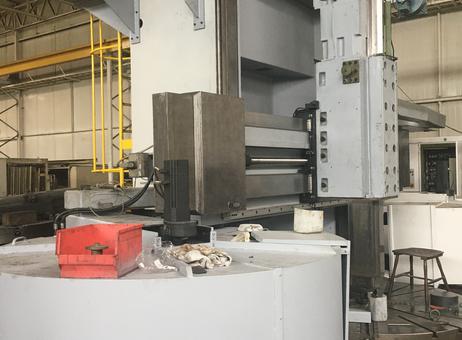

This listing is for a DORRIES VCE 180 vertical turret lathe with C axis, manufactured in 2005 following a complete modernization by the original German manufacturer. The machine features a CNC SINUMERIK 840 C control system, offering precise and advanced control capabilities. It is designed for heavy-duty machining with a maximum turning diameter of 2200 mm and a table diameter of 2000 mm. The lathe supports a maximum turning height of 1800 mm and a ram travel of 1500 mm, making it suitable for large workpieces.
Powered by a 75 kW main drive and equipped with a 15 kW live spindle, the spindle speed ranges from 45 to 1350 revolutions per minute. The machine can handle workpieces weighing up to 12,000 kg. Its working area accommodates a maximum rotation diameter of 2040 mm. The lathe includes a pallet changer with three pallets (turning plates) to facilitate efficient workflow.
The tool magazine is divided into two sections: the right side holds eight turning tools, while the left side contains eight boring and milling tools. Feed rates vary from 0.1 to 6000 mm/min, with carriage feeds of 1500 mm vertically and 1320 mm horizontally. The table rotation offers two speed ranges: 2.5 to 70 and 10 to 280, with a maximum torque of 50,000 Nm.

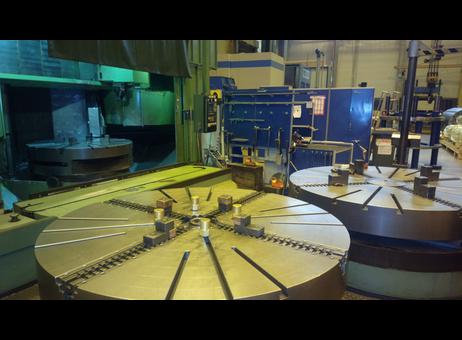

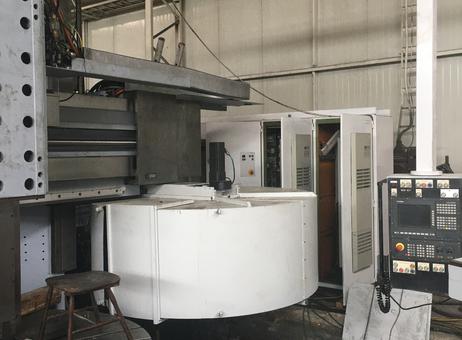

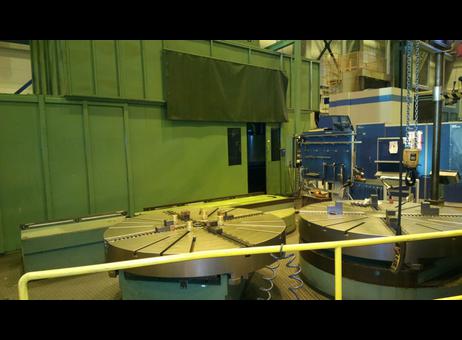

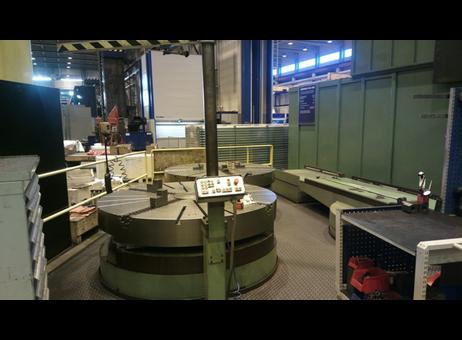

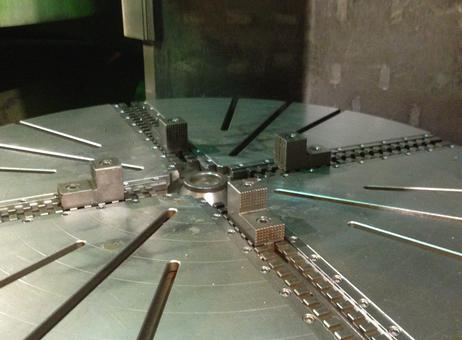

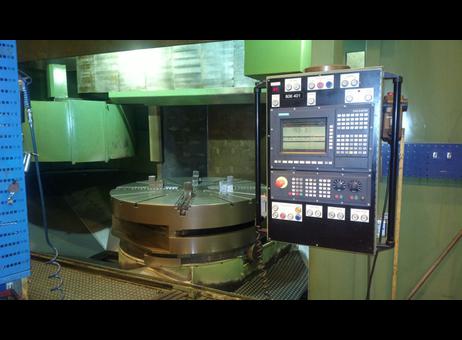

The machine's substantial dimensions are 9700 mm in length, 10,000 mm in width, and 6800 mm in height, with a total weight of 43,000 kg. Visual observations confirm the presence of two large vertical turret lathe tables with clamping fixtures and a protective enclosure around the working area. The CNC control panel with Siemens Sinumerik interface is mounted on the right side, equipped with various buttons and switches for operation. The machine is situated in an industrial workshop environment with green walls and a metal floor platform. A yellow safety railing is also visible near the machine, indicating attention to operational safety. The lathe appears to be used but maintained in a workshop setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: DORRIES
Model: VCE 180
Condition: Very good.
Year of manufacture: 1986 / 2005- complete modernization with new CNC SIEMENS 840 C done by its German manufacturer.
Control: CNC SINUMERIK 840 C
Technical details :
Max. turning dia.: 2200 mm
Table diameter: 2000 mm
Max. turning height: 1800 mm
Ram travel: 1500 mm
Main drive: 75 kW
Live spindle: 15 kW
Spindle rotations: 45- 1350 1/min
Max. workpiece weight: 12 000 kg
Working area: Max rotation dia,: 2040 mm
Pallet changer with 3 pallets (turning plates)
Tool magazine:
Right: 8 turning tools
Left: 8 boring/milling tools
Feeds: 0,1-6000 mm/min
Carriage feed:
Vertical: 1500 mm
Horizontal: 1320 mm
Table rotation (2 ranges):
1. 2,5 – 70
2. 10-280
Max. table torque: 50 000 Nm
Machine weight: 43 T
Machine height: 6,8 m
Machine width: 10 m
Machine length: 9,7 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
