Contact us to receive an offer.
| Manufacturer | Doosan |
|---|---|
| Model | VM 640 |
| Year | 2010 |
| Location | Spain
|
This listing features a Doosan VM 640 vertical machining center manufactured in 2010. The machine is equipped with a Heidenhain TNC-530 CNC control system, providing precise and versatile machining capabilities. It has a robust table measuring 1400 x 650 mm, capable of supporting parts weighing up to 1000 kg. The machining travels are 1300 mm along the X-axis, 650 mm along the Y-axis, and 625 mm along the Z-axis, allowing for a wide range of workpiece sizes.
The spindle is powered by a 22 kW motor with a maximum speed of 12,000 rpm, featuring an ISO 40 taper. Rapid feed rates reach up to 36 m/min in the X and Y axes and 30 m/min in the Z axis, with working feed rates of up to 15,000 mm/min. The tool changer accommodates 30 tools, supporting tool diameters of 90 mm normally and up to 150 mm with adjacent pockets free, tool lengths up to 300 mm, and tool weights up to 8 kg.
Additional equipment includes a chip conveyor for efficient removal of machining debris, a coolant tank with pumps, a high-pressure coolant pump for spindle-through coolant, and a coolant cooler for the spindle head. A transformer is also included. Documentation consists of manuals, wiring diagrams, and a CE declaration.

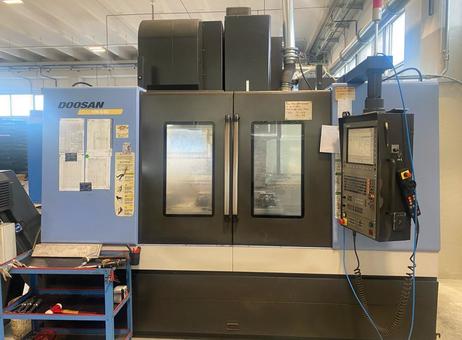

The machine measures 4200 mm in length, 2800 mm in width, and 2900 mm in height, weighing approximately 9000 kg. It is presented in clean and well-maintained condition with no visible damage or rust. The machining area is accessible via two large front doors with viewing windows. The control panel, located on the right side, features a screen and multiple buttons, along with a handheld remote control. A blue cart with tools and equipment is positioned nearby for convenience.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
DOOSAN machining center
Model VM 640
Year 2010
CNC HEINDENHAIN TNC-530
Table dimensions 1400 x 650 mm
Weight on table 1000 Kg
X axis travel 1300 mm
Y axis travel 650 mm
Z axis travel 625 mm
Rapid feeds 36 / 36 /30 m/min
Working feeds 15000 mm/min
Spindle taper ISO 40
Spindle speed 12000 rpm/min
Spindle power 18,5 / 22 Kw
Tool change 30 tools
Max. tool diameter 90 / 150 mm
Tool length 300 mm
Tool weight 8 Kg
Machine dimensions 4200 x 2800 x 2900 mm
Machine weight 9000 Kg
EQUIPPED WITH:
Chip conveyor
Coolant tank with pumps
High pressure pump for coolant through the spindle.
Coolant cooler for spindle head
Transformer
Manuals, Wiring Diagrams and CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 35 |
| Last activity | Oct. 23, 2026 |
