| Manufacturer | DOOSAN-PUMA |
|---|---|
| Model | PUMA 2000 SY |
| Year | 2003 |
| Location | Germany
|
This listing features a DOOSAN-PUMA PUMA 2000 SY CNC lathe, manufactured in 2003, equipped with a FANUC 18i-T CNC control system. The machine offers a turning diameter of 330 mm and a turning length of 510 mm. It supports a maximum turning diameter over the bed of 600 mm and over the transversing slide of 550 mm. The X-axis travel is 250 mm, and the Z-axis travel is 580 mm, with a Y-axis travel of 100 mm (±50 mm) and a B-axis resolution of 0.001 mm.
The lathe has rapid traverse rates of 20 m/min on the X-axis, 7.5 m/min on the Y-axis, 24 m/min on the Z-axis, and 20 m/min on the B-axis. The spindle operates at speeds up to 4,500 rpm (with a maximum of 6,000 rpm noted) and features a spindle bore of 76 mm. The spindle motor power is rated at 15 kW. The spindle nose is of type A2#6, and the spindle clearance is 76/45 mm.
The machine is equipped with a 12-station turret, including two axial tool holders and one radial tool holder, allowing for versatile tooling options. It features both a main spindle chuck of 210 mm and a sub-spindle chuck of 160 mm. A high-pressure pump operating at 7 bar is included.
The machine's footprint measures approximately 3,118 mm in length, 1,705 mm in width, and 2,076 mm in height, with a total weight of around 4,900 kg. The total power requirement is approximately 50.7 kVA.

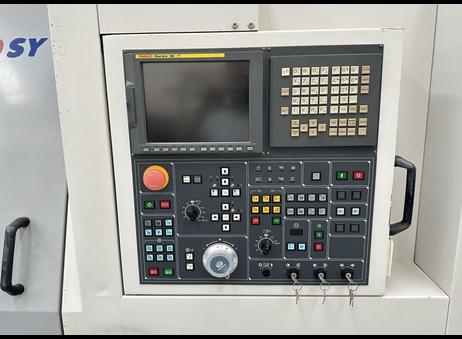

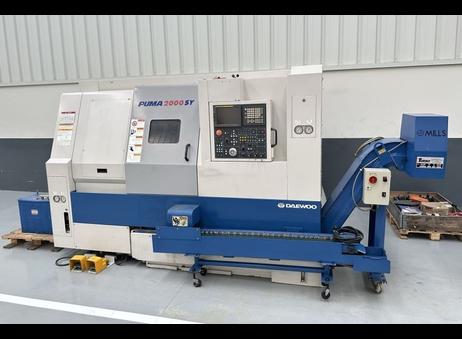

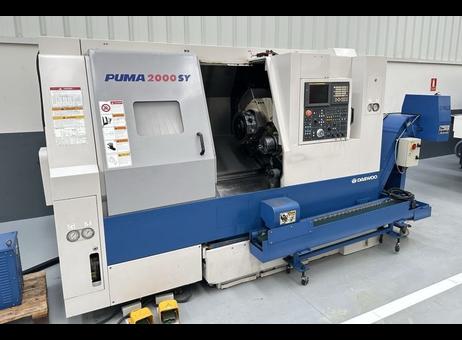

Additional visible components include a chip conveyor system attached to the right side of the machine, which is covered and labeled 'MILLS' and 'TURBO'. The control panel is located on the front right side and features a screen with multiple buttons and dials, consistent with the FANUC 18i-T control system. Yellow foot pedals are present on the floor in front of the machine for operational control.

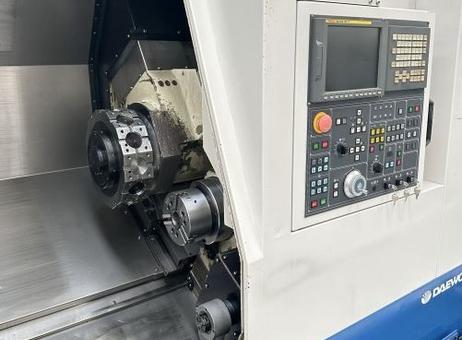

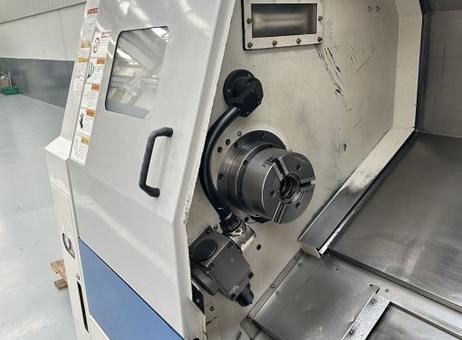

The machine appears clean and well-maintained externally, with no visible damage or rust. The interior workspace, including the chuck and turret tool holder, shows signs of use but no significant damage or rust. The control panel is intact and clean, with all buttons and the display screen in place.
This CNC lathe is offered as-is, where-is, without additional guarantees regarding operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category: CNC Lathe
Make: DOOSAN-PUMA
Type: PUMA 2000 SY
Year of construction: 2003
Control: CNC FANUC 18i - T
Turning diameter: 330 mm
turning length: 510 mm
Turning diameter over bed: 600 mm
Turning diameter over slide: 550 mm
x-travel: 250 mm
z-travel: 580 mm
y-travel: 100 (±50) mm
b-axis: 0.001 mm
Rapid traverse x/y/z: 20/7.5/24 m/min
Rapid traverse B-axis: 20 m/min
c-axis: 4,500/6,000 °
Spindle clearance: 76/45 mm
Spindle nose: A2#6
Spindle speeds: 4,500/6,000 rpm
Spindle motor: 15/7.5 kW
Turret: 12-station
Chip conveyor: Incl. chuck
Main spindle chuck: 210 mm
Sub-spindle chuck: 160 mm
Total power requirement: 50.7 kVA
Machine weight: approx. 4.9 t
Space requirement: approx. 3,118 x 1,705 x 2,076 mm
Machine description:
- Main and sub-spindle:
- 12-position turret with driven tools.
- 2 axial tool holders
- Radial tool holder
- High pressure pump 7 bar
Technical condition: as-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 22 |
| Last activity | Oct. 29, 2026 |
Category: CNC Lathe
Make: DOOSAN-PUMA
Type: PUMA 2000 SY
Year of construction: 2003
Control: CNC FANUC 18i - T
Turning diameter: 330 mm
turning length: 510 mm
Turning diameter over bed: 600 mm
Turning diameter over slide: 550 mm
x-travel: 250 mm
z-travel: 580 mm
y-travel: 100 (±50) mm
b-axis: 0.001 mm
Rapid traverse x/y/z: 20/7.5/24 m/min
Rapid traverse B-axis: 20 m/min
c-axis: 4,500/6,000 °
Spindle clearance: 76/45 mm
Spindle nose: A2#6
Spindle speeds: 4,500/6,000 rpm
Spindle motor: 15/7.5 kW
Turret: 12-station
Chip conveyor: Incl. chuck
Main spindle chuck: 210 mm
Sub-spindle chuck: 160 mm
Total power requirement: 50.7 kVA
Machine weight: approx. 4.9 t
Space requirement: approx. 3,118 x 1,705 x 2,076 mm
Machine description:
- Main and sub-spindle:
- 12-position turret with driven tools.
- 2 axial tool holders
- Radial tool holder
- High pressure pump 7 bar
Technical condition: as-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a DOOSAN-PUMA PUMA 2000 SY CNC lathe, manufactured in 2003, equipped with a FANUC 18i-T CNC control system. The machine offers a turning diameter of 330 mm and a turning length of 510 mm. It supports a maximum turning diameter over the bed of 600 mm and over the transversing slide of 550 mm. The X-axis travel is 250 mm, and the Z-axis travel is 580 mm, with a Y-axis travel of 100 mm (±50 mm) and a B-axis resolution of 0.001 mm.
The lathe has rapid traverse rates of 20 m/min on the X-axis, 7.5 m/min on the Y-axis, 24 m/min on the Z-axis, and 20 m/min on the B-axis. The spindle operates at speeds up to 4,500 rpm (with a maximum of 6,000 rpm noted) and features a spindle bore of 76 mm. The spindle motor power is rated at 15 kW. The spindle nose is of type A2#6, and the spindle clearance is 76/45 mm.
The machine is equipped with a 12-station turret, including two axial tool holders and one radial tool holder, allowing for versatile tooling options. It features both a main spindle chuck of 210 mm and a sub-spindle chuck of 160 mm. A high-pressure pump operating at 7 bar is included.
The machine's footprint measures approximately 3,118 mm in length, 1,705 mm in width, and 2,076 mm in height, with a total weight of around 4,900 kg. The total power requirement is approximately 50.7 kVA.
Additional visible components include a chip conveyor system attached to the right side of the machine, which is covered and labeled 'MILLS' and 'TURBO'. The control panel is located on the front right side and features a screen with multiple buttons and dials, consistent with the FANUC 18i-T control system. Yellow foot pedals are present on the floor in front of the machine for operational control.
The machine appears clean and well-maintained externally, with no visible damage or rust. The interior workspace, including the chuck and turret tool holder, shows signs of use but no significant damage or rust. The control panel is intact and clean, with all buttons and the display screen in place.
This CNC lathe is offered as-is, where-is, without additional guarantees regarding operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 22 |
| Last activity | Oct. 29, 2026 |
