| Manufacturer | DOOSAN DN SOLUTIONS |
|---|---|
| Model | MYNX 5400 |
| Year | 2021 |
| Location | Spain
|

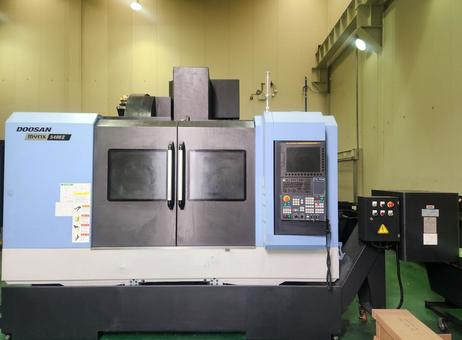

The DOOSAN DN SOLUTIONS MYNX 5400 is a vertical machining center designed for precision and versatility in industrial applications. Manufactured in 2021, this machine features a robust construction with overall dimensions of 3350 mm in length, 2467 mm in width, and 3012 mm in height, weighing approximately 800 kg. It offers a spacious working area with travel distances of 1020 mm along the X-axis, 540 mm along the Y-axis, and 530 mm along the Z-axis, allowing for the machining of sizable components.
Equipped with a BT40 spindle, the MYNX 5400 supports a maximum spindle speed of 12,000 rpm powered by a 15 kW spindle motor, providing strong and efficient cutting capabilities. The table measures 1200 mm in length and 540 mm in width, and it can accommodate workpieces weighing up to 800 kg. The machine includes an automatic tool changer (ATC) with 30 tool pockets, enabling flexible and efficient tool management.

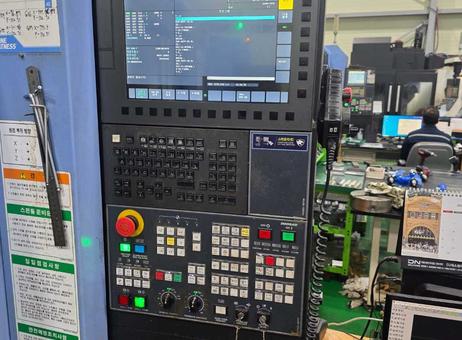

Additional features include a Fanuc control system, automatic tool measurement, an air blower, a spindle head cooling system, and a chip conveyor to facilitate continuous operation and maintain machining quality. The control panel is positioned on the right side of the machine and includes a screen, multiple buttons, and an emergency stop button for operator safety and ease of use. The machine has closed double doors with two large black handles providing access to the machining area.
The MYNX 5400 shows minor wear marks on the doors but is otherwise in good physical condition, indicating careful use. Its rapid traverse rates are 30 mm/min for the X and Y axes and 24 mm/min for the Z axis, supporting efficient positioning during operations. This vertical machining center is suitable for a range of manufacturing tasks requiring precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DOOSAN DN SOLUTIONS
MYNX 5400
-BT40
-Fanuc System
-ATC 30 tools
-12000RPM
-Data Server 1GB
-Aicc II_200 Blocks
-Auto Power Off
-Air Blower
-Spindle Head Cooling System

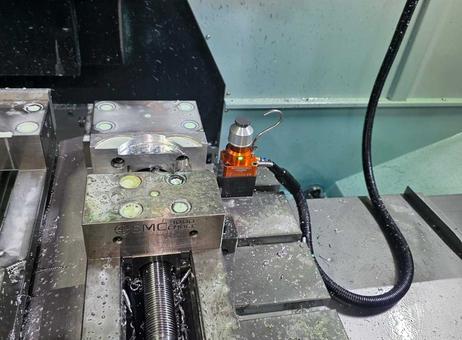

-Automatic Tool Measurement
-Chip Conveyor
Working area (X x Y x Z) 1,200 x 540 mm
Rapid traverse (X x Y x Z) 30 / 30 / 24 mm/min
Max. tool diameter 300 mm
Dimensions (length x width x height) 3,350 x 2,467 x 3,012 mm
Maximum workpiece weight 800 kg
Maximum installed power 15 / 11 kW
Travel (X x Y x Z) 1,020 x 540 x 530 mm
Maximum spindle speed 12,000 rpm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 27 |
| Last activity | Oct. 28, 2026 |
DOOSAN DN SOLUTIONS
MYNX 5400
-BT40
-Fanuc System
-ATC 30 tools
-12000RPM
-Data Server 1GB
-Aicc II_200 Blocks
-Auto Power Off
-Air Blower
-Spindle Head Cooling System
-Automatic Tool Measurement
-Chip Conveyor
Working area (X x Y x Z) 1,200 x 540 mm
Rapid traverse (X x Y x Z) 30 / 30 / 24 mm/min
Max. tool diameter 300 mm
Dimensions (length x width x height) 3,350 x 2,467 x 3,012 mm
Maximum workpiece weight 800 kg
Maximum installed power 15 / 11 kW
Travel (X x Y x Z) 1,020 x 540 x 530 mm
Maximum spindle speed 12,000 rpm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The DOOSAN DN SOLUTIONS MYNX 5400 is a vertical machining center designed for precision and versatility in industrial applications. Manufactured in 2021, this machine features a robust construction with overall dimensions of 3350 mm in length, 2467 mm in width, and 3012 mm in height, weighing approximately 800 kg. It offers a spacious working area with travel distances of 1020 mm along the X-axis, 540 mm along the Y-axis, and 530 mm along the Z-axis, allowing for the machining of sizable components.
Equipped with a BT40 spindle, the MYNX 5400 supports a maximum spindle speed of 12,000 rpm powered by a 15 kW spindle motor, providing strong and efficient cutting capabilities. The table measures 1200 mm in length and 540 mm in width, and it can accommodate workpieces weighing up to 800 kg. The machine includes an automatic tool changer (ATC) with 30 tool pockets, enabling flexible and efficient tool management.
Additional features include a Fanuc control system, automatic tool measurement, an air blower, a spindle head cooling system, and a chip conveyor to facilitate continuous operation and maintain machining quality. The control panel is positioned on the right side of the machine and includes a screen, multiple buttons, and an emergency stop button for operator safety and ease of use. The machine has closed double doors with two large black handles providing access to the machining area.
The MYNX 5400 shows minor wear marks on the doors but is otherwise in good physical condition, indicating careful use. Its rapid traverse rates are 30 mm/min for the X and Y axes and 24 mm/min for the Z axis, supporting efficient positioning during operations. This vertical machining center is suitable for a range of manufacturing tasks requiring precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
