| Manufacturer | Doosan |
|---|---|
| Model | DBC 110S |
| Year | 2012 |
| Location | United Kingdom
|

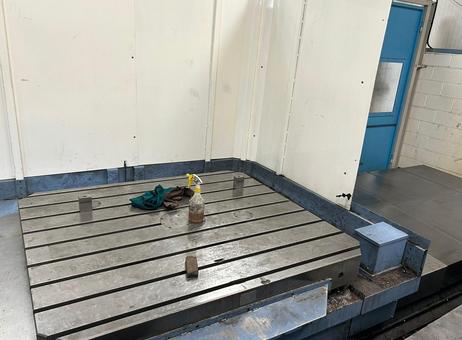

This Doosan DBC 110S CNC boring machine, manufactured in 2012, is designed for high-precision machining with robust capabilities. The machine measures 5540 mm in length, 5930 mm in width, and 4200 mm in height, with a total weight of 29,000 kg. It features a large working envelope with X, Y, and Z travels of 2000 mm, 1500 mm, and 1200 mm respectively, allowing for versatile machining of sizable workpieces. The table size is 1400 mm by 1600 mm and can support a maximum workpiece weight of up to 7000 kg, making it suitable for heavy-duty applications.

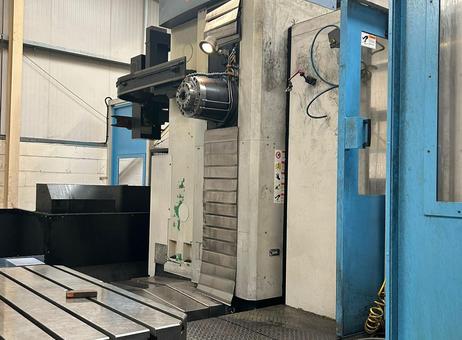

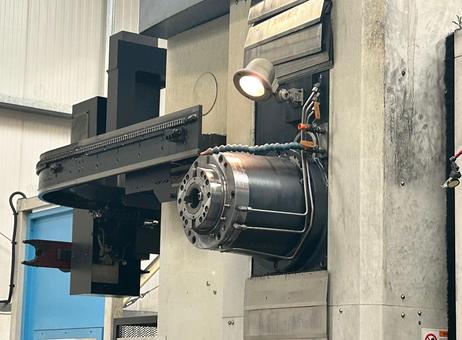

The spindle has a diameter of 110 mm and can reach a maximum speed of 3000 rpm, powered by a spindle motor with 26/22 kW output. This setup supports a maximum tool diameter of 250 mm, tool length up to 600 mm, and tool weight up to 30 kg. The machine includes a 60-station tool changer with BT50 tool holders, enabling efficient tool management during complex machining operations. Rapid feed rates are 6 m/min for the W-axis and 12 m/min for the X, Y, and Z axes, with a maximum cutting feed rate of 6 m/min.

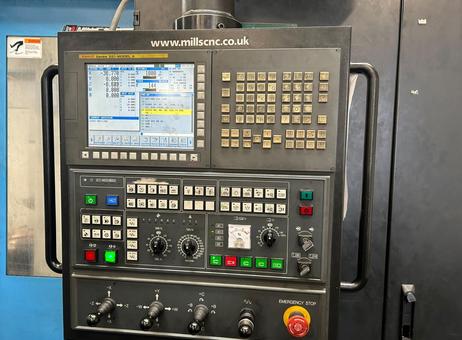

The control system is a FANUC 32i-Model A, providing reliable CNC control for precision and repeatability. The machine also features a B axis with 1 degree of movement and a W axis travel of 500 mm. The spindle-to-table center distance ranges from 550 to 1750 mm, and the spindle-to-table top distance ranges from 0 to 1500 mm, offering flexibility in machining various workpiece sizes.

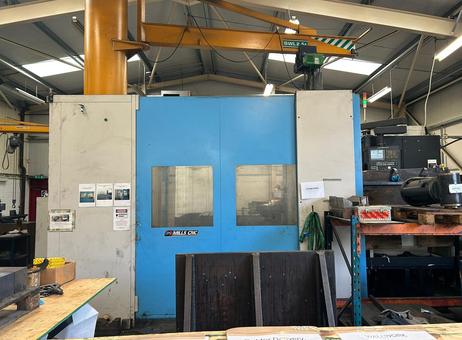

The machine is housed in a blue and white enclosure with two front windows for observation, and various operational notices are attached to the panels. An overhead crane system with a 2.5-ton safe working load is visible above the machine, facilitating the handling of heavy parts. This Doosan DBC 110S CNC boring machine is a substantial and capable piece of equipment designed for demanding machining tasks in industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
B Axis
1 degree
Control
FANUC 32i-Model A
Distance from Spindle Nose to Table Centre
550 - 1750mm
Distance from Spindle Nose to Table Top
0 - 1500mm
Machine Dimensions
5540 x 5930 x 4200mm
Machine Weight
29000kg
Maximum Cutting Feedrate
6m/minute
Maximum Tool Diameter
250mm
Maximum Tool Length
600mm
Maximum Tool Weight
30kg
Maximum workpiece weight
7000kg
Rapid Feedrates
WXYZ: 6 x 12 x 12 x 12m/minute
Spindle Diameter
110mm
Spindle Motor Power
26/22kW
Spindle Motor Power
26/22kW
Spindle Speed
3000rpm
Swing
2550mm
Table Size
1400 x 1600mm
Tool Change Capacity
60 Station
Tool Size
BT50
Traverses XYZ
2000 x 1500 x 1200mm
W Axis
500mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What year was this Doosan DBC 110S manufactured?
This Doosan DBC 110S horizontal boring mill was manufactured in 2012.
What are the XYZ traverse dimensions of the machine?
This Doosan DBC 110S features XYZ traverses of 2000 x 1500 x 1200 mm.
What is the W axis travel of this equipment?
This equipment has a W axis travel of 500 mm.
What is the table size of this Doosan DBC 110S?
This Doosan DBC 110S has a table size of 1400 x 1600 mm.
What is the B axis rotation of the machine?
This horizontal boring mill offers a B axis rotation of 1 degree.
What control system does this Doosan DBC 110S have?
This Doosan DBC 110S is equipped with a FANUC 32i-Model A control system.
What is the spindle nose to table top distance of this equipment?
This equipment has a spindle nose to table top distance of 0 - 1500 mm.
What is the spindle nose to table center distance of this Doosan DBC 110S?
This Doosan DBC 110S has a spindle nose to table center distance of 550 - 1750 mm.
What is the spindle diameter of the machine?
This horizontal boring mill features a spindle diameter of 110 mm.
What is the spindle motor power of this Doosan DBC 110S?
This Doosan DBC 110S has a spindle motor power of 26/22 kW.
What is the spindle speed of this equipment?
This equipment operates at a spindle speed of 3000 rpm.
What is the swing measurement of this Doosan DBC 110S?
This Doosan DBC 110S has a swing of 2550 mm.
What type of machine is the Doosan DBC 110S?
This Doosan DBC 110S is a table type boring machine.
When was the CNC machine manufactured?
This CNC machine was manufactured in the year 2012.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
