| Manufacturer | Doosan Daewoo |
|---|---|
| Model | MYNX NM-510 |
| Year | 2006 |
| Location | Italy
|

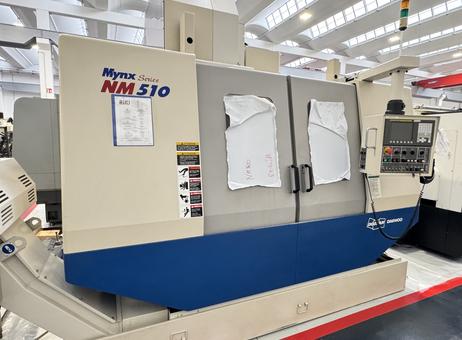

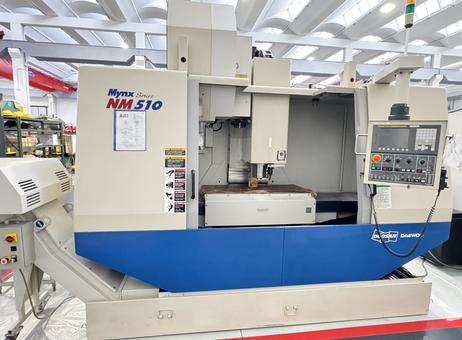

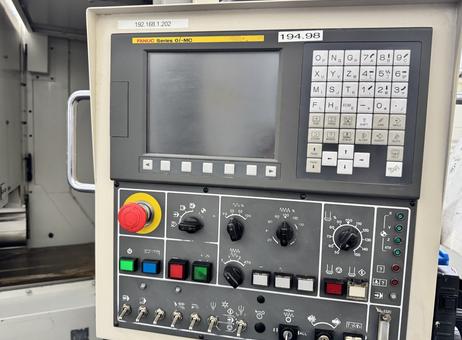

This listing is for a Doosan Daewoo MYNX NM-510 vertical machining center, manufactured in 2006. The machine features a FANUC Series 0i-MC CNC control system, which is mounted on the right side of the machine and includes a screen, various buttons, knobs, and an emergency stop button for operational safety and ease of use. The control panel shows light wear but is intact without cracks or major damage.
The machining center offers substantial working dimensions with X, Y, and Z axes travels of 1020 mm, 510 mm, and 625 mm respectively. The worktable measures 1200 mm in length and 500 mm in width, equipped with T-slots for secure mounting of workpieces. It supports a maximum part weight of up to 800 kg, making it suitable for a wide range of machining tasks.
The spindle is ISO 40 taper with a maximum speed of 12,000 rpm, powered by a 15 kW motor. The spindle's distance from the nose to the table surface ranges from 150 to 775 mm, and the spindle center to column distance is 557 mm. The X, Y, and Z axis feed rates reach up to 36,000 mm/min, with maximum linear interpolation feed rates of 8,000 mm/min.
The tool magazine has a capacity of 30 stations, accommodating tools with a maximum diameter of 90 mm (150 mm without adjacent tools), lengths up to 300 mm, and weights up to 8 kg. The machine uses DIN 69871-A40 and DIN 69872-A40 tool shank types.
Accessories included with the machine are a chip conveyor, coolant collection tank with flushing pumps, a high-pressure pump (15 bar) for coolant through the spindle line, spindle line cooler, transformer, manuals, electrical diagrams, and a CE Declaration.

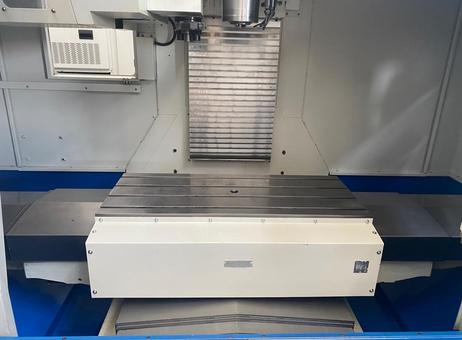

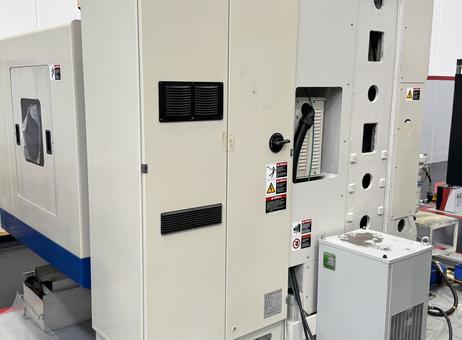

The machine is housed within a clean enclosure that shows no visible damage, with multiple safety warning labels present on the enclosure's left side. The interior, including the spindle head and worktable, appears well-maintained with no visible wear or damage. The rear panel and electrical cabinet show minor signs of use but remain intact. Ventilation grilles and an external cooling or electrical unit are also present at the rear.
Overall, this Doosan Daewoo MYNX NM-510 vertical machining center is a robust and well-equipped machine suitable for various precision machining applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Control: FANUC 0i-MC Series
Tool Taper Size: ISO 40
Spindle Speed: 12,000 rpm
Spindle Motor Power (30 min continuous): 15/18.5 kW
X-Axis: 1,020 mm
Y-Axis: 510 mm
Z-Axis: 625 mm
Distance from Spindle Nose to Table Surface: 150 - 775 mm
Distance from Spindle Center to Column: 557 mm
Table Dimensions: 1,200 x 500 mm
Table Load Capacity: 800 kg
X, Y, Z Axis Feed Rates: 36,000 / 36,000 / 32,000 mm/min
Maximum Linear Interpolation Feed Rates for X, Y, Z Axes: 8,000 mm/min
Tool Shank Type: DIN 69871-A40
Tool Shank Type: DIN 69872-A40
Tool Magazine Capacity: 30 Stations
Maximum Tool Diameter: Ø90 / Ø150 mm
Maximum Tool Length: 300 mm
Max. Tool Weight: 8 kg
Accessories: Chip conveyor - Coolant collection tank with flushing pumps - High-pressure pump (15 bar) for coolant through the spindle line - Spindle line cooler - Transformer - Manuals - Electrical diagrams - CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
