| Manufacturer | Doosan Daewoo |
|---|---|
| Model | MYNX 650 |
| Year | 2004 |
| Location | Italy
|

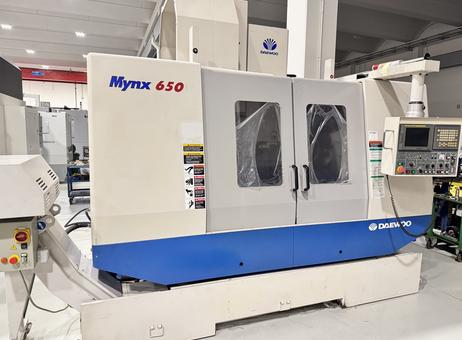

The Doosan Daewoo MYNX 650 is a vertical machining center designed for precision and versatility in metalworking applications. Manufactured in 2004, this machine features a FANUC Series 21i-MB CNC control system, providing reliable and user-friendly operation. The machining center has a working envelope with X, Y, and Z axes measuring 1300 mm, 650 mm, and 625 mm respectively, allowing for the machining of sizable parts.
The table measures 1400 mm in length and 650 mm in width, with a maximum load capacity of 1000 kg, suitable for handling heavy workpieces. The spindle offers a maximum speed of 8000 rpm and is compatible with ISO-40 tool taper size. It is powered by a spindle motor rated at 11/15 kW (30-minute continuous rating), enabling efficient cutting performance.
The machine includes a 30-station tool magazine, accommodating tools with a maximum diameter of 90 to 150 mm, a maximum length of 300 mm, and a maximum weight of 8 kg per tool. Rapid feed rates are 24,000 mm/min for the X and Y axes and 20,000 mm/min for the Z axis, with maximum working feed rates of 8,000 mm/min in linear interpolation across all axes.

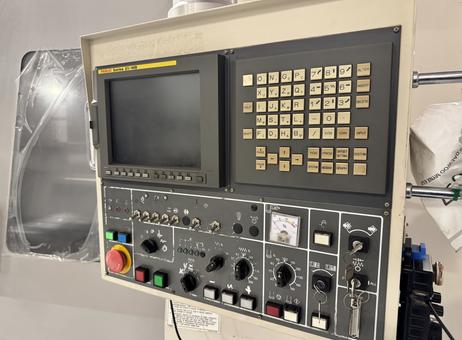

Visible accessories include a chip conveyor and a coolant collection tank with a 300-liter capacity, along with an automatic high-pressure coolant system delivering coolant via the spindle line at 20 bar. The machine is equipped with safety and warning labels on the front panel and an emergency stop button located on the control panel. The control panel itself shows some wear on the keys but remains intact and functional.

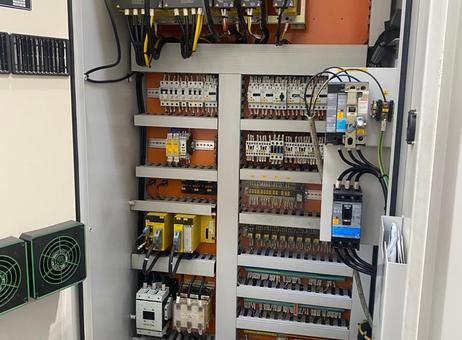

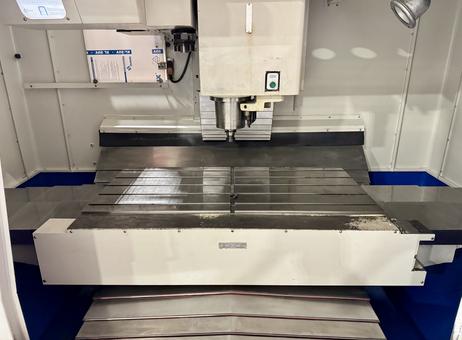

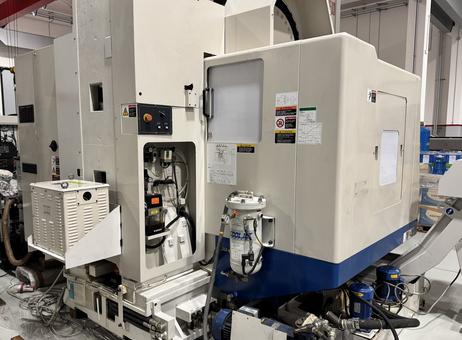

The machining area features a spindle and T-slot table, with the table surface showing signs of use but no major damage. The exterior panels and hydraulic and coolant components appear intact and well maintained. The electrical cabinet interior reveals organized wiring and clean electrical components. Overall, the machine is clean and in good condition, with minor surface marks consistent with normal usage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Control: FANUC Series 21i-MB
Tool Taper Size: ISO-40
Spindle Speed: 8,000 rpm
Spindle Motor Power (30 min continuous): 11/15 kW
X-Axis: 1,300 mm
Y-Axis: 650 mm
Z-Axis: 625 mm
Distance Between Spindle Center and Table Surface: 75 ÷ 775 mm
Distance Between Spindle Nose and Table Center: 150 ÷ 775 mm
Table Dimensions: 1,400 x 650 mm
Table Load Capacity: 1,000 kg
Rapid Feed Rates (X, Y Axes): 24,000 mm/min
Rapid Feed Rate (Z Axis): 20,000 mm/min
Maximum Working Feed Rates (X, Y, Z Axes in Linear Interpolation): 8,000 mm/min
Tool Shank Type: DIN 69871-A40
Tool Shank Type: DIN 69872-A40
Tool Magazine Capacity: 30 Stations
Maximum Tool Diameter: Ø90 / Ø150 mm
Maximum Tool Length: 300 mm
Max. Tool Weight: 8 kg
Accessories: Chip conveyor - Coolant collection tank (Capacity 300 L) - Automatic high-pressure coolant system via the spindle line (20 bar) - Transformer - Manuals - Electrical diagrams - CE Declaration
