Contact us to receive an offer.
| Manufacturer | Dolci Extrusion |
|---|---|
| Model | FCL 21/SH PRO-CAST Dolce |
| Year | 2004 |
| Location | Belarus
|
The Dolci Extrusion FCL 21/SH PRO-CAST Dolce is a three-layer cast extrusion line designed for the production of stretch film. Manufactured in 2004, this line is equipped with refrigeration equipment and originates from Bielloni Castello S.p.A., Italy. It is capable of producing film with a thickness ranging from 15 to 50 microns and a web width between 1800 and 2000 mm. The finished rolls can have widths starting from 125 mm. The film structure consists of three layers (A/B/C) with a ratio of 16/68/16.

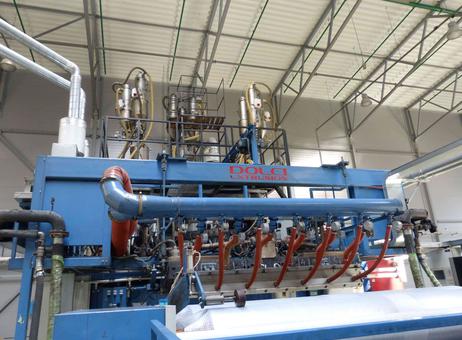

The line includes three extruders, each dedicated to one layer of the film. Each extruder is fitted with three Doteco dispensers, enabling the mixing of up to three components per layer. The extruders feature heating elements and cooling fans to maintain precise temperature control. The extrusion head is equipped with thermal bolts and an infrared system for measuring film thickness, allowing automatic adjustment during production.

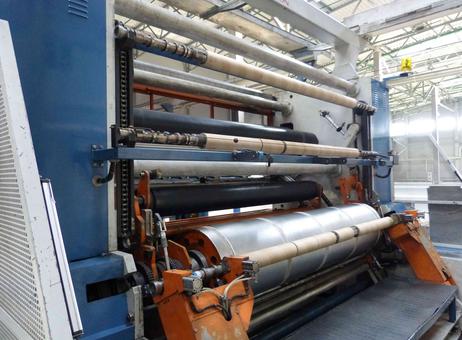

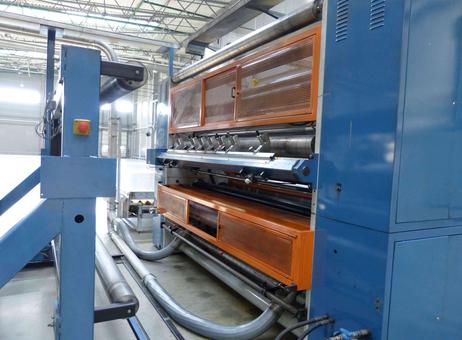

Additional components of the line include a fitblock for film structure formation, a film cooling unit with two chill-roll drums, a vacuum system for web clamping to the chill-rolls, electrostatic edge clamping devices, an oscillation device, and a winder for cutting and rolling the finished film. A robotic system is integrated for roll changes.

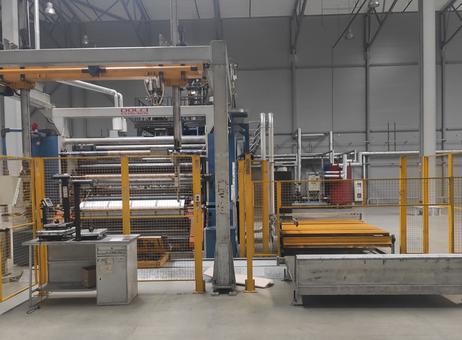

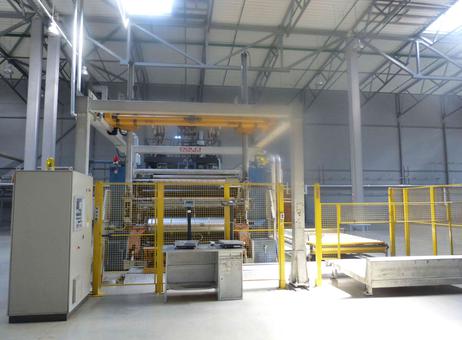

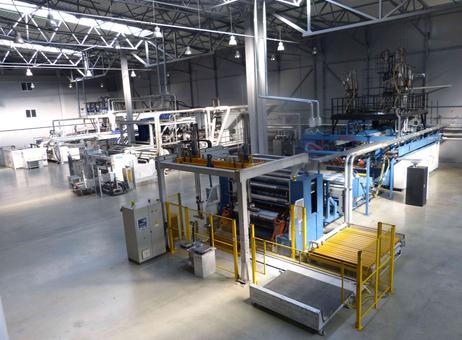

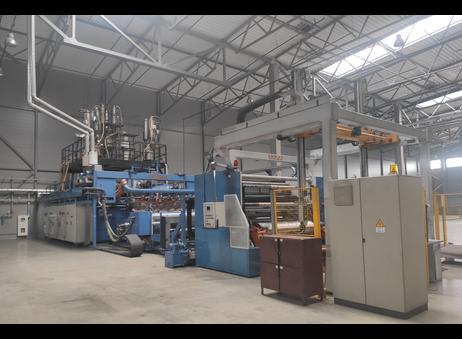

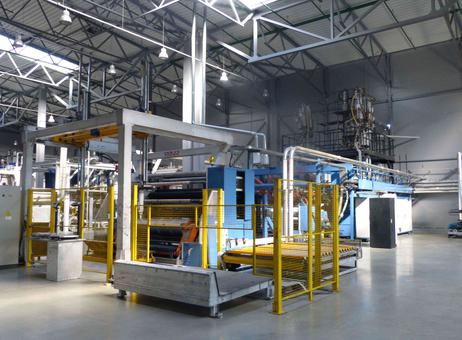

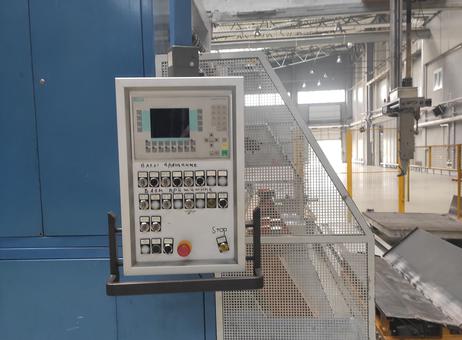

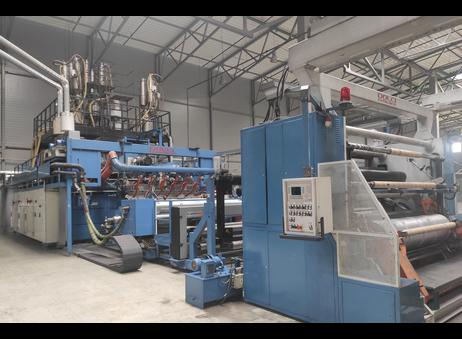

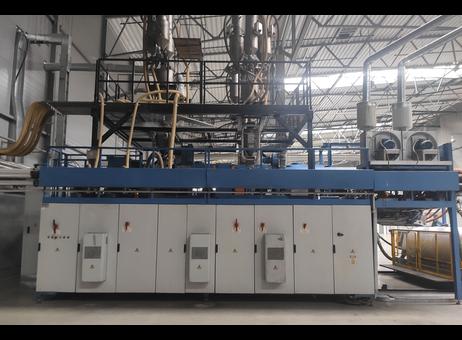

The machinery is housed in a spacious industrial setting and features multiple extruder units with connected piping and wiring. Safety features include yellow metal fencing around parts of the extrusion rollers and safety cages. The control panel, branded Siemens, includes multiple buttons and an emergency stop, with labels in Cyrillic script. Multiple electrical cabinets with warning labels are located on the lower section, supporting the upper framework with visible piping and mechanical components.

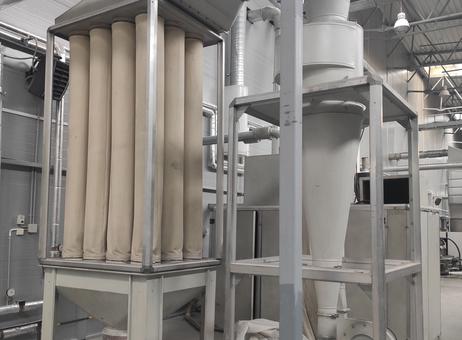

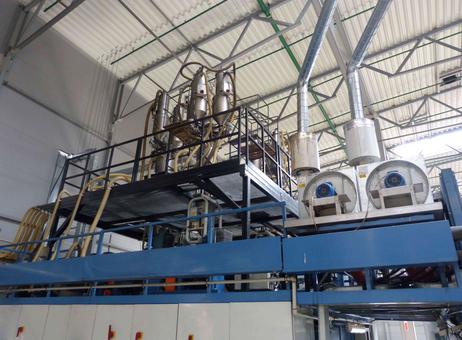

A large industrial dust or material collection system with six vertical cylindrical filter bags and a cyclone separator unit is also part of the setup. The equipment appears clean, well-maintained, and structurally sound with no visible damage or wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Extrusion line model "FCL 21/SH PRO-CAST" Dolce with refrigeration equipment
Brand (model): FCL 21 / SH PRO-CAST "Dolce with refrigeration equipment No. 1
Release year: 2004
Manufacturer: BIELLONI CASTELLO s.p.a., Italy
Three-layer cast extrusion line for the production of stretch film, made in Italy. Commissioning - 2005. The maximum real productivity is up to 800 kg/h depending on the thickness of the produced film. The winding speed of finished products is up to 350 m/min. Film thickness from 15 to 50 microns. Web width 1800 -2000 mm. Width of rolls of finished products from 125 mm. The structure of the produced film is A/B/C, the ratio of layers is 16/68/16.
The composition of the line: three extruders are included, each of which works on one layer of film. Three Doteco dispensers are installed on each of the extruders, which allows mixing up to three components in each layer. The extruders are equipped with heating elements and cooling fans to maintain the set temperature.
The line also includes:
fitblock, where the formation of the film structure is carried out; - extrusion head with thermal bolts installed on it; - film cooling unit consisting of two cooling drums (chill-rolls); - system of vacuum clamping of the web to the chill-roll; - devices for electrostatic clamping of edges; - an infrared system for measuring the thickness of the produced film, connected to thermal bolts mounted on the extrusion head. This allows you to automatically adjust the thickness during the production of finished products; - oscillation device; - a winder for finished products, on which the web is cut to the required size and wound into rolls; - robotic system for changing rolls.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2023 |
| Offers online | 1 |
| Last activity | Oct. 22, 2026 |
Extrusion line model "FCL 21/SH PRO-CAST" Dolce with refrigeration equipment
Brand (model): FCL 21 / SH PRO-CAST "Dolce with refrigeration equipment No. 1
Release year: 2004
Manufacturer: BIELLONI CASTELLO s.p.a., Italy
Three-layer cast extrusion line for the production of stretch film, made in Italy. Commissioning - 2005. The maximum real productivity is up to 800 kg/h depending on the thickness of the produced film. The winding speed of finished products is up to 350 m/min. Film thickness from 15 to 50 microns. Web width 1800 -2000 mm. Width of rolls of finished products from 125 mm. The structure of the produced film is A/B/C, the ratio of layers is 16/68/16.
The composition of the line: three extruders are included, each of which works on one layer of film. Three Doteco dispensers are installed on each of the extruders, which allows mixing up to three components in each layer. The extruders are equipped with heating elements and cooling fans to maintain the set temperature.
The line also includes:
fitblock, where the formation of the film structure is carried out; - extrusion head with thermal bolts installed on it; - film cooling unit consisting of two cooling drums (chill-rolls); - system of vacuum clamping of the web to the chill-roll; - devices for electrostatic clamping of edges; - an infrared system for measuring the thickness of the produced film, connected to thermal bolts mounted on the extrusion head. This allows you to automatically adjust the thickness during the production of finished products; - oscillation device; - a winder for finished products, on which the web is cut to the required size and wound into rolls; - robotic system for changing rolls.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Dolci Extrusion FCL 21/SH PRO-CAST Dolce is a three-layer cast extrusion line designed for the production of stretch film. Manufactured in 2004, this line is equipped with refrigeration equipment and originates from Bielloni Castello S.p.A., Italy. It is capable of producing film with a thickness ranging from 15 to 50 microns and a web width between 1800 and 2000 mm. The finished rolls can have widths starting from 125 mm. The film structure consists of three layers (A/B/C) with a ratio of 16/68/16.
The line includes three extruders, each dedicated to one layer of the film. Each extruder is fitted with three Doteco dispensers, enabling the mixing of up to three components per layer. The extruders feature heating elements and cooling fans to maintain precise temperature control. The extrusion head is equipped with thermal bolts and an infrared system for measuring film thickness, allowing automatic adjustment during production.
Additional components of the line include a fitblock for film structure formation, a film cooling unit with two chill-roll drums, a vacuum system for web clamping to the chill-rolls, electrostatic edge clamping devices, an oscillation device, and a winder for cutting and rolling the finished film. A robotic system is integrated for roll changes.
The machinery is housed in a spacious industrial setting and features multiple extruder units with connected piping and wiring. Safety features include yellow metal fencing around parts of the extrusion rollers and safety cages. The control panel, branded Siemens, includes multiple buttons and an emergency stop, with labels in Cyrillic script. Multiple electrical cabinets with warning labels are located on the lower section, supporting the upper framework with visible piping and mechanical components.
A large industrial dust or material collection system with six vertical cylindrical filter bags and a cyclone separator unit is also part of the setup. The equipment appears clean, well-maintained, and structurally sound with no visible damage or wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
