| Manufacturer | DN Solutions |
|---|---|
| Model | Lynx 2100 LSYB |
| Year | 2022 |
| Location | Poland
|

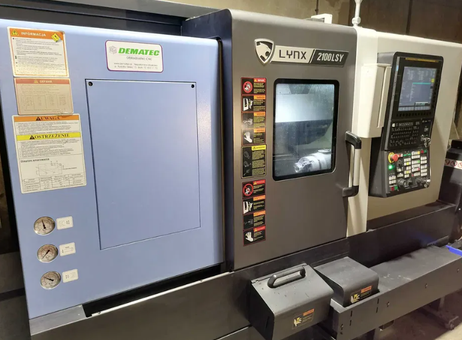

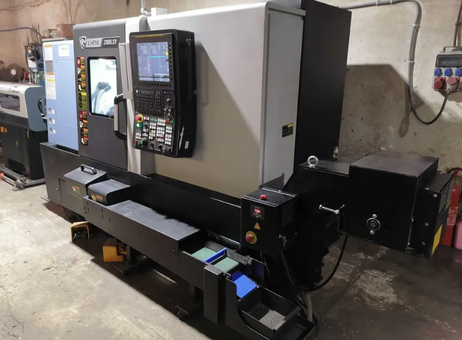

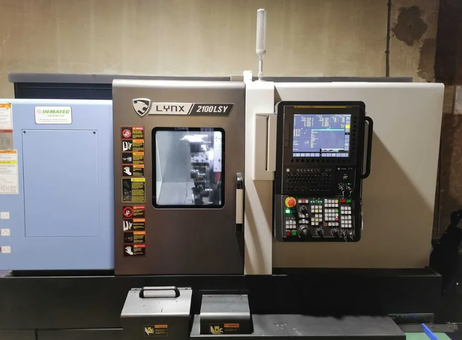

This DN Solutions Lynx 2100 LSYB CNC lathe, manufactured in 2022, offers precise turning capabilities with a maximum turning diameter of 300 mm and a turning length of up to 510 mm. The machine features a FANUC 0i-TP control system with a 15" monitor, providing user-friendly operation and programming. It has an X-axis travel of 205 mm and a Z-axis travel of 560 mm, allowing for versatile machining operations.

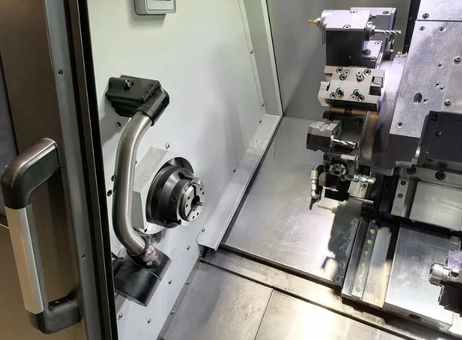

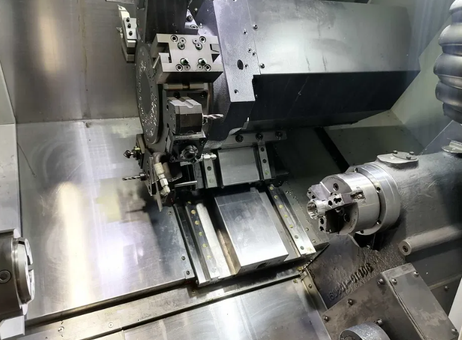

The main spindle is equipped with a 3-jaw chuck measuring 210 mm and a spindle clearance of 76 mm, suitable for various workpieces. The capture spindle includes a 130 mm chuck and can achieve spindle speeds up to 6000 rpm. The lathe's tool revolver supports 12 tools (8 fixed and 4 rotary) with a BMT 45 toolholder, accommodating tools up to 20x20 mm, including drills and boring tools up to Ø 32/20 mm.

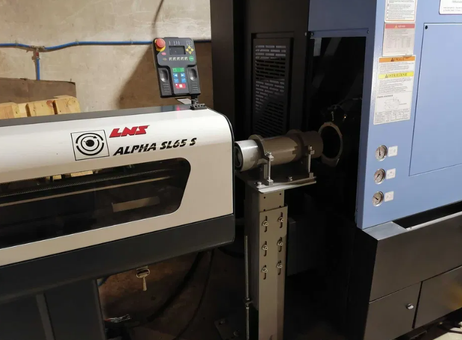

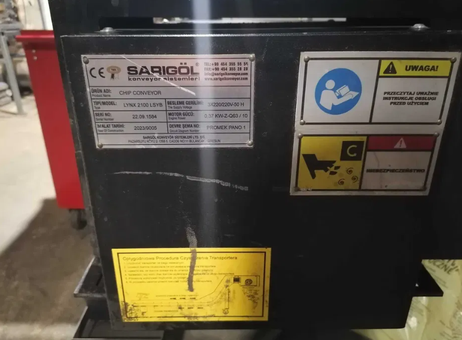

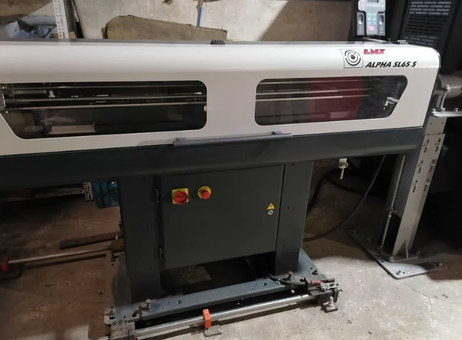

Additional equipment includes a SAROGÖL chip conveyor for efficient chip removal, a spindle extension support, and an ALPHA 65 S bar feeder compatible with bar diameters ranging from 6 to 65 mm and lengths between 280 and 1500 mm. The main spindle also features a KITAGAWA sleeve chuck.
The machine operates on AC 380 V power supply with a consumption of 33.55 KVA and 51.14 A. Its physical condition appears clean and well-maintained, with no visible damage. Safety and operational warning labels are present on the machine door, and the control panel is equipped with multiple buttons and a screen for intuitive control.
This CNC lathe is suitable for precision turning tasks in various industrial applications, offering robust construction and comprehensive tooling options to meet diverse machining needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Number of working hours:100h
Machine in working order in very good condition. Under warranty.
FANUC 0i-TP control
Manual Guide
Monitor15"
Working range
Bed passage diameter - 600 mm
Maximum turning diameter - 300 mm
Maximum length of turning - 510 mm
Bar diameter in the spindle - 65 mm
Main spindle :
3-jaw lathe chuck - 210 mm
Spindle clearance - 76 mm
Capture spindle:
Chuck - 130 mm
Spindle speed: - 6000 rpm
Axis travels
X axis: - 205 mm, high-speed feed : 30 m/min
Y axis: - 105 mm, (+/- 52.5mm) fast feed : 10 m/min
Z axis: - 560 mm, rapid feed: 36 m/min
B axis: - 560 mm, rapid feed : 30 m/min
Tool revolver
Toolholder - BMT 45
Number of tools - 12 ( 8 fixed 4 rotary)
dimension of tools - 20x20 mm
tools (drill and boring) - Ø 32/20 mm
Additional information:
SAROGÖL chip conveyor
Spindle extension support
ALPHA 65 S bar feeder
diameter range : - Ø 6-65 mm
bar length - 280-1500 mm
KITAGAWA sleeve chuck on the main spindle
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this DN Solutions Lynx 2100 LSYB CNC lathe manufactured?
This DN Solutions Lynx 2100 LSYB CNC lathe was manufactured in 2022.
Is this CNC lathe available for inspection?
This CNC lathe is available for inspection while in operation.
When was this DN Solutions Lynx 2100 LSYB CNC lathe manufactured?
This DN Solutions Lynx 2100 LSYB CNC lathe was manufactured in 2022.
Is this equipment available for inspection while in operation?
This equipment is available for inspection while in operation.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2025 |
| Offers online | 1 |
| Last activity | May 22, 2026 |
Number of working hours:100h
