| Manufacturer | DMG |
|---|---|
| Model | NEF 400 CNC |
| Year | 2009 |
| Location | Czech Republic
|

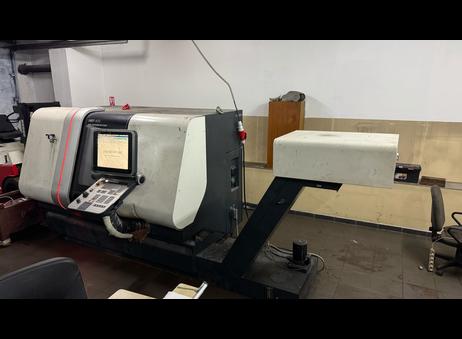

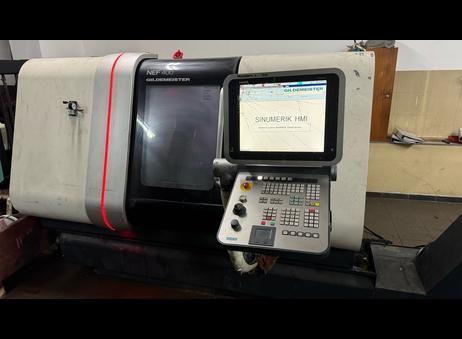

This listing offers a DMG Gildemeister NEF 400 CNC lathe, a robust machine designed for precision turning operations. Manufactured in 2009, it features a compact footprint with dimensions of 2100 mm in length, 1750 mm in width, and 1710 mm in height, weighing approximately 2800 kg. The lathe is equipped with an enclosed machining area, providing safety and containment of metal chips during operation.
The machine supports a maximum swing diameter above the bed of 350 mm and a maximum machining diameter of 270 mm, with a turning length of up to 650 mm. The travel distances for the X and Z axes are 255 mm and 650 mm respectively. The spindle bore measures 65 mm, while the spindle passage is 50 mm. The lathe is powered with a total installed power of 21 kVA and operates on a supply voltage of 24 DC/230 AC.

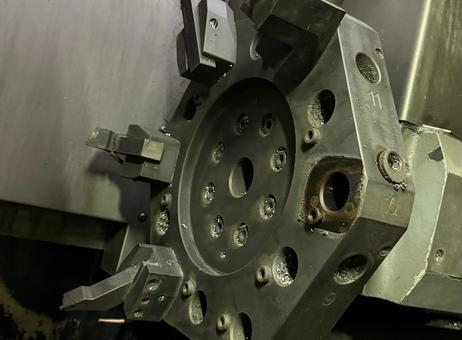

It includes an 8-position tool turret with tool holders, some of which are installed, and the turret area shows signs of use with metal shavings present. A chip conveyor is attached to the right side of the machine to facilitate chip removal. The machine housing and body display signs of wear, dirt, and scratches consistent with regular use but appear structurally intact.

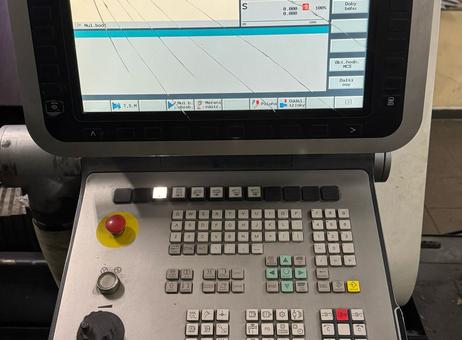

The control panel features a Siemens-branded interface running the Gildemeister SINUMERIK 840D Shop Turn control system, including various operational buttons, knobs, and an emergency stop button. The display screen is cracked with visible spider web cracks but remains operational, showing machine status and program information.

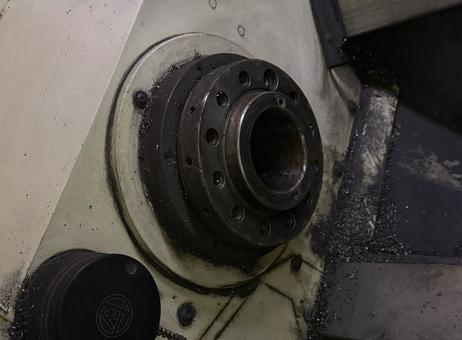

The spindle nose includes multiple threaded holes for workpiece mounting, and the interior machining area shows typical wear and metal residue. Power connection is via a cable attached on the top right side of the machine. This lathe is suitable for users seeking a capable CNC turning center with comprehensive features and a well-documented specification set.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The lathe is in good technical condition, powered, with the possibility of testing. Control system Sinumerik 840D Shop Turn.
tool holders, chip conveyor
Max. swing diameter 350 mm
Max. machining diameter 270 mm
Max. machining length 650 mm
Travels X/Z 255/650 mm
Spindle bore 65 mm
Spindle passage 50 mm
Supply voltage 24DC/230 AC
Total installed power 21 kVA
Tool head 8 positions
Machine dimensions:
height 1710 mm
width 1750 mm
length 2100 mm
Machine weight 2800 kg
