| Manufacturer | DMG MORISEIKI |
|---|---|
| Model | CTX beta 1250 TC 4A |
| Year | 2012 |
| Location | Italy
|
This listing features a DMG MORISEIKI CTX beta 1250 TC 4A multitasking CNC lathe, manufactured in 2012. It is a two-spindle turning and milling center equipped with a Siemens SINUMERIK 840D solution line CNC control system, including the ERGOline interface and ShopTurn 3G software running on a Linux operating system, supporting complete DIN/ISO programming.
The machine includes integrated ISM 76 electrospindles on both the main and counter spindles, delivering 25 kW and 32 kW power respectively (100/40% duty cycle) with torques of 280 and 360 Nm, reaching speeds up to 5000 rpm. It features a 67 mm hydraulic half-cable clamping device, two C axes, and an HSK-63A tool interface according to DIN 69893. The Y-axis offers a travel of +100 mm, and the B axis rotates +110°.
Direct absolute measuring systems are installed on the X1, Y1, Z1, and X2 axes. Tooling includes a 24-position disc tool magazine located above the main spindle and a 12-position star revolver with VDI 40 housing and TRIFIX precision interface on the lower cross slide, with tool drives conforming to DIN 5480.
Additional features include a 6-bar coolant pump with 20 l/min flow, a chip evacuator with hinged elements and 1200 mm evacuation height, refrigeration systems for the electrospindle, motor console, and milling/turning spindle, as well as a B-axis torque motor. The machine is equipped with a tailstock function for the counter spindle and self-centering chucks (model KNCS-N 315-91) on both spindles.
The machine has a turning over bench length of 700 mm and a turnable carriage travel of 540 mm. It also includes a tool control system (Artis, CTM type), a four-color indicator lamp, and a high-temperature package.

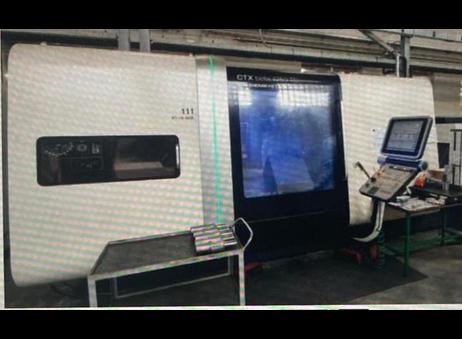

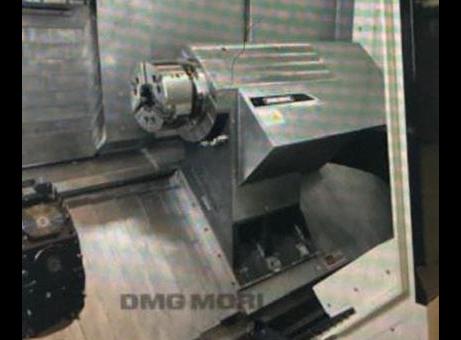

Visually, the machine is large and robust, with a control panel featuring multiple buttons and a display screen mounted on the right side. The machining area is enclosed behind a large window, allowing visibility inside. The interior machining surfaces appear clean and well-maintained, with polished metal components. The DMG MORI branding and the model name 'CTX beta 1250 TC' are clearly visible on the machine body and interior surfaces. A small table or stand with metal parts is positioned in front of the machine.
This CNC lathe is suitable for advanced multitasking machining operations requiring precise turning and milling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DMG MORISEIKI Multitasking Lathe
Specifications:
CTX beta 1250 TC 4A Two-spindle turning and milling center
SIEMENS SINUMERIK 840D solution line CNC control with ERGOline control with ShopTurn 3G, Linux operating system, complete DIN/ISO
main and counter spindle as integrated ISM 76 electrospindle, power 25/32 KW (100/40% ED) torque 280/360 Nm (100/40% ED) 5000 U/min,
_cable clamping device and 67 mm
- half-cable clamping device (hydraulic),
- 2 C axes
- HSK-63A DIN 69893
- Y-axis + 100 mm
- B axis +110° mit
- direct, absolute measuring systems in X1-, Y1-, Z1-, X2-axes
- 24-position disc tool magazine located above the main spindle
- lower cross slide with 12-position star revolver, VDI 40 housing, DIN 69880-40 with TRIFIX precision interface and tool drive/connection according to DIN 5480
- coolant pump 6 bar; 20 l/min
- chip evacuator with hinged elements, evacuation height 1200 mm
- refrigeration system for electrospindle, motor console, milling/turning spindle,
B-axis torque motor
Siemens 840D ERGOline CNC control with ShopTurn 3 G
- 8/20 bar refrigeration unit, 600 l
- Tailstock function for counter spindle
- Self-centering chuck KNCS-N 315-91
- Self-centering chuck KNCS-N 315-91
- Lamp 4 colors
- High temperature package
- Tool control system, Artis, CTM type
Turning over bench 700 mm
Turnable on the carriage 540 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 202 |
| Last activity | Oct. 29, 2026 |
DMG MORISEIKI Multitasking Lathe
Specifications:
CTX beta 1250 TC 4A Two-spindle turning and milling center
SIEMENS SINUMERIK 840D solution line CNC control with ERGOline control with ShopTurn 3G, Linux operating system, complete DIN/ISO
main and counter spindle as integrated ISM 76 electrospindle, power 25/32 KW (100/40% ED) torque 280/360 Nm (100/40% ED) 5000 U/min,
_cable clamping device and 67 mm
- half-cable clamping device (hydraulic),
- 2 C axes
- HSK-63A DIN 69893
- Y-axis + 100 mm
- B axis +110° mit
- direct, absolute measuring systems in X1-, Y1-, Z1-, X2-axes
- 24-position disc tool magazine located above the main spindle
- lower cross slide with 12-position star revolver, VDI 40 housing, DIN 69880-40 with TRIFIX precision interface and tool drive/connection according to DIN 5480
- coolant pump 6 bar; 20 l/min
- chip evacuator with hinged elements, evacuation height 1200 mm
- refrigeration system for electrospindle, motor console, milling/turning spindle,
B-axis torque motor
Siemens 840D ERGOline CNC control with ShopTurn 3 G
- 8/20 bar refrigeration unit, 600 l
- Tailstock function for counter spindle
- Self-centering chuck KNCS-N 315-91
- Self-centering chuck KNCS-N 315-91
- Lamp 4 colors
- High temperature package
- Tool control system, Artis, CTM type
Turning over bench 700 mm
Turnable on the carriage 540 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a DMG MORISEIKI CTX beta 1250 TC 4A multitasking CNC lathe, manufactured in 2012. It is a two-spindle turning and milling center equipped with a Siemens SINUMERIK 840D solution line CNC control system, including the ERGOline interface and ShopTurn 3G software running on a Linux operating system, supporting complete DIN/ISO programming.
The machine includes integrated ISM 76 electrospindles on both the main and counter spindles, delivering 25 kW and 32 kW power respectively (100/40% duty cycle) with torques of 280 and 360 Nm, reaching speeds up to 5000 rpm. It features a 67 mm hydraulic half-cable clamping device, two C axes, and an HSK-63A tool interface according to DIN 69893. The Y-axis offers a travel of +100 mm, and the B axis rotates +110°.
Direct absolute measuring systems are installed on the X1, Y1, Z1, and X2 axes. Tooling includes a 24-position disc tool magazine located above the main spindle and a 12-position star revolver with VDI 40 housing and TRIFIX precision interface on the lower cross slide, with tool drives conforming to DIN 5480.
Additional features include a 6-bar coolant pump with 20 l/min flow, a chip evacuator with hinged elements and 1200 mm evacuation height, refrigeration systems for the electrospindle, motor console, and milling/turning spindle, as well as a B-axis torque motor. The machine is equipped with a tailstock function for the counter spindle and self-centering chucks (model KNCS-N 315-91) on both spindles.
The machine has a turning over bench length of 700 mm and a turnable carriage travel of 540 mm. It also includes a tool control system (Artis, CTM type), a four-color indicator lamp, and a high-temperature package.
Visually, the machine is large and robust, with a control panel featuring multiple buttons and a display screen mounted on the right side. The machining area is enclosed behind a large window, allowing visibility inside. The interior machining surfaces appear clean and well-maintained, with polished metal components. The DMG MORI branding and the model name 'CTX beta 1250 TC' are clearly visible on the machine body and interior surfaces. A small table or stand with metal parts is positioned in front of the machine.
This CNC lathe is suitable for advanced multitasking machining operations requiring precise turning and milling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
