Contact us to receive an offer.
| Manufacturer | DMG-MORI |
|---|---|
| Model | NHX 5000 |
| Year | 2014 |
| Location | Germany
|

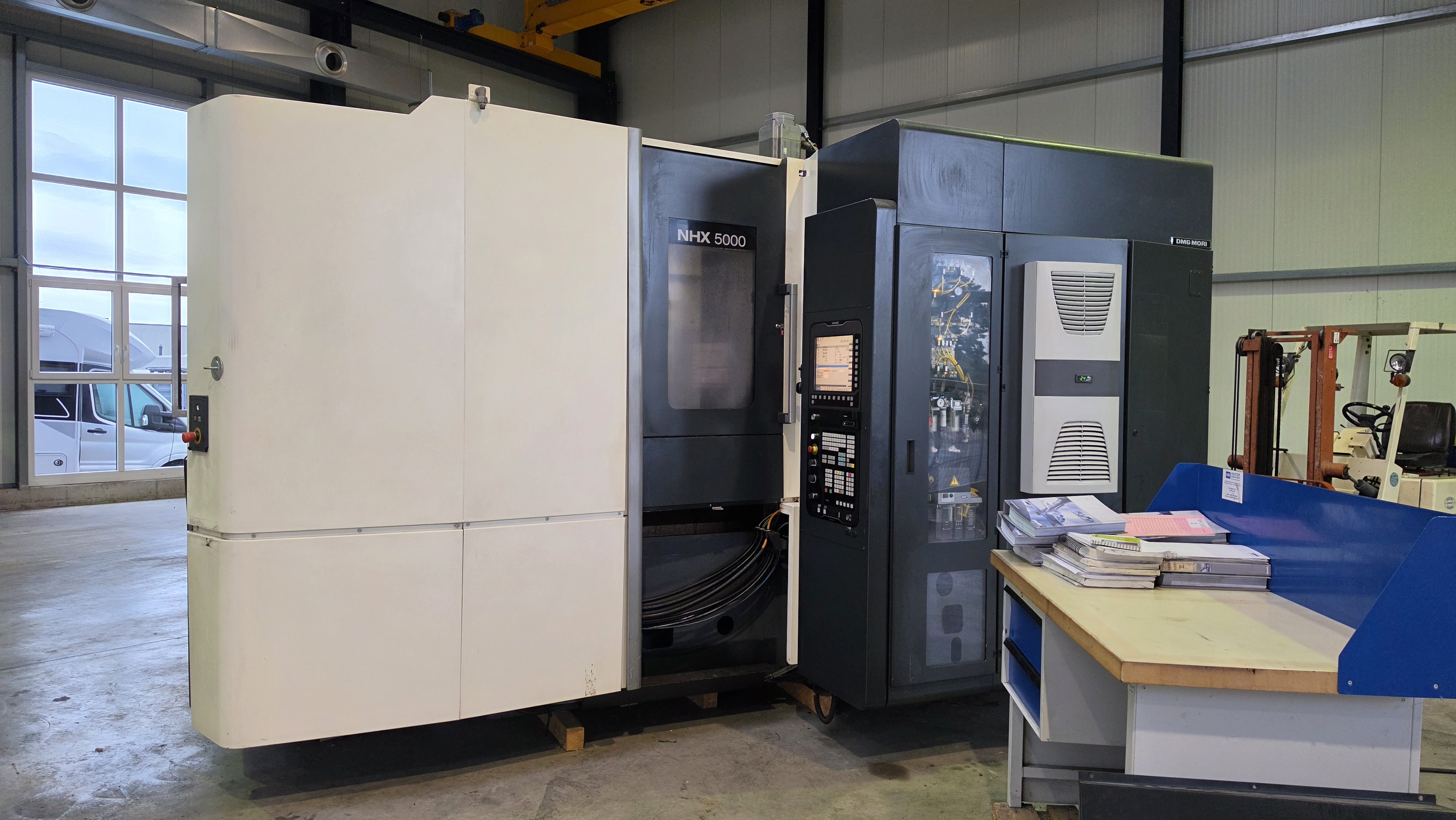

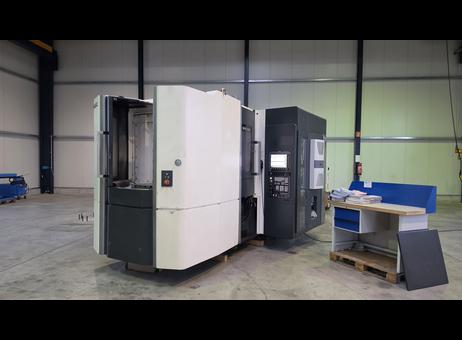

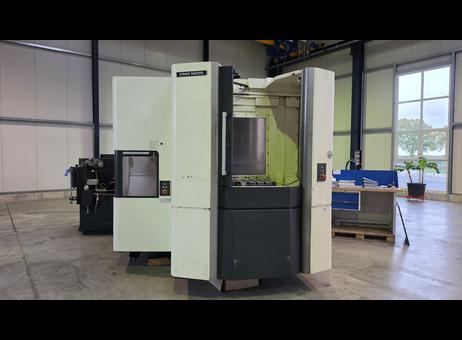

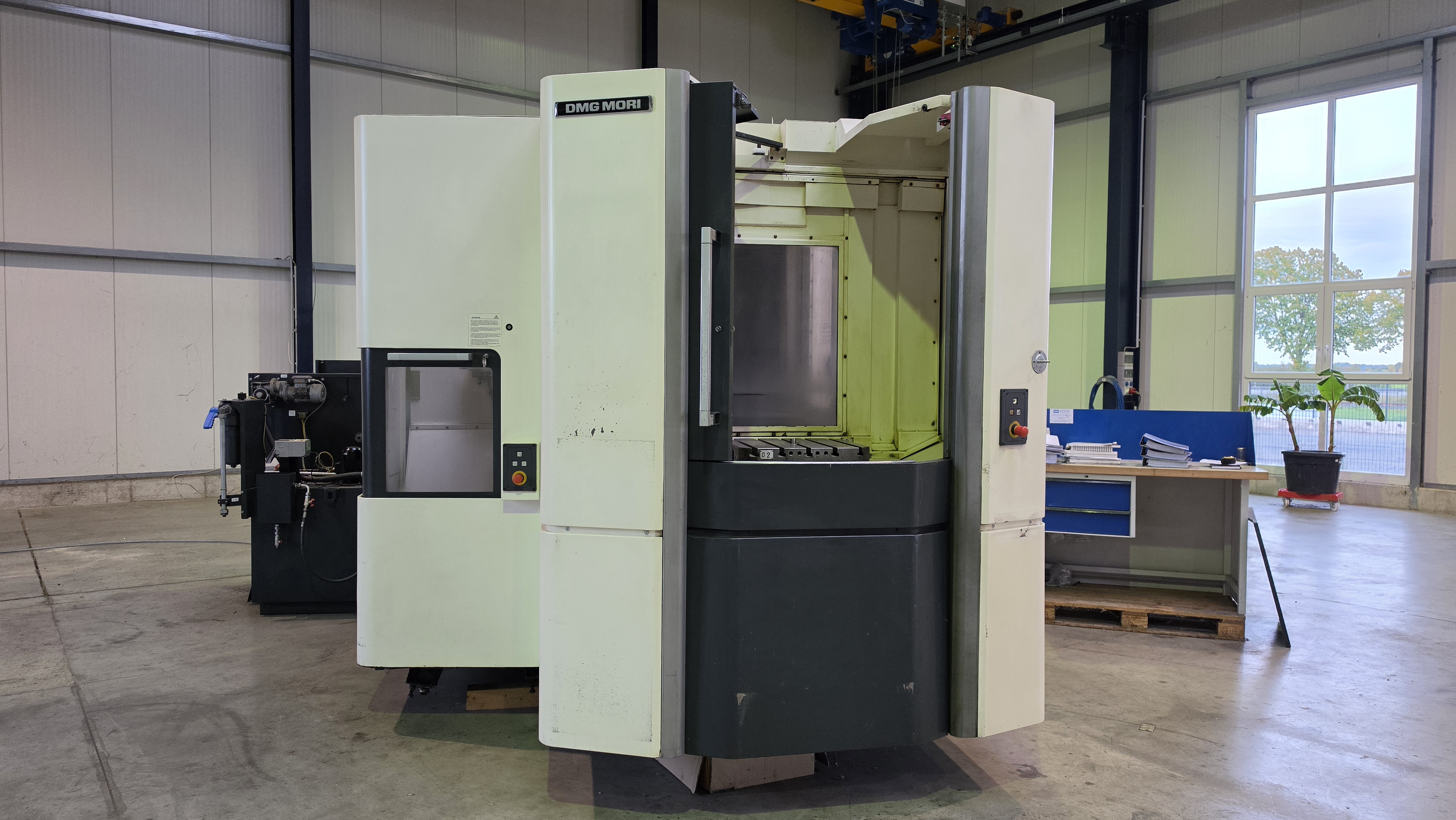

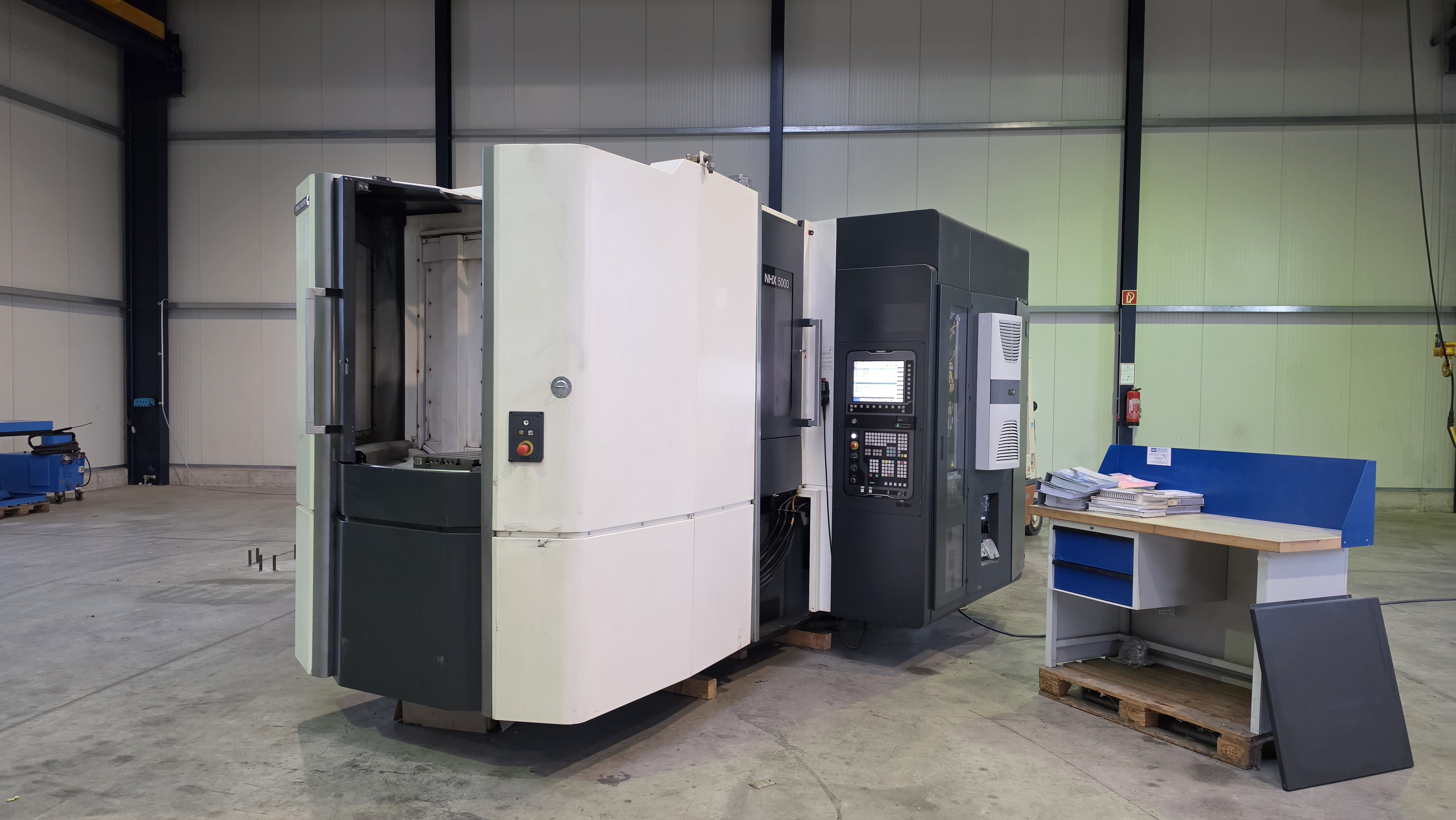

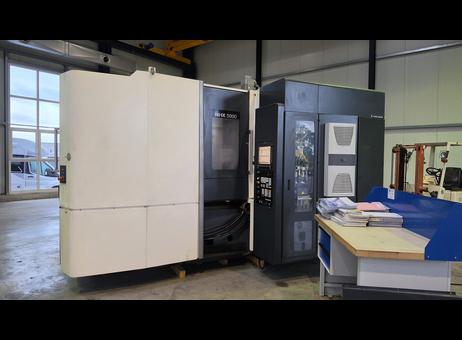

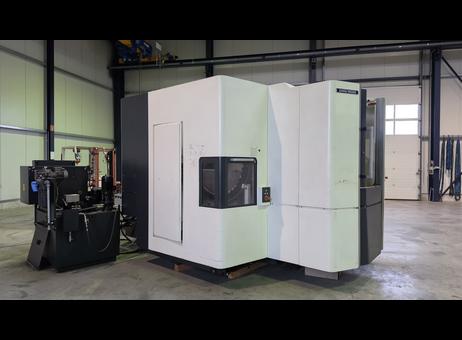

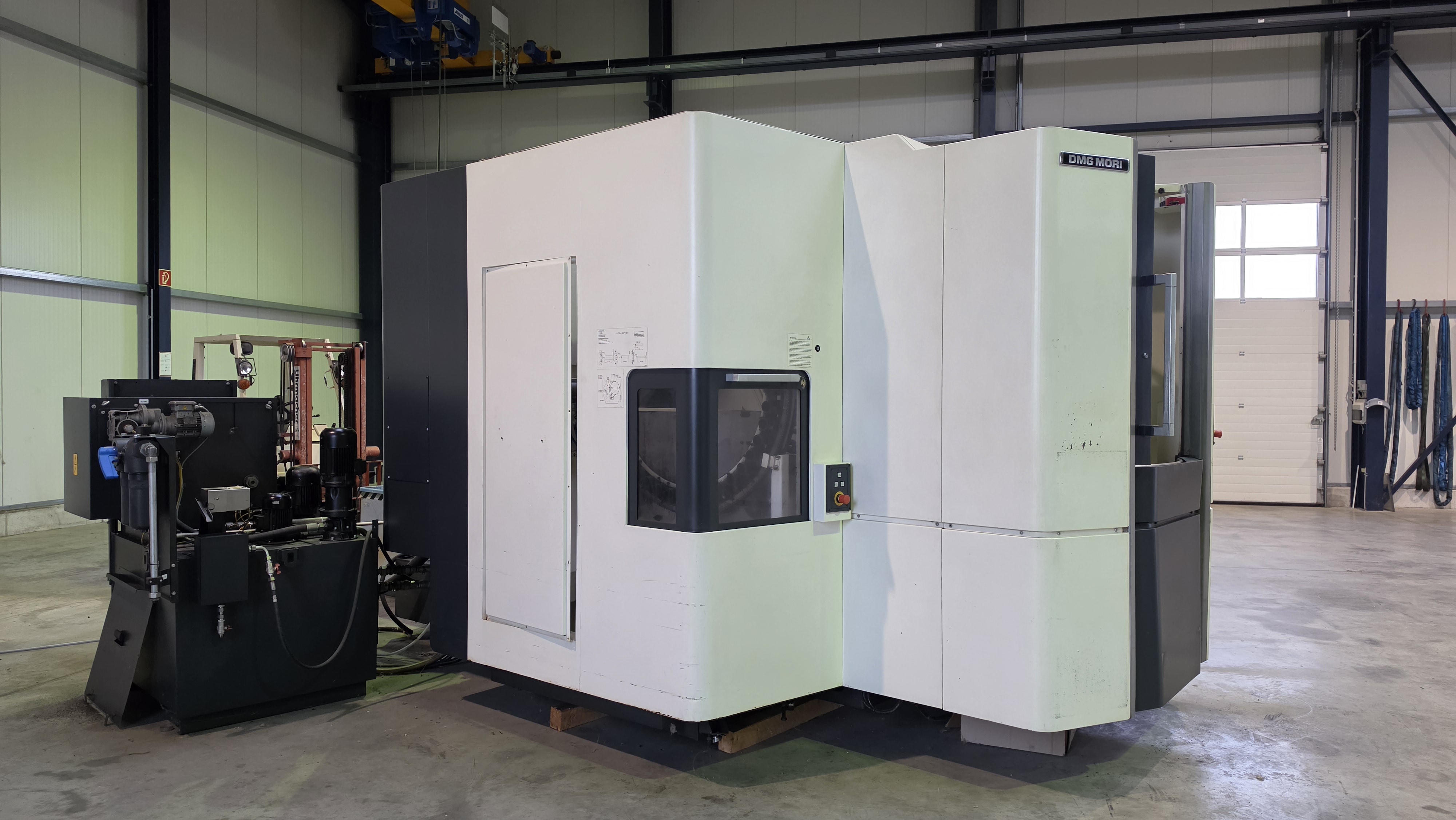

Horizontal machining center with Siemens 840D sl CNC control. The reported operating hours are 23 323, and the reported spindle hours are 15 894. The technical specifications and included equipment are listed below.
TRAVEL AND SPINDLE

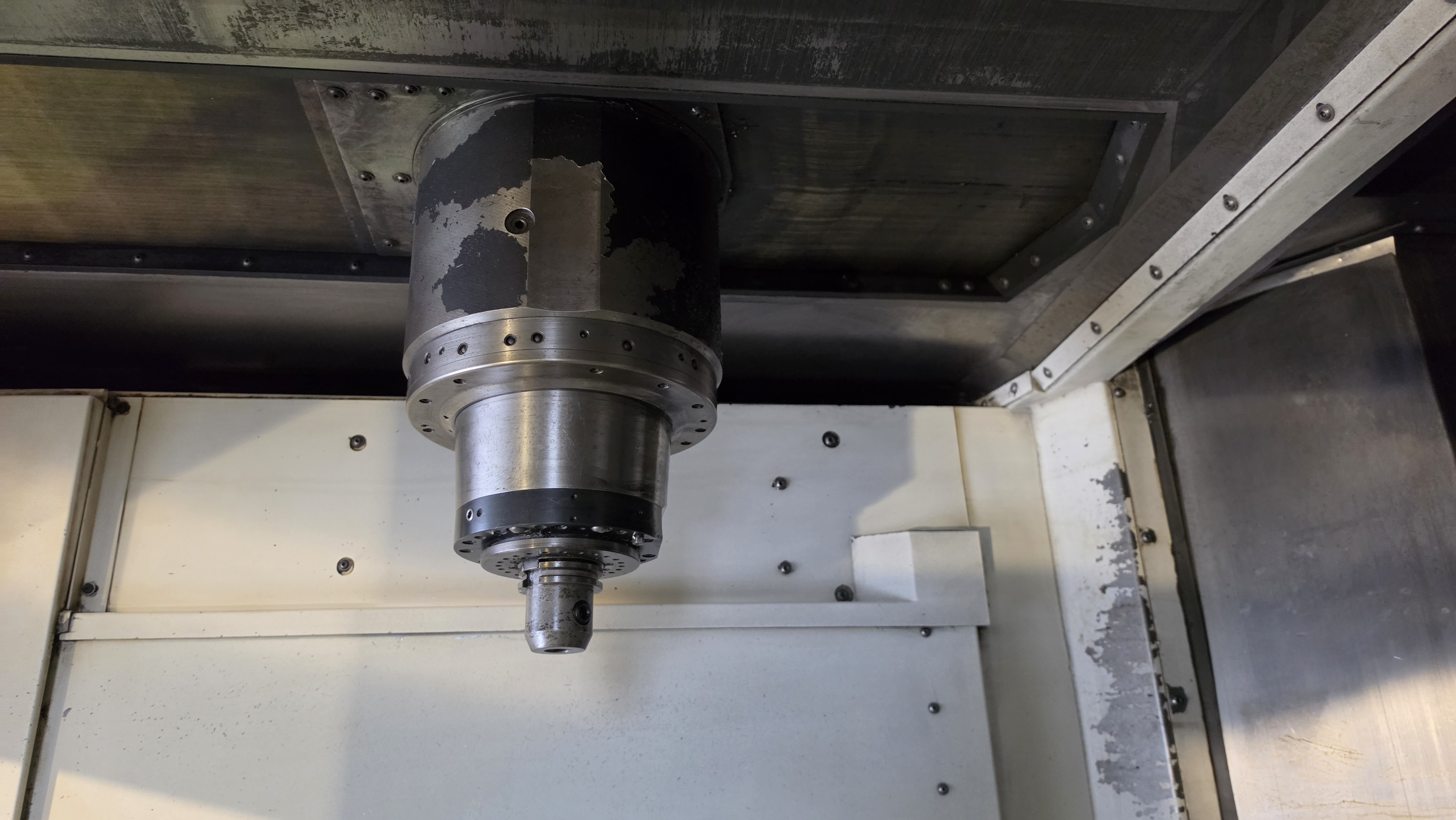

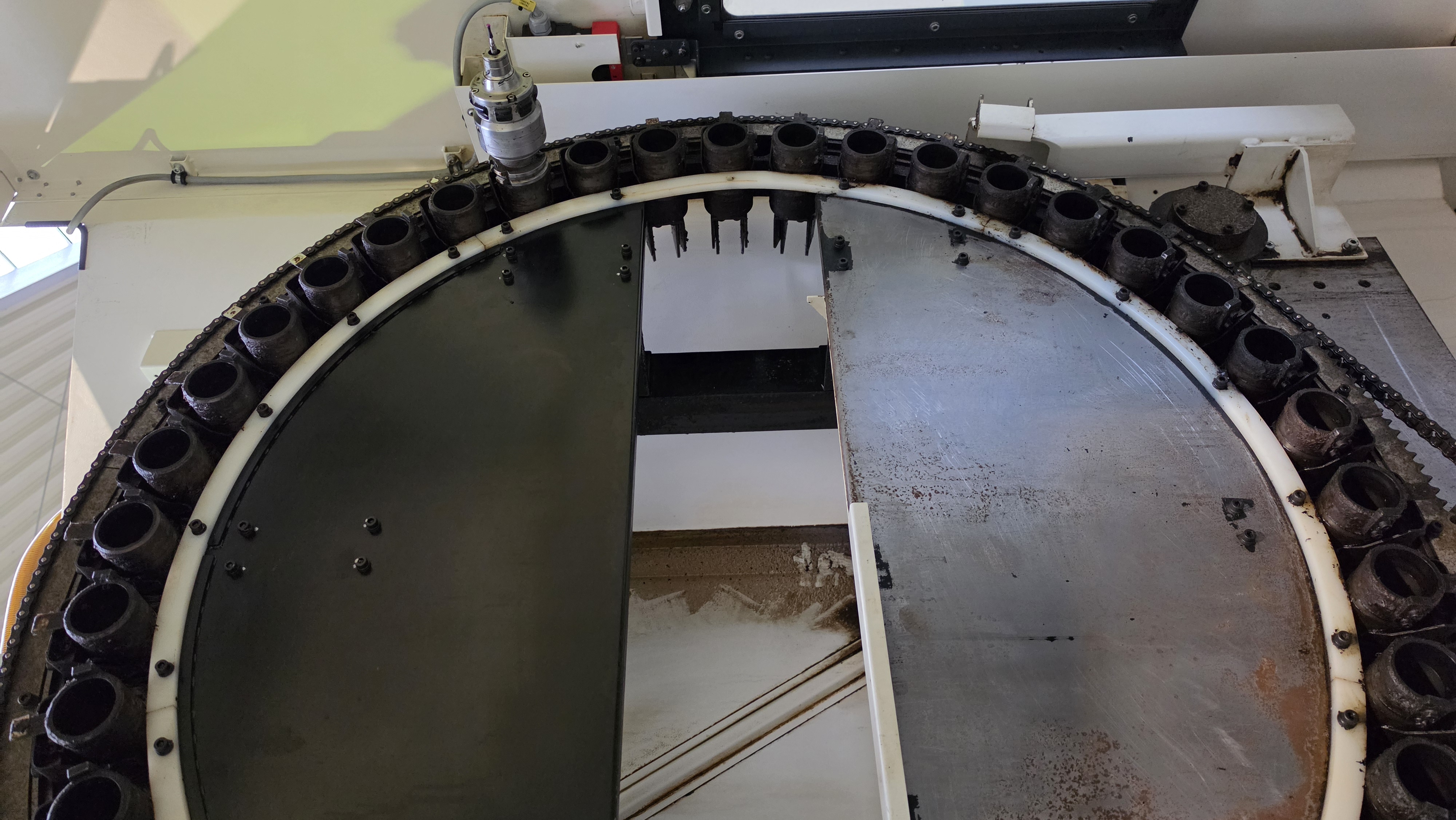

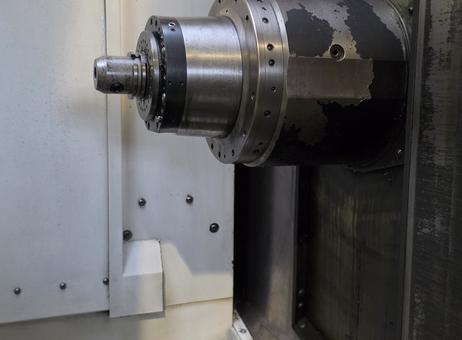

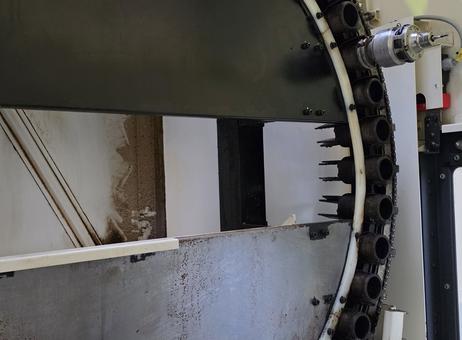

The X-axis travel is 730 mm, the Y-axis travel is 730 mm, and the Z-axis travel is 880 mm. The maximum spindle speed is 12 000 rpm, and the maximum torque is 102 Nm. The tool taper is SK40. The tool magazine has 40 positions.
WORKTABLE AND WORKPIECES

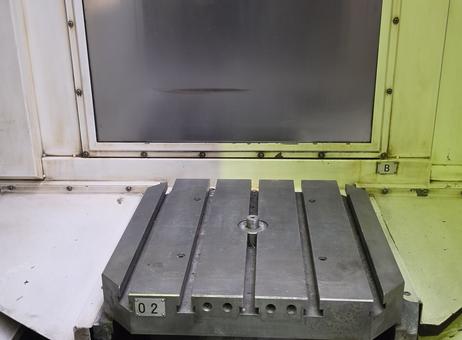

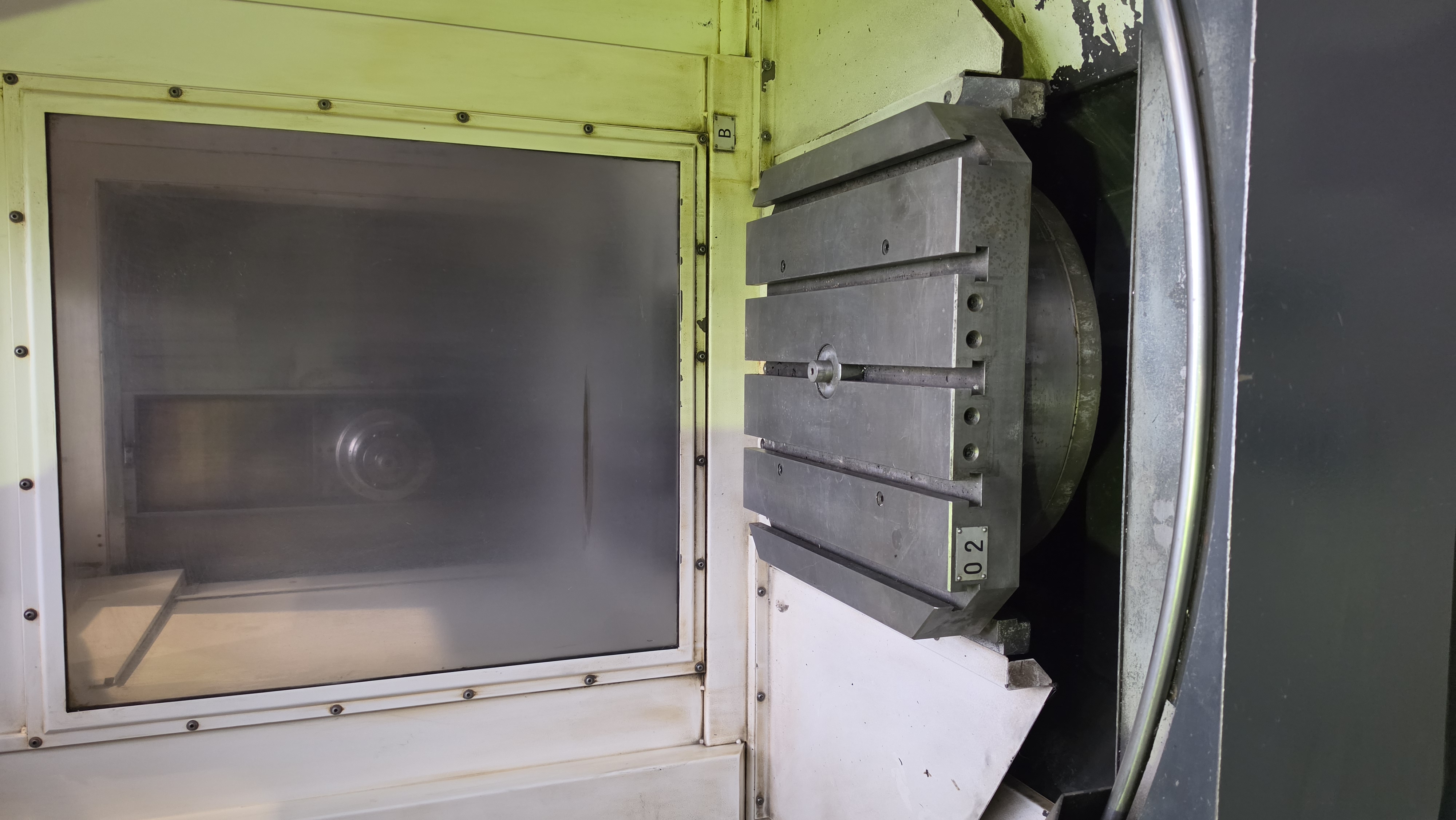

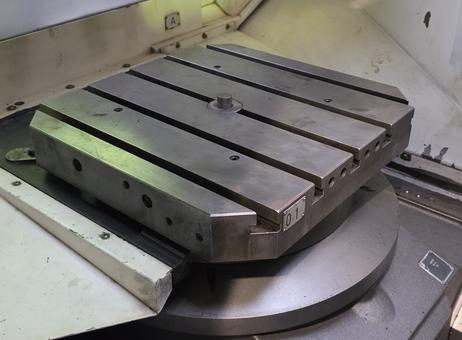

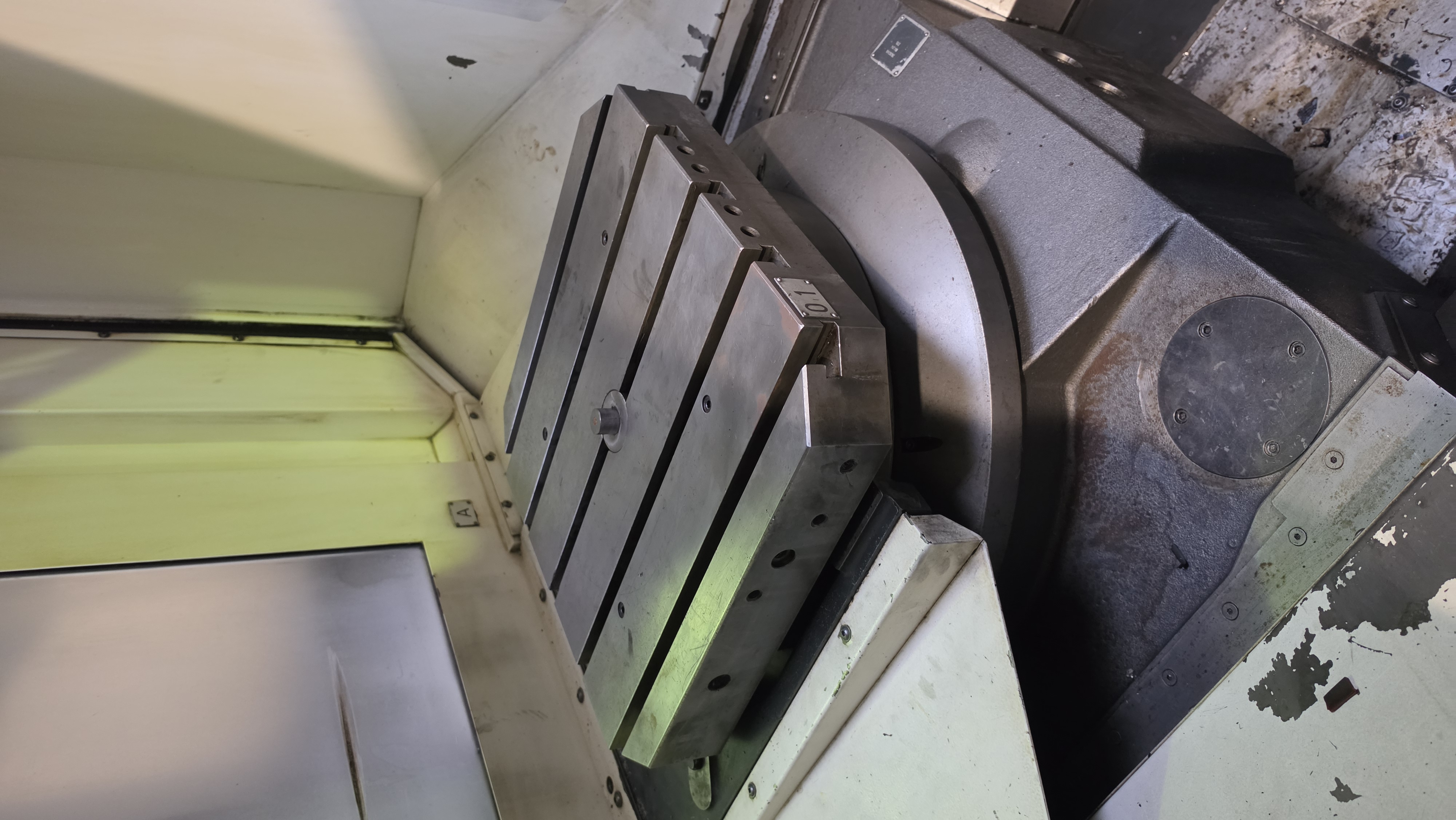

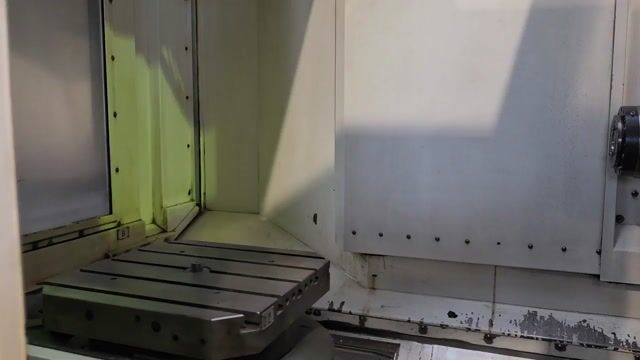

The maximum workpiece weight on the pallet is 500 kg. The stated maximum workpiece dimensions are 630 mm in diameter and 900 mm in height. A table with a B axis allows indexing through 360 × 1 degree. A two-position pallet changer with 500 × 500 mm pallets is included.
FEEDS AND OTHER DATA
The maximum feed rate is 60 000 mm/min, the rapid traverse rate is 60 m/min, and the jog feed rate ranges from 0–5 000 mm/min. The total power requirement is 57 KVA. The stated machine weight is approximately 11,5 t, and the required floor space is 5,5 × 3,0 × 2,8 m.
EQUIPMENT AND ACCESSORIES

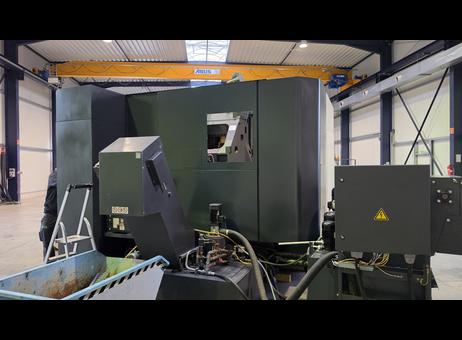

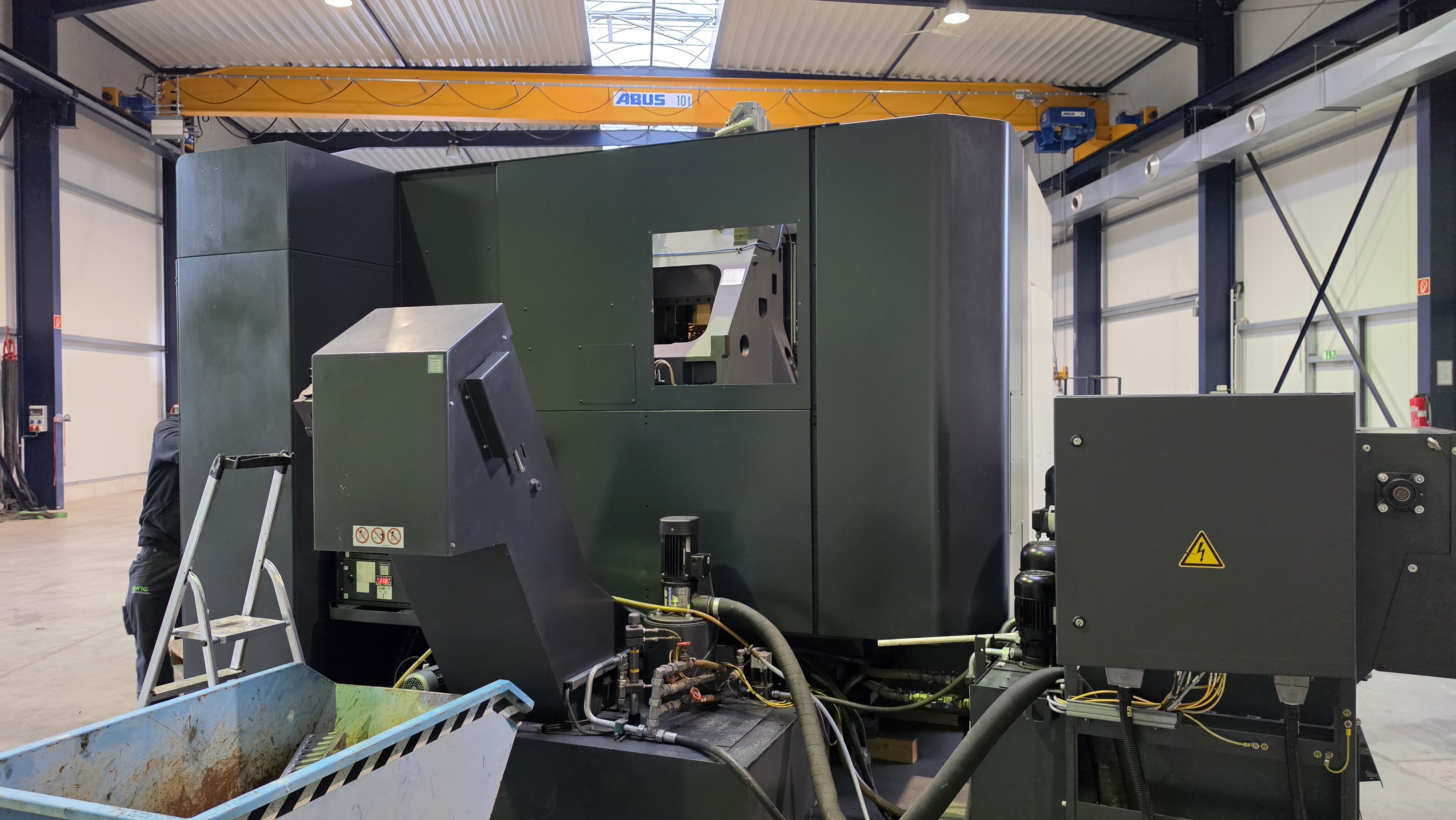

The listed equipment includes a chip conveyor, a 40 bar high-pressure coolant system, and through-spindle coolant. The package includes a tool magazine, documentation, and a Renishaw PP60op measuring probe. The B axis is integrated into the table and indexes in 1-degree increments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Operating hours and spindle hours: 23.323 / 15.894

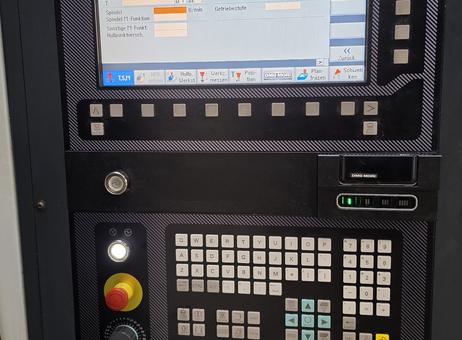

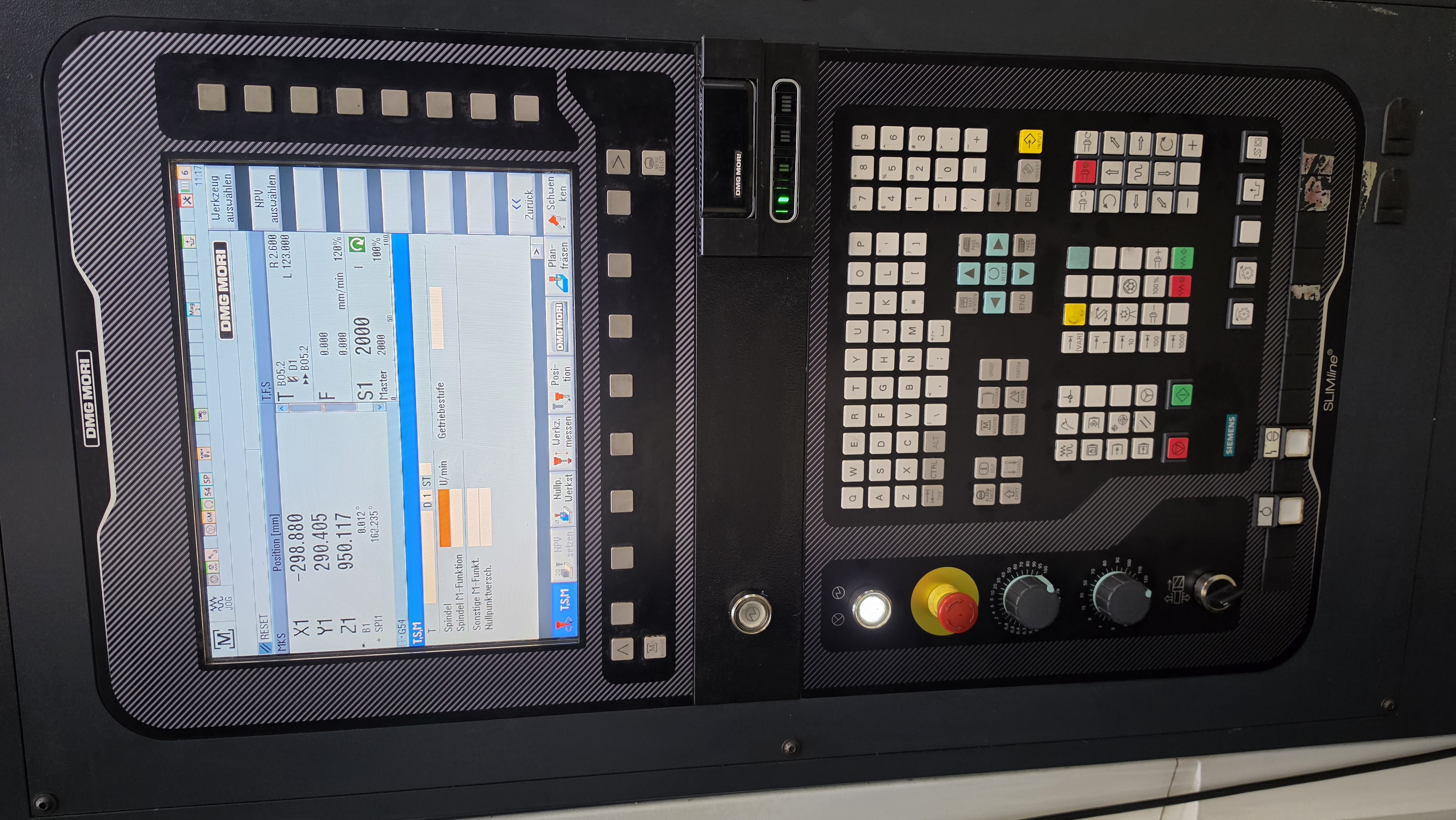

CNC control: Siemens 840D sl
TECHNICAL DATA:
X-axis travel: 730 mm
Y-axis travel: 730 mm
Z-axis travel: 880 mm
Max. spindle speed: 12.000 rpm
Max. torque: 102 Nm
Tool taper: SK40
Max. workpiece weight per pallet: 500 kg
Max. workpiece diameter: 630 mm
Max. workpiece height: 900 mm
B-axis (table) indexing: 360 x 1 degree
Number of tool positions: 40
FEED RATES
Max. feed rate: 60.000 mm/min
Rapid traverse: 60 m/min
Jog feed rate: 0 – 5.000 mm/min
Total power requirement: 57 kVA
Machine weight: approx. 11.5 tonnes
Space requirement: 5.5 x 3.0 x 2.8 m
EQUIPMENT AND ACCESSORIES
2-station pallet changer; pallet size: 500 x 500 mm
Chip conveyor, high-pressure coolant system (40 bar)
Through-spindle coolant supply, tool changer, documentation
B-axis in the table with 1-degree indexing
Renishaw PP60op touch probe
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
