| Manufacturer | DMG MORI |
|---|---|
| Model | HSC20 linear |
| Year | 2009 |
| Location | Germany
|
This DMG MORI HSC20 linear machining center, manufactured in 2009, is a high-precision 5-axis CNC machine designed for complex machining tasks. It features a HEIDENHAIN iTNC530 CNC control system, providing advanced control capabilities for intricate part production.
The machine offers travel distances of 200 mm on the X-axis, 220 mm on the Y-axis, and 280 mm on the Z-axis. It also includes rotary axes with 360º on the C-axis and a tilting A-axis ranging from -15º up to a maximum of 130º, enabling versatile multi-axis machining.
The work table has a diameter of 200 mm and supports a maximum workpiece weight of 15 kg, suitable for small to medium-sized components. The spindle is capable of reaching speeds up to 42,000 rpm, allowing for high-speed machining operations.
Equipped with a tool system featuring an HSK-E32 tool holder, the machine includes a large tool magazine with 60 slots, accommodating a variety of tools with a maximum diameter of 50 mm and maximum length of 200 mm. The chip-to-chip time is 10 seconds, supporting efficient tool changes.
Additional equipment includes automation via the LM100 system (EROWA ITS72) with 5 levels of 9 positions and a maximum manipulation weight of 10 kg. The machine is also fitted with an electronic handwheel, chip conveyor, infrared probe, high-pressure pump, and an NC rotary tilting table.

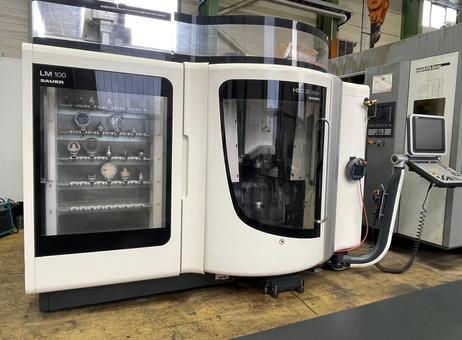

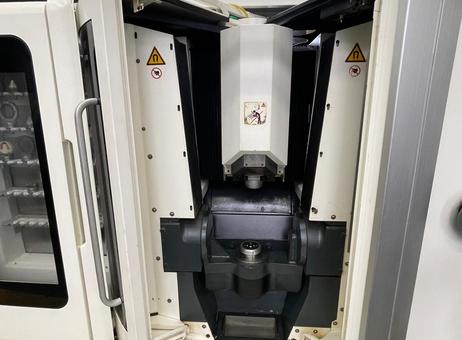

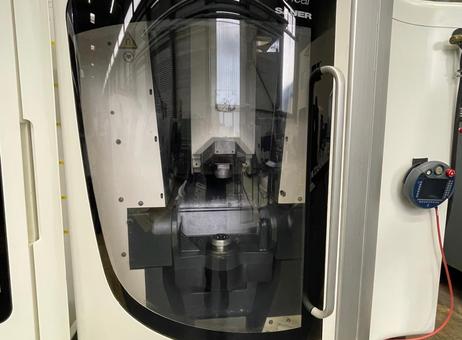

The machine’s exterior is clean and well-maintained, housed within an enclosure featuring a transparent door that provides visibility to the internal spindle area. The tool magazine is branded SAUER LM 100 and contains multiple tool holders, as observed.
The rated power supply requirement is 40 kVA. This machining center is suited for precision machining tasks requiring multi-axis capabilities and high spindle speeds.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

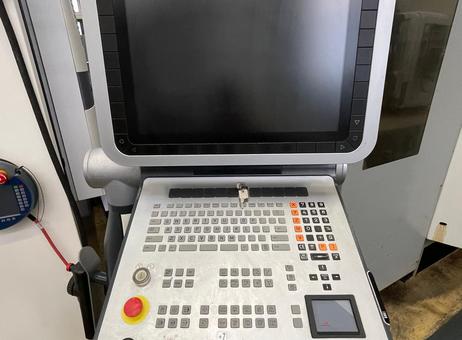

Control CNC: HEIDENHAIN iTNC530
Axes
X-axis travel mm: 200
Y-axis travel mm: 220
Z-axis travel mm: 280
C-axis degrees: 360º
A-axis degrees: -15º max.130º
Work Table
Table dimensions mm: ø200
Maximum workpiece weight kg: 15
Spindle
Spindle speed rpm: 42.000
Cooling
Cooling through the spindle bar: 40
Tool System
Tool holder: HSK-E32
Tool magazine slots: 60
Max. tool diameter mm: ø50
Max. tool length mm: 200
Chip-to-chip time s: 10
Equipment
Automation LM100 (EROWA ITS72, 5 levels of 9 positions); 10 kg maximum manipulation
Electronic handwheel
Chip conveyor
Infrared probe
High-pressure pump
NC rotary tilting table
Rated power kVA: 40
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this SAUER HSC20 linear machining center manufactured?
This SAUER HSC20 linear 5-axis machining center was manufactured in 2009.
Is this SAUER HSC20 linear available Exworks?
This SAUER HSC20 linear is available Exworks from Germany.
How many axes does this SAUER HSC20 have?
This SAUER HSC20 linear machining center features 5 axes.
When was this SAUER HSC20 manufactured?
This SAUER HSC20 linear machining center was manufactured in 2009.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
