| Manufacturer | DMG MORI |
|---|---|
| Model | Gildemeister CTX 1250 TC |
| Year | 2012 |
| Location | South Korea
|
The DMG MORI Gildemeister CTX 1250 TC is a versatile CNC lathe manufactured in 2012, designed for advanced turning and milling operations. It features a turning length of 1250 mm and a high-speed main spindle capable of reaching up to 5000 rpm. The machine is equipped with a 100 mm Y-axis travel and a B-axis with ±110° movement, allowing for complex 5-axis simultaneous machining tasks. The tool turret accommodates 24 tools, supporting a wide range of machining requirements.
This lathe is controlled via the Siemens SINUMERIK 840D Ergoline system, providing precise and flexible control options including ShopTurn or Heidenhain interfaces with ergonomic user interface and Ethernet connectivity. The machine uses HSK-63A tooling and supports an automatic hydraulic tailstock with rotary center rest, enhancing setup efficiency.
Additional features include a coolant pump delivering 6 bar pressure at 201 l/min, an external coolant system for both turning and milling spindles, and a hinged chip conveyor with a discharge height of 1200 mm for efficient chip removal. The machine is also prepared for integration with a workpiece handling robot (WH3) for front loading, supporting automation.

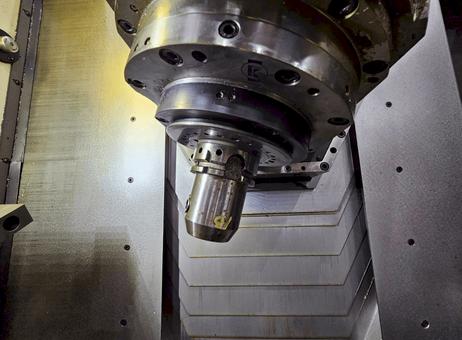

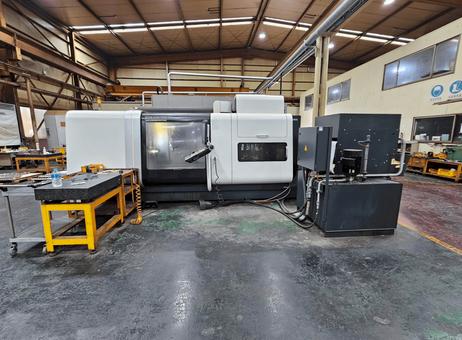

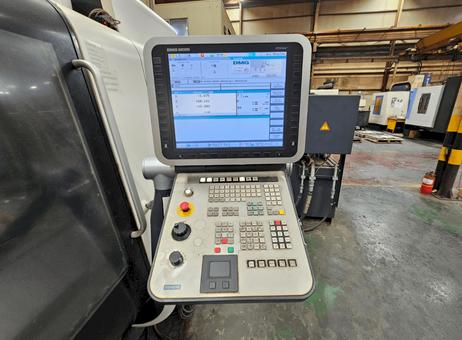

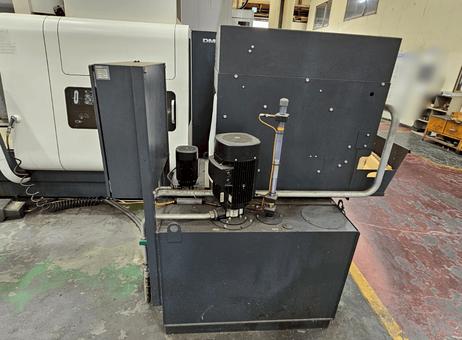

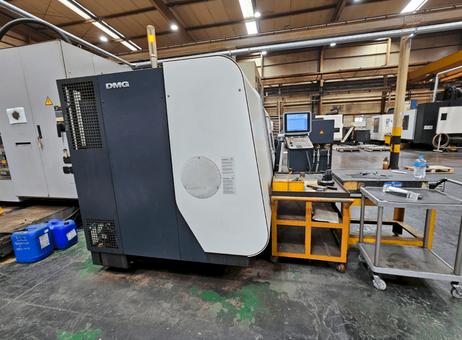

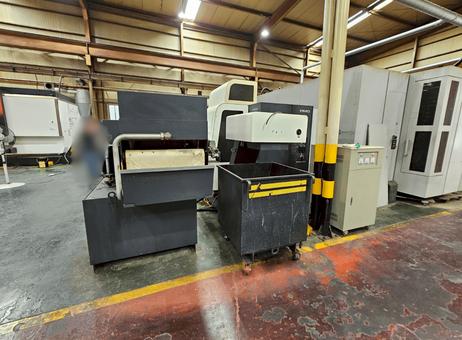

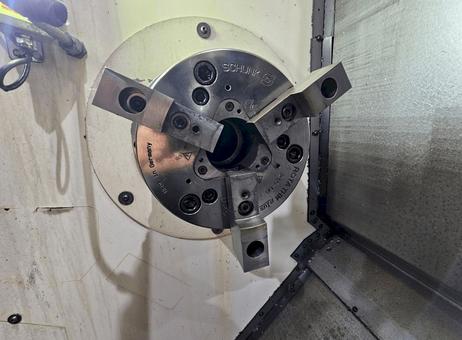

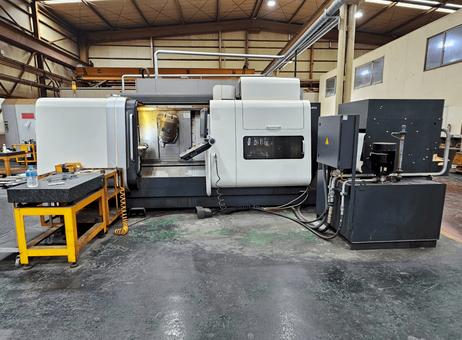

Visible components in the images show a well-maintained machine with a control panel featuring a joystick, a black coolant or hydraulic unit on the right side, and a yellow workbench nearby. The interior spindle and chuck are accessible via a front door, and the rear view reveals an exhaust and chip conveyor system with a large chip bin on wheels. Some wear marks are visible inside the lathe and on the chip bin, consistent with industrial use.
This machine is suitable for high-precision turn-mill machining with high flexibility for eccentric turning and gear system milling capabilities. It includes an in-process measuring device and a tool pre-setting probe with laser measuring technology, enhancing accuracy and productivity. The DMG MORI Gildemeister CTX 1250 TC offers robust performance for demanding manufacturing environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis DMG MORI Gildemeister CTX 1250 TC was manufactured in 2012, featuring a turning length of 1250 mm and a main spindle speed up to 5000 min⁻¹. It includes a Y-axis travel of 100 mm, B-axis ±110°, and a tool magazine with 24 positions. Ideal for complex machining tasks, it also comes equipped with a Siemens SINUMERIK 840D control system. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI Gildemeister CTX 1250 TC machine we have for sale. Contact us for more information.
Brand: SIEMENS
Model: Sinumerik 840D Ergoline
Number of axis: 4
Coolant pump 6 bar, 201 l/min
Chuck rinsing device outside at main spindle
Coolant equipment external on turning/milling spindle
Hinged type chip conveyor, discharge height 1200 mm
Cooling system for spindle motor, turning/milling spindle, and B-axis torque motor
Connection for oil mist extractor
Machine prepared for workpiece handling robot WH3 (front loading)
Environmental packages for unstable supply and increased ambient temperature
Operating system: windows
Control options include shopturn or heidenhain plus it with ergoline use interface, ethernet interface
Integrated spindle motor ism 76
Ac main drive rating: 25/34 kw (33. 51/45. 57 hp)
Y-axis travel: 100 mm
B-axis ±110° with pneumatic locking
Tool acceptance: hsk-63a (din 69893)

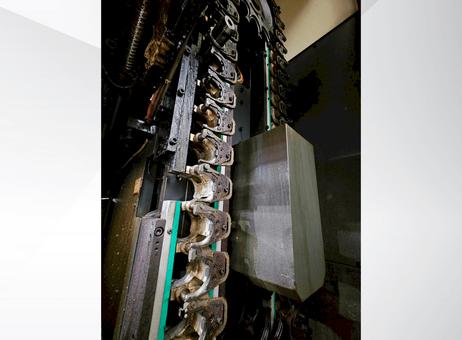

Tool magazine: disc type with 24 positions; optional 48-fold chain magazine with double gripper, max tool dia. 80 mm, max length 300 mm, max weight 8 kg
Automatic tailstock, hydraulic positionable, including rotary centre rest
5-axis simultaneous machining capability
In-process measuring device and tool pre-setting probe with laser measuring device
High flexibility with excentric turning and tooth system milling capabilities
Frequency 60 hz (optional)
Additional machine documentation on cd-romMachine still under power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2064 |
| Last activity | Oct. 29, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 5-axis DMG MORI Gildemeister CTX 1250 TC was manufactured in 2012, featuring a turning length of 1250 mm and a main spindle speed up to 5000 min⁻¹. It includes a Y-axis travel of 100 mm, B-axis ±110°, and a tool magazine with 24 positions. Ideal for complex machining tasks, it also comes equipped with a Siemens SINUMERIK 840D control system. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI Gildemeister CTX 1250 TC machine we have for sale. Contact us for more information.
Brand: SIEMENS
Model: Sinumerik 840D Ergoline
Number of axis: 4
Coolant pump 6 bar, 201 l/min
Chuck rinsing device outside at main spindle
Coolant equipment external on turning/milling spindle
Hinged type chip conveyor, discharge height 1200 mm
Cooling system for spindle motor, turning/milling spindle, and B-axis torque motor
Connection for oil mist extractor
Machine prepared for workpiece handling robot WH3 (front loading)
Environmental packages for unstable supply and increased ambient temperature
Operating system: windows
Control options include shopturn or heidenhain plus it with ergoline use interface, ethernet interface
Integrated spindle motor ism 76
Ac main drive rating: 25/34 kw (33. 51/45. 57 hp)
Y-axis travel: 100 mm
B-axis ±110° with pneumatic locking
Tool acceptance: hsk-63a (din 69893)
Tool magazine: disc type with 24 positions; optional 48-fold chain magazine with double gripper, max tool dia. 80 mm, max length 300 mm, max weight 8 kg
Automatic tailstock, hydraulic positionable, including rotary centre rest
5-axis simultaneous machining capability
In-process measuring device and tool pre-setting probe with laser measuring device
High flexibility with excentric turning and tooth system milling capabilities
Frequency 60 hz (optional)
Additional machine documentation on cd-romMachine still under power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The DMG MORI Gildemeister CTX 1250 TC is a versatile CNC lathe manufactured in 2012, designed for advanced turning and milling operations. It features a turning length of 1250 mm and a high-speed main spindle capable of reaching up to 5000 rpm. The machine is equipped with a 100 mm Y-axis travel and a B-axis with ±110° movement, allowing for complex 5-axis simultaneous machining tasks. The tool turret accommodates 24 tools, supporting a wide range of machining requirements.
This lathe is controlled via the Siemens SINUMERIK 840D Ergoline system, providing precise and flexible control options including ShopTurn or Heidenhain interfaces with ergonomic user interface and Ethernet connectivity. The machine uses HSK-63A tooling and supports an automatic hydraulic tailstock with rotary center rest, enhancing setup efficiency.
Additional features include a coolant pump delivering 6 bar pressure at 201 l/min, an external coolant system for both turning and milling spindles, and a hinged chip conveyor with a discharge height of 1200 mm for efficient chip removal. The machine is also prepared for integration with a workpiece handling robot (WH3) for front loading, supporting automation.
Visible components in the images show a well-maintained machine with a control panel featuring a joystick, a black coolant or hydraulic unit on the right side, and a yellow workbench nearby. The interior spindle and chuck are accessible via a front door, and the rear view reveals an exhaust and chip conveyor system with a large chip bin on wheels. Some wear marks are visible inside the lathe and on the chip bin, consistent with industrial use.
This machine is suitable for high-precision turn-mill machining with high flexibility for eccentric turning and gear system milling capabilities. It includes an in-process measuring device and a tool pre-setting probe with laser measuring technology, enhancing accuracy and productivity. The DMG MORI Gildemeister CTX 1250 TC offers robust performance for demanding manufacturing environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2064 |
| Last activity | Oct. 29, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
