Contact us to receive an offer.
| Manufacturer | DMG GILDEMISTER |
|---|---|
| Model | CTX 510 ECO |
| Year | 2011 |
| Location | Czech Republic
|

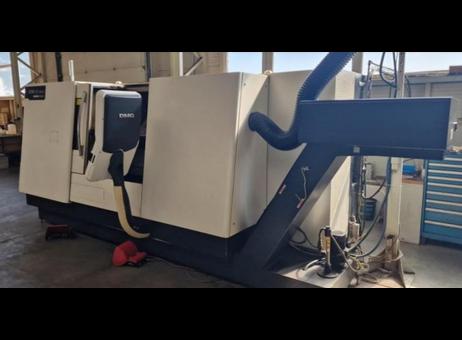

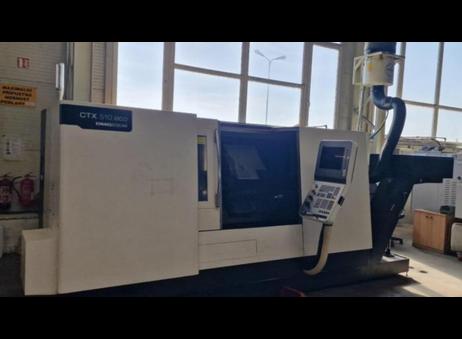

This listing features a DMG GILDEMISTER CTX 510 ECO CNC lathe, manufactured in 2011. The machine is designed for precision turning with a maximum turning diameter of 465 mm and a maximum passage diameter over the bed of 680 mm. It offers a travel of 300 mm on the X-axis and 1050 mm on the Z-axis, allowing for versatile machining capabilities. The spindle bore measures 76 mm, and the spindle motor provides a power output of 33 kW, enabling a maximum spindle speed of 3250 rpm. The lathe is equipped with a 3-jaw hydraulic chuck measuring 315 mm, suitable for securely holding workpieces during operation. The machine's dimensions are 5250 mm in length, 2300 mm in width, and 2000 mm in height, with a total weight of 8000 kg. It requires a 400 V power supply with an installed power of 50 kVA.

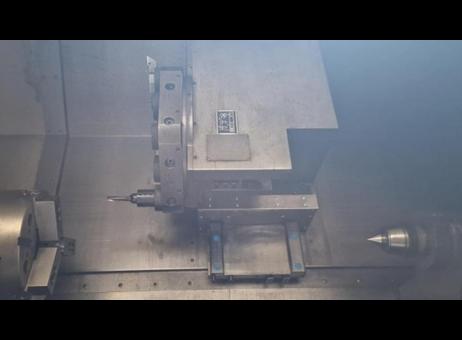

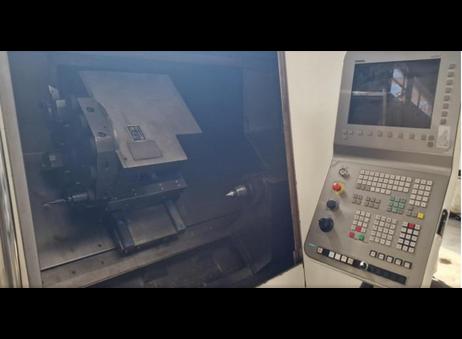

The machine includes several notable features such as a programmable tailstock, tool probing capabilities, and a chip conveyor system to efficiently manage machining debris. The control panel, positioned on the right side, includes a screen and various function buttons for user-friendly operation. The machining area is accessible via a large windowed door, providing good visibility and ease of access. Inside, there is a tool turret with multiple tool holders and a tailstock center on the right side, facilitating a range of machining tasks.

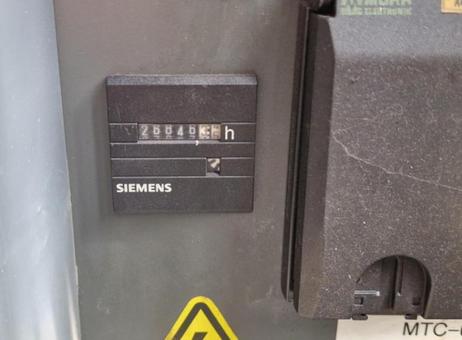

The lathe appears to be in a clean and well-maintained condition, with no visible damage to the machining area or control panel. The hour meter installed on the machine shows 26,846.3 hours of operation. Overall, this DMG GILDEMISTER CTX 510 ECO CNC lathe is a robust and capable machine suited for professional machining environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The machine is in good technical condition, after prior agreement it is possible to test it. - maximum turning diameter: 465 mm - maximum passage diameter: 680 mm - maximum passage diameter over the cross slide: 465 mm maximum cross-section width - feed in the X/Z axis: 300/1050 mm - 315 mm 3-jaw hydraulic chuck - maximum spindle speed: 3250 rpm. - spindle passage: 1.5 mm: 76 mm - spindle drive power (40%/100% DC): 33/22 kW - maximum spindle torque (40%/100% DC): 33.5 %: 630/420 Nm - maximum rotation speed of driven tools: 4000 rpm - Programmable tailstock, tool probing, chip conveyor, - S/No. 8045000336E (2011) - installed power: 50 kVA - power supply: 400 V; 50/60 Hz - dimensions (length x width x height): 5250 x 2300 x 2000mm, - machine weight: 8000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 65 |
| Last activity | Oct. 29, 2026 |
The machine is in good technical condition, after prior agreement it is possible to test it. - maximum turning diameter: 465 mm - maximum passage diameter: 680 mm - maximum passage diameter over the cross slide: 465 mm maximum cross-section width - feed in the X/Z axis: 300/1050 mm - 315 mm 3-jaw hydraulic chuck - maximum spindle speed: 3250 rpm. - spindle passage: 1.5 mm: 76 mm - spindle drive power (40%/100% DC): 33/22 kW - maximum spindle torque (40%/100% DC): 33.5 %: 630/420 Nm - maximum rotation speed of driven tools: 4000 rpm - Programmable tailstock, tool probing, chip conveyor, - S/No. 8045000336E (2011) - installed power: 50 kVA - power supply: 400 V; 50/60 Hz - dimensions (length x width x height): 5250 x 2300 x 2000mm, - machine weight: 8000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a DMG GILDEMISTER CTX 510 ECO CNC lathe, manufactured in 2011. The machine is designed for precision turning with a maximum turning diameter of 465 mm and a maximum passage diameter over the bed of 680 mm. It offers a travel of 300 mm on the X-axis and 1050 mm on the Z-axis, allowing for versatile machining capabilities. The spindle bore measures 76 mm, and the spindle motor provides a power output of 33 kW, enabling a maximum spindle speed of 3250 rpm. The lathe is equipped with a 3-jaw hydraulic chuck measuring 315 mm, suitable for securely holding workpieces during operation. The machine's dimensions are 5250 mm in length, 2300 mm in width, and 2000 mm in height, with a total weight of 8000 kg. It requires a 400 V power supply with an installed power of 50 kVA.
The machine includes several notable features such as a programmable tailstock, tool probing capabilities, and a chip conveyor system to efficiently manage machining debris. The control panel, positioned on the right side, includes a screen and various function buttons for user-friendly operation. The machining area is accessible via a large windowed door, providing good visibility and ease of access. Inside, there is a tool turret with multiple tool holders and a tailstock center on the right side, facilitating a range of machining tasks.
The lathe appears to be in a clean and well-maintained condition, with no visible damage to the machining area or control panel. The hour meter installed on the machine shows 26,846.3 hours of operation. Overall, this DMG GILDEMISTER CTX 510 ECO CNC lathe is a robust and capable machine suited for professional machining environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
