Contact us to receive an offer.
| Manufacturer | DMG DECKEL MAHO |
|---|---|
| Model | DMU 100T |
| Year | 2003 |
| Location | Lithuania
|

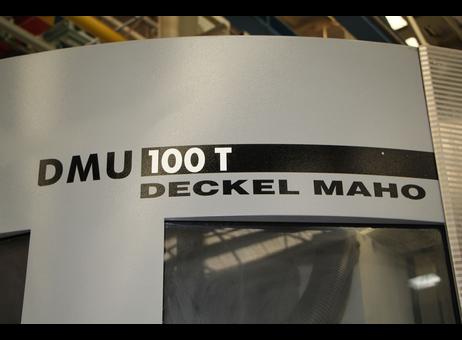

This DMG DECKEL MAHO DMU 100T vertical machining center, manufactured in 2003, is a robust 3+1-axis machine designed for versatile milling operations. It features a spindle motor with a maximum power output of 30 kW at 40% duty cycle and 20 kW at 100%, capable of reaching spindle speeds up to 10,000 rpm. The spindle uses an SK 40 tool taper and is equipped with a manual swivel milling head (B-axis) that offers a swivel range from -120° to +30°, with hydraulic clamping for secure positioning.
The machine's working envelope includes X and Y axes each with 710 mm travel, and a Z-axis travel of 1060 mm. The large worktable measures 1500 mm in length and 795 mm in width, with T-slots for flexible workpiece mounting and a maximum permissible load of 800 kg. A pick-up tool changer system with 32 magazine positions allows for efficient tool changes.

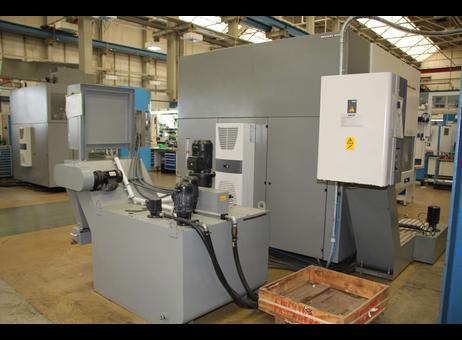

Control is managed via a Heidenhain iTNC 530 system featuring an electronic handwheel and a 4th operating mode dedicated to process monitoring in production. The machine is equipped with effective chip and coolant management systems, including a chip conveyor, internal cooling through the spindle center, a 600-liter coolant tank, and a chip flushing system integrated into the work door. Additional features include a flushing gun with pump, a cooling device for blown air through the spindle center selectable via M function, and a rotating viewing window for enhanced visibility during machining.

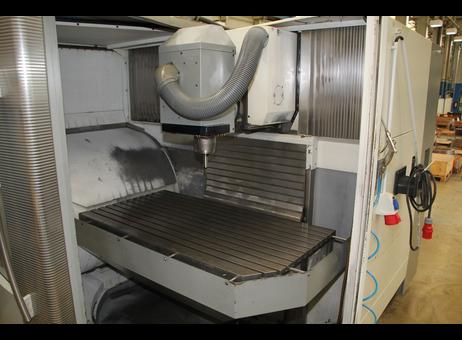

The machine weighs approximately 10,000 kg. Visible components include a large horizontal worktable with T-slots, a spindle head with an attached hose likely for chip extraction or cooling, and a protective accordion-style cover on the vertical axis. The interior shows signs of use with some dirt and wear marks, consistent with typical operational conditions.
Comprehensive documentation covering repairs, services, and manuals accompanies the machine, supporting maintenance and operation. This DMU 100T is suitable for demanding milling tasks requiring precision and flexibility in tool handling and axis movement.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3+1-axis DMG DECKEL MAHO 100T was manufactured in 2003.
It features a motor spindle speed of 10,000 rpm, a power of 20 / 30 kW, and a tool holder SK 40.
The machine includes a manual swivel milling head, a pick-up system with 32 magazine positions.
Fully working
Very good condition
Fully cleaned

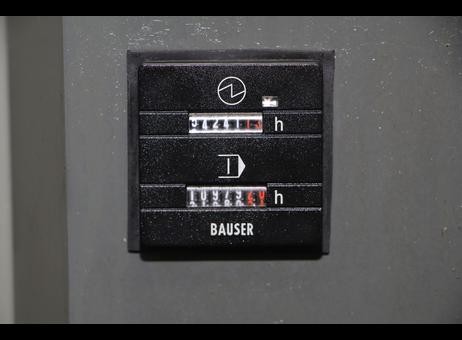

Low run time
Spindle speed range: 10000
Spindle motor power: 20 kW at 100%, 30 kW at 40%
Tool taper: SK 40
Number of axis: 3+1
X-Axis Movement: 710 mm
Y-Axis Movement: 710 mm
Z-Axis Movement: 1060 mm
B-Axis Swivel Range: -120° / +30°
Tool changer: pick-up system with 32 magazine positions, sk 40
Table: 1500 mm x 795 mm
Permissible Table Load: 800 kg
Additional Equipment
Milling Head: Manual swivel milling head (B-axis) with hydraulic clamping.

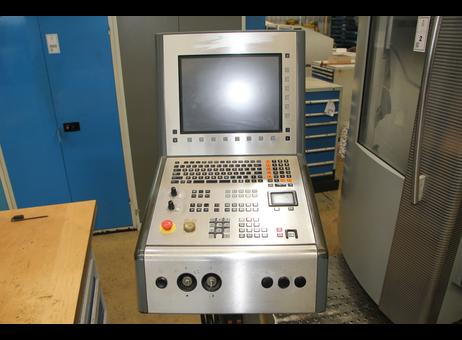

Control: Heidenhain iTNC 530 with electronic handwheel
Operating Mode 4: "Process Monitoring in Production"
Chip and Coolant Management:

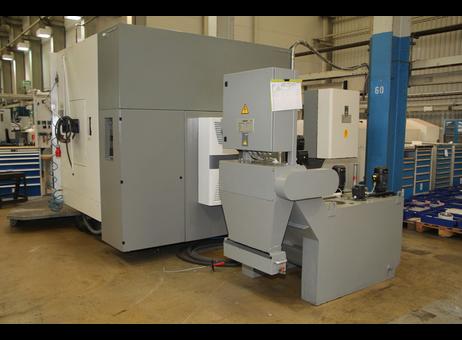

Chip Conveyor
Internal Cooling through Spindle Center (AD form)
Production Package:
40 bar / 23 l/min (theoretical pump capacity)
Tank: 600 l

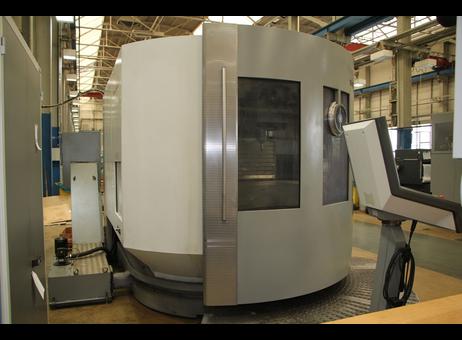

Rotating Viewing Window
Chip Flushing Integrated in Work Door
Flushing Gun with Pump: 1 bar / 40 l/min
Cooling Device for Blown Air through Spindle Center, Selectable via M Function
Full documentation (repairs / services / manuals)
