Contact us to receive an offer.
| Manufacturer | DEUTZ-AVK |
|---|---|
| Model | BA 12M 528 |
| Year | 1995 |
| Location | Italy
|
This listing is for a DEUTZ-AVK BA 12M 528 generator set manufactured in 1995. It features a robust diesel engine designed for continuous service, delivering a power output of 1340 kVA at 50 Hz and 400 volts with a 3-phase plus neutral configuration. The engine operates at a rated speed of 750 rpm and is a 4-stroke, direct injection diesel with turbo cooling. It has 12 cylinders arranged in a V configuration, with a bore and stroke of 226 x 280 mm, resulting in a total displacement of 135 liters. The engine’s power is rated at 990 kW, with a fuel consumption of approximately 205 grams per kWh. It uses water cooling and starts via compressed air.

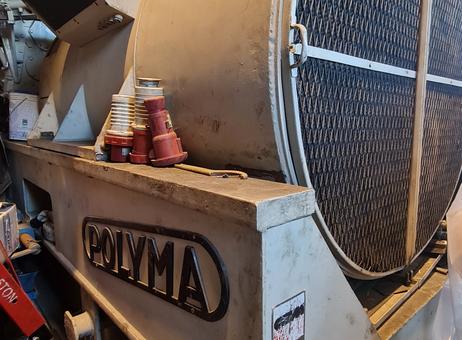

The generator is equipped with an AVK DIDB 140 synchronous generator rated at 1340 kVA, featuring 8 poles, 3 phases plus neutral, insulation class F, and a star connection. The protection rating is IP 22. The combined weight of the engine and generator is approximately 19,500 kg.

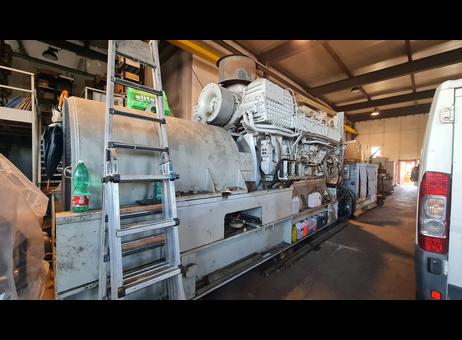

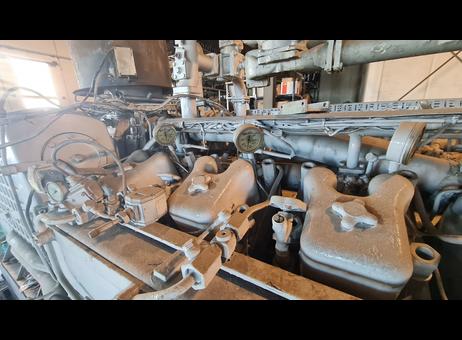

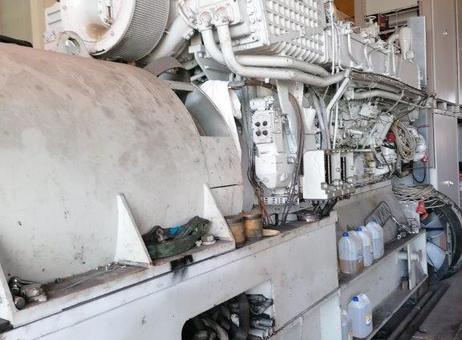

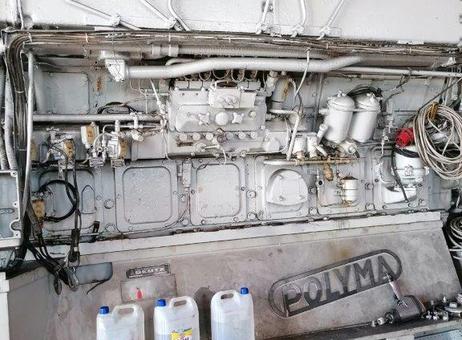

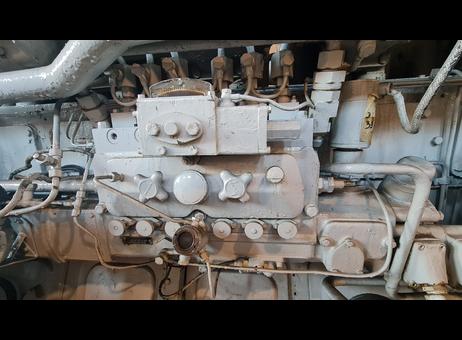

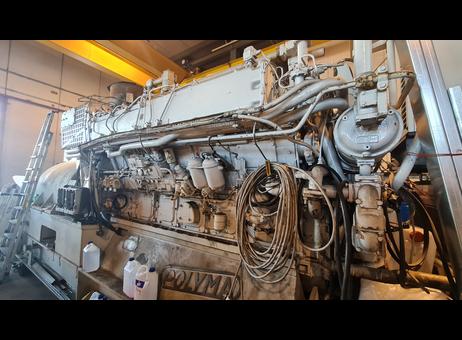

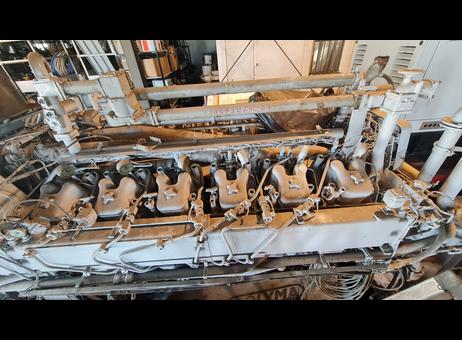

Visual inspection reveals the generator set is housed indoors in a warehouse or workshop environment. The engine and generator surfaces show signs of dirt, dust, and paint wear consistent with industrial use but no visible major damage. The unit includes visible components such as an air filter, exhaust system, fuel injection pump, and fuel lines. Several fluid containers and jerry cans are placed on the side shelves and base of the generator, indicating maintenance supplies are nearby. A control panel or electrical box is located at the rear of the generator set.
Overall, this DEUTZ-AVK BA 12M 528 generator set is a heavy-duty industrial machine suitable for continuous power generation, with visible signs of use but structurally intact.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Deutz-avk Ba 12m 528 Generator Set - 750 Rpm
Year 1995
Working Hours Approximately 14,500
Group Performance For Continuous Service :
1.340 Kva --- 50hz--- 400volt 3phase +n --- 750rpm
Deutz Ba 12m 528 Engine :
Diesel: 4 Stroke
Injection: Direct
Aspiration: Turbo Cooled
12v Cylinders
Bore X Stroke 226x280 Mm
Total Displacement 135 Lt
Power 990 Kw
Rated Speed 750 Rpm
Consumption 205 Gr/kwh
Aspirated Air Flow Rate 3980mc/h
Exhaust Gas Flow Rate 4800kg/h
Water Cooling
Compressed Air Start
Weight 13,000 Kg
Avk Didb 140 Synchronous Generator
Rated Power: 1.340 Kva
Poles 8
Phases 3+n
Insulation Class F
Star Connection
Protection Rating Ip 22
Weight 6,500 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 154 |
| Last activity | Oct. 28, 2026 |
Deutz-avk Ba 12m 528 Generator Set - 750 Rpm
Year 1995
Working Hours Approximately 14,500
Group Performance For Continuous Service :
1.340 Kva --- 50hz--- 400volt 3phase +n --- 750rpm
Deutz Ba 12m 528 Engine :
Diesel: 4 Stroke
Injection: Direct
Aspiration: Turbo Cooled
12v Cylinders
Bore X Stroke 226x280 Mm
Total Displacement 135 Lt
Power 990 Kw
Rated Speed 750 Rpm
Consumption 205 Gr/kwh
Aspirated Air Flow Rate 3980mc/h
Exhaust Gas Flow Rate 4800kg/h
Water Cooling
Compressed Air Start
Weight 13,000 Kg
Avk Didb 140 Synchronous Generator
Rated Power: 1.340 Kva
Poles 8
Phases 3+n
Insulation Class F
Star Connection
Protection Rating Ip 22
Weight 6,500 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a DEUTZ-AVK BA 12M 528 generator set manufactured in 1995. It features a robust diesel engine designed for continuous service, delivering a power output of 1340 kVA at 50 Hz and 400 volts with a 3-phase plus neutral configuration. The engine operates at a rated speed of 750 rpm and is a 4-stroke, direct injection diesel with turbo cooling. It has 12 cylinders arranged in a V configuration, with a bore and stroke of 226 x 280 mm, resulting in a total displacement of 135 liters. The engine’s power is rated at 990 kW, with a fuel consumption of approximately 205 grams per kWh. It uses water cooling and starts via compressed air.
The generator is equipped with an AVK DIDB 140 synchronous generator rated at 1340 kVA, featuring 8 poles, 3 phases plus neutral, insulation class F, and a star connection. The protection rating is IP 22. The combined weight of the engine and generator is approximately 19,500 kg.
Visual inspection reveals the generator set is housed indoors in a warehouse or workshop environment. The engine and generator surfaces show signs of dirt, dust, and paint wear consistent with industrial use but no visible major damage. The unit includes visible components such as an air filter, exhaust system, fuel injection pump, and fuel lines. Several fluid containers and jerry cans are placed on the side shelves and base of the generator, indicating maintenance supplies are nearby. A control panel or electrical box is located at the rear of the generator set.
Overall, this DEUTZ-AVK BA 12M 528 generator set is a heavy-duty industrial machine suitable for continuous power generation, with visible signs of use but structurally intact.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
