| Manufacturer | DENVER |
|---|---|
| Model | HL 960x5000 |
| Year | |
| Location | Italy
|

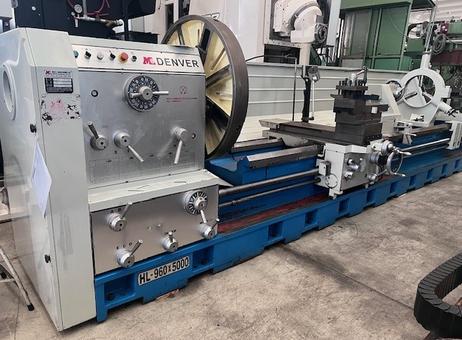

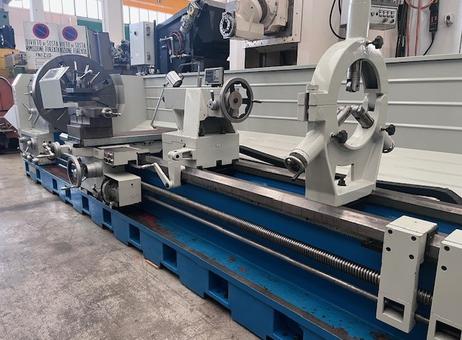

The DENVER HL 960x5000 is a heavy-duty industrial lathe designed for machining large workpieces. It features a robust bed with a length between centers of 5000 mm and an overall bed length of approximately 6950 mm. The lathe supports a maximum turning diameter of 960 mm above the bed and 650 mm above the transversing slide, with a diameter in the gap of 1390 mm. The center height from the floor to the spindle center is 1165 mm, providing ample clearance for sizable components. The bed width measures 610 mm, while the notch width is 400 mm, contributing to the machine's stability and versatility.

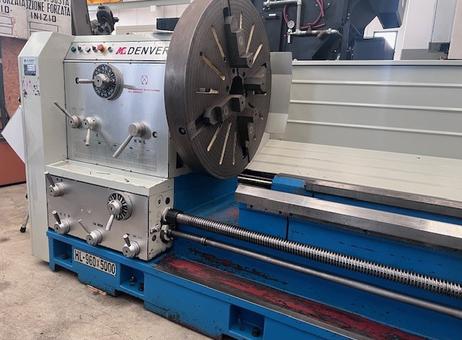

The spindle is equipped with a bar passage diameter of 155 mm and a spindle nose type A2-15. It offers two spindle speed ranges with a total of 16 speeds, reaching a maximum turning speed of 4420 rpm. The spindle motor delivers 15 kW (20 HP) of power. The lathe includes a 4-jaw chuck mounted on the spindle, suitable for securely holding various workpieces.

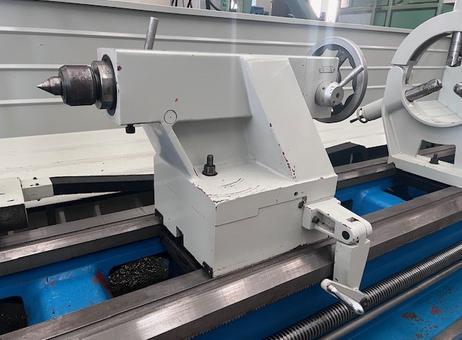

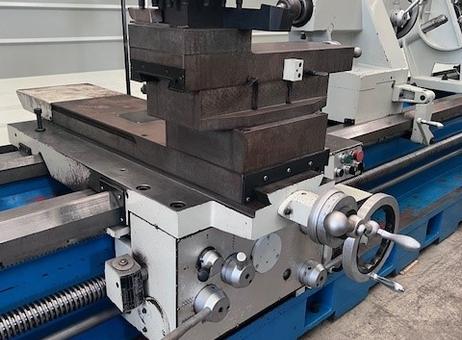

The carriage assembly is 800 mm wide, with a carriage stroke of 530 mm and a trolley stroke of 370 mm, allowing for precise tool movement. The tailstock features a quill diameter of 125 mm, a quill stroke of 300 mm, and a Morse taper 6 (MT 6) attachment for tooling.
This machine weighs approximately 11,000 kg and has overall dimensions of about 7150 mm in length, 2050 mm in width, and 1460 mm in height.

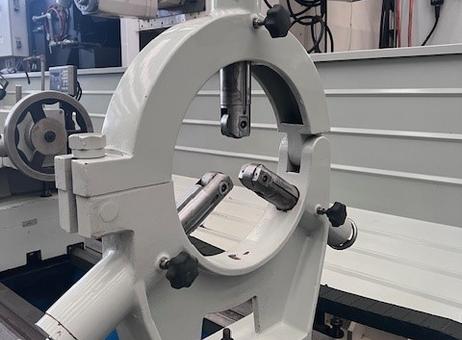

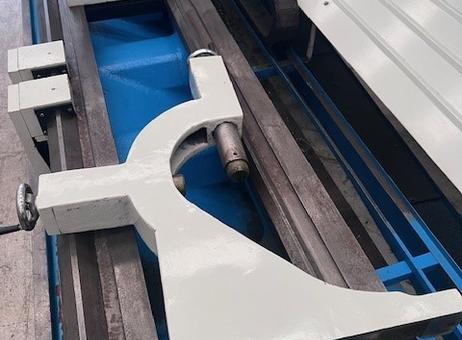

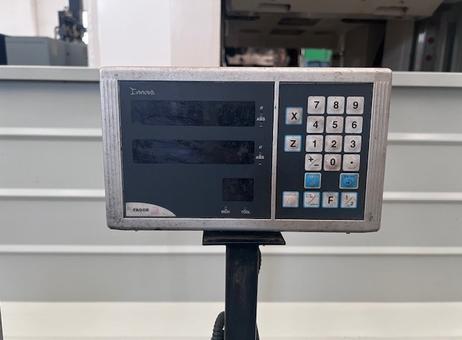

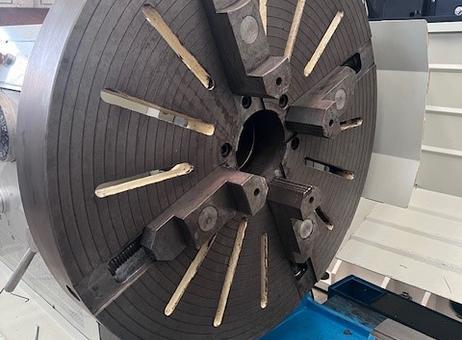

Included accessories are a platform with a 1000 mm diameter 4-jaw independent chuck, a fixed steady rest measuring 400 mm, and two moving steady rests each measuring 240 mm. A digital readout panel by Fagor with numeric keypad and function keys is also installed, enhancing operational precision.
The lathe appears clean and in good physical condition, with some surface rust noted on the base and bed. The steady rests are painted white and well-maintained, while the tailstock shows minor paint chips. The tool post and cross slide assembly exhibit signs of wear consistent with use but remain intact. Overall, the DENVER HL 960x5000 is a substantial and well-equipped lathe suitable for heavy-duty machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Rotating diameter on the bed mm 960
Rotating diameter on the trolley mm 650
Rotating diameter on the notch mm 1390
Distance between the centers mm 5000
Height from the floor to the center of the spindle mm 1165
Width of the bed mm 610
Width of the notch mm 400
Length of the bed mm 6950
SPINDLE:
Bar passage mm 155
Spindle nose A2-15
No. 2 spindle ranges, 16 speeds
Spindle speed rpm 4:420
Motor power HP 20 (kW 15)
CARRIAGE:
Width of the carriage mm 800
Carriage stroke mm 530
Trolley stroke mm 370
TAILSTOCK:
Quill diameter mm 125
Quill stroke mm 300
Quill attachment MT 6
MACHINE WEIGHT:
Net weight approx. Kg 11000
Overall dimensions approx. (LxWxH) mm 7150x2050x1460
COMPLETE WITH:
-Platform with 4 independent jaws diameter mm 1000
-Fixed steady rest mm 400
-Moving steady rest mm 240 -2
-axis dimension viewer
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
