Contact us to receive an offer.
| Manufacturer | DEMOOR |
|---|---|
| Model | 825-S360 |
| Year | 1977 |
| Location | Netherlands
|
| Category | Lathes - Parallel lathes (0 - 3000 mm) |
| Turning length | 2000 mm |
| Ø above the bed | 970 mm |
| Ø above transversing slide | 500 mm |
| Spindle nose | 6 mk |
| Spindle bore | 360 mm |
| Turning speed | 500 rpm |
| Spindle motor power | 22 kW |
| Overhauled | no |
| Tailstock | no |
| Steady | no |
| Length x width x height | 5500.0 × 1900.0 × 1900.0 |
| Weight | 10600 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Datasheet | Demoor 825-S360 |
| Last availability date | 04/08/2026 |
| Product id | P251108030 |
| Language |
струг DEMOOR 825-S360
Soustruh DEMOOR 825-S360
DEMOOR 825-S360 drejebænk
DEMOOR 825-S360 Drehmaschine
τόρνος DEMOOR 825-S360
DEMOOR 825-S360 lathe
Torno DEMOOR 825-S360
Tour DEMOOR 825-S360
tokarilica DEMOOR 825-S360
DEMOOR 825-S360 esztergapad
Tornio DEMOOR 825-S360
tekinimo staklės DEMOOR 825-S360
DEMOOR 825-S360 draaibank
Tokarka DEMOOR 825-S360
torno DEMOOR 825-S360
strung DEMOOR 825-S360
DEMOOR 825-S360 Токарный станок
strug DEMOOR 825-S360
DEMOOR 825-S360 svarv
Torna DEMOOR 825-S360
|
This DEMOOR 825-S360 lathe, manufactured in 1977, is a large industrial machine designed for heavy-duty turning tasks. It measures 5500 mm in length, 1900 mm in width, and 1900 mm in height, with a substantial weight of 10,600 kg, indicating a robust and stable construction suitable for precise machining operations.
The lathe offers a turning length of 2000 mm, allowing for the machining of long workpieces. It features a swing over bed diameter of 970 mm and a swing over the cross slide diameter of 500 mm, providing ample capacity for large diameter parts. The spindle bore measures 360 mm, accommodating sizable bar stock or tooling.
Powered by a 22 kW spindle motor, the lathe achieves a maximum turning speed of 500 rpm, with speed ranges from 28 to 500 rpm, offering versatility for different materials and machining requirements. The spindle taper is 6 Mk, and the stroke of the pinole is 360 mm. Feed rates are 4000 mm/min on the X-axis and 2000 mm/min on the Z-axis, facilitating efficient material removal.

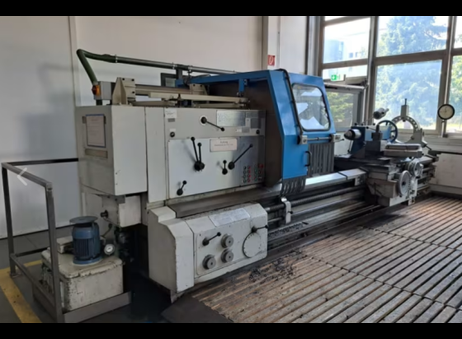

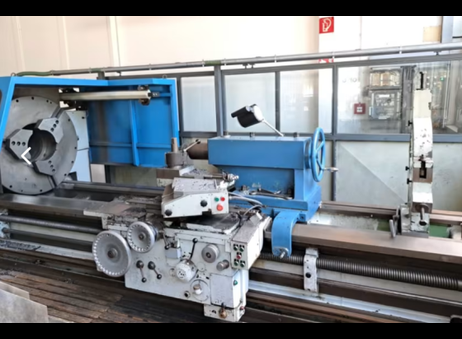

The machine is painted in blue and white and includes a protective enclosure with a window on the right side to enhance operator safety. The control panel, located on the front side, is equipped with multiple buttons and levers for operational control, and an additional control panel with labels and a handle is present on the left side. A carriage with hand wheels and control levers enables manual operation, while the tailstock with a hand wheel is positioned on the right side.

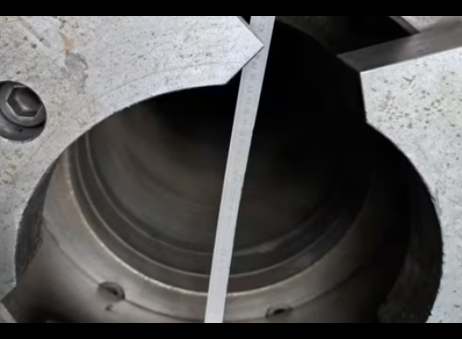

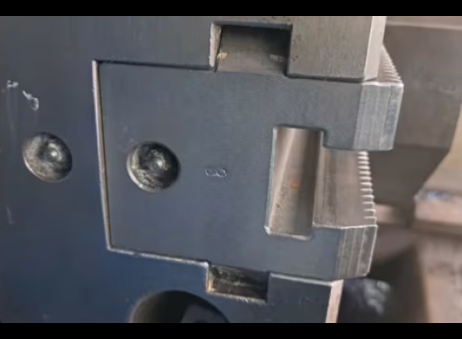

The lathe bed features a visible lead screw along its length, contributing to precise carriage movement. The chuck has large jaws with serrated gripping surfaces designed to hold workpieces securely; these jaws show minor wear but no visible damage. The internal surface of the chuck is clean with concentric machining marks, indicating maintenance of key gripping components.

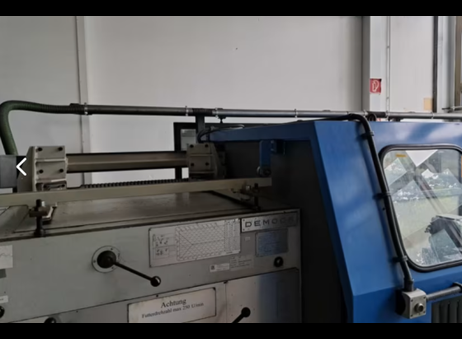

An electric motor is mounted at the rear left side of the machine, and the overall condition of the lathe is used but good, with signs of use and some dirt on the floor. Warning labels are present on the machine, including one in German specifying a maximum fill level of 250 liters.
This DEMOOR lathe is suitable for industrial applications requiring substantial turning capacity and power, equipped with standard safety and operational features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DBC Turning Length
2000 mm
Swing over bed Ø
970 mm
Swing over cross slide Ø
500 mm
Spindle bore
360 mm
Spindle power
22 kW
Stroke pinole
360 mm
Spindle taper
6 Mk
Speeds / ranges
28-500 Rpm
Feed rate X-Axis
4000 mm/min.
Feed rate Z-Axis
2000 mm/min.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
