| Manufacturer | DELTA |
|---|---|
| Model | SYNTHESIS 800X500 DIASTEP |
| Year | 1998 |
| Location | Italy
|
Overview

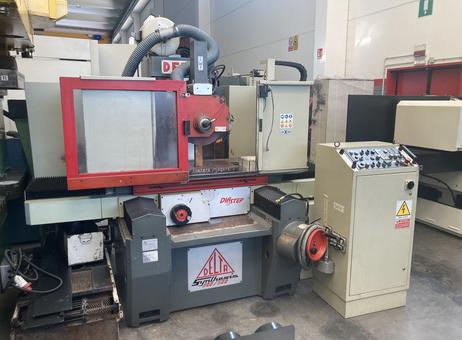

This listing is for a DELTA SYNTHESIS 800X500 DIASTEP circumferential grinding machine (category: Grinding / Surface grinding machines). Capacity is specified as 800 x 500 mm (31.50 x 19.69 in). Year of manufacture is listed as 1998 (CE). The machine is described as available and ready in warehouse.
Key specifications
- Work envelope / travel:
- Longitudinal (X): 800 mm (31.50 in)
- Table traverse (Y): 700 mm (27.56 in)
- Column traverse (Y): 500 mm (19.69 in)
- Vertical (Z): 400 mm (15.75 in)
- Table
- Rotation speed: 1450 rpm
- Translation speed: 1–38 (as listed)

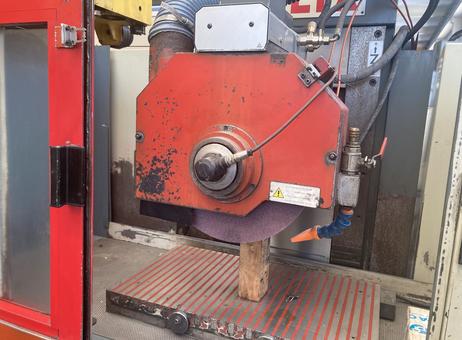

- Spindle / wheel
- Spindle power: 8 kW
- Spindle rotation speed: 1450 rpm
- Wheel band thickness: 50 mm (1.97 in)
- Maximum wheel diameter: 400 mm (15.75 in)
- Wheel bore diameter: 127 mm (5.00 in)
Additional information and accessories
- Total machine weight: 4000 kg
- Filtration system: yes (cartridge filter)
- Automatic dresser: yes
- Enclosure: yes
- CE certification: yes
- Included accessories: electronic magnetic table; electronic wheel balancer
- Documentation: operation and maintenance manuals and electrical diagrams are listed as available
- Machine dimensions (L x W x H): 3000 x 2900 x 2300 mm (118.11 x 114.17 x 90.55 in)
Notes
The specifications above are taken from the provided product information. It is recommended to verify dimensions, capacities and included accessories and to inspect the machine or request confirmation of details prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
WORK FIELD
Table traverse (Y)
700 mm27.56 in
Column traverse (Y)
500 mm19.69 in
Longitudinal (X)
800 mm31.50 in
Vertical (Z)
400 mm15.75 in
TABLE
Rotation speed
1450 Rpm
Translation speed
1-38
SPINDLE WHEEL
Spindle power
8 Kw
Rotation speed
1450 Rpm
WHEEL
Wheel band thickness
50 mm1.97 in
Max wheel diameter
400 mm15.75 in
Bore diameter
127 mm5.00 in
EXTRA
Total machine weight
4000 Kg
Filtration system
yes cartridge filter
Automatic dresser
Yes
CE Certification
Yes
Enclosure
yes
Operation and maintenance manuals
Yes
Electrical diagrams
Yes
Available in warehouse
yes
Availability
ready
Included accessories
electronic magnetic table - ELECTRONIC WHEEL BALANCER
Machine dimensions
3000x2900x2300 mm118.11x114.17x90.55 in
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
